Are these 2 the same???
Thread Starter
Member
Joined: Jun 2003
Posts: 119
Likes: 0
From: PURDUE
Car: 94 Camaro
Engine: 383 Stroker
Transmission: T-56
Axle/Gears: 3.73
Are these 2 the same???

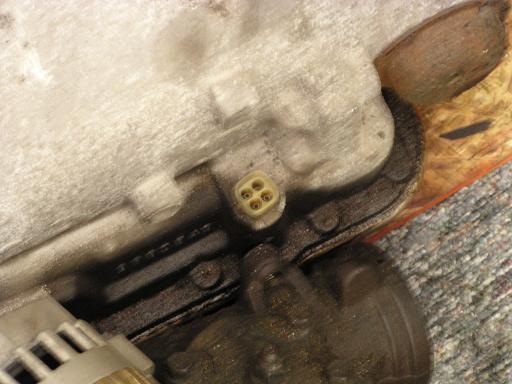

Im swapping my old 700R4 out for a TH350 and I have a question. Are these two connectors the same? The top picture is from a TH350 long tailshaft tranny. And the one on the second post is from my old 700R4. What is this for/what does it do? Will the connector for my old 700R4 connect right into the one for the TH350 and work fine?
