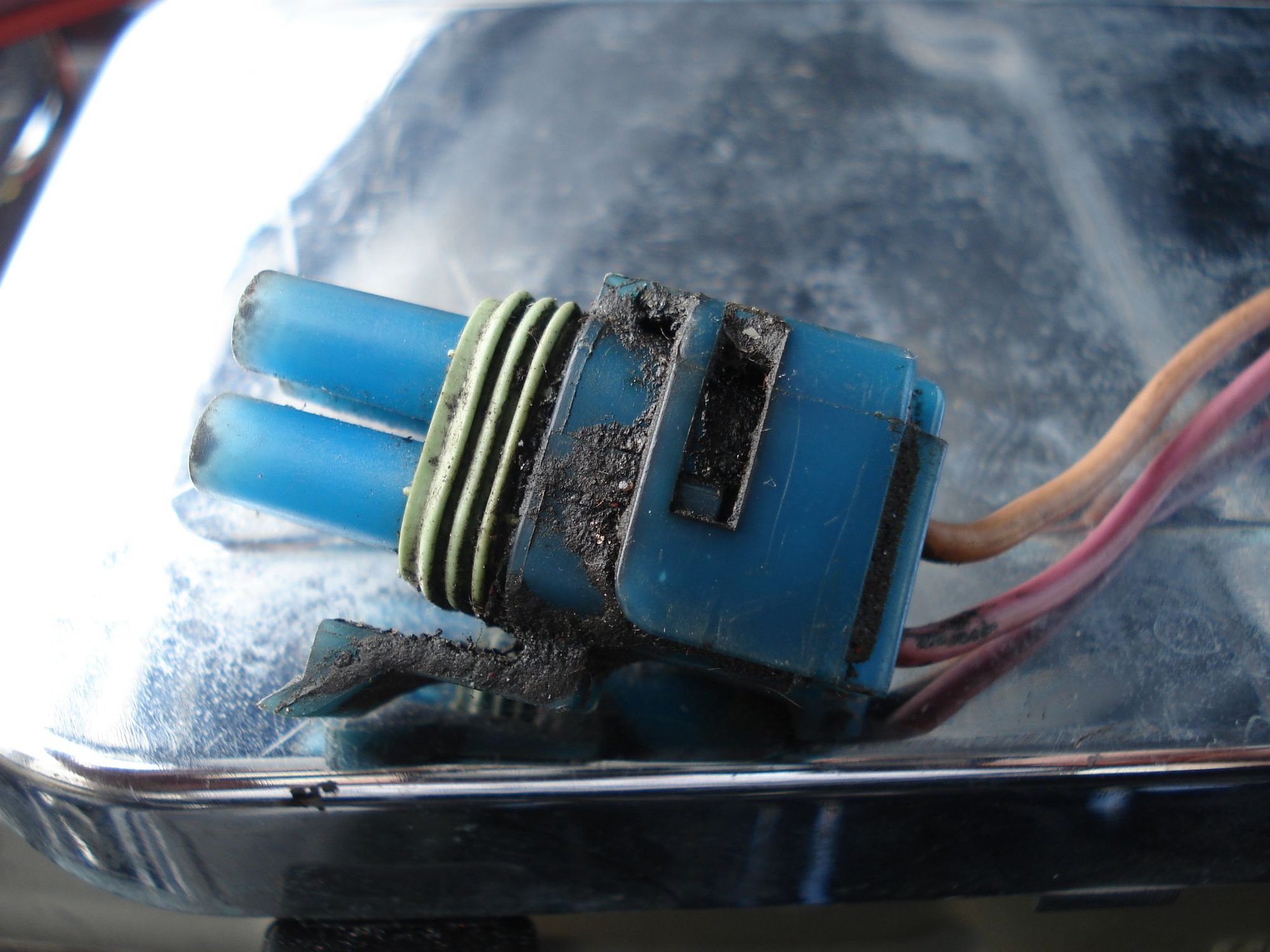

Hello Guy's I have just rewired all the charging and starter wiring and some of the older looking wiring, just to be sure the Old girl will keep going as she should. How ever I have a plug that I didn't tag or the tag came off ? Can you Guy's help me out and let me know what it is for and where it go's or should go ? PLEASE





wiring plug that has no home and I can't find one for it ? Could it be the old trans starter plug ?

Bob88GTA

iTrader: (2)

what vicinity is that in? Color wires??

jmd

iTrader: (4)

Weatherpak 2 x 2 is a TCC wiring connector, at least on 700-R4.
I believe the TH200-C in 1982 used the same connector.

Gambit TA

It is in the trans tunnel and the wire's are Brown and Red.

Gambit TA

It is a 1982 200-C or it was anyhow. what is a TCC wiring connector for ?

Gambit TA

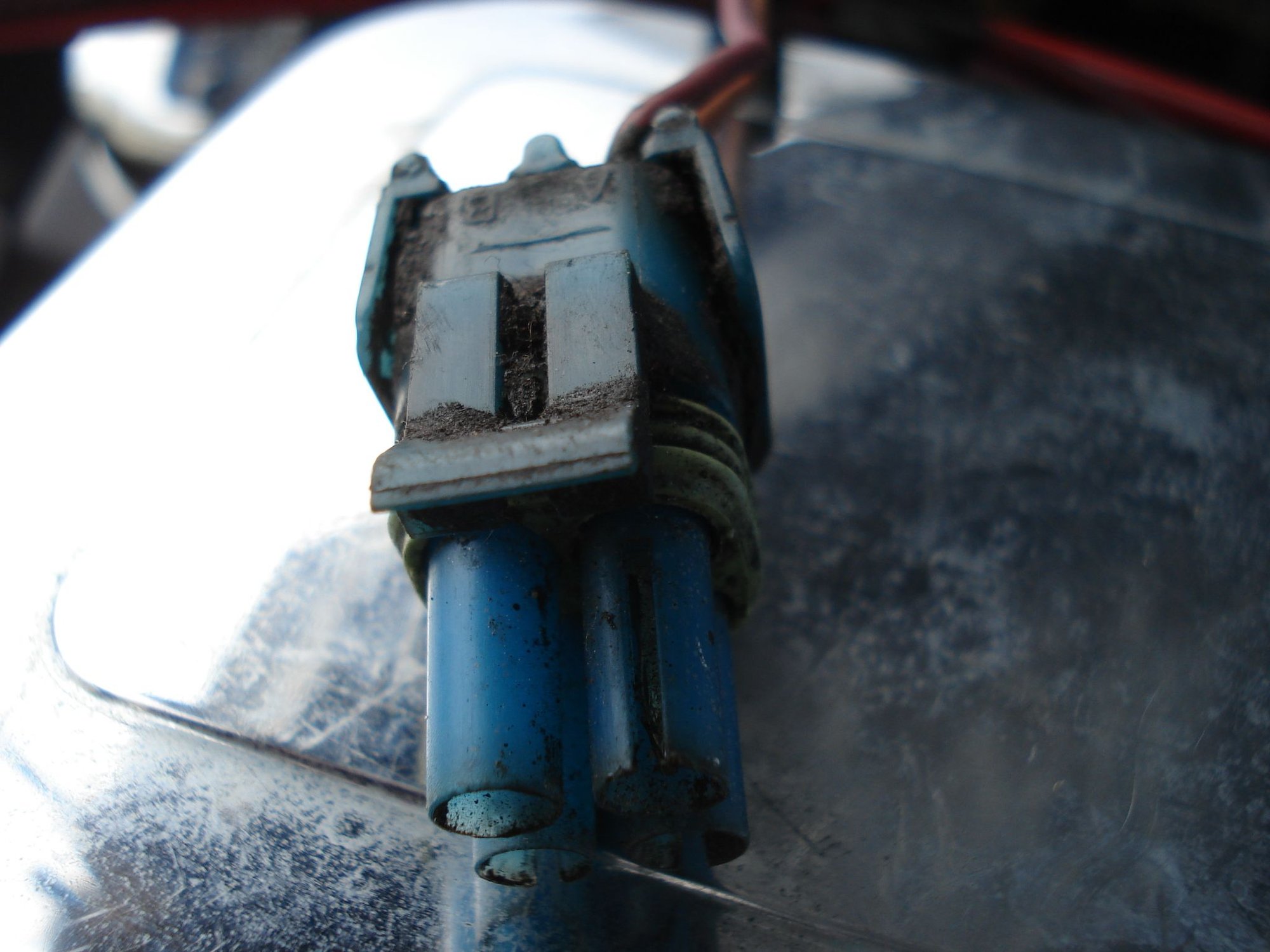

This is another pic of the same plug.

jmd

iTrader: (4)

The wiring allows the ecm to monitor pressure switches and control torque converter lockup.

Gambit TA

Thank you for that, I don't have any of that any more. So could you tell me where I may find the trans Start inhibitor switch wiring or what colour they are ?. I have NO crank off the key and the starter trigger wire is dead on the meter too many Thanks Paul.

RBob

iTrader: (1)

My guess is that the switch assembly was mounted to the shifter mount framework. This switch also provides for backup lights and a P/N input to the ECM. As for the P/N input, leave it open for always in drive.

Look for two heavy gauge purple wires in the console area for the P/N safety switch connector.

RBob.

Gambit TA

Thank you RBob, I have a Big Purple wire that was going to a black plug that also has a Big Yellow wire and smaller blue wire,green wire,orange/black trace and black/white trace wire too. Could you tell me what they are all for ?. I thought that the Green wire and Blue wire was the back up lights but I am not 100% sure on any of them . if you can help it would be great, as I would really like to get the old girl running by snow fall hehe Thanks PAUL
