#3 carrier, is this one?

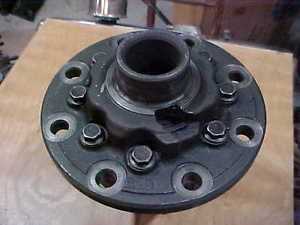

I have a carrier available to me for my 9 bolt 89 IROC.
Does this look like a #3 to you folks?
Can anyone tell me what the photo with the tape measure is about?
Thanks
GT
Does this look like a #3 to you folks?
Can anyone tell me what the photo with the tape measure is about?
Thanks
GT
#2
Re: #3 carrier, is this one?
Kind of looks like a 2 series to me, but it's been a while since I had one. The pic with the tape measure is showing you if it's a 2 or 3 series. The only difference between them is the location of the ring gear flange.
#4
Junior Member
Thread Starter
Join Date: Apr 2015
Location: Narnia
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC
Engine: L98 5.7
Transmission: 700R4
Axle/Gears: Borg-Warner 3.45
Re: #3 carrier, is this one?
Pardon my lack of knowledge - I don't understand the step down.
#5
Re: #3 carrier, is this one?
That is where the ring gear flange is offset for the 3 series gears. If you took the cover off of an assembled rear end and looks at the differential the ring gear flange would be on the left side. A 2 series has the flange offset more to the left than a 3 series. The reason is because a 2.77 gear has a larger pinion head than a 3.27, 3.45 or 3.70 gear. The larger pinion head requires the ring gear to be offset more to make room for the pinion gear. The 3.27 pinion head is smaller, and as you work toward the 3.70 gear the head gets even smaller. A 3.27 gear has a thinner ring gear than a 3.70 because of this. Instead of making a different series of differential for every gear ratio they just use 2 or 3 different ones and then tune it with the ring gear thickness. The Chevy car and truck 12 bolt have 2,3 and 4 series differentials. Most others only have a 2 and a 3. Ford only uses one differential in the 7.5, 8.8 and 9 inch for all of their gear ratios, but they have some very thick ring gears when you get into the 5.xx and 6.xx range.
