I have I believe Ford Probe or Focus or something similar window switches for my 4th Gen console and the schematic I got is not the same. I tried wiring the switch to the wires for the 3rd Gen window and no luck but alot of heat on the wires.

Here is the wiring on the three switches I have:

1. an oblong switch with U and L markings; 1-yellow/green pin
1, 2-purple/yellow pin 5, 2-orange/black pin 2, 1 black pin 4, 2-
white/green pin 7

2. an oblong switch with U and L markings: 1-yellow pin 1,
1 orange/yellow pin 2 also 1-orange/purple pin 2, 1black pin
4, 1-orange/purple pin 5, 1-white pin 7 also 1- white/blue pin 7

3. an oblong switch with arrows pointing up and down; 1-
white/purple pin 1, 1-purple/white pin 2, 1-yellow/purple pin
3, 1-black pin 4, 1-orange/black pin 5, 1-white/purple pin 6,
1-yellow purple pin 7

The wiring gauges on the first 2 are the same I am guessing 14 and 16, the 3rd is 16 and 18.

Thanks for any help you can supply.

Jim



Ford switches, on your 4th console, hooked up to your 3rd gen wiring
this is only 1/3 thirdgen related, i refuse to help :P
besides post this in the electronics forum



#3 sounds like the pwr switch wiring from a furd contour which is what I have in my 4thgen console..

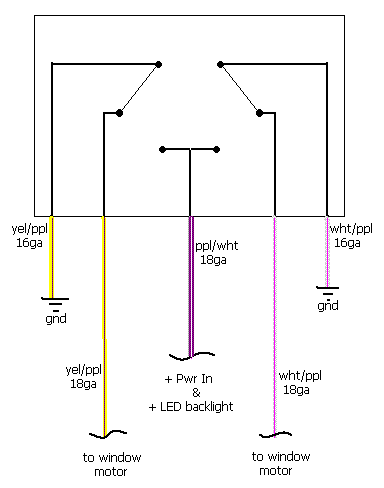

After destroying one of the 3 I bought.. this is how I wired mine. You can reverse where the + & - pwr in go but, the LED backlight won't work. The rear switches though, have 2 small 22-24ga wires seperate for the LED so you can wire them independant of how you wire the switch.
