Dimensions for well sub box
Junior Member
Joined: Sep 2011
Posts: 5
Likes: 0
Car: A 84 Chevrolet Camaro Z28 soon
Engine: 305
Member
Joined: Feb 2011
Posts: 175
Likes: 1
From: West Michigan
Car: 1989 Formula Firebird
Engine: Swapped 350 TPI speed density
Transmission: 700R4
Axle/Gears: 2.73 (soon to be 3.42)
Re: Dimensions for well sub box
can you pm me the drawings or wherever you got the dimensions
Member
iTrader: (1)
Joined: Nov 2011
Posts: 402
Likes: 0
From: Holland, MI
Car: 1982 Firebird
Engine: 2.8 N/A
Transmission: Manual 4 Speed
Re: Dimensions for well sub box
Does anyone have actual dimensions that work? So far i just see a lot of talk about how dimensions given by a few people in this thread dont work. Also, does anyone build these for people on here? Thanks
Joined: May 2009
Posts: 4,915
Likes: 40
From: Far West
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Dimensions for well sub box
Its a shot in the dark really. Just go over all the posts and choose the one that includes the 3/4 thickness of the MDF. the added 3/4 thickness will be a good shot because the thickness is added to the measurements.
Joined: Jun 2007
Posts: 764
Likes: 1
From: www.nythirdgen.com
Car: 1987 IROC-Z
Engine: 350 TPI
Transmission: 700R Auto
Re: Dimensions for well sub box
One of the members Darren emailed me the attached pdf plans for a sub box a few years ago. These work perfect
Joined: May 2009
Posts: 4,915
Likes: 40
From: Far West
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Joined: May 2009
Posts: 4,915
Likes: 40
From: Far West
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Dimensions for well sub box
Duh. Never mind. Just opened up the PDF file. Oops.
Supreme Member
iTrader: (4)
Joined: Mar 2009
Posts: 3,079
Likes: 4
From: Pepperell, MA
Car: 1987 Trans Am
Engine: LQ9/L92
Transmission: 4L60E
Re: Dimensions for well sub box
also found another layout i grabbed from this site years ago, may be helpful to some others
Junior Member
Joined: Feb 2012
Posts: 15
Likes: 0
Re: Dimensions for well sub box
hey guys for the longest time when i first came to this site i wondered the measurements of the boxes that people put in the well area. well i got one and now im posting up what i got. its mad out of 3/4 inch MDF so each side view measurement includes the thickness of 1 1/2 inch of mdf (front and rear panels 3/4 + 3/4 = 1 1/2)
Junior Member
Joined: Feb 2012
Posts: 15
Likes: 0
Re: Dimensions for well sub box
I know this is an old thread but i thought i should bring it to attention that the bottom dimension is incorrect. it says 28 1/8" but should actually be 26 1/8".
Junior Member
Joined: Feb 2012
Posts: 15
Likes: 0
Re: Dimensions for well sub box
another thing i noticed is that these directions say the very bottom piece should be 10". is this right or should it be 8 3/4?
Junior Member
Joined: Feb 2012
Posts: 15
Likes: 0
Re: Dimensions for well sub box
Ok... a little longer than 24 hours, but here goes...
A - Top measure 39 1/2"
Bottom 26 1/8"
Outside indented cuts 9" x 5 3/8" on driver side and 9" x 7 7/8" on pass
B - 26 1/8" x 8 3/4"
C - Top measure 39 1/2"
Bottom 26 1/8"
Outside indented cuts 7 1/2" x 5 3/8" on driver side and 7 1/2" x 7 7/8" on pass
Center indented cut 7 1/2" x 15 1/4" (almost 100% positive this is centered at the top)
D, G - Outside 10 1/4"
Inside 8 3/4"
Bottom 8 3/4"
Top: Connect the outside and inside edges
E - 6 1/4" x 10 1/4"
H - 10 1/4" x 8 5/8"
F, I - Outside (I forgot this measurement) Measure to fit your box
Inside 10 1/4"
Bottom 8 1/2"
Top: Connect the outside and inside edges
J - 16 3/4" x 7 1/2"
K - 15 1/4" x 3"
L, M - 7 1/2" x 3"
False floor - Seat side 44"
Tails Side 42 1/2"
Width 34"
A couple of things to be aware of...
FIRST, ALL measurements may need adjusted for your car. But these are pretty exact to the pieces in my setup here: https://www.thirdgen.org/forums/car-...etup-look.html
SECOND, the 16* angle shown in the PDF is dead on.
THIRD, you will have to add some kind of support braces for the false floor close to the seats.
FOURTH, I used 3/4" mdf for everything BUT the B and J panels. They are 1/2" in my setup. This affects the setup's measurements.
Any questions, feel free to ask. Happy building!
A - Top measure 39 1/2"
Bottom 26 1/8"
Outside indented cuts 9" x 5 3/8" on driver side and 9" x 7 7/8" on pass
B - 26 1/8" x 8 3/4"
C - Top measure 39 1/2"
Bottom 26 1/8"
Outside indented cuts 7 1/2" x 5 3/8" on driver side and 7 1/2" x 7 7/8" on pass
Center indented cut 7 1/2" x 15 1/4" (almost 100% positive this is centered at the top)
D, G - Outside 10 1/4"
Inside 8 3/4"
Bottom 8 3/4"
Top: Connect the outside and inside edges
E - 6 1/4" x 10 1/4"
H - 10 1/4" x 8 5/8"
F, I - Outside (I forgot this measurement) Measure to fit your box
Inside 10 1/4"
Bottom 8 1/2"
Top: Connect the outside and inside edges
J - 16 3/4" x 7 1/2"
K - 15 1/4" x 3"
L, M - 7 1/2" x 3"
False floor - Seat side 44"
Tails Side 42 1/2"
Width 34"
A couple of things to be aware of...
FIRST, ALL measurements may need adjusted for your car. But these are pretty exact to the pieces in my setup here: https://www.thirdgen.org/forums/car-...etup-look.html
SECOND, the 16* angle shown in the PDF is dead on.
THIRD, you will have to add some kind of support braces for the false floor close to the seats.
FOURTH, I used 3/4" mdf for everything BUT the B and J panels. They are 1/2" in my setup. This affects the setup's measurements.
Any questions, feel free to ask. Happy building!
for piece "A", what is the total height of the piece? from the bottom to the top? and does piece "B" (the very bottom) go inbetween "A" and "C" or under "A" and "C"?
Junior Member
Joined: May 2012
Posts: 32
Likes: 0
From: Canada, Alberta
Car: 91' Camaro RS T-top
Engine: 3.1 V6
Transmission: Auto
Re: Dimensions for well sub box
Well. My old subbox sucks.. The person owning the car before did not do a very good job. So im building a new one. being a autobody worker. I'm deciding to do a MDF bottom but have a fibre glass top, and mount my amp in the middle in a enclosed area with plexiglass. bass syncing lights. and a small 12v fan pulling air to help with the cooling. Sorry for my horrible paint skills. I'm a lot better at photoshopping real pixels.
I want the tops to have a real awesome, car color match like this fibreglass build
I want the tops to have a real awesome, car color match like this fibreglass build
Joined: May 2009
Posts: 4,915
Likes: 40
From: Far West
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Dimensions for well sub box
I found a PDF File that has all the deminsions for a sub box. I'll post it up in a bit.
Joined: May 2009
Posts: 4,915
Likes: 40
From: Far West
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Dimensions for well sub box
Nevermind. My probation status doesnt let me post up a pdf file.
Member
Joined: Jul 2009
Posts: 138
Likes: 0
From: Northeast Ohio
Car: 87 IROC Z-28
Engine: 5.0L 305 TPI V8
Transmission: 700R4
Axle/Gears: 3.23
Re: Dimensions for well sub box

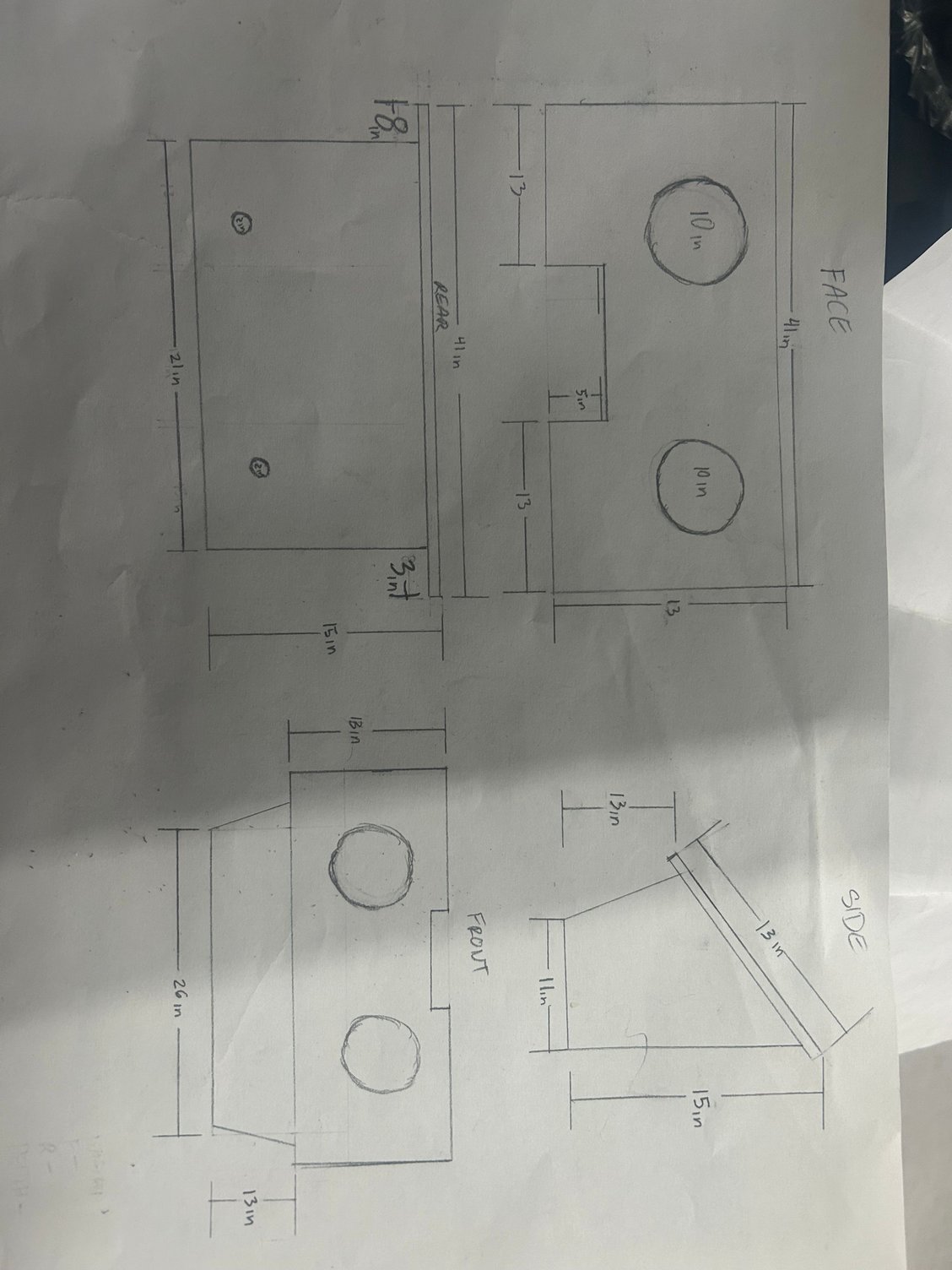

Set my first box up a little bit differently, but same basics apply.
Attaching the CAD pdf in case someone wants it.
BOX ASSEMBLY.pdf
Attaching the CAD pdf in case someone wants it.
BOX ASSEMBLY.pdf
Joined: May 2009
Posts: 4,915
Likes: 40
From: Far West
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Dimensions for well sub box
Set my first box up a little bit differently, but same basics apply.
Attaching the CAD pdf in case someone wants it.
Attachment 243047
Attaching the CAD pdf in case someone wants it.
Attachment 243047
Member
Joined: Jul 2009
Posts: 138
Likes: 0
From: Northeast Ohio
Car: 87 IROC Z-28
Engine: 5.0L 305 TPI V8
Transmission: 700R4
Axle/Gears: 3.23
Re: Dimensions for well sub box
Thanks, I made it. I've pretty much made all of my 'custom' projects in Inventor prior to actually making them. It's a little bit more work, but I'll find out if there will be any fitment issues or design issues before I find out the hard way.
Junior Member
Joined: Jun 2012
Posts: 4
Likes: 0
Car: 87 IROC Z
Engine: 383 Stroker
Transmission: 700r4
Re: Dimensions for well sub box
I just used the deminsions frm the top post & they worked really great for me. I would post pictures of my build but dont know how 2
Junior Member
Joined: Nov 2012
Posts: 17
Likes: 0
Re: Dimensions for well sub box
I built several of these back around 2002. As I remember, there was a slight variance around the trunk latch on the rear panel. I think cars with power trunk motors may have a slightly wider panel in that area so make sure to measure your particular vehicle before cutting. I did a few variations as well like three 10's and one for four 15's that put two in a box of this style shareing airspace with the other two that sat behind the rear seat facing the rear glass. I've even seen one with the rear seat removed and walled up.
Junior Member
Joined: May 2012
Posts: 25
Likes: 0
Re: Dimensions for well sub box
so i know this is an older thread but im almost done building my box according to that pdf file and im noticing that there is not much depth in them at all. what are u guys running in them for 12's?
Junior Member
Joined: Apr 2011
Posts: 22
Likes: 0
Re: Dimensions for well sub box
What are you trying to run?
I was disappointed when I wasn't able to run the 12's I wanted but there was no room short about 2in in different areas. So I went with tens so it could maximize sound
I have a convertible so I had no choice but to leave amp underneath so had to consider that space. I looked at specs but was not sure on actual measurements so I did my on and just used picture to have an idea what it might look like.
You can also email me at hinlook@aol.com
I was disappointed when I wasn't able to run the 12's I wanted but there was no room short about 2in in different areas. So I went with tens so it could maximize sound
I have a convertible so I had no choice but to leave amp underneath so had to consider that space. I looked at specs but was not sure on actual measurements so I did my on and just used picture to have an idea what it might look like.
You can also email me at hinlook@aol.com
Junior Member
Joined: Apr 2011
Posts: 22
Likes: 0
Re: Dimensions for well sub box
Shallow would definetly fit. What exactly is the problem u ran into?
I spent a pretty good amount of time doing my system but I had to customize a lot of things. The customizing wasn't the big issue with me but trying to still look stock or closer to it was my issue. Although some things are custom they are not extremely custom at least to the look. I even tried using some q logic kick panels. What a mistake a big waist of money. It looked very sloppy unless you like micke mouse stuff stay away from it
But if u have any questions let me know
I spent a pretty good amount of time doing my system but I had to customize a lot of things. The customizing wasn't the big issue with me but trying to still look stock or closer to it was my issue. Although some things are custom they are not extremely custom at least to the look. I even tried using some q logic kick panels. What a mistake a big waist of money. It looked very sloppy unless you like micke mouse stuff stay away from it
But if u have any questions let me know
Joined: May 2009
Posts: 4,915
Likes: 40
From: Far West
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Re: Dimensions for well sub box
I'm running 2 - 12" MA Audio subs. I was thinking if customizing a amp mount in the tire well but there is no ventilation in there. So I just slapped on some Velcro under the amp and placed it in the "hump." Mine was prefab though. It's not a for sure fit as the pull down hinge hump doesn't allow the box to sit all the way down. So it has an appearance of slanting forward. It looks nice like that. But I also hate it because the back end of the top plate covers the loops to attach the t-top.
Member
Joined: Jul 2009
Posts: 138
Likes: 0
From: Northeast Ohio
Car: 87 IROC Z-28
Engine: 5.0L 305 TPI V8
Transmission: 700R4
Axle/Gears: 3.23
Re: Dimensions for well sub box
I'm glad that you said something about the Q-form kick panels. I've actually been debating between those or custom door skins with a speaker mount. With that said, I think I'll just go the route of the door skins.
Junior Member
Joined: May 2012
Posts: 25
Likes: 0
Re: Dimensions for well sub box
well my original plans were to use that pdf and build the base then customize the top to accomodate my single memphis 15" but its seems like theres no way. so then i was gonna go with some alpine type r's but there like 6 inches deep too, however i found some rockford fosgates that are shallow my only concern is if by using these shallow subs do you think i would be sacraficing bass quality?
Junior Member
Joined: Jul 2013
Posts: 32
Likes: 0
Car: Z28 camaro T-tops
Engine: 2.8 v6
Re: Dimensions for well sub box
These dint work at all for me I made it and had to make a bunch of different cuts to make it fire then it still looked terrible so I put a cover on it and it looks decent but I need to recut it
Supreme Member
iTrader: (6)
Joined: Aug 2009
Posts: 3,670
Likes: 3
From: Elwood, IN
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: Dimensions for well sub box
Can anyone repost the dimintions and the materials needed to do this? I'm wanting to build my first box but the links don't work anymore and I'm not sure what materials I need to do this correctly. I'm wanting to throw two 12" kendwood kfc-w12ps subs in the trunk
Joined: May 2009
Posts: 4,915
Likes: 40
From: Far West
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23
Supreme Member
Joined: Apr 2010
Posts: 4,337
Likes: 29
From: Aurora, OR
Car: 87 IROC Z28
Engine: 355 cid TPI
Transmission: Custom Built 700R4 w/3,500 stall
Axle/Gears: QP fab 9" 3.70 Truetrac
Re: Dimensions for well sub box
The later set of photos seems to be of just a top cover for mounting speakers. I have one of these and it is not the same as a sealed(acoustic suspension) speaker cabinet. It works okay with my Kicker CDRs as they are rated for "free air" use but they work much better in a sealed cabinet. My dual coil 10s are rated at 600 watts each and I run them on a 1000 watt RMS Alpine M1000. I cam only give them about 1/2 power before the suspensions start to over-travel. In a sealed cabinet, theyw ould be able to take the amp's full power and the bass would be much tighter.
There is no way I can think of, short of gluing the entire cargo hold shut, which could make future speaker replacement difficult, to seal that space air tight. The actual box, mentioned in the title of this thread, is the only way I can see to build a sealed cabinet. Unfortunately, I can't get the old links to open.
I am planning on eventually building my own cabinet. I think mocking it up with cardboard to establish dimensions sounds like the best way to go. The trick is using the space effectively while clearing the shelf on the passenger side.
There is no way I can think of, short of gluing the entire cargo hold shut, which could make future speaker replacement difficult, to seal that space air tight. The actual box, mentioned in the title of this thread, is the only way I can see to build a sealed cabinet. Unfortunately, I can't get the old links to open.
I am planning on eventually building my own cabinet. I think mocking it up with cardboard to establish dimensions sounds like the best way to go. The trick is using the space effectively while clearing the shelf on the passenger side.
Supreme Member
Joined: Apr 2010
Posts: 4,337
Likes: 29
From: Aurora, OR
Car: 87 IROC Z28
Engine: 355 cid TPI
Transmission: Custom Built 700R4 w/3,500 stall
Axle/Gears: QP fab 9" 3.70 Truetrac
Re: Dimensions for well sub box
Okay. Guess I didn't read ahead far enough. Thanks for posting this info!
Supreme Member
Joined: Apr 2010
Posts: 4,337
Likes: 29
From: Aurora, OR
Car: 87 IROC Z28
Engine: 355 cid TPI
Transmission: Custom Built 700R4 w/3,500 stall
Axle/Gears: QP fab 9" 3.70 Truetrac
Re: Dimensions for well sub box
The PDF linked by Chevy86 IROC-Z is a great set of plans. I downloaded it into my files. One problem is the shallow depth of the speaker openings due to the shelve. My CRVs need 5 1/2" and that cabinet would only be 5 1/4". I think I'll do some measuring on the car and see what the effect would be of adding a 1/2" or so of height.
EDIT: The link by gooman to the PDF titled Model1 is also a good set of drawings. They provide a simple solution to the depth issue. I will however warn anyone using these plans not to cut panel A ahead of time as their initial dimensions for this piece are not correct. They provide instructions for cutting panels during assembly that will be helpful and may prevent cutting errors. Again, great set of plans.
EDIT: The link by gooman to the PDF titled Model1 is also a good set of drawings. They provide a simple solution to the depth issue. I will however warn anyone using these plans not to cut panel A ahead of time as their initial dimensions for this piece are not correct. They provide instructions for cutting panels during assembly that will be helpful and may prevent cutting errors. Again, great set of plans.
Last edited by ASE doc; Jan 30, 2014 at 12:48 PM.
Senior Member
Joined: Dec 2009
Posts: 702
Likes: 4
From: Texas
Car: 1989 IROC LSX
Engine: Swapped LS6 Forged by LME
Transmission: 4L65E
Axle/Gears: 3.73
Re: Dimensions for well sub box
Here's my version of a design presented by Steve "White_Rascal" at the FBodyAudio.com forums It is 1 cubic foot and it will fit one or two 10" subs. Maybe you can even squeeze in a 12" but I don't know. I put in a 10" Alpine Type R SWR-1042D sub.
The first attachment is a GIF image of my version at actual size if printed at 150dpi.
The second attachment is the drawing by Steve "White_Rascal".
Heres some pics of the build process and the final product:
The first attachment is a GIF image of my version at actual size if printed at 150dpi.
The second attachment is the drawing by Steve "White_Rascal".
Heres some pics of the build process and the final product
:THANK YOU FOR THIS!!!
Junior Member
Joined: Mar 2025
Posts: 1
Likes: 0
Re: Dimensions for well sub box
Sorry to revive such an old thread, but would any of these boxes be able to fit 2 10 inch kicker solo baric L7s? Im really hoping to go with the solo barics but im not sure that they would fit because of how deep they are. Has anyone made their box to fit them?
Last edited by TxTriple; Mar 18, 2025 at 09:42 AM.
Thread
Thread Starter
Forum
Replies
Last Post
