Need Some Help With An Older Alpine (7816) Diagram....
Thread Starter
Joined: Jul 2003
Posts: 10,525
Likes: 204
From: NYC / Jersey
Car: 1990 Trans Am GTA
Engine: Turbo 305 w/MS2
Transmission: 700R4
Need Some Help With An Older Alpine (7816) Diagram....
Was hoping someone might know the correct locations for the following harness (see below). I'll hopefully be upgrading in the coming months, but for now, I need a freaking radio lol. The wires are as follows, and any help would be greatly appreciated....
Alpine 7816
Black
Yellow
Red
Pink w/White Stripe
Blue
Blue w/White Stripe
Grey
Grey w/Black Stripe
White
White w/Black Stripe
Green
Green w/Black Stripe
Purple
Purple w/Black Stripe
Thanks again...!!!!
Alpine 7816
Black
Yellow
Red
Pink w/White Stripe
Blue
Blue w/White Stripe
Grey
Grey w/Black Stripe
White
White w/Black Stripe
Green
Green w/Black Stripe
Purple
Purple w/Black Stripe
Thanks again...!!!!
Senior Member
iTrader: (-1)
Joined: Oct 2008
Posts: 321
Likes: 0
From: New Milford CT
Car: 1991 Trans Am
Engine: 305tbi to 350 carb'd
Transmission: 700r4
Axle/Gears: Stock
Re: Need Some Help With An Older Alpine (7816) Diagram....
red is power black is ground yellow might be acc then the seaker wires i lost my diagram and tested it one by one.
Thread Starter
Joined: Jul 2003
Posts: 10,525
Likes: 204
From: NYC / Jersey
Car: 1990 Trans Am GTA
Engine: Turbo 305 w/MS2
Transmission: 700R4
Re: Need Some Help With An Older Alpine (7816) Diagram....
^ so your saying that Red is Constant, Yellow is Ignition (Key On), Black is Ground....?

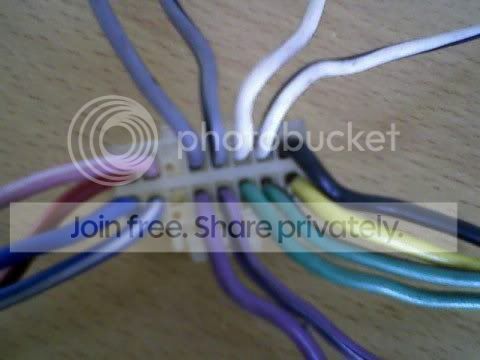

From the picture, it appears that the speaker wiring would be the two; Grey, White, Purple and Green wires. Pretty sure that Blue is the antenna, although I forget why there are two of them, and the Pink one has me scratching my head lol. Thanks....
-Rob
From the picture, it appears that the speaker wiring would be the two; Grey, White, Purple and Green wires. Pretty sure that Blue is the antenna, although I forget why there are two of them, and the Pink one has me scratching my head lol. Thanks....
-Rob
Thread Starter
Joined: Jul 2003
Posts: 10,525
Likes: 204
From: NYC / Jersey
Car: 1990 Trans Am GTA
Engine: Turbo 305 w/MS2
Transmission: 700R4
Re: Need Some Help With An Older Alpine (7816) Diagram....
Originally Posted by Street Lethal
so your saying that Red is Constant, Yellow is Ignition (Key On), Black is Ground....?
Member
Joined: Dec 2008
Posts: 401
Likes: 0
From: Tyler, Tx
Car: 1991 Z28 Vert
Engine: 305 TPI
Re: Need Some Help With An Older Alpine (7816) Diagram....
Grays and purples are the rights. Whites and greens are lefts. Whites and grays front. Purples and greens are rear. Striped wires are negative. Pink is probably a cel phone mute back when hands free kits were popular.
Junior Member
Joined: Aug 2011
Posts: 1
Likes: 0
Re: Need Some Help With An Older Alpine (7816) Diagram....
Was hoping someone might know the correct locations for the following harness (see below). I'll hopefully be upgrading in the coming months, but for now, I need a freaking radio lol. The wires are as follows, and any help would be greatly appreciated....
Alpine 7816
Black Ground lead
Yellow Battery lead
Red Switched Power ignit on lead
Pink w/White Stripe Audio interrupt in lead
Blue Power Antenna Lead
Blue w/White Stripe Remote Turn on Lead
Grey Front SP (R) +
Grey w/Black Stripe Front SP (R) -
White Front SP (L) +
White w/Black Stripe Front SP (L) -
Green Rear SP (L) +
Green w/Black Stripe Rear SP (R) -
Purple- Violet Rear SP (R) +
Purple- Violet w/Black Stripe Rear SP (L) -
Thanks again...!!!!
Alpine 7816
Black Ground lead
Yellow Battery lead
Red Switched Power ignit on lead
Pink w/White Stripe Audio interrupt in lead
Blue Power Antenna Lead
Blue w/White Stripe Remote Turn on Lead
Grey Front SP (R) +
Grey w/Black Stripe Front SP (R) -
White Front SP (L) +
White w/Black Stripe Front SP (L) -
Green Rear SP (L) +
Green w/Black Stripe Rear SP (R) -
Purple- Violet Rear SP (R) +
Purple- Violet w/Black Stripe Rear SP (L) -
Thanks again...!!!!
