UQ7 pin out
***If someone in the admin could please edit the title of this post***

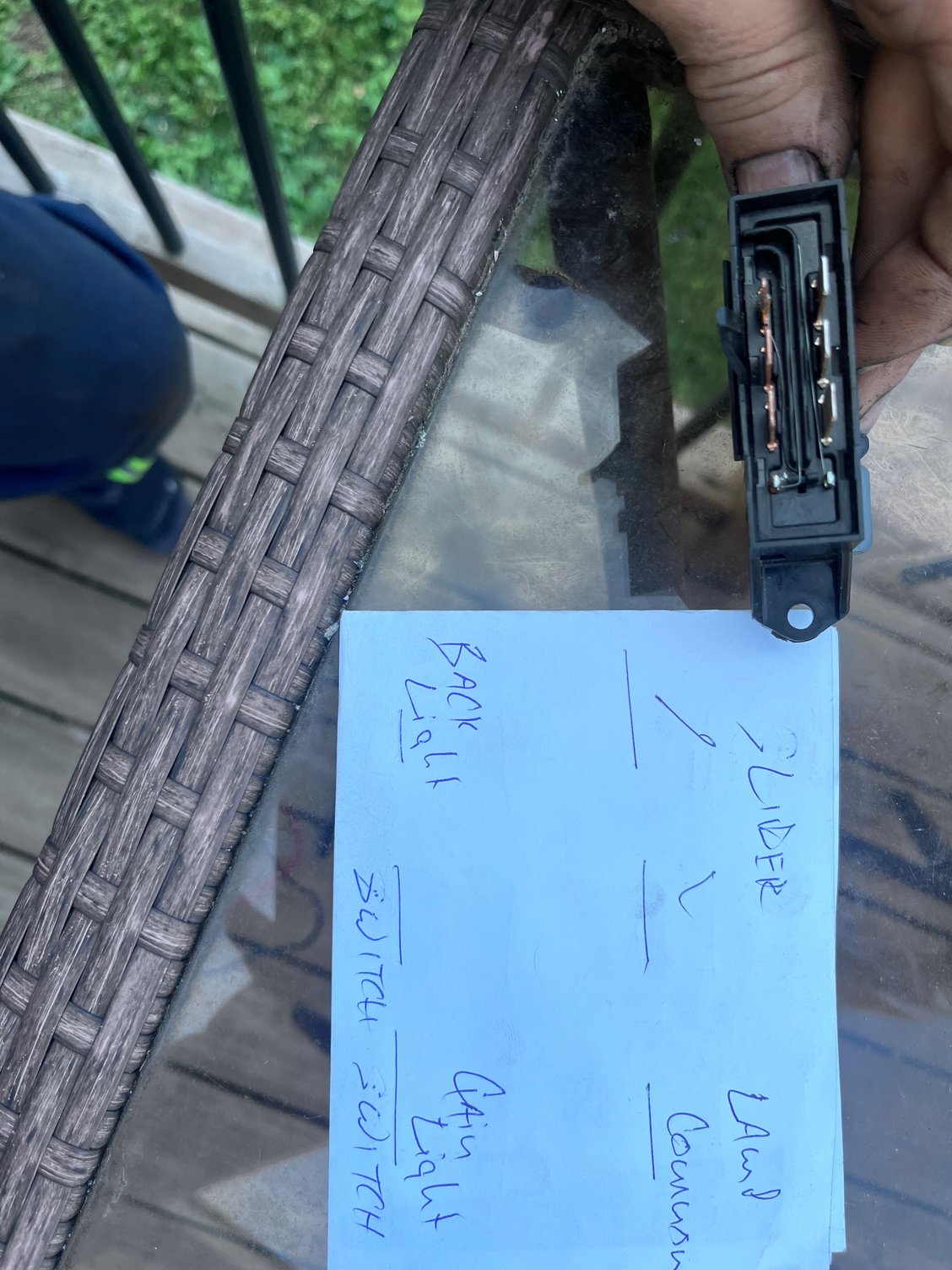

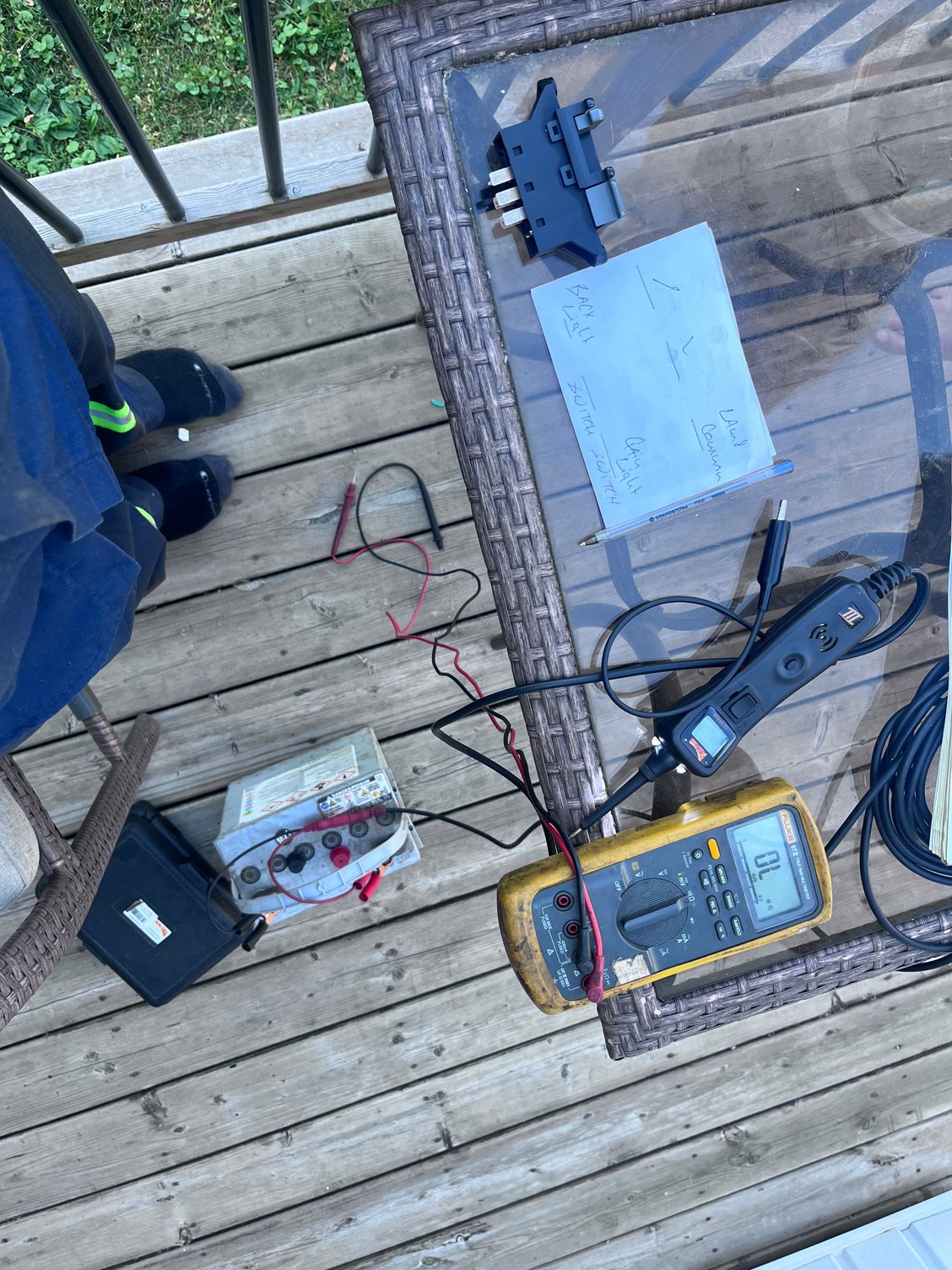

UQ7 Gain Switch Pin out
Adding a little bit of information about the function of these switches
note that the switch provides the opposing polarity to power the gain lamp as well as provides an output (presumably to amp).
it would be easy to assume the lamp common would be battery -ve, back light +ve from illumination circuit, switch input +ve from switched ignition.
But no guarantees
Both lamps are incandescent, not LED
That is all.
UQ7 Gain Switch Pin out
Adding a little bit of information about the function of these switches
note that the switch provides the opposing polarity to power the gain lamp as well as provides an output (presumably to amp).
it would be easy to assume the lamp common would be battery -ve, back light +ve from illumination circuit, switch input +ve from switched ignition.
But no guarantees
Both lamps are incandescent, not LED
That is all.
Last edited by theraymondguy; Jun 24, 2025 at 06:06 PM.
