need a diagram
Thread Starter
Junior Member
Joined: Mar 2004
Posts: 73
Likes: 0
From: alice,tx
Car: 91 camaro z28
Engine: 355
Transmission: 5 speed
Axle/Gears: 410
need a diagram
ok now the fan doesnt turn on when the ac is on and i need a diagram for a single fan showing all the relays and stuff so that i may check and see if i can find the problem. thanx.
TGO Supporter
Joined: Sep 2003
Posts: 6,127
Likes: 11
From: conway, s.c.
Car: 1989 Iroc-Z
Engine: 5.7L TPI
Transmission: 700R4

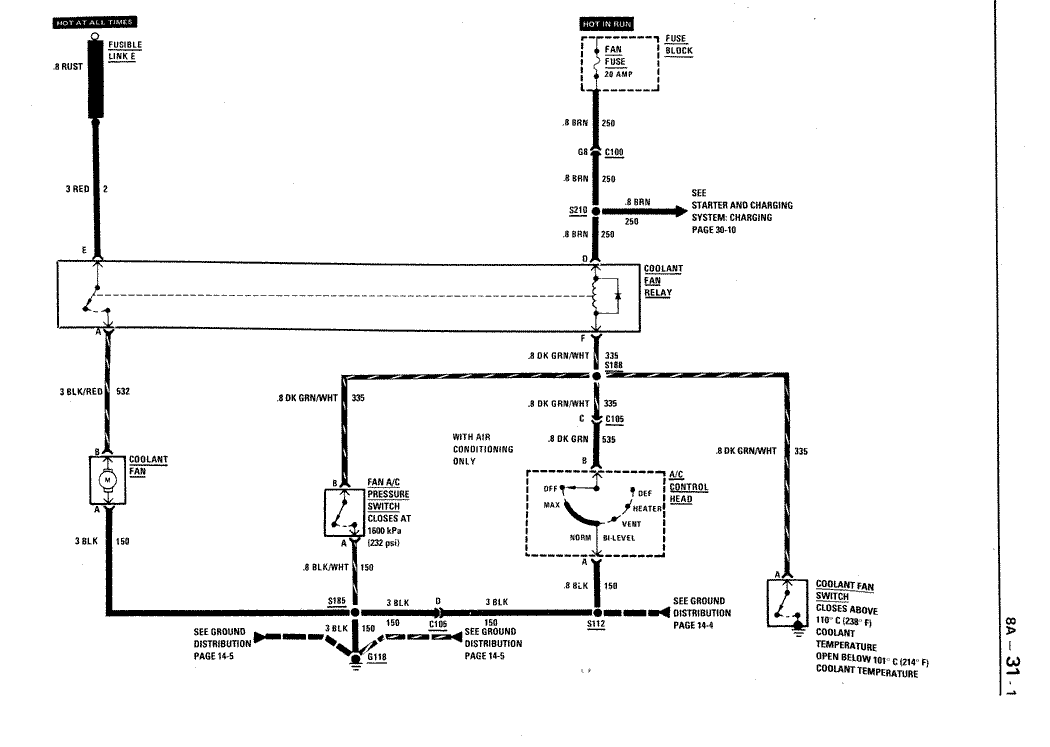

Here you go!!!!!!!!
BTW, the coolant fan relay is mounted on a bracket on the driver side firewall on the right side of the fuel pump relay as you look at it.
BTW, the coolant fan relay is mounted on a bracket on the driver side firewall on the right side of the fuel pump relay as you look at it.
