Does anyone have a map of the heater hose routing? I don't have my heater core hooked up right now, and would like to hook it up. My car is a '88 Formula 350.

Thanks.

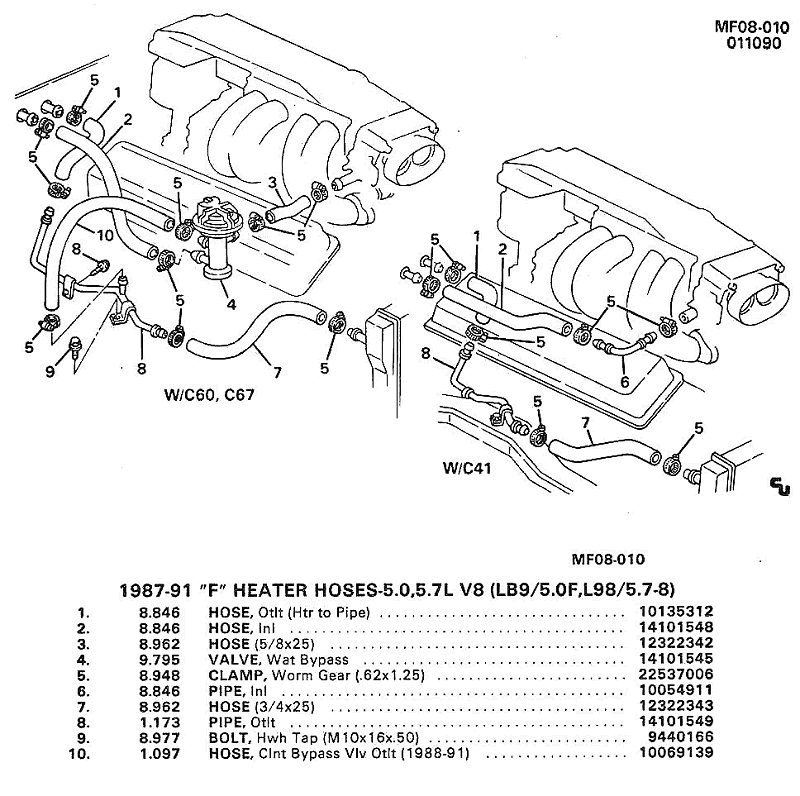

How's this?



anyone have it for a lt1?



try over at camaroz28.com



Gracias amigo! I'mma gonna check my ride, and see what I need.
I want a working heater in atleast one of my cars, then when I get it working in the Bird, I'll fix the Nova. Thanks again.



In the diagram above i am try to change the hose that is marked number one how in the hell do you get to the bottom clamp it is driving me nuts.



I used 15" long needle-nose pliers to compress the spring clamp. I then moved the clamp downward towards the steel pipe and off the hose's end.

If it's not stock, use a gearless 1/4" mini-ratchet or a long box-end wrench to reach the worm-drive clamp.



This one is one of the ring clamps



Here's one I got here awhile back.



Abubaca, that's a great diagram showing the routing of the factory oil cooler. Sometimes a vertical view of things can help.
