A/C brackets help needed
07-12-2009, 11:49 PM
#1
Junior Member
Thread Starter
Join Date: Mar 2008
Location: Oklahoma
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Car: 85 Z28
Engine: 305 Carb
Transmission: 700R4
A/C brackets help needed
When I rebuilt my 305 over a year ago I left off all the A/C equip since the compressor was locked up. I want to replace it now but can't remember how the brackets go back on. I know I should have took pictures but didn't. Does anyone have pictures of their carburated 305 with the compressor on the drivers side? I am going to cook. It's been 105deg the last two days. Please help!!
07-13-2009, 12:44 PM
#2
TGO Supporter
Join Date: Sep 2000
Location: So.west IN
Posts: 6,775
Likes: 0
Received 26 Likes
on
23 Posts
Car: 87 Formula/ 00 Xtreme
Engine: TPI 305/ v6
Transmission: struggling t-5/ 4l60E
Axle/Gears: 3.08/ 3.23
Re: A/C brackets help needed

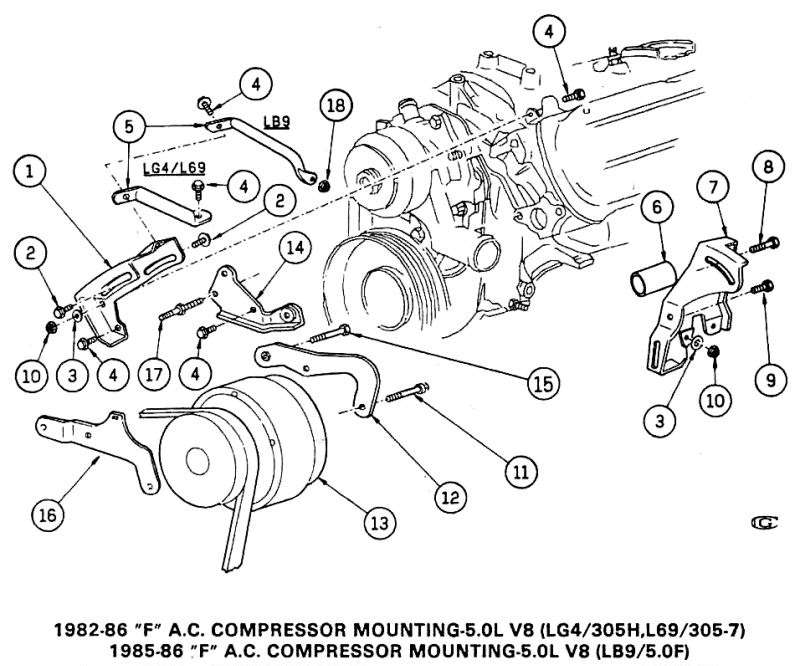

You only other option is a dealer parts explosion like this one....
07-13-2009, 01:00 PM
#3
Supreme Member
iTrader: (4)
Join Date: Sep 2004
Location: MN
Posts: 2,069
Likes: 0
Received 3 Likes
on
3 Posts
Car: 85 SC, 86 Berlinetta
Engine: V6, V8
Transmission: 700r4, 700r4
Re: A/C brackets help needed

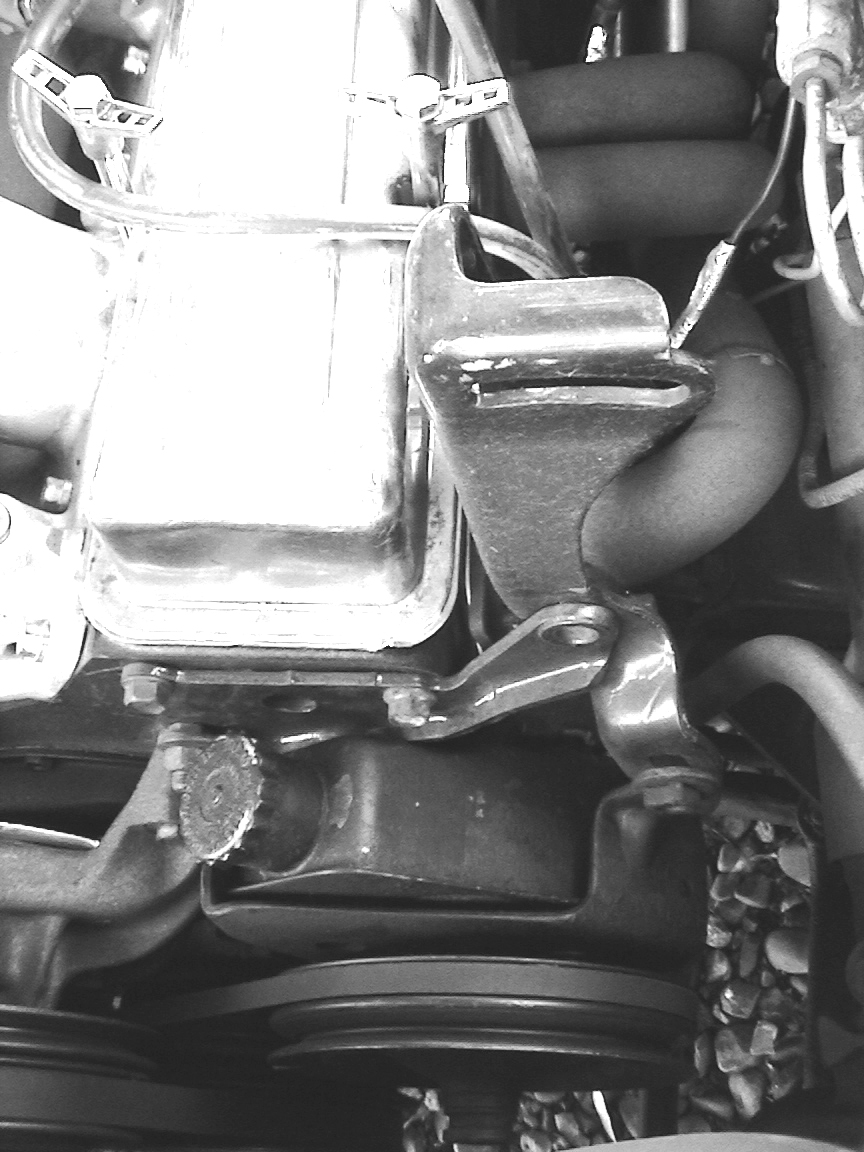

Lol, I did the same thing. I hope this helps. (I had to modify the image for everything to show up.)
07-13-2009, 05:07 PM
#4
Junior Member
Thread Starter
Join Date: Mar 2008
Location: Oklahoma
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Car: 85 Z28
Engine: 305 Carb
Transmission: 700R4
Re: A/C brackets help needed
Thanks, just this little bit helps. I will look at it tonight after it drops below 100*.
07-14-2009, 10:50 AM
#5
Junior Member
Thread Starter
Join Date: Mar 2008
Location: Oklahoma
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Car: 85 Z28
Engine: 305 Carb
Transmission: 700R4
Re: A/C brackets help needed

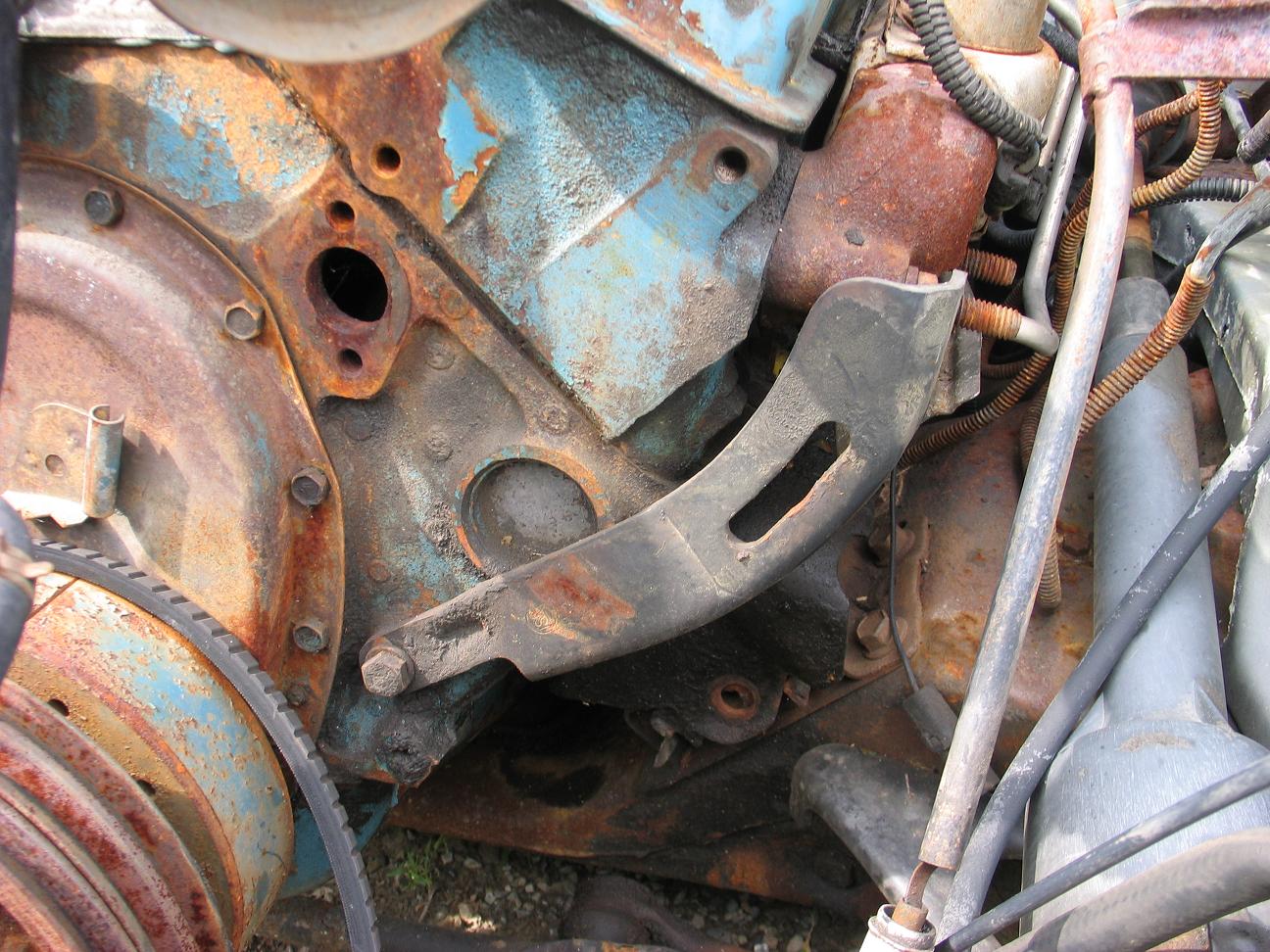

Thanks again, the pictures and diagram helped. I think I figured out the A/C brackets. Now I am not sure about the bottom bracket for the powersteering. I had to somewhat jerry rig it before without the A/C brackets being installed. Does anyone have a diagram or pictures with it?
