EBL Basic Issues
#1
EBL Basic Issues
So I am having quite a few issues to just getting the motor to run, much less run well. Its at the point I wont drive it to work because I fear it wont make it.
I have been working out some of the basic bugs and felt like I had enough to get it going long enough for VE to do some good.
So tonight I took my latest 've learn and applied it. As small as it was. And decided I would work on my low rpm range 've learns and the issue I'm running into is that it appears to run worse the longer I drive it. It died and wouldn't start at one point I just allowed it to slowly roll down hill and got it started in 2nd after the motor just struggled and struggled with any application of the pedal under load... I believe that because its running so lean that the engine temps are getting greater the slower I drive due to less air movement. And thats causing serious heat sink and other issues. I will test my theory tomorrow without a hood.
I was initally having issues with my timing and belive I have those all sorted.
My base timing is at 23* with the Idle SA matching it.
I am running so lean that I have experienced back firing through the TBI 3 times. pops and gurgles under any load or giving it gas.
Quick basics on this motor would be:
12-256-4 cam shaft
http://www.compcams.com/Company/CC/c...x?csid=91&sb=2
-441 casting heads 73cc chambers, 2.02 1.60 valves
modified throttlebody, running 81lb 454 injectors, 22lb psi spring (i believe) upgraded fuel pump to keep up. (ac-delco EP-381)
goodwrench remanned 350 block.
Manual Transmission.
longtubes, H pipe, Mufflers no cats, 3 wire Heated 02 sensor.
I worried my VE tables are off enough that its not going to run well enough to even correct it and learn any tables.
thoughts?
-J
I have been working out some of the basic bugs and felt like I had enough to get it going long enough for VE to do some good.
So tonight I took my latest 've learn and applied it. As small as it was. And decided I would work on my low rpm range 've learns and the issue I'm running into is that it appears to run worse the longer I drive it. It died and wouldn't start at one point I just allowed it to slowly roll down hill and got it started in 2nd after the motor just struggled and struggled with any application of the pedal under load... I believe that because its running so lean that the engine temps are getting greater the slower I drive due to less air movement. And thats causing serious heat sink and other issues. I will test my theory tomorrow without a hood.
I was initally having issues with my timing and belive I have those all sorted.
My base timing is at 23* with the Idle SA matching it.
I am running so lean that I have experienced back firing through the TBI 3 times. pops and gurgles under any load or giving it gas.
Quick basics on this motor would be:
12-256-4 cam shaft
http://www.compcams.com/Company/CC/c...x?csid=91&sb=2
-441 casting heads 73cc chambers, 2.02 1.60 valves
modified throttlebody, running 81lb 454 injectors, 22lb psi spring (i believe) upgraded fuel pump to keep up. (ac-delco EP-381)
goodwrench remanned 350 block.
Manual Transmission.
longtubes, H pipe, Mufflers no cats, 3 wire Heated 02 sensor.
I worried my VE tables are off enough that its not going to run well enough to even correct it and learn any tables.
thoughts?
-J
#2
Supreme Member
iTrader: (16)
Re: EBL Basic Issues
Originally Posted by destroyKC
My base timing is at 23* with the Idle SA matching it.
#3
TGO Supporter
iTrader: (1)
Re: EBL Basic Issues
Initial timing is set to ?
What start up bin are you using? I used LO3.ebl.bin and it worked for me.
VAFPR? If not the BPC should be uniform in values. I run same injectors (2560) as you at 21 lbs FP. I think my BPC is around 88 but I use a VAFPR so table varies on BPC.
Can you get engine to stay running by depressing the throttle in neutral at say 1000-2000 rpms?
Are you in CL(coolant over 160dF)? If so take a look at the NB02 voltage...
Fuel pump checks OK?
What start up bin are you using? I used LO3.ebl.bin and it worked for me.
VAFPR? If not the BPC should be uniform in values. I run same injectors (2560) as you at 21 lbs FP. I think my BPC is around 88 but I use a VAFPR so table varies on BPC.
Can you get engine to stay running by depressing the throttle in neutral at say 1000-2000 rpms?
Are you in CL(coolant over 160dF)? If so take a look at the NB02 voltage...
Fuel pump checks OK?
#5
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,401
Likes: 0
Received 215 Likes
on
201 Posts
Car: check
Engine: check
Transmission: check
Re: EBL Basic Issues
destroyKC is having issues with the TPS & CTS sensors, they are not reporting correctly and change readings quickly. Once the sensor issues are corrected I'm sure that the tuning will go forward.
RBob.
RBob.
#6
Supreme Member
iTrader: (2)
Join Date: Jan 2005
Location: Hurst, Texas
Posts: 9,982
Received 384 Likes
on
328 Posts
Car: 1983 G20 Chevy
Engine: 305 TPI
Transmission: 4L60
Axle/Gears: 14 bolt with 3.07 gears
Re: EBL Basic Issues
Seeing that it is backed to a 4-spd makes me think its an 87 C/K truck or war wagon suburban. That being said it should have a ground up front near the water neck and one on the back of the passenger side head, along with a ground strap between the head and body.
#7
Re: EBL Basic Issues
Previous to pulling the motor I was having a grounding issue...when the motor went back in I grounded everything with 0 gage.. body to heads, block to frame block to battery battery to frame bat to body... I may have added some additional weight in the wiring alone ahaha.
Fast 355: yes it is an 89 truck. got me.
Street lethal: My Inital SA matches my base at the 23* I have had the timing as low as 14* but it did not seem to run any better, it almost ran worse.
Ronnie: What heads are you running? My 441 casting heads are carb era heads.. I would have to check but i believe the startup EBL bin had an F in the name...have to check when I get home.
As Rbob said, I have to replace a few sensors this evening and try again. I belive I will pull the hood while im at it just to help cool it more while getting this dialed it a bit more.
Thanks for the responses. I will post more after I replace and try again this evening.
Fast 355: yes it is an 89 truck. got me.
Street lethal: My Inital SA matches my base at the 23* I have had the timing as low as 14* but it did not seem to run any better, it almost ran worse.
Ronnie: What heads are you running? My 441 casting heads are carb era heads.. I would have to check but i believe the startup EBL bin had an F in the name...have to check when I get home.
As Rbob said, I have to replace a few sensors this evening and try again. I belive I will pull the hood while im at it just to help cool it more while getting this dialed it a bit more.
Thanks for the responses. I will post more after I replace and try again this evening.
Trending Topics
#8
Supreme Member
iTrader: (16)
Re: EBL Basic Issues
Originally Posted by destroyKC
Street lethal: My Inital SA matches my base at the 23* I have had the timing as low as 14* but it did not seem to run any better, it almost ran worse...
Base (by hand) 6*-8*
Initial (in bin) 6*- 8*
Idle SA (in bin) 23*
You said above that your Initial matches your Base at 23*, are you running DIS...?
#9
Re: EBL Basic Issues
Unfamiliar with DIS.
But I assure you, With a new timing chain, new harmonic balance and a new matco timing light, it is at 23* base. I can try it as low as 6* and If I change the RPM for Idle it might run. previously with a lower RPM idle it wouldn't run on less than 8*
But I assure you, With a new timing chain, new harmonic balance and a new matco timing light, it is at 23* base. I can try it as low as 6* and If I change the RPM for Idle it might run. previously with a lower RPM idle it wouldn't run on less than 8*
#10
Supreme Member
iTrader: (16)
Re: EBL Basic Issues
Originally Posted by destroyKC
But I assure you, With a new timing chain, new harmonic balance and a new matco timing light, it is at 23* base. I can try it as low as 6* and If I change the RPM for Idle it might run. previously with a lower RPM idle it wouldn't run on less than 8*...
#11
Supreme Member
Join Date: Jan 2007
Location: OC CA
Posts: 1,873
Likes: 0
Received 0 Likes
on
0 Posts
Car: 75 Beast
Engine: 383 +EBL Flash
Transmission: 700R4
Axle/Gears: 4.11 with 33"
Re: EBL Basic Issues
Unfamiliar with DIS.
But I assure you, With a new timing chain, new harmonic balance and a new matco timing light, it is at 23* base. I can try it as low as 6* and If I change the RPM for Idle it might run. previously with a lower RPM idle it wouldn't run on less than 8*
But I assure you, With a new timing chain, new harmonic balance and a new matco timing light, it is at 23* base. I can try it as low as 6* and If I change the RPM for Idle it might run. previously with a lower RPM idle it wouldn't run on less than 8*
DestroyKC can you please photograph your balancer and timing tab position at #1 cyl TDC. Do you know make of your balancer????
//RF
#12
Re: EBL Basic Issues
Pictures coming soon. While the cam was going in last week I double checked my timing gear was keyed correct. And during this time I did install a new harmonic balancer.
The balancer is made by proform.
This morning I pulled my distributor reser back to tdc on the exhaust stroke of cylinder 1. And re stabbed the distributor and checkd my wires.The 0* on my timing tab matched up with the 0* on my balancer which is marked up to 40*
It won't even start if lower than about 18* it just cranks and cranks... but won't start. its set back to sa 18* sa idle 24*
Sensors are now fixed and its throwing no codes. Tonight when it cools down ill take it for an hour test.
The balancer is made by proform.
This morning I pulled my distributor reser back to tdc on the exhaust stroke of cylinder 1. And re stabbed the distributor and checkd my wires.The 0* on my timing tab matched up with the 0* on my balancer which is marked up to 40*
It won't even start if lower than about 18* it just cranks and cranks... but won't start. its set back to sa 18* sa idle 24*
Sensors are now fixed and its throwing no codes. Tonight when it cools down ill take it for an hour test.
#13
Supreme Member
Re: EBL Basic Issues
Forgive me, but isn't 0d TDC supposed to be when BOTH Intake and Exhaust are Closed on #1? That's the way I have always set my distributor after having installed a cam.
Last edited by Dominic Sorresso; 08-24-2014 at 07:28 PM.
#14
Supreme Member
iTrader: (16)
Re: EBL Basic Issues
Yes, TDC is on the compression stroke not the exhaust stroke. It appears that he is trying to set #1 cylinder TDC with #1 with his distributor's rotor essentially when #6 cylinder is at TDC, so his distributor is off 180 degrees, and he is retarding timing that much so that it will catch and run based off of #6 cylinder. He needs to set TDC when both valves are closed on #1 during the compression stroke, then set distributor rotor to face #1 on the cap, then set base timing to under 10*...
#15
Re: EBL Basic Issues
Thats exactly where I am at. On the compression stroke. Tdc with a feeler gauge. Set dizzy to cylinder 1.
It will just turn over and turn over unless higher timing. It will run at a lower timing, but it wont start that low.
It will just turn over and turn over unless higher timing. It will run at a lower timing, but it wont start that low.
Last edited by destroyKC; 08-25-2014 at 08:58 AM.
#17
Re: EBL Basic Issues
6-3/4 Inch Diameter- 8.46 Pounds- Internal Balance - Nodular Iron
Mine is marked already on the balancer just like in the photo above. When im at TDC, my timing tabs 0* matches 0* on the balancer.
Mine is marked already on the balancer just like in the photo above. When im at TDC, my timing tabs 0* matches 0* on the balancer.
#18
Re: EBL Basic Issues

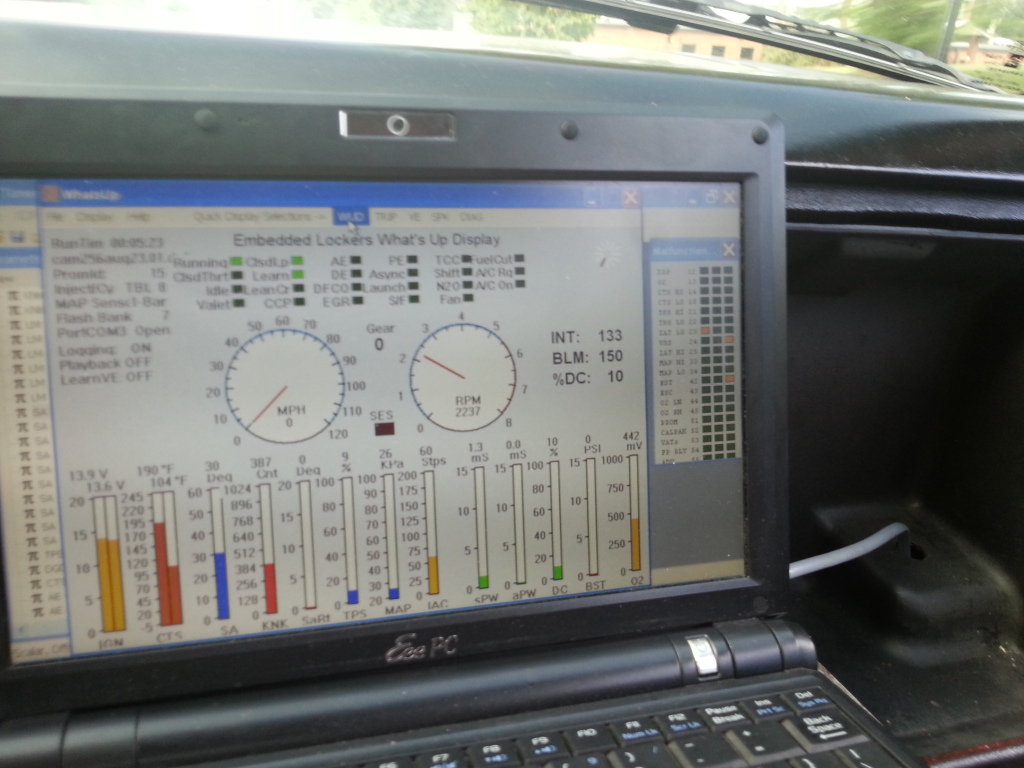

No longer throwing Some codes but what you see here I'm curious about. Iat sensor and est which I believe is new. Ignore the vss code Speedo has not worked since I got the vehicle and I have replaced the sensor x2
#23
Re: EBL Basic Issues
Timing chain cover was a swapmeet special. Timing Tab I couldnt tell you, I do remember having to paint the tab. it was originally black. It came from the garage, possibly off the old block. Possibly another swapmeet... sorry.
#24
Supreme Member
iTrader: (16)
Re: EBL Basic Issues
It's starting to sound more and more like you have the timing set where its' supposed to be, around the 8* mark, but the tab and balancer markings are off and not embellishing the true TDC, which is why you think your at 23* when your really not...
#25
Supreme Member
Join Date: Jan 2007
Location: OC CA
Posts: 1,873
Likes: 0
Received 0 Likes
on
0 Posts
Car: 75 Beast
Engine: 383 +EBL Flash
Transmission: 700R4
Axle/Gears: 4.11 with 33"
Re: EBL Basic Issues
The correct position of the timing tab on the cover is dictated by which balancer is installed on the crankshaft. The stock GM balancer from 86 and up is marked so that it needs the tab at about 12 o'clock. Earlier balancers had the TDC indication mark more in the CW direction - they need the tab at about 2 o'clock.
In your case get the ProForm Tab p/n 141-200 from Summit (or elsewhere)
From the photos the Proform tab moves 0 deg position further counter clockwise - toward center of the engine unlike your existing swap meet special tab. At least you'll have a matching Proform parts, although I never hold my breath when it comes to ChiCom made parts.....
Action items:
1) Get Proform tab
2) Compare position of 0 TDC vs Swap meet special tab
//RF
In your case get the ProForm Tab p/n 141-200 from Summit (or elsewhere)
From the photos the Proform tab moves 0 deg position further counter clockwise - toward center of the engine unlike your existing swap meet special tab. At least you'll have a matching Proform parts, although I never hold my breath when it comes to ChiCom made parts.....
Action items:
1) Get Proform tab
2) Compare position of 0 TDC vs Swap meet special tab
//RF
#26
Re: EBL Basic Issues

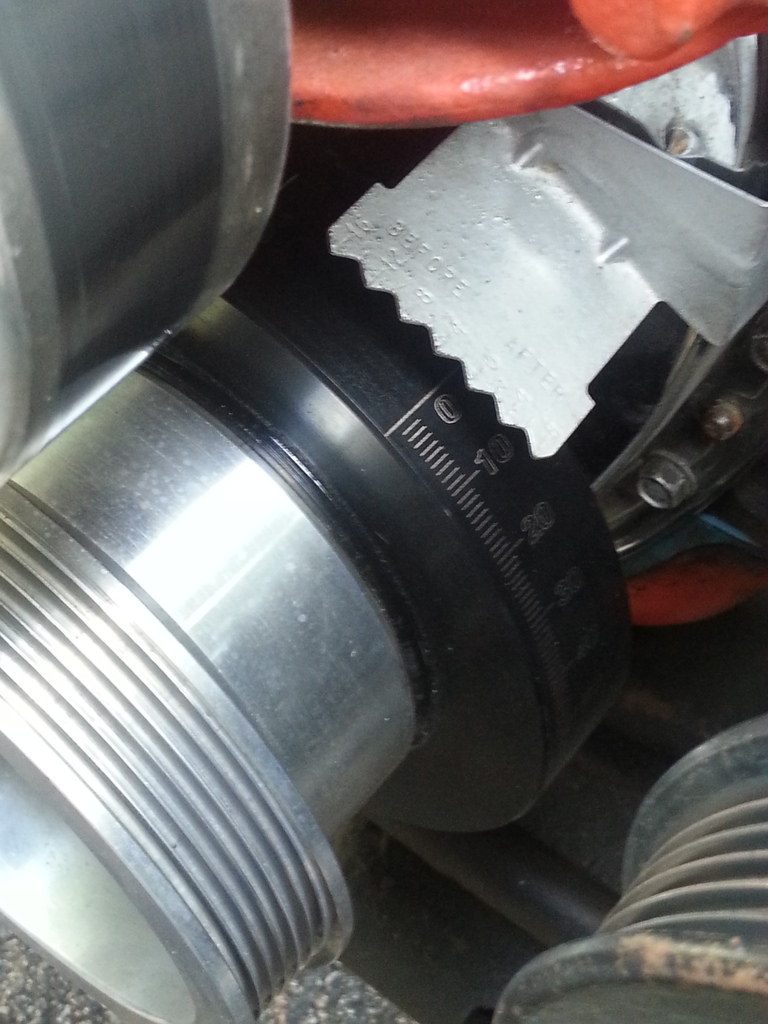

As promised. Here I am at tdc on my compression stroke. My timing tab matches my harmonic balancer.

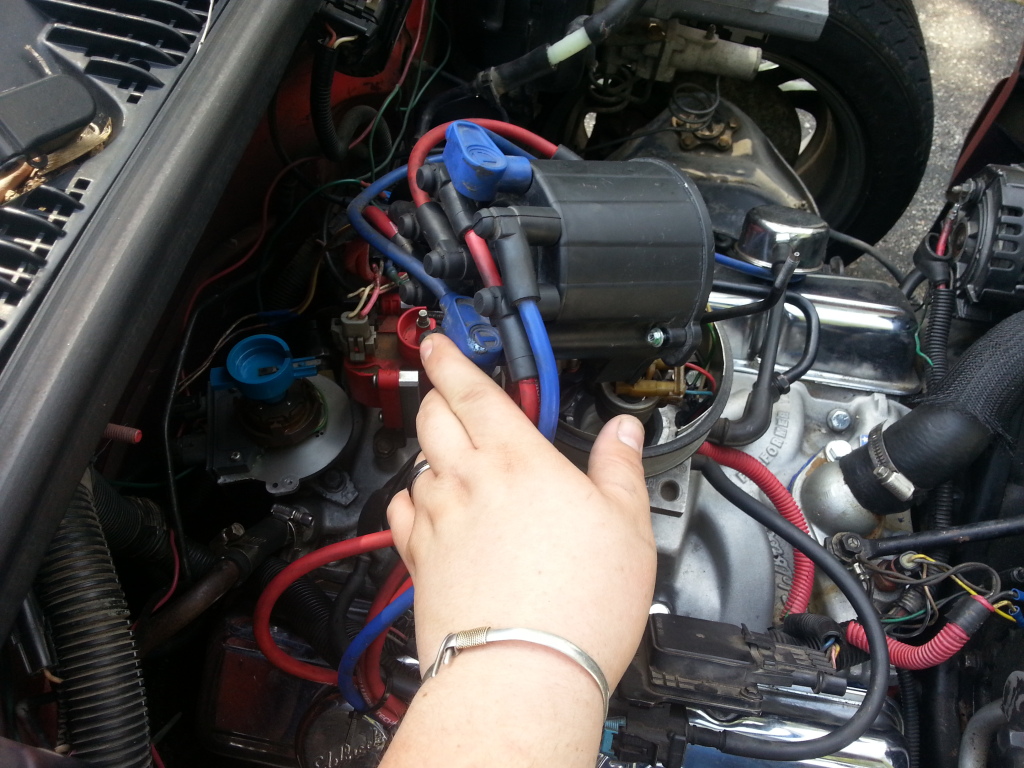

Still at tdc here is my dizzy. Pointed at cylinder 1.
My timing chain was set with the cam sprocket with the "o" at 6 o'clock matching the "o" at 12 o'clock on the crank sprocket. Here is an image on the crank sprocket showing what channel I'm in.
Closes double roller chain.
And yes in the image I still had to rotate the crank to get the "o" to 12o'clock
Still at tdc here is my dizzy. Pointed at cylinder 1.
My timing chain was set with the cam sprocket with the "o" at 6 o'clock matching the "o" at 12 o'clock on the crank sprocket. Here is an image on the crank sprocket showing what channel I'm in.
Closes double roller chain.
And yes in the image I still had to rotate the crank to get the "o" to 12o'clock
#27
Re: EBL Basic Issues
Found some receipts. Its a professional products not a proform.
Link
http://m.summitracing.com/parts/pfs-80000
Link
http://m.summitracing.com/parts/pfs-80000
#28
Supreme Member
iTrader: (16)
Re: EBL Basic Issues
Originally Posted by Street Lethal
It appears that he is trying to set #1 cylinder TDC with #1 with his distributor's rotor essentially when #6 cylinder is at TDC, so his distributor is off 180 degrees, and he is retarding timing that much so that it will catch and run based off of #6 cylinder...
Originally Posted by destroyKC
My timing chain was set with the cam sprocket with the "o" at 6 o'clock matching the "o" at 12 o'clock on the crank sprocket. Here is an image on the crank sprocket showing what channel I'm in.
#29
Supreme Member
Re: EBL Basic Issues
Yep, you run a straight edge thru the crank snout and cam to line up the dots.
#30
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,401
Likes: 0
Received 215 Likes
on
201 Posts
Car: check
Engine: check
Transmission: check
Re: EBL Basic Issues
Install the gears dot-to-dot, then rotate the engine one full revolution to bring it to TDC #1 (both dots at 12 o'clock).
RBob.
RBob.
#31
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,401
Likes: 0
Received 215 Likes
on
201 Posts
Car: check
Engine: check
Transmission: check
Re: EBL Basic Issues
Install the gears dot-to-dot, then rotate the engine one full revolution to bring it to TDC #1 (both dots at 12 o'clock).
RBob.
RBob.
#32
Re: EBL Basic Issues

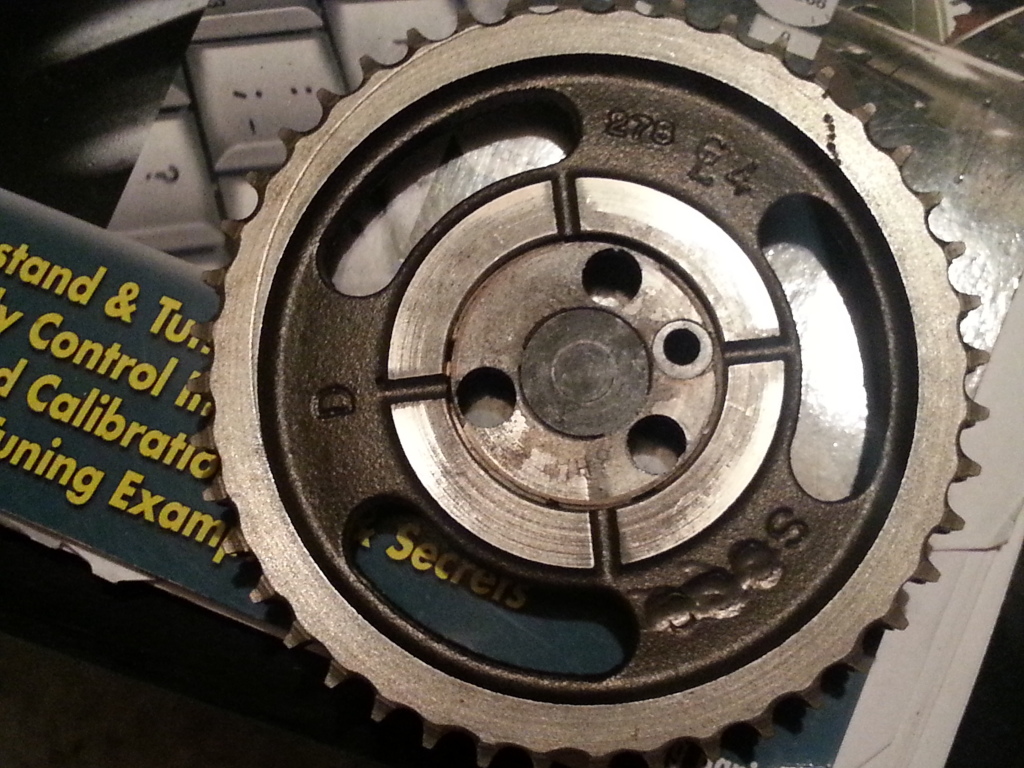

Whats throws me off is thats its a double roller timing chain.I found the camshaft gear for the cloyes set thats on the motor now. My friend who was "helping" me reassemble the motor assured me that using the gmail stamped top gear to replaces the top cloyes gear would be no different. The reasoning behind that being the gm stamped one did appear to be higher quality. I will take it apart tonight and swap out that gear.... in looking at the cam pin hole. It doesnt appear to be located in much of a different spot. By memory though who knows.
Curious though. I can't recall my current timing gear having that raised post in the center. I may just purchase a whole new set...
Curious though. I can't recall my current timing gear having that raised post in the center. I may just purchase a whole new set...
#33
Re: EBL Basic Issues
If that top gear was factory. It wouldnt be a double. I have the factory still here. So could two aftermarket cam shaft timing gears have different cam alignment pins in comparison to the marking dot?
#34
Supreme Member
iTrader: (16)
Re: EBL Basic Issues

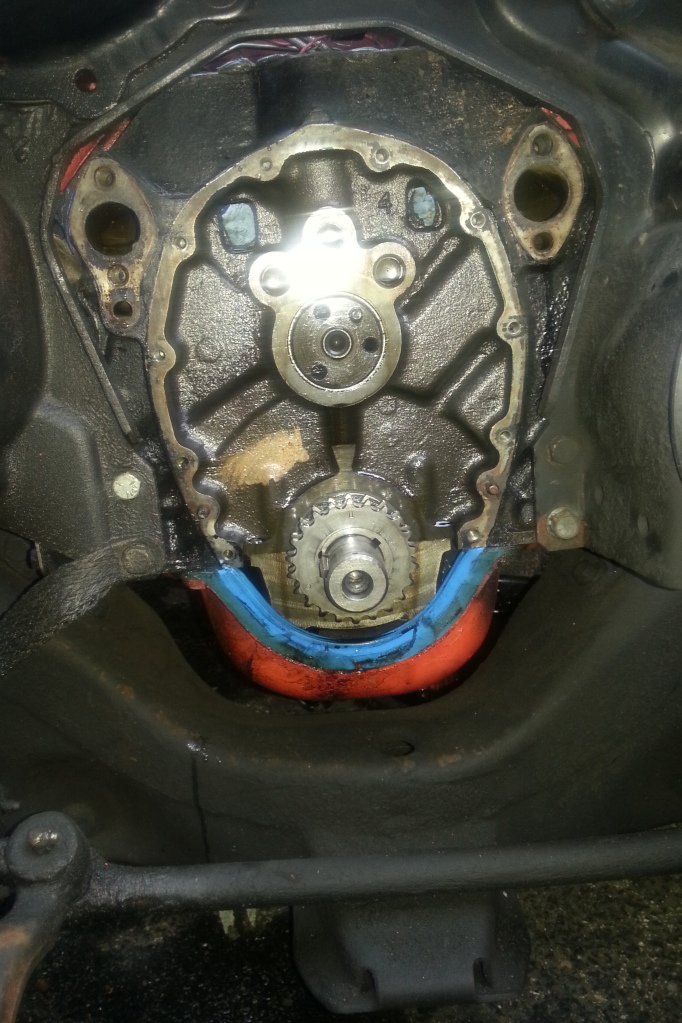

Listen, from the first picture you posted, you have a factory double roller GM cam sprocket, the casting numbers underlines it, as well as the letters GM. Factory timing chains will have a 12:00/12:00 TDC for #1, and most if not all aftermarket timing chains will have a 6:00/12:00 TDC for #1. Bring your TDC to number #1 by putting your finger in the #1 spark plug hole and feeling for compression, pop your distributor cap, notice the rotor facing number #6, unbolt the distributor clamp, pull the distributor up (not out) just enough to rotate the rotor to face #1, set it back down, bolt down the clamp, hook it all back up, and restart the engine...
#35
Re: EBL Basic Issues
If you look at my pictures from yesterday morning. I did just that. And when I pop the cap the rotor is pointing dead at cylinder 1. I will be replacing the timing set tonight and tomorrow to eliminate the possibility of error.
#37
Re: EBL Basic Issues
I understand and will be correcting that this evening. But I must have missunderstood you previous post. I took from it that you were saying. In my current wrong configuration that if I rotated cylinder 1 to tdc on the compression stroke. Pop off my cap. That my rotor would be pointing at cylinder 6. Thus confirming the error in my timing gear alignment....
What I was replying was that when I do that. Its point in right at cylinder 1.
I was not saying my timing gear was correct and thats why I said I will be coffee it this evening.
I will post up once I have done so and start her up.
Seriously lethal I am hearing and appreciative of your advice here.
What I was replying was that when I do that. Its point in right at cylinder 1.
I was not saying my timing gear was correct and thats why I said I will be coffee it this evening.
I will post up once I have done so and start her up.
Seriously lethal I am hearing and appreciative of your advice here.
#38
Supreme Member
iTrader: (16)
Re: EBL Basic Issues
Always remember that your camshaft controls your timing events. The crank will always have number 1 and number 6 at TDC at the same time, but the camshaft controls which one is on the compression stroke and which one is on the exhaust stroke. If you originally lined up the dots at 6:00/12:00 but set it to number 1 by accident instead of number 6 then there is no reason to remove the timing chain cover again to fix it. Just bring the line on the harmonic balancer to 0 on the tab, lift the distributor, and rotate the rotor 180 degrees. So if it is facing number 1 face it towards number 6, or vice versa, that will take care of it for you...
#39
Re: EBL Basic Issues
Took the distributed out and went 180* and was rewarded with massive backfires and pops no mattwe how I advanced or retarded it but never would fire up.
. Even the
Occasional pop through the tbi.
Going to take the timing cover off and go back to square one of timing. Timing chain replacement and re adjust the valves and re stab the dizzy.
I really appreciate tge advice here and will repost when done. Figure friday evening I'll fire her up again
. Even the
Occasional pop through the tbi.
Going to take the timing cover off and go back to square one of timing. Timing chain replacement and re adjust the valves and re stab the dizzy.
I really appreciate tge advice here and will repost when done. Figure friday evening I'll fire her up again
#40
Supreme Member
iTrader: (16)
Re: EBL Basic Issues
Don't forget to go back into the bin and change back to original settings, you have to put Initial SA back from the 23* that you set it to back to a more stock oriented 8*, disconnect the EST and set Base timing by hand to 8*. You can keep Idle SA at 23*...
#41
Re: EBL Basic Issues
I was chasing my tail for awhile earlier this year due to me not paying attention when editing my bin lol. The Initial SA and Idle SA are right next to each other. I went to set my Idle SA to 22 degrees and set my Initial SA to 22 degrees by accident since they're right next to each other and both start with "I". I felt pretty dumb once I caught my mistake.
#42
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,401
Likes: 0
Received 215 Likes
on
201 Posts
Car: check
Engine: check
Transmission: check
Re: EBL Basic Issues
My timing chain was set with the cam sprocket with the "o" at 6 o'clock matching the "o" at 12 o'clock on the crank sprocket. Here is an image on the crank sprocket showing what channel I'm in.
Closes double roller chain.
And yes in the image I still had to rotate the crank to get the "o" to 12o'clock
Closes double roller chain.
And yes in the image I still had to rotate the crank to get the "o" to 12o'clock
The reason is that the crank key-way is exactly in line with the #1 rod journal. So it needs to be at 1:30 in order for the #1 piston to be at TDC. IOW, need to rotate the crankshaft about 90* clockwise.
Also need to figure out which key-way relates to which marker on the crank gear.
RBob.
#47
Supreme Member
Re: EBL Basic Issues
Those 3way crank gears are for installing the cam from retarded to advanced and in between. Gotta be attentive to that.
#48
Moderator
iTrader: (1)
Join Date: Mar 2002
Location: Chasing Electrons
Posts: 18,401
Likes: 0
Received 215 Likes
on
201 Posts
Car: check
Engine: check
Transmission: check
Re: EBL Basic Issues
The piece on the front of the upper gear is to retain a roller cam. It prevents it from walking forward. Flat tappet cams don't walk as the lobes are tapered.
The end play needs to be set so that the cam position is retained.
Don't forget to rotate the engine one full revolution to put both dots at 12 o'clock. That will be TDC #1.
RBob.
The end play needs to be set so that the cam position is retained.
Don't forget to rotate the engine one full revolution to put both dots at 12 o'clock. That will be TDC #1.
RBob.
#49
Re: EBL Basic Issues
Well gentlemen. New timing chain and gears. Meticulous installation and procedures for setting valve lash and dropping in my distributor.
And back to square one. Same issue. 20* to start. Backed her down to 14. Adjusted initial sa to reflect in my base. And she will turn and turn for 15 seconds but won't fire up. It did however backfire through the carb once. But only once In about 6 tries.
I did notice the injectors were firing in a slow pulse. About matching the turn over rate of the motor.
I could the issue be a wrong sa table for my heads? Somewhere else in the programming?
And back to square one. Same issue. 20* to start. Backed her down to 14. Adjusted initial sa to reflect in my base. And she will turn and turn for 15 seconds but won't fire up. It did however backfire through the carb once. But only once In about 6 tries.
I did notice the injectors were firing in a slow pulse. About matching the turn over rate of the motor.
I could the issue be a wrong sa table for my heads? Somewhere else in the programming?
