Tech: How to properly wire your electronics (Part 1)
#1
Tech: How to properly wire your electronics (Part 1)
I've decided to write some informative tutorials. The first one I chose is for wiring. When I get ambitious later on I'll write one for proper relay usage. Please feel free to add comments and/or questions. I'll update and add to this until I'm satisfied that it's accurate and thorough enough to submit as a tech article.
Anyway, on with the show.
Running wire:
Running wire just takes a little bit of common sense. You want to keep it away from heat and vibration. Any time you run through a piece of metal (such as the firewall) you either need to run through a pre-existing grommet, or drill a hole and insert a grommet. Just running the wire through a bare-metal hole is unsafe!
Use wire ties to safely keep the wire away from any area of vibration or extreme heat. When running under the hood, running wire through split loom tubing protects it from chafing, plus makes it blend in for a factory look, which is important with security system wiring.
When running wire into the interior, under NO circumstances do you want to run the wire in through the door jam. It's unprofessional and just plain unsafe. Find a grommet in the firewall, or drill a new hole.
Wire selection
I have no idea why I've got 50 returns here, but just scroll down until you see the table.
<TABLE bgColor=#ffffff border=1 height=362 width=572>
<TBODY>
<TR>
<TD align=middle bgColor=#ffffff height=356 rowSpan=10 vAlign=top width=27>
<P align=center><FONT face=Verdana size=2><B>A<BR>M<BR>P<BR>L<BR>I<BR>F<BR>I<BR>E<BR>R</B></FONT></P>
<P align=center><FONT face=Verdana size=2><B>A<BR>M<BR>P<BR>E<BR>R<BR>A<BR>G<BR>E<BR></B></FONT></P>
<P align=center><FONT face=Verdana size=2><B>D<BR>R<BR>A<BR>W</B></FONT></P></TD>
<TD align=middle bgColor=#ffffff height=38 width=107><FONT face=Verdana size=2><B>125 - 150A</B></FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffff00 height=38 width=57><FONT face=Verdana size=2>2<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffff00 height=38 width=57><FONT face=Verdana size=2>2<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffff00 height=38 width=57><FONT face=Verdana size=2>2<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>105 - 125A</B></FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffff00 height=38 width=57><FONT face=Verdana size=2>2<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>85
- 105A</B></FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>65
- 85A</B></FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>50
- 65A</B></FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>35
- 50A</B></FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>20
- 35A</B></FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>0
- 20A</B></FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107> </TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>4 </B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>4
-7</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>7
-10</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>10
-13</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>13
-16</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>16
-19</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>19
-22</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD></TR>
<TR>
<TD align=middle colSpan=8 height=16 width=529><B><FONT face=Verdana size=2>
LENGTH OF WIRE</FONT></B></TD></TR></TBODY></TABLE>
These numbers represent the current capacity for the wire size with a .5 volt drop.
Make sure you choose an adequate gauge wire. When dealing with accessories such as lighting, the chart above may be a bit more conservative than you need, especially if you are able to shorten the wire lengths by use of a relay.
Anyway, on with the show.
Running wire:
Running wire just takes a little bit of common sense. You want to keep it away from heat and vibration. Any time you run through a piece of metal (such as the firewall) you either need to run through a pre-existing grommet, or drill a hole and insert a grommet. Just running the wire through a bare-metal hole is unsafe!
Use wire ties to safely keep the wire away from any area of vibration or extreme heat. When running under the hood, running wire through split loom tubing protects it from chafing, plus makes it blend in for a factory look, which is important with security system wiring.
When running wire into the interior, under NO circumstances do you want to run the wire in through the door jam. It's unprofessional and just plain unsafe. Find a grommet in the firewall, or drill a new hole.
Wire selection
I have no idea why I've got 50 returns here, but just scroll down until you see the table.
<TABLE bgColor=#ffffff border=1 height=362 width=572>
<TBODY>
<TR>
<TD align=middle bgColor=#ffffff height=356 rowSpan=10 vAlign=top width=27>
<P align=center><FONT face=Verdana size=2><B>A<BR>M<BR>P<BR>L<BR>I<BR>F<BR>I<BR>E<BR>R</B></FONT></P>
<P align=center><FONT face=Verdana size=2><B>A<BR>M<BR>P<BR>E<BR>R<BR>A<BR>G<BR>E<BR></B></FONT></P>
<P align=center><FONT face=Verdana size=2><B>D<BR>R<BR>A<BR>W</B></FONT></P></TD>
<TD align=middle bgColor=#ffffff height=38 width=107><FONT face=Verdana size=2><B>125 - 150A</B></FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffff00 height=38 width=57><FONT face=Verdana size=2>2<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffff00 height=38 width=57><FONT face=Verdana size=2>2<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffff00 height=38 width=57><FONT face=Verdana size=2>2<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>105 - 125A</B></FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffff00 height=38 width=57><FONT face=Verdana size=2>2<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>85
- 105A</B></FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>65
- 85A</B></FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ffcc00 height=38 width=57><FONT face=Verdana size=2>4<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>50
- 65A</B></FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>35
- 50A</B></FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>20
- 35A</B></FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff9933 height=38 width=57><FONT face=Verdana size=2>8<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107><FONT face=Verdana size=2><B>0
- 20A</B></FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff0000 height=38 width=57><FONT face=Verdana size=2>12<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD>
<TD align=middle bgColor=#ff6600 height=38 width=57><FONT face=Verdana size=2>10<BR> Gauge</FONT></TD></TR>
<TR>
<TD align=middle height=38 width=107> </TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>4 </B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>4
-7</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>7
-10</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>10
-13</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>13
-16</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>16
-19</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD>
<TD align=middle height=38 width=57><FONT face=Verdana size=2><B>19
-22</B></FONT><BR><FONT face=Verdana size=2><B>Feet</B></FONT></TD></TR>
<TR>
<TD align=middle colSpan=8 height=16 width=529><B><FONT face=Verdana size=2>
LENGTH OF WIRE</FONT></B></TD></TR></TBODY></TABLE>
These numbers represent the current capacity for the wire size with a .5 volt drop.
Make sure you choose an adequate gauge wire. When dealing with accessories such as lighting, the chart above may be a bit more conservative than you need, especially if you are able to shorten the wire lengths by use of a relay.
Last edited by Jim85IROC; 01-12-2004 at 01:15 PM.
#2
Supreme Member
Join Date: Jul 1999
Location: Tucson, AZ, USA
Posts: 1,335
Likes: 0
Received 2 Likes
on
2 Posts
Car: '92 Z28; Dk Teal; Her Pkg
Engine: 305
Transmission: Richmond 6 Spd
Axle/Gears: Moser 9", Detroit Locker, 3.70
Great wire chart, Jim! Also, one other tip - never use solid wire, use only stranded wire. Solid wire will fatigue over time with vibration and eventually fracture, where stranded wire is more resiliant to flexing and vibration. The higher the strand count in any given wire gauge, the more easily it will flex.
#3
Supreme Member
Join Date: Jun 2001
Location: Charleston, SC
Posts: 9,550
Likes: 0
Received 2 Likes
on
2 Posts
Car: 91 Camaro Vert
Engine: 02 LS1, HX40
Transmission: 2002 LS1 M6
the absolute best way to put a connector on a wire:
1. Strip back the wire
2. Slip some heat shrink on the wire....
3. If it has one, pull the little plastic cover off the connector.
4. Tin the wire. This means that you heat up the wire with the soldering iron. And push the solder onto THE WIRE. Don’t use the iron to melt the solder. Have the wires be that hot.
Doing this lets the solder wick its way and seep into the wire.
5. Solder the wire to the connector.
6. IMPORTANT: crimp the connector down tight. This is your mechanical connection.
The solder does the electrical connection, but this is what holds the wire to the connector.
7. Check that there are no sharp points that will break the heat shrink. Then slide the heat shrink onto the connector and heat it up…
That’s it.
Note on soldering:
Some people will tell you it’s a bad idea. Or some crap about how electricity flows on the outside of the wire.
Like most myths, its based on some truth, and some fantasy. Yes a solder joint can become weak and break IF ITS STRESSED. That means you need to properly secure the wire so that it does not stress the joint. But soldering a connection does decrease the resistance, and it drastically lessens the chance of the connection failing because of corrosion. When the two pieces of metal are solidified between some other metal (the solder) there’s almost no chance of it corroding and running the connection. Electricity does NOT flow on the “outside” of the wire. Matter of fact, at the atomic level, there’s no way to define the “outside” of the wire. The more metal there, the better. It’s that simple. Your house uses solid wire. Why? Because it’s the best way to conduct electricity. The downside to solid wire is that it cannot flex. That is the reason you must use stranded wire in a car. Not because of “the way it flows”
1. Strip back the wire
2. Slip some heat shrink on the wire....
3. If it has one, pull the little plastic cover off the connector.
4. Tin the wire. This means that you heat up the wire with the soldering iron. And push the solder onto THE WIRE. Don’t use the iron to melt the solder. Have the wires be that hot.
Doing this lets the solder wick its way and seep into the wire.
5. Solder the wire to the connector.
6. IMPORTANT: crimp the connector down tight. This is your mechanical connection.
The solder does the electrical connection, but this is what holds the wire to the connector.
7. Check that there are no sharp points that will break the heat shrink. Then slide the heat shrink onto the connector and heat it up…
That’s it.
Note on soldering:
Some people will tell you it’s a bad idea. Or some crap about how electricity flows on the outside of the wire.
Like most myths, its based on some truth, and some fantasy. Yes a solder joint can become weak and break IF ITS STRESSED. That means you need to properly secure the wire so that it does not stress the joint. But soldering a connection does decrease the resistance, and it drastically lessens the chance of the connection failing because of corrosion. When the two pieces of metal are solidified between some other metal (the solder) there’s almost no chance of it corroding and running the connection. Electricity does NOT flow on the “outside” of the wire. Matter of fact, at the atomic level, there’s no way to define the “outside” of the wire. The more metal there, the better. It’s that simple. Your house uses solid wire. Why? Because it’s the best way to conduct electricity. The downside to solid wire is that it cannot flex. That is the reason you must use stranded wire in a car. Not because of “the way it flows”
#4
Electricity does flow on the outside of the wire, but only at high frequencies. This is not something that will have to be considered in the wiring of any automotive circuit.
Another item that some people may overlook in wiring a circuit is the high resistance of the tarnish that develops on copper. A fresh piece of copper wire with a properly crimped connector may offer less resistance right now. Down the road, when that copper wire is not bright and clean, the resistance will go up. The soldered connection will maintain the tiny amount of resistance it started with.
I have always soldered my connections, and the solder connections have always held up better than the wire does. So, a big thumbs up to soldering connections for the most durable, trouble free connection possible.
Another item that some people may overlook in wiring a circuit is the high resistance of the tarnish that develops on copper. A fresh piece of copper wire with a properly crimped connector may offer less resistance right now. Down the road, when that copper wire is not bright and clean, the resistance will go up. The soldered connection will maintain the tiny amount of resistance it started with.
I have always soldered my connections, and the solder connections have always held up better than the wire does. So, a big thumbs up to soldering connections for the most durable, trouble free connection possible.
Trending Topics
#8
Member
Join Date: Jul 2003
Location: Southern Illinois
Posts: 439
Likes: 0
Received 0 Likes
on
0 Posts
Car: '89 rs convertible
Engine: ls1
Transmission: T56
Axle/Gears: 3.73 posi
here's a thought , after you have made your connection , i always put a wire tie about a 1/2 inch back from as a strain relief so the actual connection is not being pulled on . this is a really good idea on the ignition harness connections when doing a remote start. just a thought.
#9
Supreme Member
Join Date: May 2003
Location: Toledo, OH
Posts: 1,995
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Firebird
Engine: forged 357
Transmission: 700r4, 2200-2400 stall, vette servo
Axle/Gears: stock pegleg 2.73 drum (temp)
I think I need to pass this on to a kid in my class. He has the most ghetto-rigged wiring job on everything I've ever seen. Fog lights, underbody neon, random lights here and there, and probably much more unseen things inside. Every car he brings in is an entire POS. Like, none of them are even roadworthy, honestly. I just wish people would stop half-assing things.
#14
Member
Join Date: Mar 2003
Location: under the hood
Posts: 406
Likes: 0
Received 1 Like
on
1 Post
Car: 92 Z28 heritage
Engine: 5.0 TPI
Transmission: T-5
More wiring thoughts:
I personally love the GM weatherpack connectors. You have to buy the pieces and assemble them yourself, and can get them at any good napa or pep boys in anwhere from 1 pin up to 6 pin. Granted they are expensive, I feel that they are worth it.
Whenever I am adding anything electronic to my car, I use a weatherpack connector (not those rinky dink push style connectors that you use in house wiring, those suck). That way, if I ever have to remove it for whatever reason, I can just unplug it instead of cutting wires and resplicing them later.
GM weatherpack connectors -->
oh, and soildering, also -->
I personally love the GM weatherpack connectors. You have to buy the pieces and assemble them yourself, and can get them at any good napa or pep boys in anwhere from 1 pin up to 6 pin. Granted they are expensive, I feel that they are worth it.
Whenever I am adding anything electronic to my car, I use a weatherpack connector (not those rinky dink push style connectors that you use in house wiring, those suck). That way, if I ever have to remove it for whatever reason, I can just unplug it instead of cutting wires and resplicing them later.
GM weatherpack connectors -->
oh, and soildering, also -->
#15
Junior Member
Join Date: Jun 2006
Location: mifflinburg/PA
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Car: 89 camaro
Engine: 305 fuel injected throttol body
Transmission: 700r4
Axle/Gears: rear is from a fire bird
hot wiring my 89 camaro
hi i am andy and i was wonderin if u or any one new how to hot wire a 89 RS camaro. my ignition went out and i need to hot wire to get it to start but i have no i dea what wires to touch wear the wires are located or what color the wires are that make it turn over. if u could can u help me out please get at me at andy79z282002@yahoo.com thanx
#16
Junior Member
Join Date: Jun 2006
Location: Wisconsin
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 305 TPI
Transmission: T-5-manual
Axle/Gears: 3:45
Sorry to get off the post. But. Tim, I would also like to know how to get a 305 to move like yours. If you could send me list of mods I'd appreciate it. Thanks
#17
Member
Join Date: Nov 2007
Location: The Fastest RaceWay Ever U.S. 41
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Firebird
Engine: Present=350/4brl, Future=455 H.O.
Transmission: Present=700R4, Future=Richmond 6Spd
Axle/Gears: Now Stock, Later 3.73
#18
Re: Tech: How to properly wire your electronics (Part 1)
CAN SOMEONE HELP ME FIGURE OUT HOW TO WIRE MY 1992 FIREBIRD FORMULA FOG LIGHTS?
My car did not come with fog lights, but IT DOES HAVE THE HARNESS WIRES INSIDE THE CAR FOR THE CONNECTION. I bought the FACTORY panel from a 1992 Trans Am GTA with the Fog light switch and connected it.
I also, bought the fog lights from a 1992 Trans Am GTA with the wires already there on the back as they are STOCK. My problem is, I DONT KNOW WHERE TO CONNECT the wries from the fog lights so they will work with the FACTORY FOG LIGHT SWITCH INSIDE THE CAR?
Keep in mind, the factory fog light switch inside the car is PROPERLY connected the the PLUG that came in the car. I JUST dont know where to connect the wires that are leading from the back of the FOG LIGHTS.
Thanks
----------
FORGOT, I can be reached at: EB30144@aol.com
Ben
My car did not come with fog lights, but IT DOES HAVE THE HARNESS WIRES INSIDE THE CAR FOR THE CONNECTION. I bought the FACTORY panel from a 1992 Trans Am GTA with the Fog light switch and connected it.
I also, bought the fog lights from a 1992 Trans Am GTA with the wires already there on the back as they are STOCK. My problem is, I DONT KNOW WHERE TO CONNECT the wries from the fog lights so they will work with the FACTORY FOG LIGHT SWITCH INSIDE THE CAR?
Keep in mind, the factory fog light switch inside the car is PROPERLY connected the the PLUG that came in the car. I JUST dont know where to connect the wires that are leading from the back of the FOG LIGHTS.
Thanks
----------
FORGOT, I can be reached at: EB30144@aol.com
Ben
Last edited by 1992 BIRD; 04-03-2008 at 12:06 PM. Reason: Automerged Doublepost
#19
Junior Member
Join Date: Dec 2006
Location: Lansing Illinois
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 GTA
Engine: 402 cbb
Transmission: th350
Axle/Gears: 9" 3.50
Re: Tech: How to properly wire your electronics (Part 1)
I hate when people just twist two wires together and tape it. Or, the overachiever who goes the extra step and puts a wire nut on it. Seriously.
#20
Re: Tech: How to properly wire your electronics (Part 1)
I got a 89 camaro RS and I am changing out the '88 305 TBI that came out of a camaro for a '85 305 TPI that came out of a T/A. When i went to inspect the harness, I found that the plug that goes into the firewall on the driver side was not there. Everything else seems to be there that goes to the ECM. Is the wiring harnesses for a 85 TA and a 89 camaro the same? as far as plugging into the firewall. I know they are diifferent cause of the TBI and TPI.
I don;'t know what the firewall harness operates, but can it be separated, or is is easier finding another harness?
Please email me back at brazierj434@aol.com if an can.
Thanks
I don;'t know what the firewall harness operates, but can it be separated, or is is easier finding another harness?
Please email me back at brazierj434@aol.com if an can.
Thanks
#21
Member
Join Date: Sep 2007
Location: Long Island, NY
Posts: 107
Likes: 0
Received 0 Likes
on
0 Posts
Car: 84 Camaro
Engine: 350 punch out .060 to 360ci
Transmission: 700R4 worked
Axle/Gears: 410 Posi
Re: Tech: How to properly wire your electronics (Part 1)
hey could some1 pm me a good link of those diagrams or the actual diagrams?
thanks
thanks
#22
Member
Join Date: Jun 2008
Location: Chattanooga TN
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 GTA
Engine: 350 Tune port
Transmission: 700r4,2500 stall
#23
Member
iTrader: (1)
Join Date: Nov 2008
Location: Wisconsin near the 54757
Posts: 143
Likes: 0
Received 5 Likes
on
4 Posts
Car: 1986 Camaro, 2004 9c1 impala
Engine: TPI 350, previous owner hackjob
Transmission: built out 700r4
Axle/Gears: 4th gen, 373, LSD, GIRDLE
Re: Tech: How to properly wire your electronics (Part 1)
Hey i'm thinking of buying a 305 equipped car so could you send me the mod list also? And could anybody help me with wiring interior and exterior neon, I have a idea but i'm afraid of screwing it up.
#24
Member
Join Date: Apr 2005
Location: Rochester, NY
Posts: 245
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Z28
Engine: 383 TPI
Transmission: 700R4 w/2800 stall
Axle/Gears: 3.23
Re: Tech: How to properly wire your electronics (Part 1)
What would the recommended way of running multiple wires from the outside of the car to the inside? I know I need to use a grommet, but I would think if I had a bunch of wires twisted together and run through a grommet, it wouldn't seal, and I'd get water...
Is there some kind of watertight connector to go through the sheet metal, like a simple version of the ECM connector behind the fender?
I needed to run some wiring for my elec. cut-out and electronic gear ratio adapter into the car, I wanted to put the hole above the tranny so the wiring would run into the console.
Is there some kind of watertight connector to go through the sheet metal, like a simple version of the ECM connector behind the fender?
I needed to run some wiring for my elec. cut-out and electronic gear ratio adapter into the car, I wanted to put the hole above the tranny so the wiring would run into the console.
#25
Junior Member
Join Date: Jun 2006
Location: Milwaukee, WI
Posts: 91
Likes: 0
Received 1 Like
on
1 Post
Car: 1985 Berlinetta
Engine: 5.0 LG4
Transmission: 700R4
Axle/Gears: 3.08 Peg Leg
Re: Tech: How to properly wire your electronics (Part 1)
Just my 2 cents on the tinning comments.
It's really not necessary, especially if you use a weather-pack connector. Vibration? Either way, the wire is going to break. If not at the crimp, than at the point where the tinning ends UNDER the insulation, making it more difficult to find. If you secure the wire(s) properly, than it's not a problem; either way.
If crimping was such a problem, the OEM's would have come up with something better (weather-packs; but still bare crimped). A good crimped connection that is protected and secured properly will last the life of the car.
I've been working almost 25 years at a company that provides cockpit displays and cable harnessing for airplanes, helicopters and circuit board assemblies for satellites. Both commercial and military. The specifications for crimped connections are to NOT tin the wire before crimping. Their rules, not mine. I've been working long enough to see the actual results, and bare crimped wires are the way to go.
Tinning really just makes you feel like you're doing that little extra to make your car better. Guilty as charged. I've done it myself, if I have the time. No, there's no real harm to tinning, except to make inspection and troubleshooting more difficult.
Please don't take this as a slam to anyone personally. I'm just passing on what I've learned over the years.
It's really not necessary, especially if you use a weather-pack connector. Vibration? Either way, the wire is going to break. If not at the crimp, than at the point where the tinning ends UNDER the insulation, making it more difficult to find. If you secure the wire(s) properly, than it's not a problem; either way.
If crimping was such a problem, the OEM's would have come up with something better (weather-packs; but still bare crimped). A good crimped connection that is protected and secured properly will last the life of the car.
I've been working almost 25 years at a company that provides cockpit displays and cable harnessing for airplanes, helicopters and circuit board assemblies for satellites. Both commercial and military. The specifications for crimped connections are to NOT tin the wire before crimping. Their rules, not mine. I've been working long enough to see the actual results, and bare crimped wires are the way to go.
Tinning really just makes you feel like you're doing that little extra to make your car better. Guilty as charged. I've done it myself, if I have the time. No, there's no real harm to tinning, except to make inspection and troubleshooting more difficult.
Please don't take this as a slam to anyone personally. I'm just passing on what I've learned over the years.
#26
Member
Join Date: Nov 2008
Location: NY
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1986 Camaro Sport Coupe
Engine: L69
Transmission: 700-R4
Axle/Gears: 2.73's
#27
Member
Join Date: Nov 2006
Location: Wilmington, NC
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Chevy Camaro RS
Engine: V6 3.1L
Transmission: automatic
#29
Member
Join Date: Mar 2007
Location: Slinger WI
Posts: 185
Received 0 Likes
on
0 Posts
Car: 55 chevy Belair & 86IROC Z
Engine: 350 in 55 86IROC Z LT1
Transmission: 55 4speed IROC Z4L60e
Axle/Gears: 12 bolt 410 in55 and 342 inCamaro
Re: Tech: How to properly wire your electronics (Part 1)
I wanted to know I am doing a 94 corvette Lt1 swap on a 86 camaro and on the 94 vette wire harness there should be a connector plug in for the fuel pump relay right in thelt1 engine harness?? are would I have to use a fuel relay kitt??
#30
Junior Member
Join Date: May 2010
Location: Orlando, Fl
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 Pontiac Trans Am G.T.A.
Engine: 305 T.P.I.
#31
#32
Member
Join Date: Mar 2007
Location: Slinger WI
Posts: 185
Received 0 Likes
on
0 Posts
Car: 55 chevy Belair & 86IROC Z
Engine: 350 in 55 86IROC Z LT1
Transmission: 55 4speed IROC Z4L60e
Axle/Gears: 12 bolt 410 in55 and 342 inCamaro
Re: Tech: How to properly wire your electronics (Part 1)
#33
Senior Member
Join Date: Oct 2010
Location: bellingham WA
Posts: 885
Likes: 0
Received 0 Likes
on
0 Posts
Car: 85 Z28
Engine: 327
Transmission: 700R4
Axle/Gears: 3.23
Re: Tech: How to properly wire your electronics (Part 1)
Old thread but jim can you put up your wire table again. All I see is a bunch of html. Script.
#34
Member
Join Date: Mar 2007
Location: Slinger WI
Posts: 185
Received 0 Likes
on
0 Posts
Car: 55 chevy Belair & 86IROC Z
Engine: 350 in 55 86IROC Z LT1
Transmission: 55 4speed IROC Z4L60e
Axle/Gears: 12 bolt 410 in55 and 342 inCamaro
#35
new to this i will try tach problems 87 irock z 700r 305 350 tpi swap
ok first off i hope im puting this in the right place i have a 87 irock and it had a 305 tpi in it some one swaped it to a 350 tpi from a 88 irock before i mesed with it i have 2 wires on the firewall buy the distribrotor .the pasengers side i have a grey wire on the drivers side i have a red with black stripe wire.what do these hookup to i will try to put my pictures in here.ps my tack is not working all other gages are working
I WISH TO THAINK EVERONE IN THESE FORUMS I HAVE LEARNED ALOT IN THE LAST MONTH I HAVE HAD THIS CAR. gust buy reading
I WISH TO THAINK EVERONE IN THESE FORUMS I HAVE LEARNED ALOT IN THE LAST MONTH I HAVE HAD THIS CAR. gust buy reading
#36
Re: new to this i will try tach problems 87 irock z 700r 305 350 tpi swap

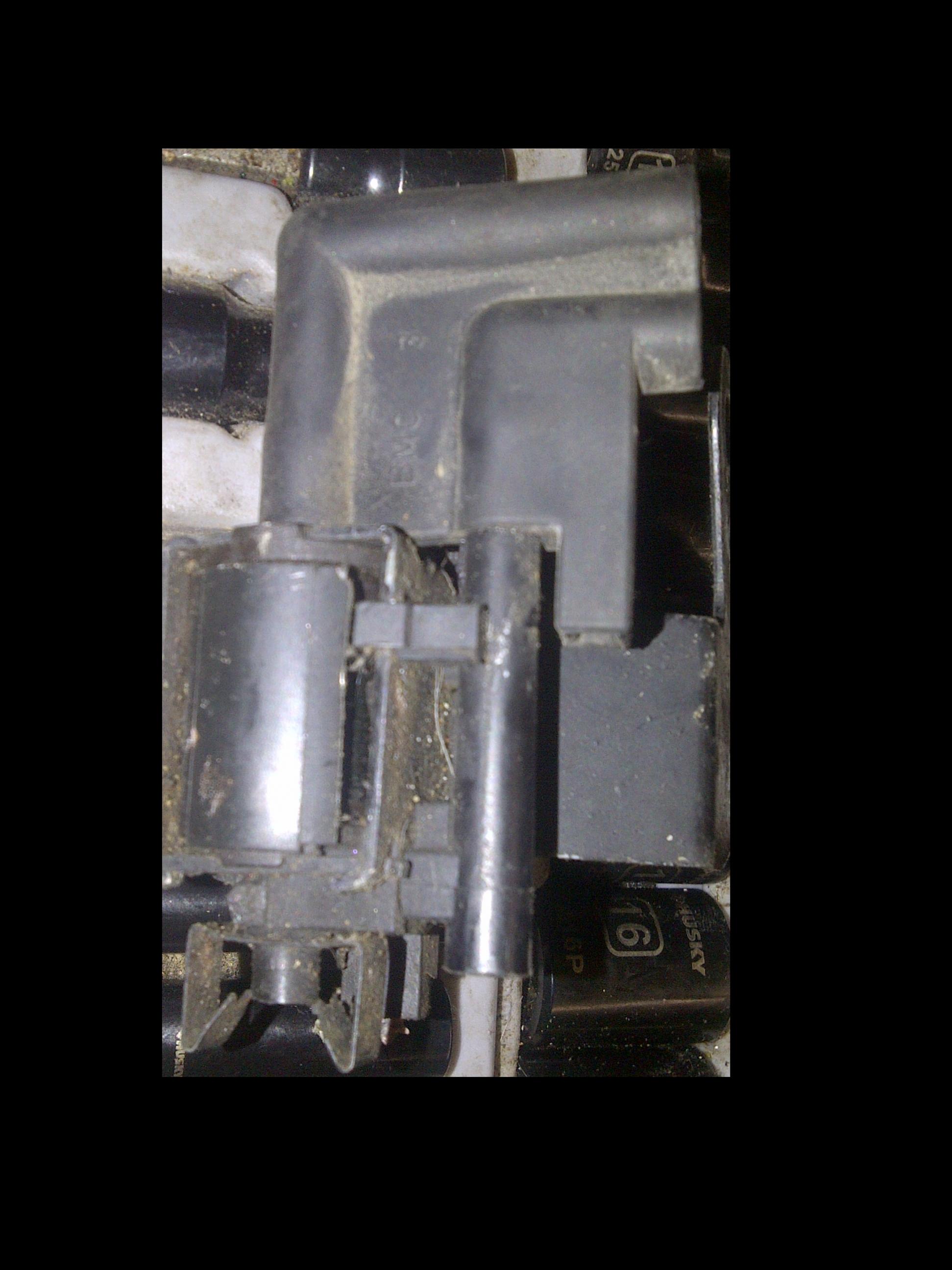

found what thay go to but i dont know what this is
on the rubber it has bmc 3 on the electronic par it has 5108
br 171
could some one please help thanks in advance
on the rubber it has bmc 3 on the electronic par it has 5108
br 171
could some one please help thanks in advance
#37
Junior Member
Join Date: Jun 2010
Location: Enterprise, AL
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Car: 85 IROC Z
Engine: 305 TPI
Transmission: 700r4
Axle/Gears: stock ratio
Re: new to this i will try tach problems 87 irock z 700r 305 350 tpi swap
#38
Re: Tech: How to properly wire your electronics (Part 1)
Need help. I changed out my entire engine but still have the factory harness, gauges and computer. I need to know of what wire do o plug into the HEI distributor or of which is the best way to get my speedo and tach on the factory cluster to work with my new setup. Note: all of my connections are still connected to the 700r4 trans that was in it. The cluster cones on but my rpm and speedo foes not work. It us getting power. Please help. Thanks.
*
*
#39
Junior Member
Join Date: Jul 2011
Location: Grants Pass Or.
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Car: 86 camaro Iroc
Engine: 409 HP. 305
Transmission: 5speed
Re: Tech: How to properly wire your electronics (Part 1)
how do find out if my fuel sending unit or my fuel gauge is bad on my 86 carberated camaro ? the gauge pegged it self above full the other day ant wont change or move
#40
Junior Member
Join Date: Dec 2009
Location: klamath falls, OR
Posts: 12
Likes: 0
Received 0 Likes
on
0 Posts
Car: charlotte- my 92 rs, 5 speed t top
Engine: 305 v8!
Transmission: stock 5 spd
Axle/Gears: stock
Re: Tech: How to properly wire your electronics (Part 1)
I think I need to pass this on to a kid in my class. He has the most ghetto-rigged wiring job on everything I've ever seen. Fog lights, underbody neon, random lights here and there, and probably much more unseen things inside. Every car he brings in is an entire POS. Like, none of them are even roadworthy, honestly. I just wish people would stop half-assing things.
mmmm true story. Im not a prefessional but I dont half *** any jobs I do. If I dont know how to do it, then I dont do it.
#42
Member
Join Date: Jun 2001
Location: new york , n.y. , USA
Posts: 397
Likes: 0
Received 10 Likes
on
10 Posts
Car: klowny1969 <-youtube 4 3rd gen vids
Engine: subscribe to klowny1969 on youtube!
Transmission: subscribe to my channel on youtube
Re: Tech: How to properly wire your electronics (Part 1)
Hey guys i also started making electrical tutorials but on youtube..i guide you on how to read wiring diagrams..and show you exactly what the components look like on my 1991 camaro..u can also subscribe to me to be updated on my future vids..
Here is a sample vid..enjoy..
Here is a sample vid..enjoy..
Thread
Thread Starter
Forum
Replies
Last Post
1992 Trans Am
History / Originality
27
05-10-2023 07:19 PM
1988iroc350tpi
Tech / General Engine
8
08-14-2015 07:52 PM
91, 91camaro, automotive, camaro, eb30144, eb30144aolcom, electronics, fog, howto, lights, loom, pre, properly, rs, split, troubleshooting, wire, wired
