Help I need a wiring diagram for a 1989 Camaro 305 TBI auto C203 computer connector!!!

Can someone help?

Thanks so much

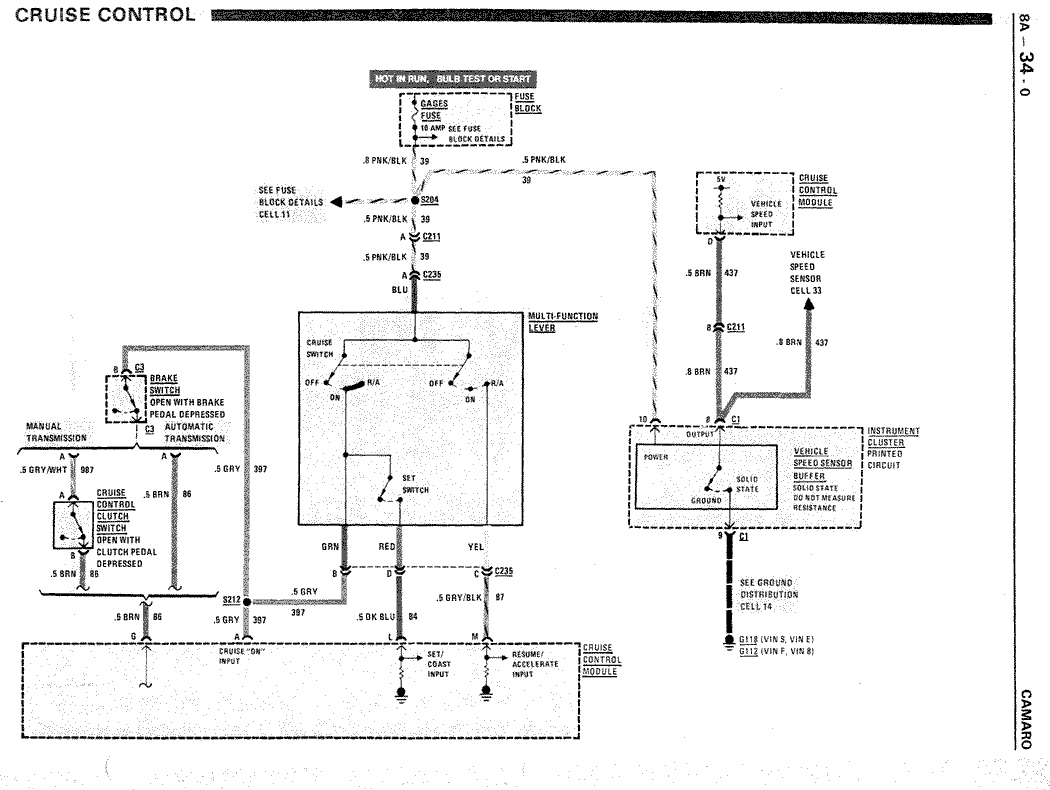

Of course, it is part of the cruise control harness and is located under the dash on the drivers side. You will see the wiring for it in the second picture.



page 2



That will be helpful, but I need the diagram of the C203 connector (that comes off the ECM and goes to the dash area) with all the ports listed as to what each wire is for.

Thanks

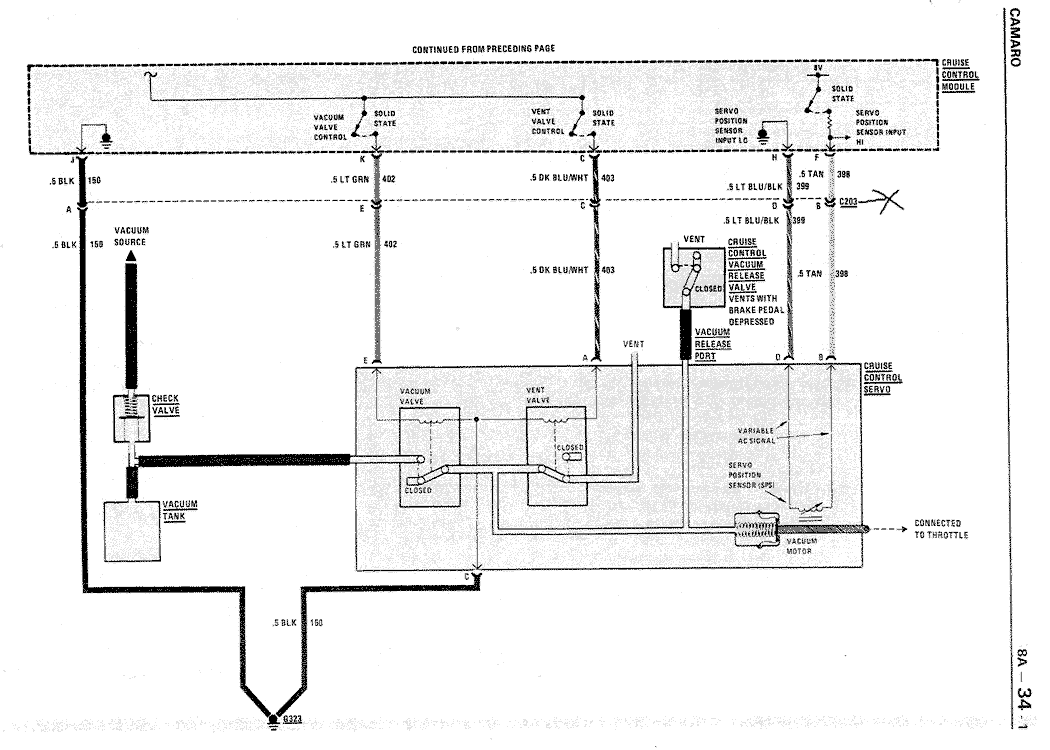

Connector C203 doesn't go to the ECM, it goes to the cruise control module and the cruise control in the engine bay. Do you mean connector C207 which is located under the dash on the passenger side and has about 15 wires in it?



I could be wrong on the name, so I'll try to describe it.

Off the computer there is a series of wires that go to the right kick panel, and into the engine bay. I dont need that one(yet).

Then there is a group of wires that go toward the drivers side. What I'm looking for is a pic of that connector with a listing of what each pin is for.

Thanks

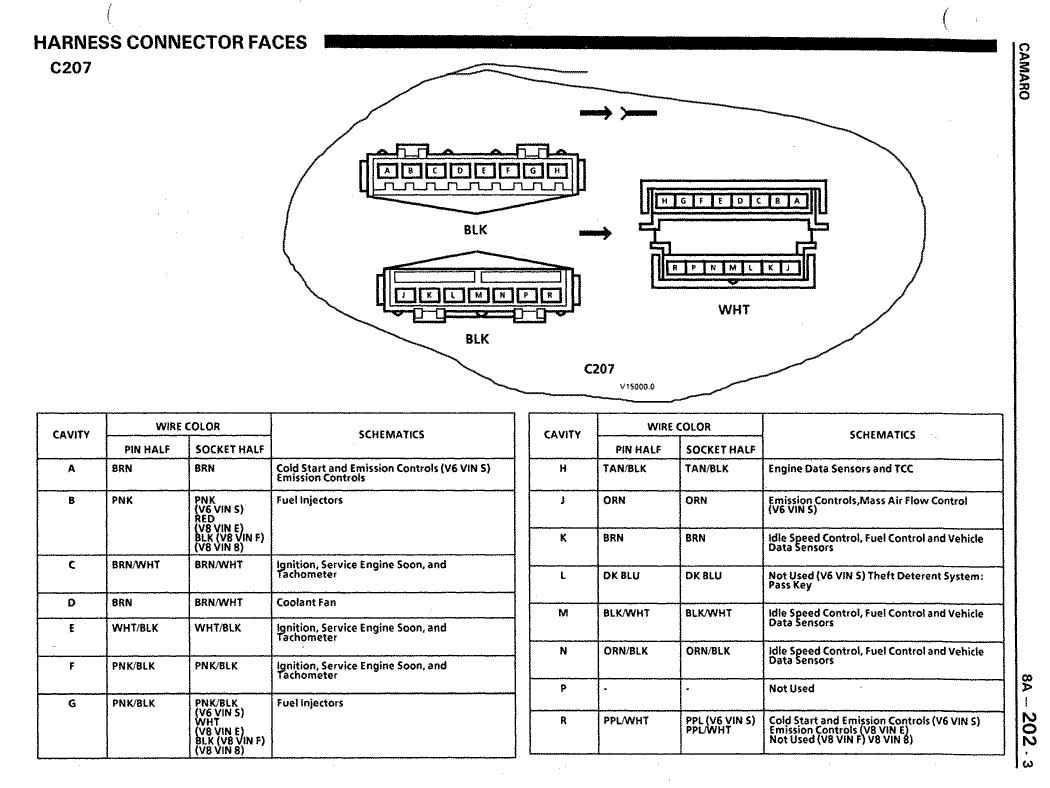

Would this be the one that you are talking about? It is connector C207 and is located under the dash on the passenger side near the ECM. BTW, I deleted your duplicate posts and the WTF.



Thanks for deleting and I'm not sure how the multiple posts got there.

I think thats what I am needing!!

Thank you very much!!!!!!



That worked!!!

Now would you by chance have the same connector for a 86 T/A 305 carb auto??



I can have one together by tomorrow evening for you.



If you could that would be incredible!!!

Thank you so much!!!!!!!!!
