Problem have 700r4 with lock up converter plug has 3 wires (1) Blue, (1) grey/tan, and (1) Purple which wires do I use to operate the Lockup converter 1988 Z28 was V6 Now 355ci 465HP


Thanks Bill :hail:



Hey Bill,
Check your PM's, the answer is there.



mee too please...i have an 86 trans am with a bilt 700r4 2800 lock up stall

help chris



Okay Chris,
On your car the wiring would be like this.
Pin "A" would be purple going to pin "P" of connector "C207" under the dash near the ECM on the passenger side, form there it would go to pin "A" of the brake switch on the brake pedal.
Pin "B" would be a dark green wire going to pin "C8" of the ECM.
Pin "D" is a tan/black wire with a splice in it. one wire goes to pin "a7" of the ECM while the other wire goes to pin "H" of connector "C207", from there it goes to pin "14" of connector "C2" on the instrument cluster for the shift light and then to pin "F" on the ALDL. Please note that the routing I just mentioned for the tan/black wire is for a manual transmission. The routing for it on an automatic transmission is exactly the same except the shift light connection is eliminated.
BTW, in case I forgot to mention it, there is no wire in the slot for pin "C".



your the man...but i want to run it to a toggle switch seeing as how there is not a computer in the car any more and the dash is out to...if i got my hands on the harness that goes into the transmisson how would i wire it up to be ''''''on''''off'''''' for the converter lock up...

thanks chris



You would wire it into the wire going to pin "F" of the ALDL. BTW, the converter will unlock whenever you hit the brakes, that is what the purple wire going to pin "A" of the brake switch is for.

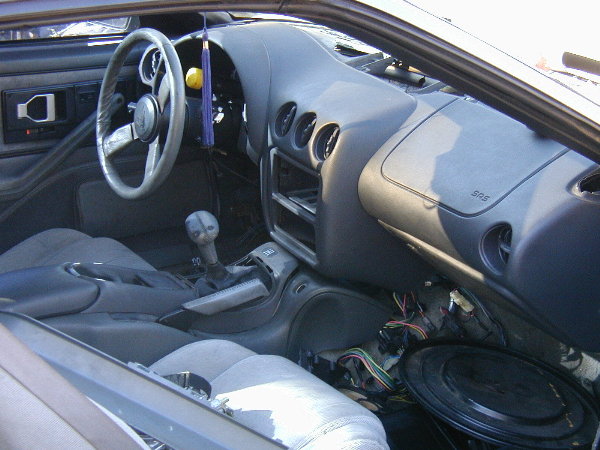

:hail: thank you so much but i dont have pervisoins for aldl any more nor do i have the wireing going to the trans..is there a way i could wire up the trans by its self? like puting power to it and haveing a swith? thanks for the infor on the wire colors...im doing the 4the gen dash swap and man it would be GRATE to have the origonal wire diagram for it...

thanks chris
