Hey guys,
The car was this way when i bought it, and i dont know if someone has clipped a relay off or what. Can someone tell me whats missing?

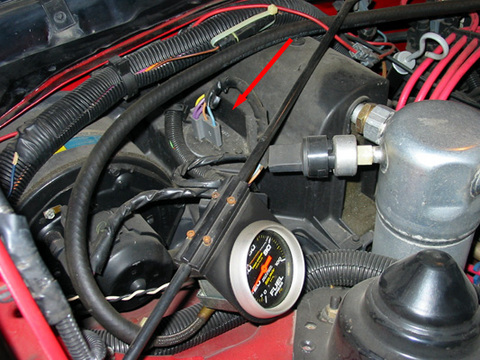

Also, what went in that big hole? (second picture)



let em try this one mo' time.....



And now the hole i spoke of...by the way, this is on a 89 RS.



I'll take a stab at this.......

The big hole is where the blower resistor fits into.

The cut wires probably had a connector that pluged into the blower resistor.

I take it your heater/AC fan doesn't work?



Well, if you can see the fan on the left side of the pic, youll notice that it is unbolted for some reason. What does this resistor look like? Someone care to go out and snap a pic of theirs for me?



Is this it? If so, which wire goes where?[IMG][/IMG]



bump



looks like someone disconnected your heating and a/c .... looks like your also missing that silver canister thingy for your a/c



that is almost the connector. the one on our cars has 4 prongs. one for the purple wire, and 3 more for those other 3 wires, yellow blue n tan i think

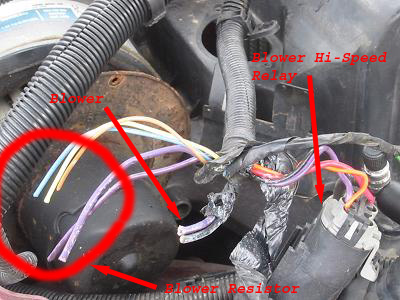

Here's a photo of what's missing. This is from my '87.

Blower Resistor



Paulo,
Couldnt get picture to come up. Please repost!

Also, i have about 4 purple wires disconnected there. Which one?



hope this helps, this is how the purple wires run, comes straight from the harness, ran down to the plug,then comes back and goes into the plug for the blower motor.



Sorry about the pic post. Check your PM's. I can email the photo to you.



Let's try this:



Paulo,

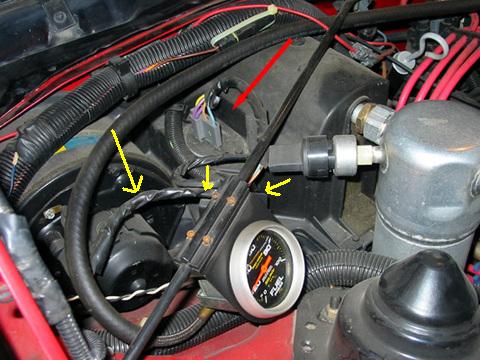

What color is the wire (or wires)going to the fan motor, and what color(s) are the wires going to the relays behind your fuel pressure gauge? (arrows) Thanks for the pic!



Crap...forgot to add the pic before i hit enter!



one fan motor wire is purple, the other is black.



Refer to the photo:

#1 - Purple; comes from the blower resistor connector.

#2 - Black; two ground wires. One comes from the Blower High Speed Relay (#3 in photo). The other black wire goes to the ground distribution loop (G112 or G117 depending upon VIN Code).

#3 - Blower High Speed Relay, 4 wires.
Wire #1 - Red (hot at all times).
Wire #2 - Purple (not used) from blower esistor connector.
Wire #3 - Black (ground, plugs into ground spade at blower motor).
Wire #4 - Orange, from Blower switch.

The descriptions come from the service manual for '87 model year.



I think this is where your wires go. Keep in mind that I'm not able to verify what wires are coming and going to and from where.

Refering to the purple and black wire that's labeled "blower"; the black wire should go to the ground spade on the blower and then to chassis ground (ground distribution G112 or G117).



Thanks! Now i can at least have heat again.
