Starter Solenoid

I lent a starter to a buddy and now he has broken it on me. Nice freind eh?

I need to find an exploded view picture of the solenoid and cant google one anywhere.

Anybody happen to have one available?

Thanks

Sep 10, 2005 | 09:51 AM

Trickster

TGO Supporter

Joined: Sep 2003

Posts: 6,127

Likes: 11

From: conway, s.c.

Car: 1989 Iroc-Z

Engine: 5.7L TPI

Transmission: 700R4

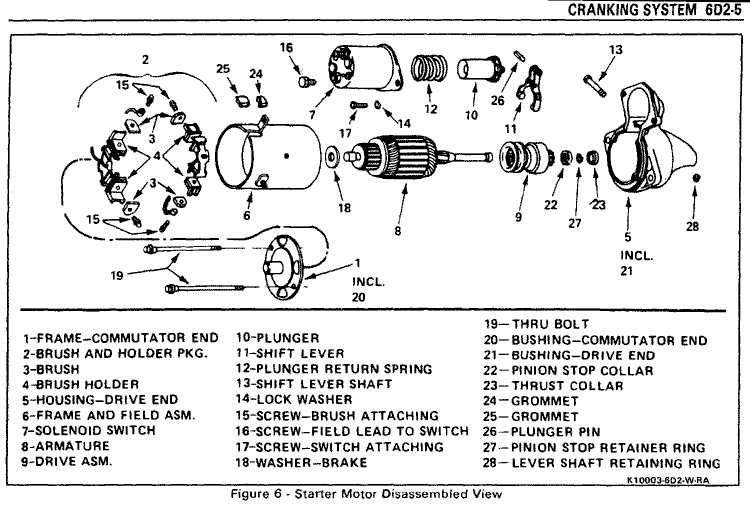

Something like this maybe?

Attached Thumbnails

Sep 10, 2005 | 09:51 AM

Trickster

TGO Supporter

Joined: Sep 2003

Posts: 6,127

Likes: 11

From: conway, s.c.

Car: 1989 Iroc-Z

Engine: 5.7L TPI

Transmission: 700R4

Or maybe this?

Attached Thumbnails

Sep 10, 2005 | 02:40 PM

Toyrantula

Thread Starter

Junior Member

Joined: Mar 2005

Posts: 3

Likes: 0

Car: 87

Engine: 305

Transmission: 5 spd

Exactly what I needed. Thank you so much.

Sep 10, 2005 | 03:13 PM

justlearning

Member

Joined: Mar 2005

Posts: 451

Likes: 0

From: lexington, ky

Car: 91 camaro 305 tbi

Engine: 305 tbi l03

Transmission: 700r4

trickster r u getting those views from the camaro cd or something id love one for cylinder heads and tbi unit....u can pm it to me or email it to me spanky00185@yahoo.com thanks if u can do it.
