No gauge lights or some light
Thread Starter
Joined: May 2013
Posts: 1,493
Likes: 98
From: CT
Car: 86 Trans Am WS6
Engine: 383 stroker
Transmission: 700r4
Axle/Gears: 9 Bolt Torsen 3.70
No gauge lights or some light
I've searched through old threads but none are really similar. The gauge lights and dome light don't work. The radio, check engine, brake light, courtesy lights, radio, headlights, tailights, blinkers, power mirrors, horn, parking lights, and power locks all work. All the fuses are good, is it still possible I need a remote dimmer switch? Where are the grounds I should check? PO installed a kenwood radio and there is a wire for it running to the fuse box, what should I try? Car is an 86 trans am 305 tpi
Thread Starter
Joined: May 2013
Posts: 1,493
Likes: 98
From: CT
Car: 86 Trans Am WS6
Engine: 383 stroker
Transmission: 700r4
Axle/Gears: 9 Bolt Torsen 3.70
Re: No gauge lights or some light

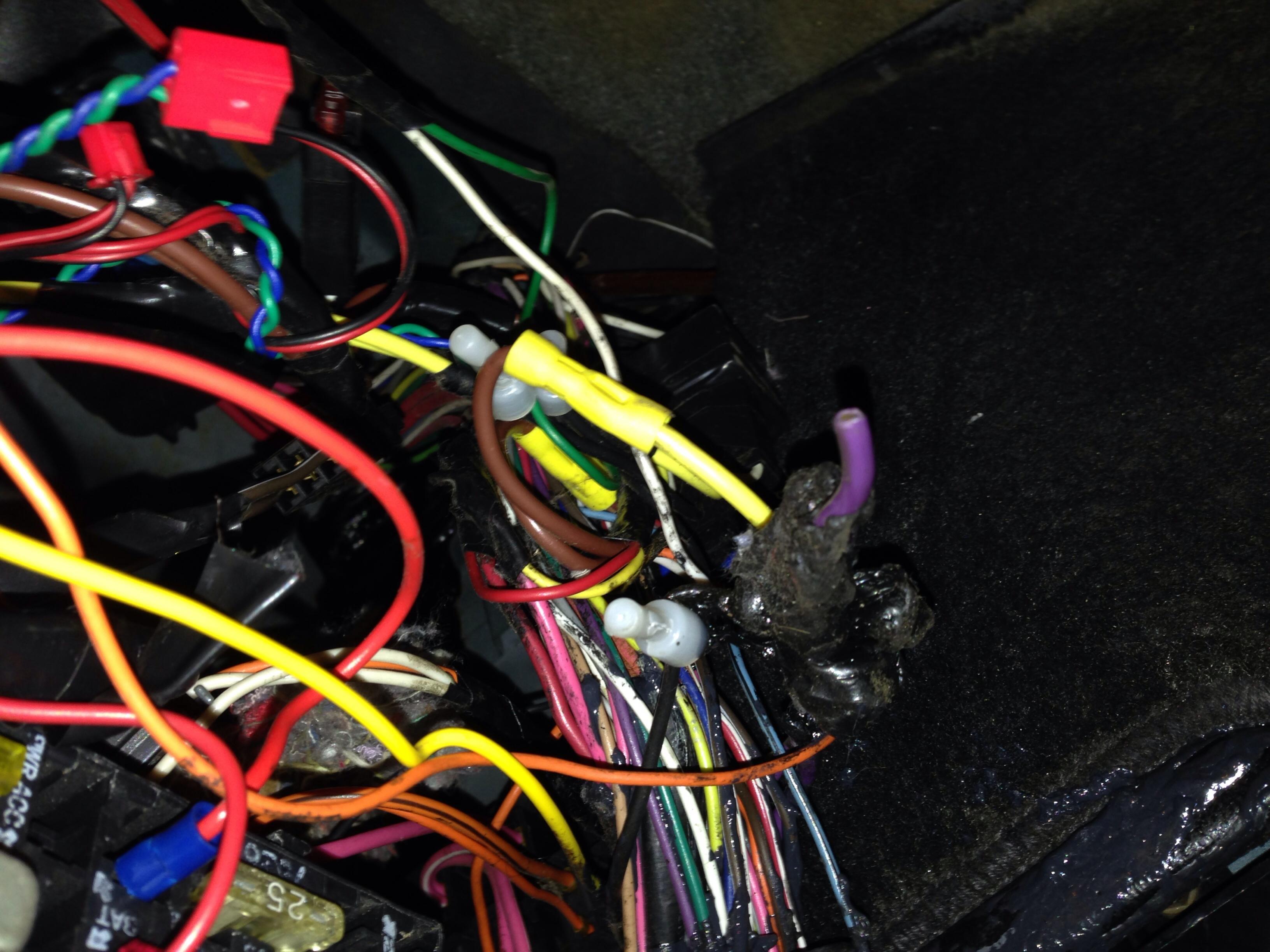

Here's pics of the wiring if anyone can see anything odd, the PO severely hacked it up.
Thread Starter
Joined: May 2013
Posts: 1,493
Likes: 98
From: CT
Car: 86 Trans Am WS6
Engine: 383 stroker
Transmission: 700r4
Axle/Gears: 9 Bolt Torsen 3.70
Re: No gauge lights or some light
Is the white piece with the metal rod going into it the dimmer switch?
Last edited by TylerSteez; Mar 2, 2014 at 10:25 PM.
Joined: Sep 2005
Posts: 27,869
Likes: 2,429
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: No gauge lights or some light
Yes that's the dimmer switch; changes the headlights from low beam to high beam. Not related to the dash lights.
I'd suggest, try to remove all that .... stuff ... the PO put in there; put it back stock; and go from there. Pretty hard to troubleshoot a mess like that.
I'd suggest, try to remove all that .... stuff ... the PO put in there; put it back stock; and go from there. Pretty hard to troubleshoot a mess like that.
Thread Starter
Joined: May 2013
Posts: 1,493
Likes: 98
From: CT
Car: 86 Trans Am WS6
Engine: 383 stroker
Transmission: 700r4
Axle/Gears: 9 Bolt Torsen 3.70
Re: No gauge lights or some light
Yes that's the dimmer switch; changes the headlights from low beam to high beam. Not related to the dash lights.
I'd suggest, try to remove all that .... stuff ... the PO put in there; put it back stock; and go from there. Pretty hard to troubleshoot a mess like that.
I'd suggest, try to remove all that .... stuff ... the PO put in there; put it back stock; and go from there. Pretty hard to troubleshoot a mess like that.
Trending Topics
Supreme Member
Joined: Jan 2006
Posts: 3,341
Likes: 10
From: Mooresville NC
Car: LOWERED ♦ CRIMSON METALFLAKE
Engine: ► 400 KUBES ◄
Transmission: 765R4
Axle/Gears: EATON POSI 4.56
Diminishing Returns
There’s no dimmer for the interior lights but there is one for the dash.
You mentioned Remote Dimmer.
If you have that in your car it could be the dimmer wheel but first do some measurements.
Using a voltmeter or test light (the type for testing for voltage, not a continuity tester) probe the dark green wire with the WHITE stripe going to the dimmer wheel.
When you rotate the wheel back and forth — what happens on the meter or test light?
Then probe the brown wire.
When you rotate the wheel back and forth — what happens on the meter or test light?
Then probe the probe the plain dark green wire.
When you rotate the wheel back and forth — what happens on the meter or test light?
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing !
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
My Brakes Don’t Work AT ALL When The Car Is Sliding On It’s Roof
You mentioned Remote Dimmer.
If you have that in your car it could be the dimmer wheel but first do some measurements.
Using a voltmeter or test light (the type for testing for voltage, not a continuity tester) probe the dark green wire with the WHITE stripe going to the dimmer wheel.
When you rotate the wheel back and forth — what happens on the meter or test light?
Then probe the brown wire.
When you rotate the wheel back and forth — what happens on the meter or test light?
Then probe the probe the plain dark green wire.
When you rotate the wheel back and forth — what happens on the meter or test light?
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing !
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
My Brakes Don’t Work AT ALL When The Car Is Sliding On It’s Roof
Thread Starter
Joined: May 2013
Posts: 1,493
Likes: 98
From: CT
Car: 86 Trans Am WS6
Engine: 383 stroker
Transmission: 700r4
Axle/Gears: 9 Bolt Torsen 3.70
Re: Diminishing Returns
There’s no dimmer for the interior lights but there is one for the dash.
You mentioned Remote Dimmer.
If you have that in your car it could be the dimmer wheel but first do some measurements.
Using a voltmeter or test light (the type for testing for voltage, not a continuity tester) probe the dark green wire with the WHITE stripe going to the dimmer wheel.
When you rotate the wheel back and forth — what happens on the meter or test light?
Then probe the brown wire.
When you rotate the wheel back and forth — what happens on the meter or test light?
Then probe the probe the plain dark green wire.
When you rotate the wheel back and forth — what happens on the meter or test light?
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing !
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
My Brakes Don’t Work AT ALL When The Car Is Sliding On It’s Roof
You mentioned Remote Dimmer.
If you have that in your car it could be the dimmer wheel but first do some measurements.
Using a voltmeter or test light (the type for testing for voltage, not a continuity tester) probe the dark green wire with the WHITE stripe going to the dimmer wheel.
When you rotate the wheel back and forth — what happens on the meter or test light?
Then probe the brown wire.
When you rotate the wheel back and forth — what happens on the meter or test light?
Then probe the probe the plain dark green wire.
When you rotate the wheel back and forth — what happens on the meter or test light?
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing !
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
My Brakes Don’t Work AT ALL When The Car Is Sliding On It’s Roof
Thread
Thread Starter
Forum
Replies
Last Post
Ghettobird52
Tech / General Engine
16
Jul 5, 2024 11:18 PM
