Tech: How to bypass VATS

Reply

Thread Tools Search this Thread
Old 04-08-2018, 10:12 PM   #1
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Tech: How to bypass VATS

Special thanks to contributors: Tuned Performance , Tibo , scooter

The following outlines multiple methods of defeating the Vehicle Theft Deterrent System and when each method is appropriate.

Schematic of the theft deterrent system is shown below. Wire colors may vary by year. The PASSKEY Decoder Module (also known as VATS Decoder Module) is the heart of the system and is located behind the dash, mounted to the HVAC plenum, just above and left of the radio. The entire dash must be removed to access the PASSKEY Decoder Module. The PASSKEY module interfaces with the Ignition Lock Cylinder to evaluate whether the resistor pellet in the key is correct. The PASSKEY module controls the start relay ON/OFF function. And the PASSKEY module controls the engine ECM fuel injector enablement. The system can be defeated several ways, depending whether you keep or remove the engine ECM.

I have the stock engine ECM
See Method A. In this scenario you keep the system in tact but trick the PASSKEY module into believing that the correct key is being used. This is done by permanently installing a resistor in the resistor sensing circuit. The resistor must match the key pellet.
I am removing the stock engine ECM

In this scenario the stock engine ECM no longer controls fuel enablement because a different fuel system exists such as carburetor or stand-alone EFI. That means the PASSKEY module cannot interfere with fuel delivery, but it still has control of the start relay. If you take time to examine the starting system wiring, then youíll notice that the only reason the start relay exists is so that the PASSKEY module can control the starter crank event. The start relay serves no other function and can be bypassed safely. There are several options,
Do nothing and keep the theft deterrent system in tact. PASSkey module will operate the starter relay as long as the resistor in the key is a match.

See Method A. Install a resistor in the resistor sensing circuit. This will negate the need to have the correct key pellet, but still relies on the PASSKEY module to operate the start relay.

See Method B. Bypass the control side of the start relay. This effectively eliminates the PASSKEY module but keeps the start relay in tact. The start relay will be controlled directly by the ignition switch.

See Method C. Eliminate the start relay. Both the PASSKEY module and start relay are eliminated. Starter solenoid is hard wired to the ignition switch.

I am doing an LS swap and the new PCM has VATS
See Method D. Disable VATS in the LS engine PCM, and bypass the PASSKEY hardware on the car.


Schematic from 1988 Firebird service manual





Schematic from 1992 Camaro service manual


Last edited by QwkTrip; 06-25-2018 at 08:27 PM.
QwkTrip is offline   Reply With Quote
Old 04-08-2018, 10:12 PM   #2
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Tech: How to bypass VATS

METHOD A

Measure the electrical resistance of the pellet in your key. Refer to the table below to determine the corresponding Key Blank Number, and purchase a resistor that falls within the allowable tolerance (max, min) shown in the table.

Find the wire pigtail from the Ignition Lock Cylinder under the steering column. Disconnect the pigtail and install the resistor between the colored wires on the vehicle side of the harness. The pigtail to the Ignition Lock Cylinder will not be re-used and must remain disconnected. The new resistor will satisfy the PASSKEY module and allow the engine to start when the key is turned to the CRANK position. Having the correct pellet in the key is no longer necessary.

Alternative: Cut the pigtail to Ignition Lock Cylinder and solder the resistor between the wires. Now you have a "plug and play" resistor that can be plugged back into the vehicle harness, or removed if you want to disable the vehicle.





METHOD B

Ground the field coil of the start relay. Start relay will be ON (starter cranking) when key switch is in the CRANK position.
Option 1: Ground the field coil locally at the start relay. Cut the small (16 gauge) DARK GREEN wire on earlier cars, or the BLACK / YELLOW wire on later cars, and ground it to chassis. Start relay is located behind the driver side kick panel, often down near the carpet line.

Option 2: Ground the start relay at the PASSKEY module. Jump together terminals A3 and B1 at the PASSKEY electrical connector. A3 is the wire from start relay, and B1 is the ground path that the PASSKEY module would have used if still working.




METHOD C

Unplug the start relay from the electrical connector and discard. Jump the larger 12 gauge YELLOW wire to the 12 gauge DARK GREEN / WHITE wire. Start relay is now eliminated and the ignition switch is wired directly to the starter solenoid when key is in CRANK position.

Note: The wire leads should be insulated to prevent accidental short to ground and possible fire. Picture below does not have adequate insulation.


Last edited by QwkTrip; 05-09-2018 at 11:37 PM.
QwkTrip is offline   Reply With Quote
Old 04-08-2018, 10:18 PM   #3
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Tech: How to bypass VATS

METHOD D
  • Use your choice of software to disable VATS in the LS engine PCM.
  • Bypass the original PASSKEY hardware in the car. Refer to instructions in Post #1 for, "I am removing the stock engine ECM"


Examples of editing VATS in software:

C.A.T.S. Tuner



Tuner Pro



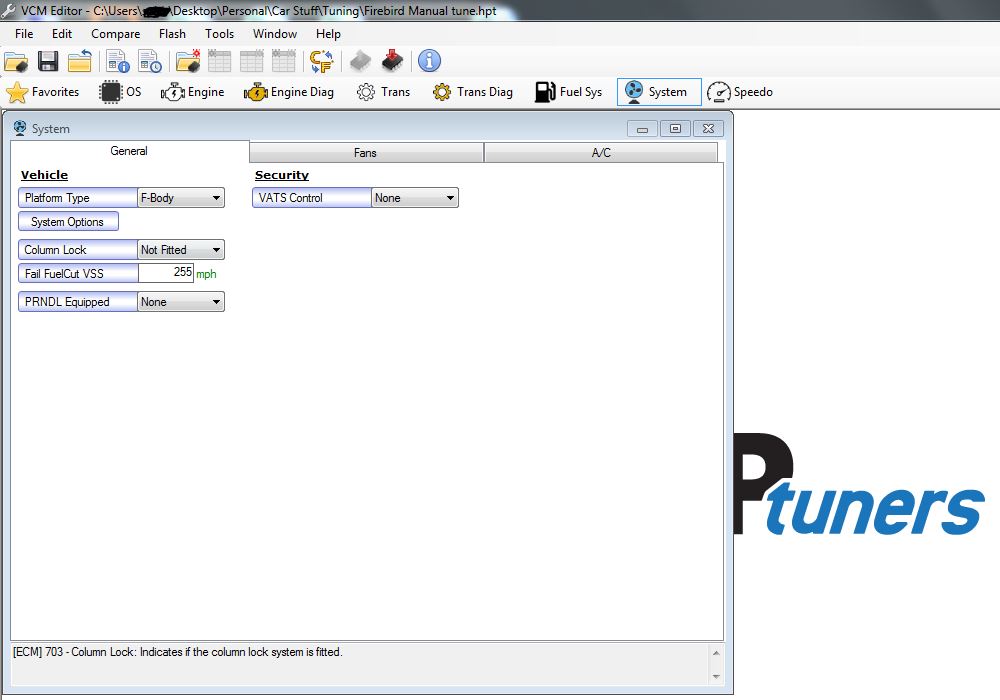

HP Tuner

Last edited by QwkTrip; 04-11-2018 at 08:57 PM.
QwkTrip is offline   Reply With Quote
Old 04-08-2018, 10:19 PM   #4
Supreme Member
iTrader: (26)

Drew's Avatar

Join Date: Jul 1999
Location: Salina, KS
Posts: 16,320


Re: Community effort - defeating VATS sticky

A sticky that covers how to fix the VATS system would make sense. I'm not really in favor of tutorials on how to defeat an anti-theft feature. Wouldn't really want it to be a sticky for the same reason I generally don't provide step by step instructions on how to roll back an odometer.

I applaud the reasoning, and the effort, it's just information with potential for misuse.
Drew is offline   Reply With Quote
Old 04-08-2018, 10:28 PM   #5
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Community effort - defeating VATS sticky

HUH?!?! Not even remotely in the same ball park as an illegal activity of rolling back the odometer.

It is a basic, common, and necessary modification for people that upgrade or change engine management system. And it is probably in the top 3 questions asked in this particular forum.
QwkTrip is offline   Reply With Quote
Old 04-08-2018, 10:51 PM   #6
Supreme Member
iTrader: (26)

Drew's Avatar

Join Date: Jul 1999
Location: Salina, KS
Posts: 16,320


Re: Community effort - defeating VATS sticky

Explaining how to defeat VATS is the same as explaining how to start a later thirdgen without the proper key. While there are legit reasons a person may want to do that, the information can be abused by someone with less honorable intentions. I disagree with spoon-feeding a tutorial to anyone with the ability to search Google and read the first result. It should be difficult to defeat. To make it less difficult is to compromise an anti-theft feature on countless member's cars. It should be considered how it may negatively impact the community.

Just throwing it out there.
Drew is offline   Reply With Quote
Old 04-09-2018, 12:08 AM   #7
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Community effort - defeating VATS sticky

You're arguing for secrecy about an antiquated 30 year old technology. If you made this argument 25 years ago then you might get a sympathetic ear. These days defeating VATS is just part of the hot rod culture.
QwkTrip is offline   Reply With Quote
Old 04-09-2018, 12:20 AM   #8
Supreme Member
iTrader: (26)

Drew's Avatar

Join Date: Jul 1999
Location: Salina, KS
Posts: 16,320


Re: Community effort - defeating VATS sticky

Must not be too obsolete if it creates problems for hotrodders. Anything that inconveniences a car thief is going to make a car a less attractive temptation. While the functional value of the system isn't valuable to you, it may be valuable to someone else, and you should take that into consideration before publicizing how to defeat the system. You're welcome to disagree, but that doesn't make my opinion any less valid.
Drew is offline   Reply With Quote
Old 04-09-2018, 12:39 AM   #9
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Community effort - defeating VATS sticky

It is already in the How To section of the site, https://www.thirdgen.org/vats/

This thread is more tailored to the engine swap crowd, hence the larger variety of circumstances and methods up to and including integration of VATS with LS1 PCM.

You know I'm not a moderator and can't make stickies anyway.
QwkTrip is offline   Reply With Quote
Old 04-09-2018, 01:25 AM   #10
Supreme Member
iTrader: (26)

Drew's Avatar

Join Date: Jul 1999
Location: Salina, KS
Posts: 16,320


Re: Community effort - defeating VATS sticky

Do people ever look at the main page and how-to's anymore?

I found that being a moderator caused an awful lot of bellyaching when I was being mildly abrasive. I retired my moderator status when I was living without internet access and really couldn't keep up with the job.

But anyway, I've voiced my position on the topic, so I'll leave it at that.
Drew is offline   Reply With Quote
Old 04-09-2018, 07:34 AM   #11
Supreme Member
iTrader: (7)

Join Date: Sep 1999
Posts: 2,394
Car: 92 Firebird
Engine: 4.8 LR4
Transmission: T56
Axle/Gears: 3.45 9 Bolt


Re: Community effort - defeating VATS sticky

I can take a picture for Method A of the connector on the column where you install the resistor. Other than that, you need an ohm meter so you can measure the resistance of your existing key pellet.

Method D, you just need to remove the VATS module and ground that wire that goes to the Starter relay. You should also point out that the wire colors may change through the years, as the wire in my 92 is not dark green.

Also, that wire is where someone would want to add a security feature, such as an aftermarket alarm. My alarm system will ground that wire when the system is disabled.

I am not sure Method E is a possibility with the LS. I think the output on the later VATS is different than our cars.
scooter is offline   Reply With Quote
Old 04-09-2018, 09:59 AM   #12
Sponsor
iTrader: (79)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 10,402
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt


Re: Community effort - defeating VATS sticky

Here is a chart for method A


Vats can also be bypassed with a hz modulator depending on ecm a 30hz or 50hz signal .
Tuned Performance is offline   Reply With Quote
Old 04-09-2018, 10:55 AM   #13
Supreme Member
iTrader: (14)

Tibo's Avatar

Join Date: Jun 2003
Location: Desert
Posts: 4,345
Car: 1991 Z28 Vert
Engine: 383 single plane efi
Transmission: T-56
Axle/Gears: waiting to break


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by QwkTrip View Post

In this scenario the stock engine ECM no longer controls fuel enablement because a different fuel system exists such as carburetor or stand-alone EFI. That means the PASSKEY module cannot interfere with fuel delivery, but it still has control of the start relay. If you take time to examine the starting system wiring, then youíll notice that the only reason the start relay exists is so that the PASSKEY module can control the starter crank event. The start relay serves no other function and can be bypassed safely.
^^^


Also can't have a good sticky without the wiring schematic

Tibo is offline   Reply With Quote
Old 04-09-2018, 11:01 AM   #14
Sponsor
iTrader: (79)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 10,402
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt


Re: Community effort - defeating VATS sticky

@tibo what year is that I don’t recognize the colors of the enable relay wires.



Tuned Performance is offline   Reply With Quote
Old 04-09-2018, 11:22 AM   #15
Supreme Member
iTrader: (7)

Join Date: Sep 1999
Posts: 2,394
Car: 92 Firebird
Engine: 4.8 LR4
Transmission: T56
Axle/Gears: 3.45 9 Bolt


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by Tuned Performance View Post
@tibo what year is that I donít recognize the colors of the enable relay wires.
I believe it is late, as those are the colors in my 91 and 92 Firebirds
scooter is offline   Reply With Quote
Old 04-09-2018, 11:29 AM   #16
Sponsor
iTrader: (79)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 10,402
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt


Re: Community effort - defeating VATS sticky

So later years ground blk/yellow wire to activate the relay.
Tuned Performance is offline   Reply With Quote
Old 04-09-2018, 11:31 AM   #17
Supreme Member
iTrader: (26)

Drew's Avatar

Join Date: Jul 1999
Location: Salina, KS
Posts: 16,320


Re: Community effort - defeating VATS sticky



Pretty sure that's a scan from the Chilton's manual, so mayhaps it is, mayhaps it ain't, but they think it's a 1992 diagram.
Drew is offline   Reply With Quote
Old 04-09-2018, 11:33 AM   #18
Supreme Member
iTrader: (14)

Tibo's Avatar

Join Date: Jun 2003
Location: Desert
Posts: 4,345
Car: 1991 Z28 Vert
Engine: 383 single plane efi
Transmission: T-56
Axle/Gears: waiting to break


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by Tuned Performance View Post
@tibo what year is that I donít recognize the colors of the enable relay wires.
Its specifically for a 92 Camaro so should be fine for the 91/92 as far as colors.
Tibo is offline   Reply With Quote
Old 04-09-2018, 11:39 AM   #19
Supreme Member
iTrader: (14)

Tibo's Avatar

Join Date: Jun 2003
Location: Desert
Posts: 4,345
Car: 1991 Z28 Vert
Engine: 383 single plane efi
Transmission: T-56
Axle/Gears: waiting to break


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by Tuned Performance View Post
So later years ground blk/yellow wire to activate the relay.
True dat.
Tibo is offline   Reply With Quote
Old 04-09-2018, 01:34 PM   #20
Member
iTrader: (7)

BovineZro's Avatar

Join Date: Aug 2015
Location: Lafayette CO
Posts: 114
Car: '91 Camaro Z28
Engine: 305 w/ FiTech 400
Transmission: T5
Axle/Gears: 3.23 w/ Auburn LS

Re: Community effort - defeating VATS sticky

What are your thoughts on including a section on how to install a VATS bypass module? Something similar to
this this
? I didn't wind up using mine as I decided to ditch TPI and the ECM, but it did seem to work. I can get a picture and write a brief description if you're interested.

I'm thinking this could be presented as a viable option to the resistor bypass.
BovineZro is offline   Reply With Quote
Old 04-09-2018, 01:39 PM   #21
Supreme Member
iTrader: (14)

Tibo's Avatar

Join Date: Jun 2003
Location: Desert
Posts: 4,345
Car: 1991 Z28 Vert
Engine: 383 single plane efi
Transmission: T-56
Axle/Gears: waiting to break


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by BovineZro View Post
What are your thoughts on including a section on how to install a VATS bypass module? Something similar to this? I didn't wind up using mine as I decided to ditch TPI and the ECM, but it did seem to work. I can get a picture and write a brief description if you're interested.

I'm thinking this could be presented as a viable option to the resistor bypass.
The VATS or PASSkey system for our cars doesn't need any fancy module to bypass it, you just need the appropriate 5 cent resistor from the table tuned posted and possibly a new prom burned if you have the stock ecm.
Tibo is offline   Reply With Quote
Old 04-09-2018, 01:52 PM   #22
Supreme Member
iTrader: (9)

3rdgenmaro's Avatar

Join Date: Dec 2004
Location: Lincolnton, NC
Posts: 1,940
Car: 88 IROC
Engine: 97 5.7 Vortec LT4 hotcam
Transmission: 700 r4
Axle/Gears: 3.73


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by Tibo View Post
The VATS or PASSkey system for our cars doesn't need any fancy module to bypass it, you just need the appropriate 5 cent resistor from the table tuned posted and possibly a new prom burned if you have the stock ecm.
OP is looking at doing options, so why rule this one out?

I have that style bypass on my dirt car. Works great. I deleted most of the factory column and key switch so this worked perfect for me. Not the best option for everyone, but again, why rule it out?

Its a legit option.
3rdgenmaro is offline   Reply With Quote
Old 04-09-2018, 06:20 PM   #23
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by scooter View Post
I can take a picture for Method A of the connector on the column where you install the resistor.
Yes, please.


Quote:
Originally Posted by scooter View Post
I am not sure Method E is a possibility with the LS. I think the output on the later VATS is different than our cars.
I'm not sure either. I have a faint memory of Pocket explaining it but I could be wrong.
QwkTrip is offline   Reply With Quote
Old 04-09-2018, 06:23 PM   #24
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by BovineZro View Post
What are your thoughts on including a section on how to install a VATS bypass module........ I can get a picture and write a brief description if you're interested.
Absolutely. Thank you.
QwkTrip is offline   Reply With Quote
Old 04-09-2018, 06:29 PM   #25
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Community effort - defeating VATS sticky

It would be great if somebody could provide screen shot of turning off VATS in HP Tuner for the LS crowd.
QwkTrip is offline   Reply With Quote
Old 04-09-2018, 07:40 PM   #26
Sponsor
iTrader: (79)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 10,402
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by QwkTrip View Post
It would be great if somebody could provide screen shot of turning off VATS in HP Tuner for the LS crowd.
Here is a example of tuner cat and tuner pro sorry about the resolution.



Tuned Performance is offline   Reply With Quote
Old 04-09-2018, 08:09 PM   #27
Supreme Member
iTrader: (26)

Drew's Avatar

Join Date: Jul 1999
Location: Salina, KS
Posts: 16,320


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by scooter View Post
I am not sure Method E is a possibility with the LS. I think the output on the later VATS is different than our cars.
Quote:
Originally Posted by QwkTrip View Post
I'm not sure either. I have a faint memory of Pocket explaining it but I could be wrong.
What you would have to do is... Throw away the Passkey/VATS box in the thirdgen, and then.... This is where it gets fun, you'd wire the 4th gen BCM into the Thirdgen dash to detect the key value, and generate the signal for the ECM. Didn't really look too close at the LS1 starter diagrams to see if they use the starter enable relay.

It wouldn't really be worth the trouble. Yes, the 98-02 BCM can be wired into a thirdgen, but it's not exactly easy. To make things work right, you're rewiring the fuse box, power locks, hatch release, headlight switch, blah blah blah. It'd really only be worth the trouble if you wanted the other features of the BCM in a thirdgen.
Drew is offline   Reply With Quote
Old 04-09-2018, 09:09 PM   #28
Member
iTrader: (7)

BovineZro's Avatar

Join Date: Aug 2015
Location: Lafayette CO
Posts: 114
Car: '91 Camaro Z28
Engine: 305 w/ FiTech 400
Transmission: T5
Axle/Gears: 3.23 w/ Auburn LS

Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by 3rdgenmaro View Post
OP is looking at doing options, so why rule this one out?

I have that style bypass on my dirt car. Works great. I deleted most of the factory column and key switch so this worked perfect for me. Not the best option for everyone, but again, why rule it out?

Its a legit option.

Yeah, I agree this isn't the best option for most people - but why not be thorough? Also, the VATS bypass will work even if the original PASSKEY module is damaged or missing, which might be a big deal for someone with a hacked up harness or for someone swapping to TPI.

It's worth noting you still need to bypass the start relay. The bypass module simulates the signal from the PASSKEY module to the ECM which allows the injectors to fire - but it doesn't control the start relay. Think of it as sort of a hybrid of Method A and Method B.

I'll grab a couple pictures and do a step by step writeup tomorrow. It's not too complicated to install (one or two wires to 12V+ depending on whether you need the 50Hz or 30Hz signal, one grounded, one to a specific wire on the ECM).
BovineZro is offline   Reply With Quote
Old 04-09-2018, 09:10 PM   #29
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Tech: How to bypass VATS

Got a round of updates done tonight. Keep the good info coming.
QwkTrip is offline   Reply With Quote
Old 04-09-2018, 09:21 PM   #30
Sponsor
iTrader: (79)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 10,402
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by Tuned Performance View Post
Here is a chart for method A


Vats can also be bypassed with a hz modulator depending on ecm a 30hz or 50hz signal .
Example of modulators you can buy
http://www.bakerelectronix.com/products_vats/
https://m.ebay.com/itm/GM-VATS-or-PA...gAAOSw3fZZ6JWY
http://www.painlessperformance.com/Manuals/64024.pdf
Tuned Performance is offline   Reply With Quote
Old 04-10-2018, 07:34 AM   #31
Supreme Member
iTrader: (7)

Join Date: Sep 1999
Posts: 2,394
Car: 92 Firebird
Engine: 4.8 LR4
Transmission: T56
Axle/Gears: 3.45 9 Bolt


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by QwkTrip View Post
It would be great if somebody could provide screen shot of turning off VATS in HP Tuner for the LS crowd.
HP Tuners

Attached Thumbnails
Tech: How to bypass VATS-capture.jpg
scooter is offline   Reply With Quote
Old 04-11-2018, 12:27 PM   #32
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Community effort - defeating VATS sticky

Quote:
Originally Posted by scooter View Post
I can take a picture for Method A of the connector on the column where you install the resistor.
I will use it if you have it.
QwkTrip is offline   Reply With Quote
Old 04-11-2018, 12:33 PM   #33
Sponsor
iTrader: (79)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 10,402
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt


Re: Tech: How to bypass VATS




Bottom image from a 4th gen
Tuned Performance is offline   Reply With Quote
Old 04-11-2018, 08:54 PM   #34
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Tech: How to bypass VATS

Updated. I put all pictures on this site's picture host so links are never lost.

Moderators... This is ready to become a sticky.
QwkTrip is offline   Reply With Quote
Old 04-11-2018, 08:56 PM   #35
Sponsor
iTrader: (79)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 10,402
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt


Re: Tech: How to bypass VATS

Nice thread

Would you like to add 89-92 ecm diagnostic the pins you can read the 2.5v on or hz signal at the ecm ?

1227165 (86-89) tpi maf
Pin b6
1227730 (90-92) tpi and 3.1l
Pin f10
1227846 (89-92) tbi
Pin b6
All using a dark blue wire for passkey wire to ecm.

If you suspect the vats being a issue you can check for power at these terminals or if you have the means to read a hz signal you can measure it at the above pins.
On tbi you can remove the prom and the engine will start but run poorly in limp home mode.

Last edited by Tuned Performance; 04-11-2018 at 09:06 PM.
Tuned Performance is offline   Reply With Quote
Old 04-11-2018, 09:01 PM   #36
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Tech: How to bypass VATS

I don't know what that means so the answer is probably yes. Besides the fact that I explicitly trust what you say anyway.
QwkTrip is offline   Reply With Quote
Old 04-12-2018, 02:29 PM   #37
Supreme Member
iTrader: (26)

Drew's Avatar

Join Date: Jul 1999
Location: Salina, KS
Posts: 16,320


Re: Tech: How to bypass VATS

Quote:
Originally Posted by QwkTrip View Post
Updated. I put all pictures on this site's picture host so links are never lost.

Moderators... This is ready to become a sticky.
LOL Except for that time when all the locally hosted images got lost

Ya know, what a lot of other forums do is put a list of related tech threads with links, in a single sticky. That way you don't have 75 stickys at the top of the forum.
Drew is offline   Reply With Quote
Old 04-12-2018, 07:07 PM   #38
Sponsor
iTrader: (79)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 10,402
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt


Re: Tech: How to bypass VATS

Quote:
Originally Posted by QwkTrip View Post
Updated. I put all pictures on this site's picture host so links are never lost.

Moderators... This is ready to become a sticky.
Looks like all 3 moderators for this section haven’t been active for years.
You might have to contact j.t to make the sticky happen.
Tuned Performance is offline   Reply With Quote
Old 04-13-2018, 12:15 AM   #39
Supreme Member
iTrader: (7)

84 1LE's Avatar

Join Date: Nov 2002
Location: Oyth
Posts: 4,498
Car: 84Z-04 triumph
Engine: Erod
Transmission: 4L65e
Axle/Gears: BW, 3.27


Re: Tech: How to bypass VATS

Good stuff, maybe sticky this in the engine swap section.
84 1LE is offline   Reply With Quote
Old 05-12-2018, 10:23 AM   #40
Supreme Member
iTrader: (14)

Tibo's Avatar

Join Date: Jun 2003
Location: Desert
Posts: 4,345
Car: 1991 Z28 Vert
Engine: 383 single plane efi
Transmission: T-56
Axle/Gears: waiting to break


Re: Tech: How to bypass VATS

I ran across these two PDFs and they were helpful to me, I think they're worth sharing.
http://www.lockmasters.com/site/pdfs...%20Article.pdf
http://my.cardone.com/techdocs/pt%2077-0011.pdf
Tibo is offline   Reply With Quote
Old 06-25-2018, 08:11 PM   #41
Supreme Member

Join Date: Jun 2002
Location: North East GA
Posts: 1,386
Car: 1989 Firebird
Engine: 5.7 LS1
Transmission: T56


Re: Tech: How to bypass VATS

If you are keeping the pasakey module with your engine swap make sure to ground the module through the c207 connector. Pin m on my car but it will be the black/white wire. Looking on the 92 schematic above it grounds through the c100 connector.

If the module is working you will get the security light for a second or two when you first move the key to run position, then it will go off. If you have the right key or resistor in place when you move it to start the starter relay will be grounded and starter will engage. If you have the wrong key the security light will come on and disable the starter for 10-15 min or so.


C207 with port m grounded
Aviator857 is offline   Reply With Quote
Old 07-08-2018, 03:41 AM   #42
Supreme Member
Thread Starter
iTrader: (15)

QwkTrip's Avatar

Join Date: Mar 2001
Location: Illinois, USA
Posts: 4,870
Car: '89 Firebird
Engine: VIN says 2.8L
Transmission: T56
Axle/Gears: 3.73


Re: Tech: How to bypass VATS

Thanks for the info. Nice community effort here. This thread should be a sticky.
QwkTrip is offline   Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
VATS,VATS,VATS...... 89 ROCKINGFLAME TBI 9 07-28-2011 08:03 PM
VATS VATS VATS! theNMBR27 Electronics 10 07-06-2010 01:07 AM
Bypass or Not to bypass...Regulator question! WheelsUp84z Organized Drag Racing and Autocross 2 05-07-2007 11:27 AM
can I bypass vats? car hot vats wont allow restart. Stealthy-One V6 12 05-09-2006 03:40 PM
Performance meters: G-Tech Pro, G-Tech Competition, or Race-Tech AP22?!? BAK12484 Tech / General Engine 6 07-26-2004 01:48 PM


Go Back   Third Generation F-Body Message Boards >

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Advertising
Featured Sponsors
Vendor Directory

1982 Camaro '82 || 1983 Camaro '83 || 1984 Camaro '84 || 1985 Camaro '85 || 1986 Camaro '86 || 1987 Camaro '87 || 1988 Camaro '88 || 1989 Camaro '89 || 1990 Camaro '90 || 1991 Camaro '91 || 1992 Camaro '92


All times are GMT -5. The time now is 08:01 AM.


© 2018 MH Sub I, LLC dba Internet Brands
We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
