Trip Odometer Fix/Pics

Reply

Thread Tools Search this Thread
Old 07-07-2004, 02:33 PM   #1
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Trip Odometer Fix/Pics

The trip odometer is one of the most common engineering disasters on thirdgen cars (symptoms of failure are listed in post #25); however, the fix is both simple and inexpensive--my cost $.09 at the local hardware store.

To access the speedo, remove the black bezel. Once that's removed, look in the rectangles that house the e-brake light, check engine light, etc., and you'll note a, I believe, 10 mm nut on each side of the cluster housing. Move the seat back all the way. Drop the lower dash panel for access to the speedo cable and its clip (this clip holds the cable to the speedo head). A long-shanked, flat-bladded screw driver is perfect to trip the clip. A flash light/trouble light is indispensible. Once the cable is free, so is the cluster. Lowering the steering wheel, and/or dropping the steering column a fraction will help in the removal but is not necessary. To protect from scratches use a bit of masking tape on the steering column.

Note the speedo cable clip.

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-spdoclip.jpg

Last edited by JamesC; 02-14-2011 at 09:49 AM.
JamesC is offline   Reply With Quote
Old 07-07-2004, 02:35 PM   #2
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Removal of the speedo head is straightforward. Three screws. I'm pointing to two and the third is above my right finger.

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-spdoblts.jpg
JamesC is offline   Reply With Quote
Old 07-07-2004, 02:39 PM   #3
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


With the speedo removed, you'll probably find the infamous "J" clips that were designed to keep the odometer in place.

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-jclip.jpg
JamesC is offline   Reply With Quote
Old 07-07-2004, 02:40 PM   #4
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Note the odometer 'axel.' There's an example of another J clip, two axels up.

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-odaxel.jpg
JamesC is offline   Reply With Quote
Old 07-07-2004, 02:46 PM   #5
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


The fix is simple: Without taking the speedo head apart, turn it around to the backside and "wire up." I cut 5 inches of wire, made a noose at both ends (I bent the wire to form a "U", placed one jaw of a needle nose at the bottom of the "U" and used pliers to twist the wire around the needle jaw to form the nooses). I placed the nooses over the axels, then twisted the slack in the center of the 5 inches to tighten the whole business. Push in on the reset while you're doing this so that the axel will be seated--just makes things easier. The wire, of course, replaces the J clips and seats the axel so that it is stationary. By the way, I tried 22-guage wire first, but it was too heavy and difficult to work with. I also attempted cauter keys, but I couldn't get the axel to seat to my satisfaction. I ended up using a very flexible piece of solid core, $.09 a foot. The fix is not as neat looking as I would have prefered, but the odometer functions like new, and frankly I don't think I'll ever have further problems with it.

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-fix.jpg

Last edited by JamesC; 12-19-2006 at 09:14 AM.
JamesC is offline   Reply With Quote
Old 07-07-2004, 02:48 PM   #6
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's

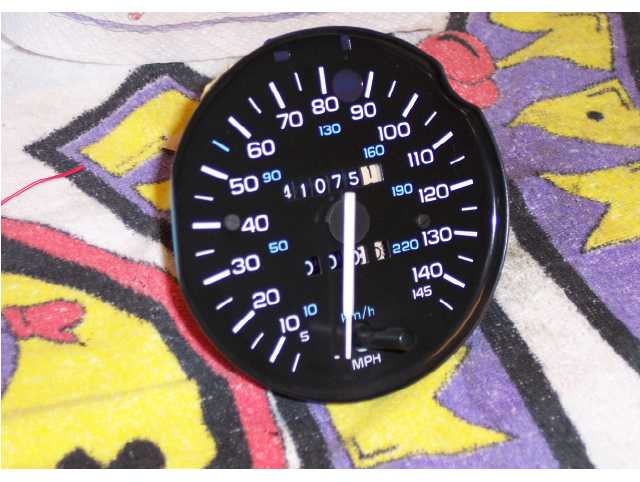

My like new 145.

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-145.jpg

Last edited by JamesC; 09-21-2004 at 10:26 AM.
JamesC is offline   Reply With Quote
Old 07-07-2004, 02:50 PM   #7
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


FYI, if you attempt the fix, you might consider white-faced overlays and/or higher intensity xenon bulbs. The sockets are twist out.

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-bulb.jpg
JamesC is offline   Reply With Quote
Old 07-07-2004, 02:51 PM   #8
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


The bulbs pull out of their sockets. Here's an old link that might be useful:

https://www.thirdgen.org/techbb2/sho...hreadid=107995

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-bulb2.jpg

Last edited by JamesC; 07-07-2004 at 03:11 PM.
JamesC is offline   Reply With Quote
Old 07-07-2004, 02:52 PM   #9
Senior Member
iTrader: (1)

Join Date: Jun 2003
Location: Elgin, IL
Posts: 3,085
Car: 1997 Corvette
Engine: LS1
Transmission: 4L60E
Axle/Gears: 2.73 IRS

I want a 145 speedo. I pegged the speedo on my car the other day (120mph) and am guessing I was going about 123 by the time I was about done. If I were to get one..would I be able to somehow use my current odometer because I want to keep the mileage reading accurate.
DuronClocker is offline   Reply With Quote
Old 07-07-2004, 02:59 PM   #10
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


You can swap mileage rolls. There's a brown clip, just below my index finger, that holds the mileage roll in place. If you remove/loosen the two screws that keep the speedo face in place, push in the reset button, and let the face hang free, you can pull that clip and work the roll out between the face and the housing. I wouldn't advise removing the speedo needle. I accomplished this swap when I went from an 85 to 110.

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-clip.jpg

Last edited by JamesC; 07-07-2004 at 03:13 PM.
JamesC is offline   Reply With Quote
Old 07-07-2004, 03:11 PM   #11
Moderator
iTrader: (14)

five7kid's Avatar

Join Date: Mar 2000
Location: Littleton, CO USA
Posts: 43,110
Car: 82 Berlinetta/57 Bel Air
Engine: LS1/LQ4
Transmission: 4L60E/4L80E
Axle/Gears: 12B-3.73/9"-3.89


I'll make this a sticky (and copy to FAQ forum). I ask that people not respond other than specifics about the trip odometer fix.

One question I have: Does reset still work "normally"? Not sure how it could, unless you're leaving some slack in there.

Another "fix" I recall hearing about is to make "J" hooks out of a paperclip, drill (small) holes in the plastic where the originals broke off, and Superglue the J's in the holes.
five7kid is offline   Reply With Quote
Old 07-07-2004, 03:16 PM   #12
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Since the axel is seated as it was with the J clips in place, the reset works fine.

JamesC
JamesC is offline   Reply With Quote
Old 07-07-2004, 03:25 PM   #13
Moderator
iTrader: (14)

five7kid's Avatar

Join Date: Mar 2000
Location: Littleton, CO USA
Posts: 43,110
Car: 82 Berlinetta/57 Bel Air
Engine: LS1/LQ4
Transmission: 4L60E/4L80E
Axle/Gears: 12B-3.73/9"-3.89


But the axle has to move away from the drive gear in order for the trip OD to reset. If you wire it too tight, it won't be able to reset.

Wonder how long a rubber band would last?
five7kid is offline   Reply With Quote
Old 07-07-2004, 05:40 PM   #14
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


The axel is supposed to be stationary (as it would necessarily have to be with the original J clips in place--the trip odometer fails because those clips break and allow the axel to float). When pushed, the reset buttom not only disengages the drive gear, I assume, but also clears the mileage, then engages the drive gear again when released. It's the reset mechanism that moves, not the axel. At any rate, everything works smoothly and as it should. Maybe that's as clear as mud.

JamesC
JamesC is offline   Reply With Quote
Old 07-07-2004, 06:29 PM   #15
Moderator
iTrader: (14)

five7kid's Avatar

Join Date: Mar 2000
Location: Littleton, CO USA
Posts: 43,110
Car: 82 Berlinetta/57 Bel Air
Engine: LS1/LQ4
Transmission: 4L60E/4L80E
Axle/Gears: 12B-3.73/9"-3.89


Okay, it's been a few years since I had mine apart and played with it. As I remembered it, the J's existed so the axle could move during reset. But, you may be right (or mine is different...).
five7kid is offline   Reply With Quote
Old 07-07-2004, 11:18 PM   #16
Supreme Member

Join Date: Jul 2003
Location: Pensacola, FL
Posts: 1,102
Car: 1999 Saturn SL2
Engine: 4 cylinder
Transmission: 4-speed automatic

Sorry if this question has already been answered, but what exactly is this supposed to fix? My trip odometer seems to be running fine even after 155,000 miles.
Nate86 is offline   Reply With Quote
Old 07-08-2004, 06:32 AM   #17
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


I'm surprised to learn that a car with that many miles still has a functioning trip. I'd guess that the majority of cars with mechanical speedos have failed trip odometers: The inherent weakness of the J clips make them highly susceptable to breakage. For example, I first had an 85 speedo, whose trip was already broken. I replaced with a free 110 (the trip worked and though I used it infrequently and gently when I did use it, it still went south). Finally, the trip in the 145 I just purchased was gone. IROCZDAVE reguarly sells speedos, and most all are advertised with repaired trips.

Anyway, my general opinion, I guess, is that unless you never use the trip, eventually it will fail.

JamesC
JamesC is offline   Reply With Quote
Old 07-08-2004, 01:19 PM   #18
Supreme Member

Join Date: Jul 2003
Location: Pensacola, FL
Posts: 1,102
Car: 1999 Saturn SL2
Engine: 4 cylinder
Transmission: 4-speed automatic

Wow, I had no idea.

I haven't ever reset the trip odometer since I bought the car. I only use it to keep track of gas milage and oil changes.
Nate86 is offline   Reply With Quote
Old 07-08-2004, 04:05 PM   #19
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


One more pic to demonstrate what occurs when one or both J clips break. Note the misalignment on the left, which is where the break is (Double that problem when both clips give up the ghost). The method I suggest simply reseats that lower axel into its proper position.

JamesC
Attached Thumbnails
Trip Odometer Fix/Pics-duh.jpg

Last edited by JamesC; 07-08-2004 at 04:25 PM.
JamesC is offline   Reply With Quote
Old 07-10-2004, 06:07 AM   #20
Supreme Member

Red Devil's Avatar

Join Date: Apr 2000
Location: E.B.F. TN
Posts: 3,186
Car: Tree Huggers
Engine: Do Not
Transmission: Appreciate Me.


The question may become this: Is this a problem on just Camaros? I have had a ton of chicken based cars and never had the problem. I've seen it on quite a few Camaros however. Is the unit the same between the cars, and if not would the chicken unit fit if it is more durable? (Or maybe I've been very lucky.)
Red Devil is offline   Reply With Quote
Old 07-10-2004, 04:42 PM   #21
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


I have no idea if Camaro and Firebird speedo guts are identical or not--I'd find differences difficuilt to believe, but this is GM we're discussing. Interesting question. Anyone?

JamesC

Last edited by JamesC; 07-21-2004 at 05:48 PM.
JamesC is offline   Reply With Quote
Old 07-13-2004, 11:59 AM   #22
Member
iTrader: (1)

Join Date: Mar 2002
Location: Indiana, PA
Posts: 198
Car: 86 IROC
Engine: SC'ed 350
Transmission: 700R4
Axle/Gears: 4.11 12bolt

I drilled two holes from the bottom and inserted screws to hold the shaft in place. Works good and should last a long time.
wwnf is offline   Reply With Quote
Old 07-28-2004, 03:28 PM   #23
Moderator
iTrader: (14)

five7kid's Avatar

Join Date: Mar 2000
Location: Littleton, CO USA
Posts: 43,110
Car: 82 Berlinetta/57 Bel Air
Engine: LS1/LQ4
Transmission: 4L60E/4L80E
Axle/Gears: 12B-3.73/9"-3.89


I finally got to mine a couple of weeks ago. I had never seen one that wasn't broken, so I didn't understand the function of the "J's". Seeing they used the same thing on the main odometer axle (although a lot beefier) finally got the concept through to me.

The "J's" allow the odometer assembly to be slid into the slot and snapped into position. In other words, ease of assembly. Once I got that in my head, I finally figured out how to snug it up per the instructions above to get it to work.

Nice to have it working again.
five7kid is offline   Reply With Quote
Old 08-09-2004, 01:29 AM   #24
Supreme Member
iTrader: (1)

Join Date: Jul 2002
Location: sacramento, ca USA
Posts: 2,789
Car: 89 iroc-z 5.7tpi 350,
Engine: 5.7tpi 350,
Transmission: T-56 fully built WOOHOO


any better pics dont see in the pics what j clips...my trip odemoter resets but goes upto like 56miles or something and quits turning.....is this the problem on my 145 sped
porkyzilla is offline   Reply With Quote
Old 08-09-2004, 06:12 AM   #25
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Check the fourth pic above. Almost straight up from the screwdriver tip, on the third axel (the one in line with my index finger), you'll see a "J" clip fixing the axel in place. The one you see there is much beefer than the ones on the lower axel that typically break. If your trip won't reset, partially resets, jumps, tics or pops, it's because the axel isn't seated, meaning one or both of the lower J clips is broken or substantially weakened, eventually leading to a break.

JamesC

Last edited by JamesC; 02-14-2011 at 09:48 AM.
JamesC is offline   Reply With Quote
Old 10-26-2004, 02:02 PM   #26
Junior Member

Join Date: Oct 2004
Posts: 5
Car: 72 chevelle 84 el camino
Engine: 350/350
Transmission: t5/t5

hey jamesc let me ask ya something i'm not very good with eletrical part but i see u know some about speedo i got a 87 ta tpi for parts and most of the stuff will be going into my 84 el camino the elky has a t5 from my last 3rd gen (84 camaro) until i dont get the tpi in the eky is any way i can rum the speedo? the ta has a auto tranny and its eletronic speed sensor how do i wire it to the speedo ? is it possible? what whould i need? and how to do ?

thanx
Carlos
skullmaster427s is offline   Reply With Quote
Old 10-26-2004, 02:59 PM   #27
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Sorry, I can't help with your question, Carlos. You might try posting your question on the electronics board.

JamesC
JamesC is offline   Reply With Quote
Old 01-23-2005, 09:58 PM   #28
Supreme Member

Xophertony's Avatar

Join Date: Jun 2003
Location: Or-eh-gun
Posts: 2,724
Car: 1988 Trans-Am GTA
Engine: 5.7L TPI
Transmission: WC-T5
Axle/Gears: BW 3.27


Quote:
Originally posted by DuronClocker
I want a 145 speedo. I pegged the speedo on my car the other day (120mph) and am guessing I was going about 123 by the time I was about done. If I were to get one..would I be able to somehow use my current odometer because I want to keep the mileage reading accurate.
actually, i know from experience, if you pull the guage cluster and undo the little computer attatched the speedo and swap that on to your current speedo it will then be a 140MPH speedo. you will of course also need to swap the faceplate/guage face. i broke my spiffy 145MPH speedo and tested this theory. mine works great.
Xophertony is offline   Reply With Quote
Old 03-09-2005, 02:49 PM   #29
Junior Member

Join Date: Jan 2000
Location: Snohomish, WA
Posts: 74
Car: 82 Indy 500 Pace Car
Engine: 350
Transmission: TH350

Some advice for those wishing to attmept this fix on an earlier (82-?) "dual needle" speedometer: you don't have j-clips. The speedo in my pace car is one of the silly old half-mph/half-kmph guages, with the trip lever in the upper-left hand part of the gauge, and the trip tumbler above the mileage tumbler.

I finally got around to pulling my cluster last weekend and was excited for the prospect of actually having a working trip odometer again.

Unfortunately, the trip in my speedo is of a different design than that described above for the 145s, and after a few hours of messing with it I couldn't get it fixed. Heck, I was lucky enough to get it put back together w/o breaking anything. I think that the problem was with the tumbler itself; as the actual assembly was held in place well, and the spring and lever were in relatively good condition. There is a fair amount of resistance when attempting to reset the trip, and the tenth roller never quite lined up correctly with all of the other digits. Oh well, save up for a 145 I guess.
PaceCarChris is offline   Reply With Quote
Old 03-09-2005, 03:26 PM   #30
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


PaceCarChris,

Thanks for the heads-up. I believe this means that the above fix is for 85-89 cars: 85, 110, or 140 mph speedos.

JamesC
JamesC is offline   Reply With Quote
Old 08-04-2005, 08:39 PM   #31
Senior Member

dan_o_89_rs's Avatar

Join Date: Feb 2005
Location: Kentucky
Posts: 293
Car: 89 camaro rs
Engine: 305 tbi
Transmission: 700r4

awesome thread. ive got mine fixed exactly how it reads above. only step i didnt follow......... i didnt pull the cluster, i just pulle dout the speedo from the front. u said not to remove the needle, but i had to. now im trying to get my cruise fixed so i can get the needle perfect.
dan_o_89_rs is offline   Reply With Quote
Old 09-02-2005, 01:53 PM   #32
Supreme Member
iTrader: (1)

ZZ4 86 Z28's Avatar

Join Date: Jul 2005
Location: Rockville, Maryland
Posts: 2,435
Car: 1986 Z28 Camaro Gunmetal Gray with
Engine: GM Crate ZZZ HO 350, Edelbrock head
Transmission: Rebuilt 700r4 all TransGo and Beast
Axle/Gears: 10 bolt with 3.73 gears


when replacing the speedo head into a new cluster what needs to go with it. i have a 145 speedo in a bad cluster, and an 85 in a good cluster. should i keep the three wires into that black thing on the cluster or with the speedo. how about the yellow thing? thanks a lot.
ZZ4 86 Z28 is offline   Reply With Quote
Old 09-02-2005, 01:58 PM   #33
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


The yellow box is the VSS (vehicle speed sensor). It must have functioned correctly on your old cluster, so leave it and its wiring and simply swap the speedo heads.

JamesC

Last edited by JamesC; 09-02-2005 at 02:01 PM.
JamesC is offline   Reply With Quote
Old 01-13-2006, 10:14 PM   #34
Member

Join Date: Sep 2005
Location: socal
Posts: 183
Car: 91' RS Camaro
Engine: 305c.d. Toilet Bowl Injection
Transmission: 700R4

Does this apply to the new style speedo's? I just got a new 145mph cluster for my 91' RS and the trip reset doesn't work. I am sending it to a speedo shop to be set to the current mileage on the car, do you think he would be able to fix it?
black_highway is offline   Reply With Quote
Old 01-14-2006, 06:10 AM   #35
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Quote:
Originally posted by JamesC
I believe this means that the above fix is for 85-89 cars: 85, 110, or 140 mph speedos.
I have no experience with electronic speedos, so I can be of no help. I'm sure that a qualified shop will be able to make the repair.

JamesC
JamesC is offline   Reply With Quote
Old 03-10-2006, 11:52 AM   #36
Member

Join Date: Jan 2006
Posts: 113
Car: 1988 Camaro SC
Engine: 2.8v6
Transmission: 5spd manual


A different way

Hello PPl, i know this threat is old, But i recently did this fix. However I didn't use the wire, i used 4 - 4" cable ties.. I tied one cable tie around each post in the "locked" position then i tied the two other together and tightened then all down and cut the exceess, hopefuly this helps someone who din't feel like buying the wire(i had the threaded, not solid core) wire or simply wants another way. Hope this helps!!!!
Shookum2004 is offline   Reply With Quote
Old 05-18-2006, 08:24 PM   #37
Member

Join Date: Dec 2001
Location: Burnaby, BC, Canada
Posts: 471
Car: 1989 Camaro Iroc-Z
Engine: 305 TPI (LB9)
Transmission: Auto 4


I held it in place with something then used JB weld, it isn't 100%, and once in awhile it doesn't turn when it's supposed to, or reset properly. I reset it every time I fill it up(which is every time I buy gas) Seems to be working ok.
waltersb is offline   Reply With Quote
Old 06-06-2006, 08:47 PM   #38
Supreme Member
iTrader: (124)

RCAR7395's Avatar

Join Date: Apr 2006
Location: South Bend Indiana iphone CALL OR TXT 574-607-2389
Posts: 1,534
Car: 2003 GMC 2500HD Sierra Pickup
Engine: 6.0 Vortech
Transmission: 4x4


Thanks, Those gauges look great! I'll look into mine for sure!
RCAR7395 is offline   Reply With Quote
Old 06-26-2006, 02:07 AM   #39
Senior Member

84z28350's Avatar

Join Date: Aug 2005
Location: Yellowknife, NWT, Canada
Posts: 3,003
Car: 84 Z28
Engine: 357
Transmission: TH-350C
Axle/Gears: 3.43

Just for an FYI, i pulled the big old dual needle 'airplane' speedo from my car tonight to replace with a 145mph single needle unit.

Both speedos had the 'J' clips and both were broken.

So i believe this is still valaid for all model years!
84z28350 is offline   Reply With Quote
Old 06-26-2006, 05:47 AM   #40
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Quote:
Originally Posted by PaceCarChris
Some advice for those wishing to attmept this fix on an earlier (82-?) "dual needle" speedometer: you don't have j-clips.
Interesting.

JamesC
JamesC is offline   Reply With Quote
Old 10-04-2006, 05:28 PM   #41
Member

186irocz's Avatar

Join Date: Oct 2006
Posts: 114


WOW it works, fixed my speedo today after reading all the post! finnaly i have a trip meter again!
186irocz is offline   Reply With Quote
Old 10-08-2006, 02:39 PM   #42
Supreme Member
iTrader: (4)

Ozz1967's Avatar

Join Date: Dec 2005
Location: St. Cloud, MN
Posts: 4,681
Car: 1984 Trans Am
Engine: In progress 6.0 LS swap
Transmission: 4l60e with 3600 FTI converter
Axle/Gears: Zexel Torsen 3.73, 28-spline mosers


Hey guys,

My trip odometor post fall apart. You know the end of it that you actually twist, it fell off the other day and now I can't get it to stay on. Is there another part that I need? I seem to recall a very tiny piece that went into the center of it that may have helped to hold it in, but since I have never taken this off on purpose, I don't know for sure. Anyway, does anyone know more about these, or maybe where I can get one? I'll have to check the junk yards around town to see, but other than that, I wouldn't know where to start.
Ozz1967 is offline   Reply With Quote
Old 10-08-2006, 11:14 PM   #43
Junior Member

Join Date: Sep 2006
Location: mississippi
Posts: 40
Car: 1985 iroc-z
Engine: 5.0l tpi
Transmission: automatic


my 85 has 170,000 miles on it and a functioning trip counter.
jackiegeorge is offline   Reply With Quote
Old 11-07-2006, 06:35 AM   #44
Member

Stealthy-One's Avatar

Join Date: Apr 2006
Location: Washington DC metro
Posts: 389
Car: 89 RS
Engine: 2.8
Transmission: 700r4 auto
Axle/Gears: huh?? guessing stock.

ha. my 89 with 170XXX just broke last week. Ill try this. Thanks James!
Stealthy-One is offline   Reply With Quote
Old 12-19-2006, 07:54 AM   #45
Supreme Member

ringo234's Avatar

Join Date: Feb 2004
Location: So Cal
Posts: 1,581
Car: 89 IROC Z28
Engine: 357 TPI
Transmission: 700R4
Axle/Gears: 3.42 Posi


Quote:
Originally Posted by JamesC View Post
By the way, I tried 22-guage wire first, but it was too heavy and difficult to work with. I also attempted cauter keys, but I couldn't get the axel to seat to my satisfaction. I ended up with 18-guage solid core, $.09 a foot. The fix is not as neat looking as I would have prefered, but the odometer functions like new, and frankly I don't think I'll ever have further problems with it.

JamesC
That's for the write up. Just so you know 18 awg is heavier than 22 awg. The smaller the number the bigger the wire.
Kinda like sandpaper and golf.
ringo234 is offline   Reply With Quote
Old 12-19-2006, 09:19 AM   #46
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Quote:
Originally Posted by ringo234 View Post
Just so you know 18 awg is heavier than 22 awg.
True, of course. Note the edit above. At this late date, I can't be sure of exactly what I used (a single piece of 18, I think, would have been too difficult to work with, so perhaps it was a single piece of multi wire that equalled 18). At any rate, any piece of flexible solid core will work well.

JamesC

Last edited by JamesC; 12-19-2006 at 09:32 AM.
JamesC is offline   Reply With Quote
Old 10-01-2007, 07:33 PM   #47
Senior Member

Brennan's Avatar

Join Date: Jul 2007
Location: Corner Brook, NL
Posts: 1,305
Car: 1984 Z28 HT,2006 2500HD
Engine: 5.7L, 6.6Llbz dmax
Transmission: 700R4, 6 speed allison
Axle/Gears: worn out 3.73 posi

Re: Trip Odometer Fix/Pics

ok so i fixed it like you said and now my trip goes 11111 to 22222 and then stops and i reset it and it does the same again what else could be wrong?
Brennan is offline   Reply With Quote
Old 01-10-2008, 07:25 AM   #48
Member
iTrader: (1)

IROC-Z_Racing's Avatar

Join Date: May 2007
Location: Charlotte, NC
Posts: 147
Car: 89 IROC-Z28
Engine: LS1 "ASA"
Transmission: T-56
Axle/Gears: 3.42

Re: Trip Odometer Fix/Pics

Quote:
Originally Posted by JamesC View Post
The yellow box is the VSS (vehicle speed sensor). It must have functioned correctly on your old cluster, so leave it and its wiring and simply swap the speedo heads.

JamesC

JamesC,

you mentioned the yellow box being the VSS on the back of the cluster. Is this standard placement on all Camaros? Mine is an 89 IROC-Z LO3. My Speedo just failed on me and now I'm driving with the speedometer on my GPS! I was just wondering so I can test my VSS and speedo. The fact that the speedo was working that morning, and I get into my car that afternoon and now it don't work, leads me to thinking that the VSS just blew.

I a friend told me that it was on the side of the transmission. Is this another peice of the VSS system?

Thanks,
- Justin
IROC-Z_Racing is offline   Reply With Quote
Old 01-10-2008, 08:09 AM   #49
Moderator
Thread Starter
iTrader: (5)

JamesC's Avatar

Join Date: Aug 1999
Location: Lawrence, KS
Posts: 18,946
Car: Met. Silver 85 IROC
Engine: 350 HO Deluxe (350ci/330hp)
Transmission: T-5 (Non-WC)
Axle/Gears: Limited Slip 3.23's


Re: Trip Odometer Fix/Pics

Quote:
Originally Posted by IROC-Z_Racing View Post
a friend told me that it was on the side of the transmission. Is this another peice of the VSS system?
Should be on the back of the cluster 82-89. IIRC, the VSS for the electronic speedos, 90-92, is on the trans. I suspect your problem is cable related.

JamesC
JamesC is offline   Reply With Quote
Old 01-10-2008, 01:56 PM   #50
Member
iTrader: (1)

IROC-Z_Racing's Avatar

Join Date: May 2007
Location: Charlotte, NC
Posts: 147
Car: 89 IROC-Z28
Engine: LS1 "ASA"
Transmission: T-56
Axle/Gears: 3.42

Re: Trip Odometer Fix/Pics

Thanks, and one more thing. What is the best way to get my gauge cluster out. I tried to pull it out before, but something, like the cable or wire harness has no slack and I can't pull the cluster out because of this. And there's not much room to get my hand behind there and undo it.

Not only does my speedo not work anymore, my odometer quit turning, so I was going to try your quick fix with the wire on both my trip and odometer.

Thanks.

Justin
IROC-Z_Racing is offline   Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Selling 1987 I roc z28 engineless David Frans Camaros for Sale 1 10-31-2015 08:12 PM
Speedometer real mileage? PestilenceIV Interior 6 09-22-2015 07:39 PM
1986 GM Shop Manual w/elec supplement Magman Miscellaneous Third Gen Items! 0 09-12-2015 11:55 PM
[IA] 1998 Firebird dual electric fans for sale. formula1LE Engine/Drivetrain/Suspension Parts for Sale 1 09-12-2015 08:31 PM
88 gta digital dash problem? andy74 Electronics 2 09-03-2015 08:41 AM


Go Back   Third Generation F-Body Message Boards >
« Vacuum Diagrams | - »

Tags
1992, 25mph, 700r4, broken, bypass, camaro, control, cruise, electronic, fix, guage, odometer, register, servo, speedo, speedometer, trans, trip

« Vacuum Diagrams | - »
Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Advertising
Featured Sponsors
Vendor Directory

1982 Camaro '82 || 1983 Camaro '83 || 1984 Camaro '84 || 1985 Camaro '85 || 1986 Camaro '86 || 1987 Camaro '87 || 1988 Camaro '88 || 1989 Camaro '89 || 1990 Camaro '90 || 1991 Camaro '91 || 1992 Camaro '92


All times are GMT -5. The time now is 06:15 PM.


All content copyright 1997 - 2014 ThirdGen.org. All rights reserved. No part of this website may be reproduced without the expressed, documented, and written consent of ThirdGen.org's Administrators.
