Complete set of Autometer gauges, with cluster housing for 1990-1992 Camaro and additional pod housings. Or mount in your own vehicle gauge housing.







Excellent condition, barely used. Wiring harness included.

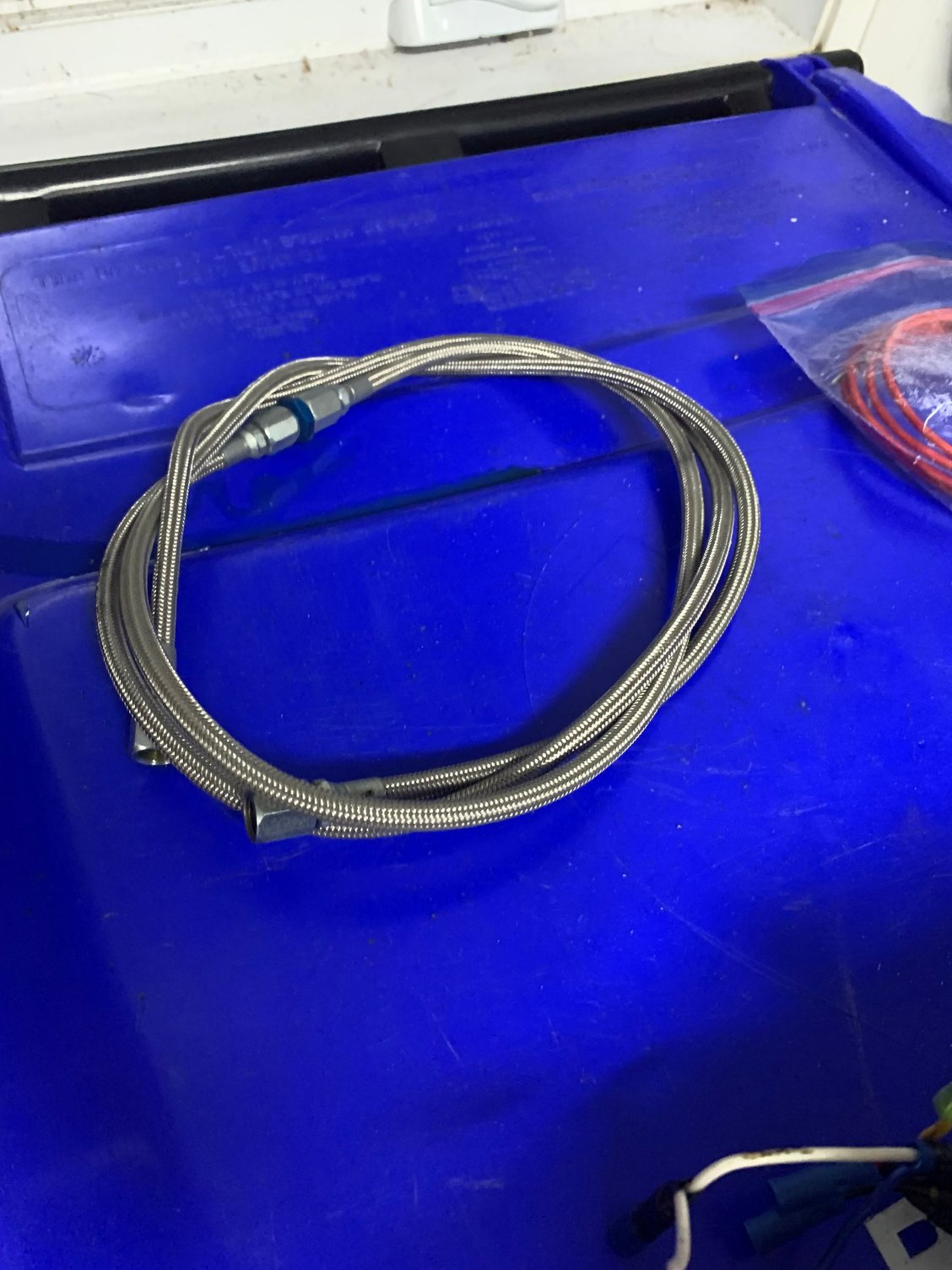

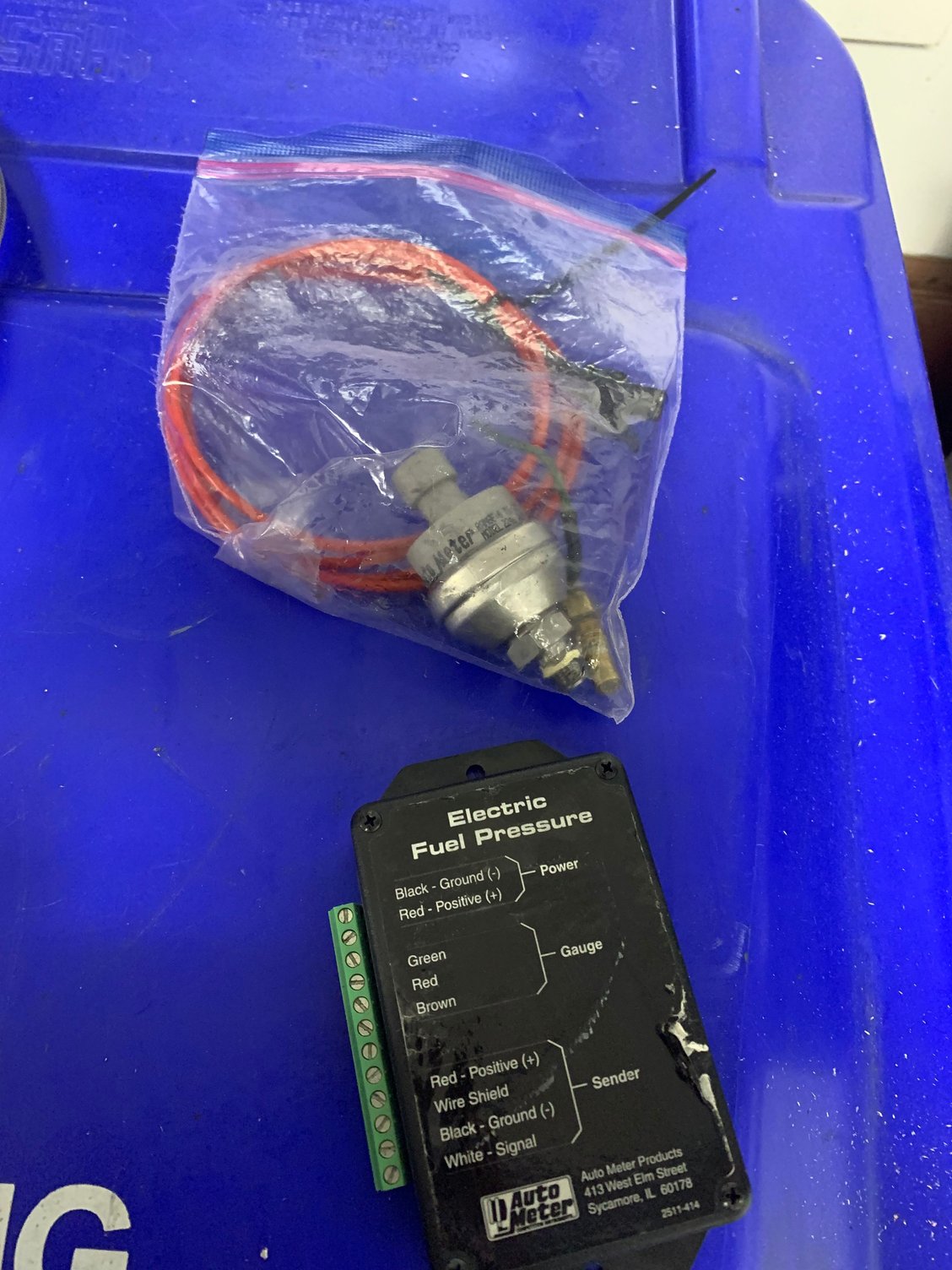

Comes complete with sensors and steel braided hose for oil pressure gauge fitting.

Best offer

Autometer Sport Comp
Speedometer #3989
Tachometer #3990

Z-Series gauges
Fuel pressure #2612
Oil pressure #2604
Water temperature #2607
Boost #2618
Fuel level #2648
Voltage #2645



Price?



$550 CDN.



Would you be willing to ship to US?



What sending unit does the speedometer use?



Yes I would ship



Uses VSS signal wire



Do you still have these?



sorry sold already



What cluster housing did you use? Impressive that you could maintain the OEM bezel.

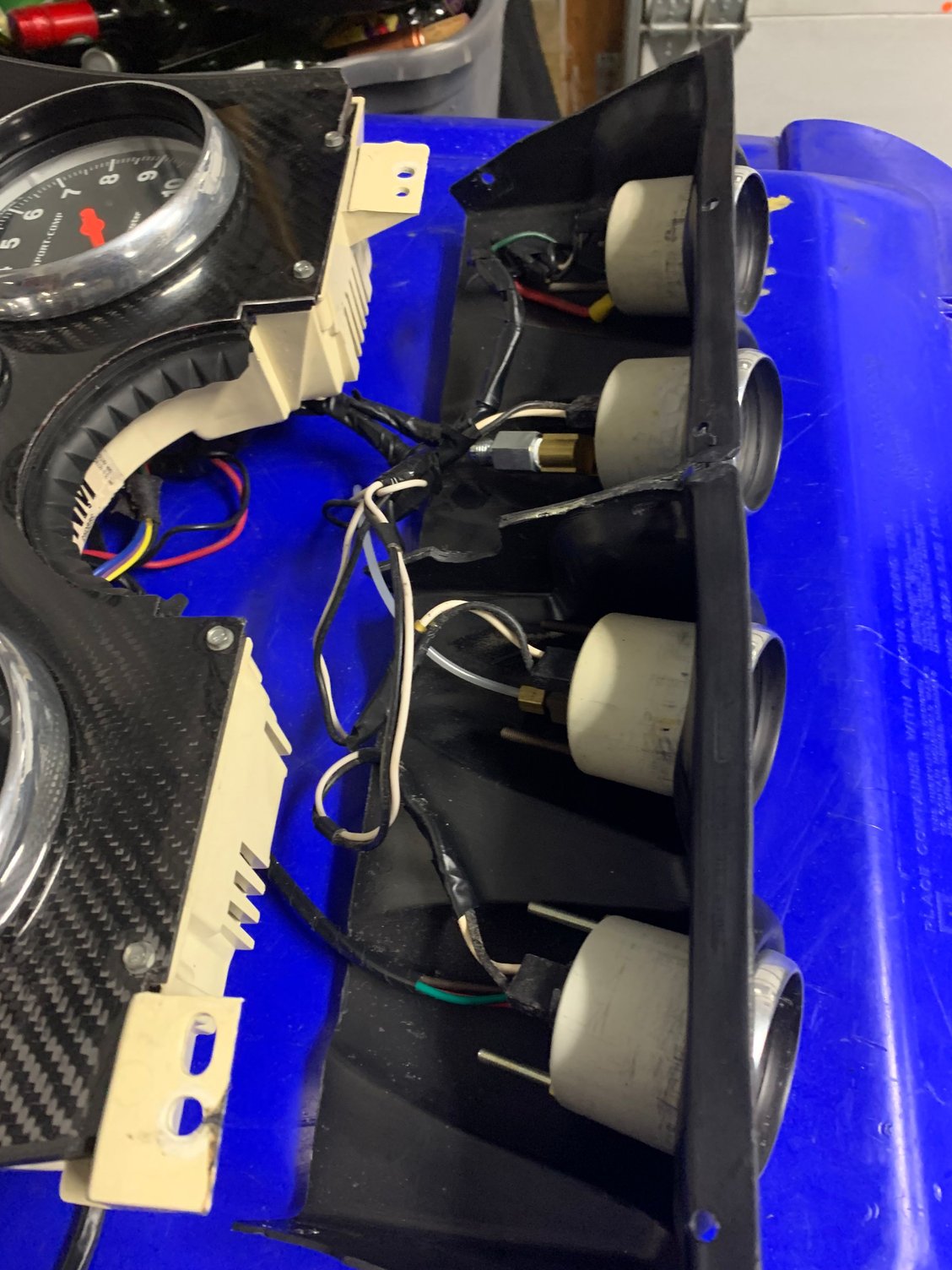

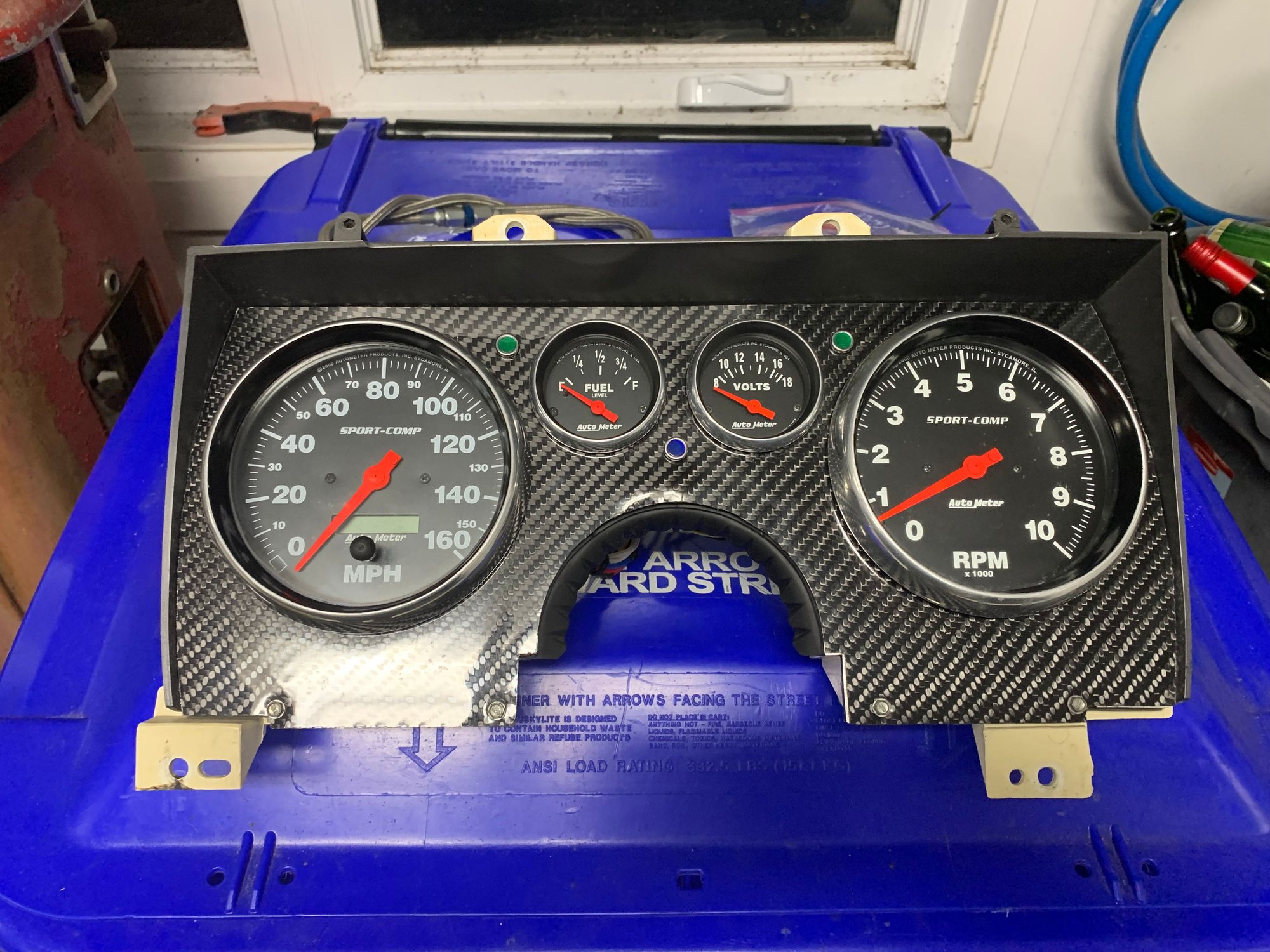

Used the original gauge cluster, gutted the back of it to clear the larger gauges which were mounted to an aluminum plate sized to fit the opening of the cluster. It was covered with thin carbon fibre sheet as well. The gauge cluster surround is also original with some minor clearance accommodations at bottom for the Speedo and tachometer. The other smaller gauges were mounted to (2) Hummer pillar gauge pods fastened together and flipped upside down to mount under the dash overhang on passenger side.

I’m currently doing a complete make over on car with LS7 swap and new gauges are going in, hence the sale.



Hope that helps.

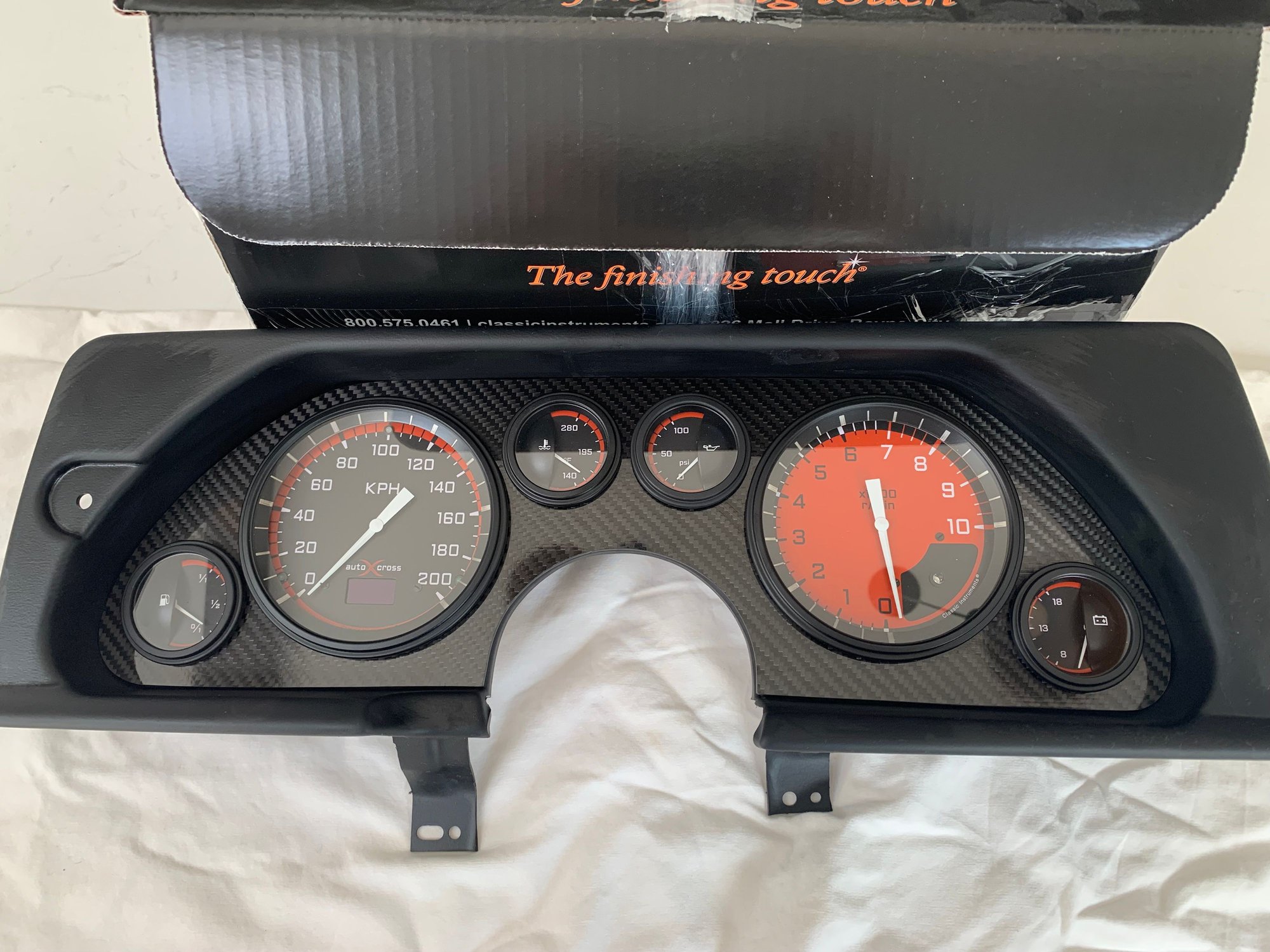

Very cool. I have the classic industries bezel as you have pictured and it was a pain to integrate. I like the idea of a gutted stock housing. Get ready for a lot of fab work.



Thanks. Fab work in what area, what did you encounter specifically? Curious. Thx



You'll have to gut out the dash, relocate the headlight and rear defrost switch, and come up with a way to secure it (I used speed nuts). It is far from an easy swap and was the most difficult portion of my build.



Ok thanks for the heads up !
