Another dash swap thread.
OK, i started my 4th gen dash swap
I have cut off both the mounting brackets on the side where the old dash mounts and got the new dash mounted up to the firewall.. I have attached it with just a couple of screws and have my first questions..
Please dont tell me to search, i have read sooo many dash swap threads and researched this soo much, i probably have read the answers somewhere but i have forgotten with so many threads and so much reading to try and troll through.. I even searched through Neil's build thread this afternoon as i thought i had seen it in there at somepoint..
Anyway, questions..

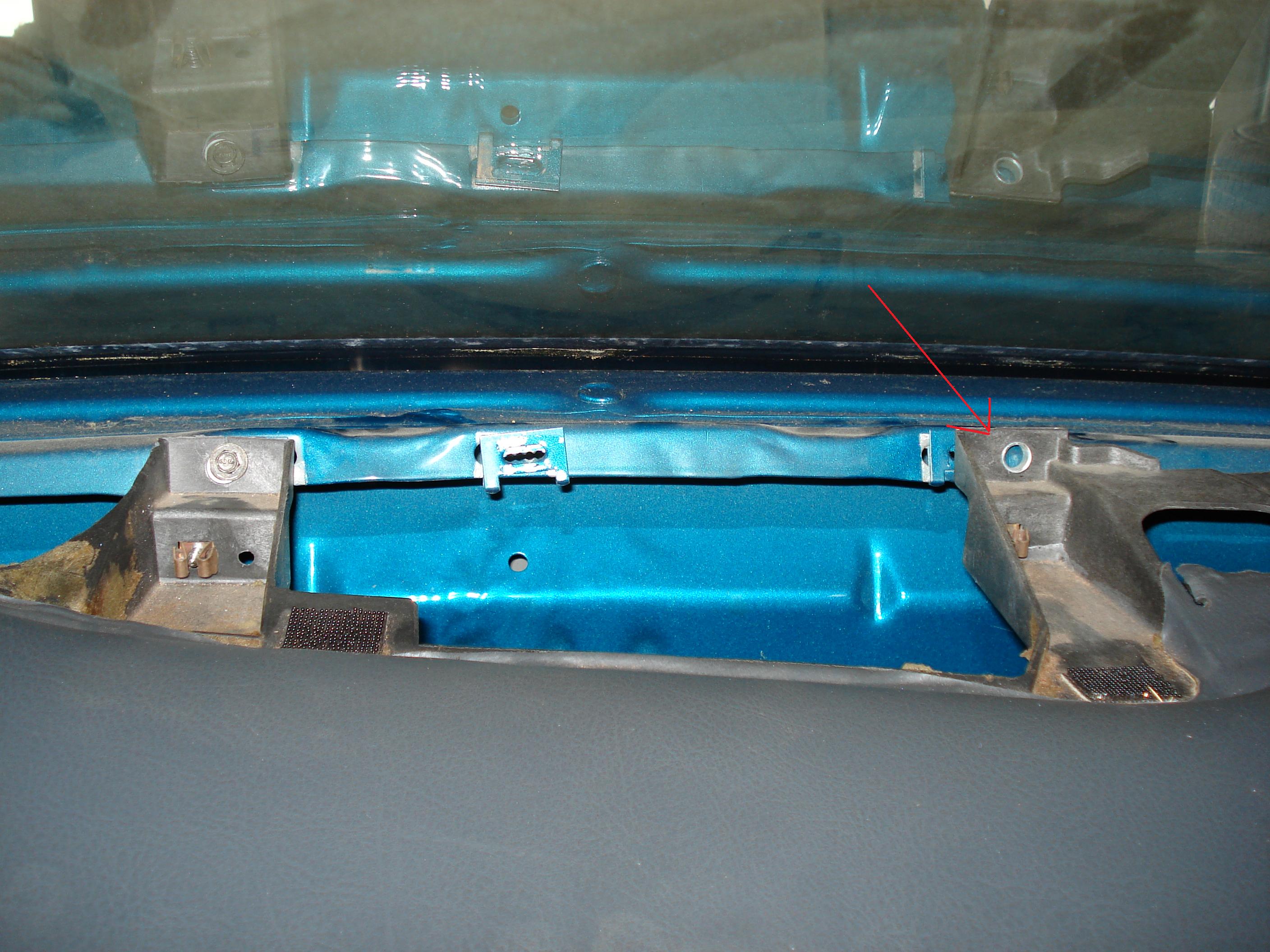

1. The right one of the two mounting holes in the middle of the dash doesnt quite line up with the hole on the firewall, do most people drill a new hole for this or just massage the dash until it fits?

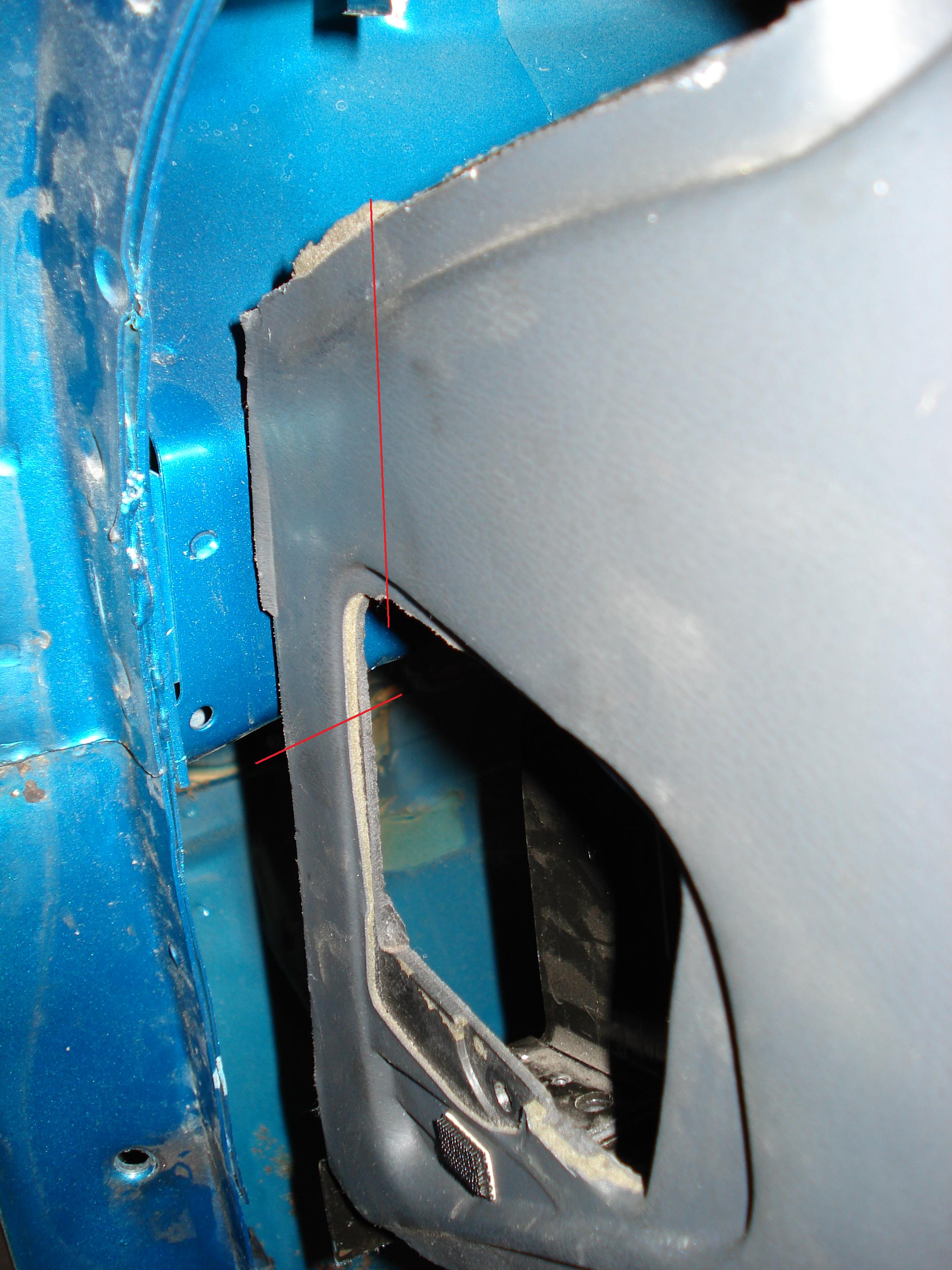

2. I now understand the problem with the mount on the drivers side being an inch or so gap from the firewall, did anyone cut away at the side of the dash on the drivers side to get the top mounting point nearer the firewall?
More questions will be coming soon
I have cut off both the mounting brackets on the side where the old dash mounts and got the new dash mounted up to the firewall.. I have attached it with just a couple of screws and have my first questions..
Please dont tell me to search, i have read sooo many dash swap threads and researched this soo much, i probably have read the answers somewhere but i have forgotten with so many threads and so much reading to try and troll through.. I even searched through Neil's build thread this afternoon as i thought i had seen it in there at somepoint..
Anyway, questions..
1. The right one of the two mounting holes in the middle of the dash doesnt quite line up with the hole on the firewall, do most people drill a new hole for this or just massage the dash until it fits?
2. I now understand the problem with the mount on the drivers side being an inch or so gap from the firewall, did anyone cut away at the side of the dash on the drivers side to get the top mounting point nearer the firewall?
More questions will be coming soon
Last edited by Ricco; 12-21-2007 at 02:59 PM.
#2
Senior Member
Thread Starter
Join Date: May 2006
Location: Bartlesville, OK
Posts: 529
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2011 Cummins HO
Engine: 350 HSR
Transmission: T-56
Axle/Gears: 3.43
Re: Another dash swap thread.
Next questions... For the wiring, most people use the 3rd gen dash harness i assume? But do y'all literally cut the instrument cluster connectors off of the 4th gen harness and start soldering the wires to the 3rd gen harness?
Do most people manufacture some kind of bracket for the bottom of the dash in the middle where it almost meets the transmission tunnel?
Cheers,
Richard.
Do most people manufacture some kind of bracket for the bottom of the dash in the middle where it almost meets the transmission tunnel?
Cheers,
Richard.
#6
Senior Member
Thread Starter
Join Date: May 2006
Location: Bartlesville, OK
Posts: 529
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2011 Cummins HO
Engine: 350 HSR
Transmission: T-56
Axle/Gears: 3.43
Re: Another dash swap thread.
Thanks man, i appreciate the reply. When you did the LS1 swap did you use the LS1 body harness then I assume? Did you run into any problems connecting other things such as headlights, Wipers, steering column connections?
#7
Member
iTrader: (4)
Join Date: Feb 2004
Posts: 266
Likes: 0
Received 2 Likes
on
2 Posts
Car: 91 Z28
Engine: LS1
Transmission: t-56
Axle/Gears: 3.73 4th gen 10 bolt
Re: Another dash swap thread.
I took every inch of wiring out of the donor car and swapped it into mine. I also used the LS1 steering column. I'm still not done with everything, so the wipers, window motors, trunk release are still not hooked up. The headlight and taillight I had to change a little...mainly just add length of wire. But other than that, everything pretty much just fell into place.
Trending Topics
#8
Senior Member
Thread Starter
Join Date: May 2006
Location: Bartlesville, OK
Posts: 529
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2011 Cummins HO
Engine: 350 HSR
Transmission: T-56
Axle/Gears: 3.43
Re: Another dash swap thread.
Thanks, I would love to hear how it turns out, I thought I had heard that wiring up the wiper motor is a pain with the 4th gen body harness.
#9
Member
iTrader: (4)
Join Date: Feb 2004
Posts: 266
Likes: 0
Received 2 Likes
on
2 Posts
Car: 91 Z28
Engine: LS1
Transmission: t-56
Axle/Gears: 3.73 4th gen 10 bolt
Re: Another dash swap thread.
I don't think it would be that hard to wire...just a matter of figuring out what's what.
It will be a while before I mess with that though. I have some larger issues to tend to first. I have a rather large oil leak from the rear I need to fix.
It will be a while before I mess with that though. I have some larger issues to tend to first. I have a rather large oil leak from the rear I need to fix.
#10
Supreme Member
iTrader: (3)
Join Date: Jan 2004
Location: p'cola FL
Posts: 2,311
Likes: 0
Received 0 Likes
on
0 Posts
Car: 88 iroc-z/28
Engine: 408 lsx
Transmission: 5800 stall
Axle/Gears: 4.71
Re: Another dash swap thread.
in every dash swap thread i see where its short on the side, and i didnt have much of an issue with it.
i used my stock trim piece there. my factory 3rdgen dash bracket was bent towards the drivers door to push the side of the 4th gen dash outwad to eminate the gap. it looks factory.
good luck with the swap.
i used my stock trim piece there. my factory 3rdgen dash bracket was bent towards the drivers door to push the side of the 4th gen dash outwad to eminate the gap. it looks factory.
good luck with the swap.
#11
Senior Member
Thread Starter
Join Date: May 2006
Location: Bartlesville, OK
Posts: 529
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2011 Cummins HO
Engine: 350 HSR
Transmission: T-56
Axle/Gears: 3.43
Re: Another dash swap thread.
Can anyone answer my q on the instrument cluster connectors? Do you all just cut off the connector from the 4th gen harness and graft it to the 3rd gen harness?
Thanks,
Richard.
Thanks,
Richard.
#12
Supreme Member
iTrader: (1)
Join Date: Aug 2004
Location: colorado
Posts: 2,122
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1992 Trans/am convertible
Engine: 305 TPI
Transmission: 700r4
Axle/Gears: 2.73 drum WS6
Re: Another dash swap thread.
be careful when you connect them and do it correctly. Solder, heatshrink etc.
I read somewhere that most of the connections are the same, but please don't hold me to that. Just check the fourth gen compatibilty thread.https://www.thirdgen.org/forums/body...ring-good.html
I read somewhere that most of the connections are the same, but please don't hold me to that. Just check the fourth gen compatibilty thread.https://www.thirdgen.org/forums/body...ring-good.html
#13
Senior Member
Thread Starter
Join Date: May 2006
Location: Bartlesville, OK
Posts: 529
Likes: 0
Received 0 Likes
on
0 Posts
Car: 2011 Cummins HO
Engine: 350 HSR
Transmission: T-56
Axle/Gears: 3.43
Re: Another dash swap thread.
be careful when you connect them and do it correctly. Solder, heatshrink etc.
I read somewhere that most of the connections are the same, but please don't hold me to that. Just check the fourth gen compatibilty thread.https://www.thirdgen.org/forums/body...ring-good.html
I read somewhere that most of the connections are the same, but please don't hold me to that. Just check the fourth gen compatibilty thread.https://www.thirdgen.org/forums/body...ring-good.html
Anyway, you do just cut them off right?
#14
Supreme Member
Join Date: Apr 2002
Location: Faribault, Minnesota
Posts: 1,148
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC-Z
Engine: LS1
Transmission: T56
Re: Another dash swap thread.
You will just cut them off and wire in the new instrutment cluster wiring. Try and get as long of wires off the new cluster connector because it will make it alot less of a hassel. If you have any questions post up I will help you out
#15
Member
iTrader: (1)
Join Date: Feb 2001
Location: Dayton, OH 45431
Posts: 408
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 Camaro Z28
Engine: 5.0 TPI (LB9)
Transmission: 4L60
Re: Another dash swap thread.
Yes, do yourself a favor and do it properly the first time before you put the dash in. You dont want to have to take it apart to re-do things. I made "J"s witht he ends of the wires, wrapped around each other, soldered, and then heat shrinked.
