Exploded View of seat
Does anyone have an exploded view of the front seat? Mostly the reclining feature. One that has part numbers would be great as well.
Joined: Jan 2004
Posts: 1,761
Likes: 4
From: The "D"
Car: A Portly 85 Z28
Engine: 4.530 X 4.250 BBC
Transmission: under rated for this application
Axle/Gears: also under rated
Re: Exploded View of seat
what year car? I have all of them with part #`s lmk..heres what the choices are..
Year Title Page

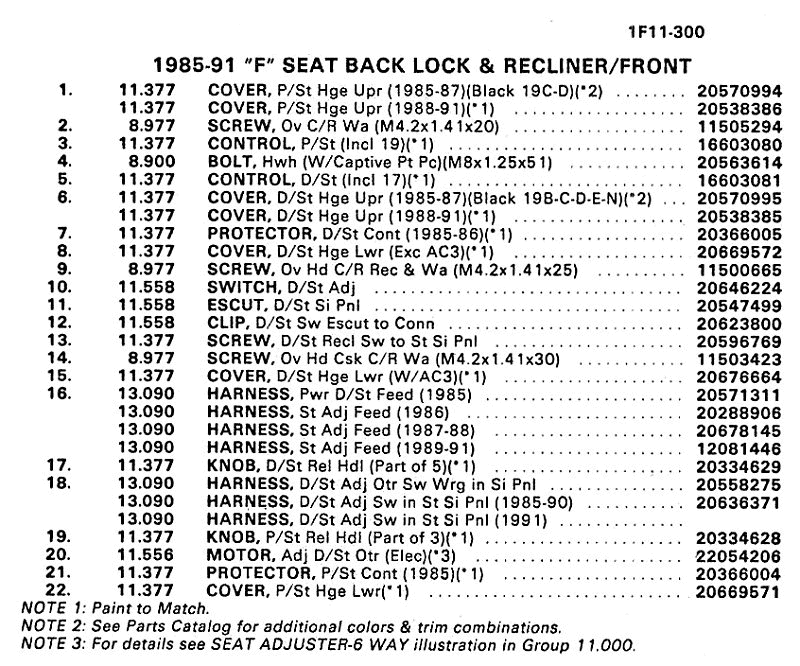

1985-91 "F" SEAT BACK LOCK & RECLINER/FRONT 11-2
1982-84 "F" SEAT ADJUSTER & RECLINER-6 WAY 11-4
1985 "F" SEAT ADJUSTER & RECLINER-6 WAY (1ST DES) 11-4
1982-90 "F" SEAT ADJUSTER / MANUAL 11-6
1991 "F" SEAT ADJUSTER / MANUAL 11-7
1985 "F" SEAT ADJUSTER-6 WAY DRIVER (AC3)(2ND DES) 11-8
1986-90 "F" SEAT ADJUSTER-6 WAY DRIVER (AC3) 11-8
1991 "F" SEAT ADJUSTER-6 WAY DRIVER (AC3/AG9) 11-10
Year Title Page
1985-91 "F" SEAT BACK LOCK & RECLINER/FRONT 11-2
1982-84 "F" SEAT ADJUSTER & RECLINER-6 WAY 11-4
1985 "F" SEAT ADJUSTER & RECLINER-6 WAY (1ST DES) 11-4
1982-90 "F" SEAT ADJUSTER / MANUAL 11-6
1991 "F" SEAT ADJUSTER / MANUAL 11-7
1985 "F" SEAT ADJUSTER-6 WAY DRIVER (AC3)(2ND DES) 11-8
1986-90 "F" SEAT ADJUSTER-6 WAY DRIVER (AC3) 11-8
1991 "F" SEAT ADJUSTER-6 WAY DRIVER (AC3/AG9) 11-10
Joined: Jan 2004
Posts: 1,761
Likes: 4
From: The "D"
Car: A Portly 85 Z28
Engine: 4.530 X 4.250 BBC
Transmission: under rated for this application
Axle/Gears: also under rated
Re: Exploded View of seat
dbl post edit
Last edited by greezemonkey; Jan 27, 2008 at 08:05 AM.
Thread Starter
Joined: Mar 2003
Posts: 1,149
Likes: 1
From: Gladstone, Missouri
Car: 91 Camaro RS
Engine: 5.0L TBI (ebl inside)
Transmission: T-5
Axle/Gears: 3.42 lsd 10 bolt
Re: Exploded View of seat
91 Camaro without power seats. Either 11-2 or 11-7.
Joined: Jan 2004
Posts: 1,761
Likes: 4
From: The "D"
Car: A Portly 85 Z28
Engine: 4.530 X 4.250 BBC
Transmission: under rated for this application
Axle/Gears: also under rated
Re: Exploded View of seat
here is a great CD that has all of the info in one place, I use it all the time and for the price you`ll never beat it, pays for itself.
