Hello Camaro lovers,

I have searched everywhere for an aftermarket gauge cluster for a 90-92 Camaro, and no luck. So I'm making my own. I will show step by step of what/how I'm doing this.

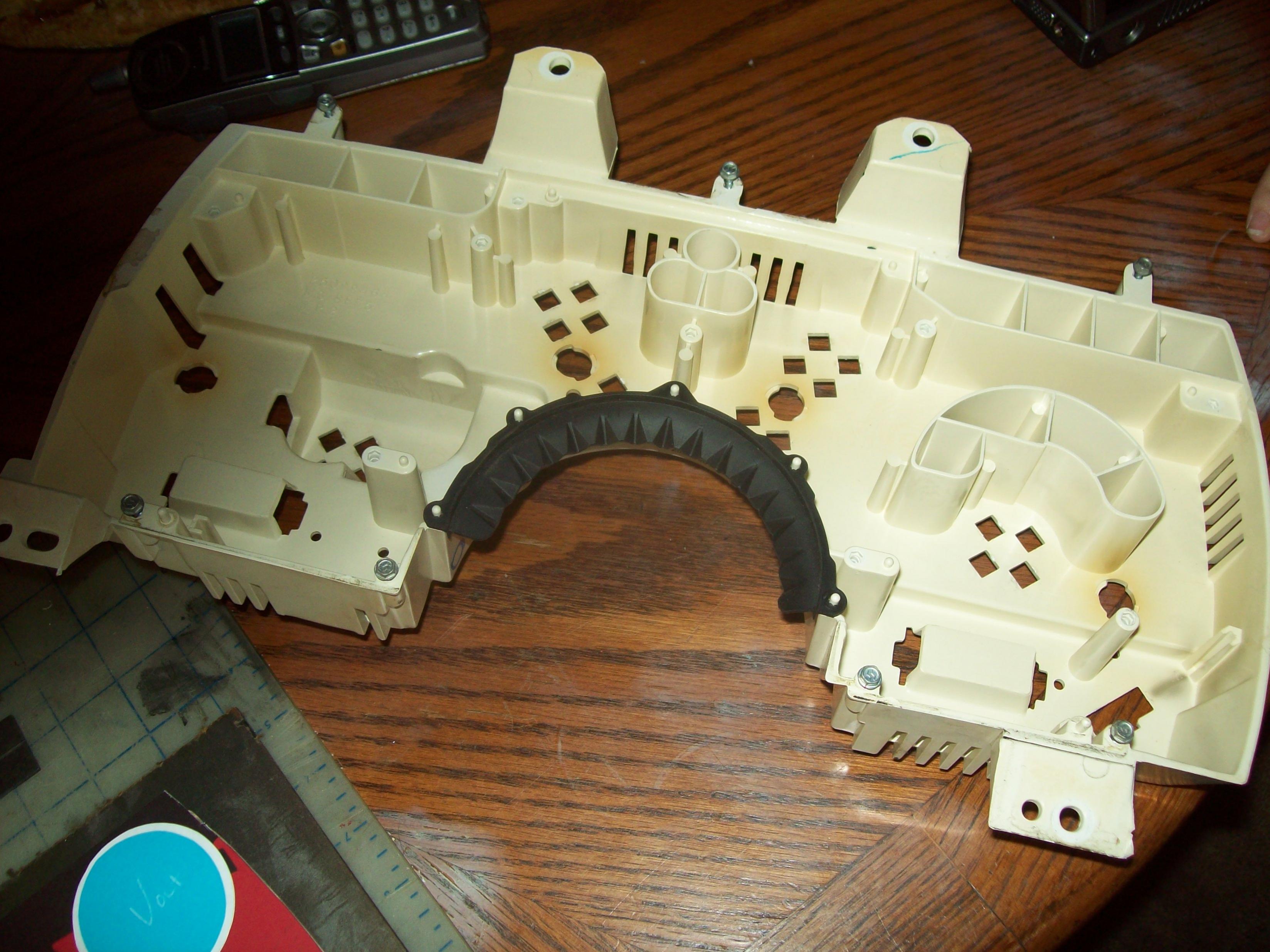

I am modifying an stock gauge cluster from a 90-92 camaro. I took all the gauges, lights, and circuitry out of the white back plastic part of the cluster.

I traced the black middle plastic part of the cluster onto cardboard. I then cut and trimmed the cutout to fit in the face of the black plastic part. (I will later transfer this the cardboard cutout to a piece of Acrylic Sheet [plastic glass])

Going back to kindergarten! I got dimensions of the Autometer Gauges from Autometer.com and used a compass to draw out the size of the gauges. I took those to layout the gauges in cutout above.

I have yet to order the gauges, but hopefully next week I will have them and get things going. I'll keep post my progress.

Thanks.



More pics.

The Gauges I'm going with are The Autometer ES. The speedo and tach are 3 3/8'' and the oil, fuel, volt, and temp are 2 1/16''.

With the gauge template cutouts the blue is the hole that would need to be cut into the cluster, and the white is the bezel that goes around gauges.

And with using the stock gauge cluster I can use the clear plastic cover over the gauges.

This is how I am laying out my gauges.

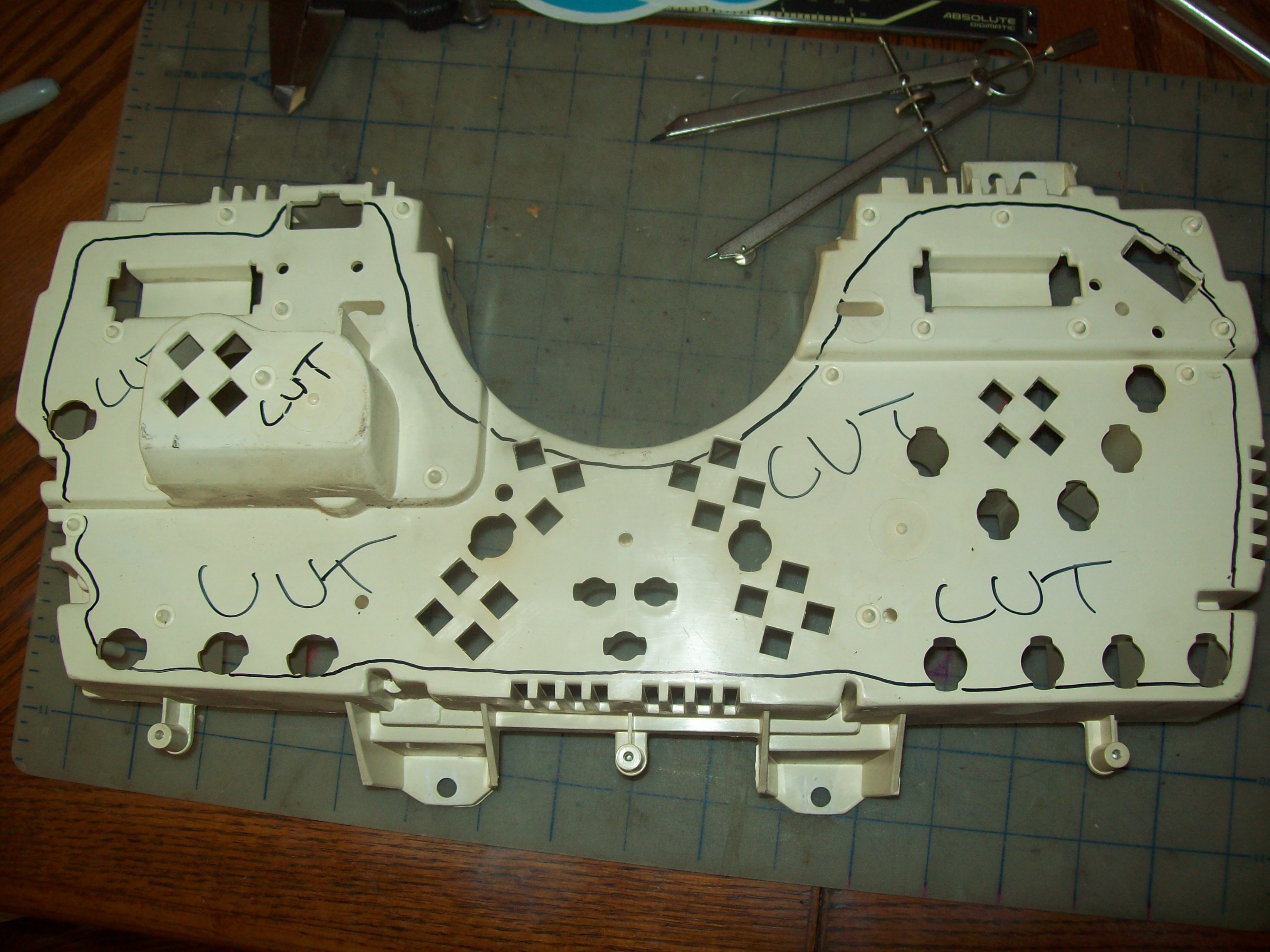

On the back white plastic piece of the stock cluster, it will need to be cut to fit the depth of the gauges.



Something like this?
https://www.thirdgen.org/forums/elec...ry-gauges.html
Fitting the gauges in that space is tight,especially the bezels. The high beam indicator and directionals are from dennis kirk. They're for motorcycle dasboards. Not in the pic however are 2 red led's that I added for warning lights. One for low oil pressure and one for high engine temperature.



how did you hook up the warning led;s.



thanks for doing this. i plan to do it with 5 inchers, do you think they'd fit 1 5", 1 2-5/8" and another 5"?



I'll make some cut outs and post the pics and let you know.



You can get instrument clusters from Hawks third gen for the Camaro.

http://www.hawksthirdgenparts.com/gaugepanels.aspx



You cant get anything that fits round gauges for 90-92 Camaros.



Hey everyone I just wanted to put some input in on the way I am doing mine. I bought a set of Cyberdyne digital gauges to put in it. What I did is removed the plastic trim around the gauges and put a piece of cardboard on the front and then fiberglassed behind it. I'm currently in the process of triming it down and when I get the chance I will lay a coat of fiberglass filler on it and sand it smooth then cut my wholes out and mount the gauges.



I'm gonna try the same thing. I just ordered a used cluster to hack apart. Please post more pics and progress reports. Also, can i wire up the gauges to the connector where the cluster plugs in to. Does anyone have a schematic showing what feeds what gauge? Can i just wire up using an electronic speedo to where the stock one gets its feed? What about the fuel gauge? 0-90 ohm?



most electric speedos from autometer can be connected to stock, you have to calibrate it by driving a certain known distance. fuel for most GM cars and for our camaro is 0-90 ohm. do you have a wiring diagram in your haynes, chilton, or autozone.com repair manual, i would think they'd have the cluster, if not search the board for the colors. you may want to run new sensors for water temp/oil pressure



Subscribing. I am very interested.



lookin' good. very simliar to my second attempt at putting aftermarket gauges in this dash.

i hate to burst your bubble on one thing though: the thickness of the bezels on the autometers will not allow you to put the clear plastic back over them. you'll have to run without that part.



I got a low oil pressure switch( tee'd off the opsu on the back of the block) and high temp switch from autometer. Oil is on below 15 psi and temp light goes on over 200(I'm running a carb)



Greg from Covans classic dash is now in the process of finally making the custom panel for 90-92 Camaros to fit custom guages like Autometer after I begged him to and told him there was a market for it, call him @ 866-882-3525 he is making it in factory black matte, brushed aluminum, and Carbon Fiber. Spread the word please,
Mike S
91' RS swapping 2010 L99 A6



i'm glad to hear that! i'd love a better looking panel that allows for a more finished look. don't get me wrong, some of these look great, and mine isn't bad either, but the end result still looks home made.



Just looked at Covan's Classic Dash he isn't advertising anything yet for a third gen, but the stuff he has already is really expensive. 200 bucks for an undrilled blank panel.



he just started production, it will be about 6 weeks before they are finished.
Greg @ Covans Classics Dash



Does he have a website...if so can you post it?



Google Covan Classics



Lets keep this thread going cause I just started one of my own after not finding this very answer. How to install 5" autometer Tach and Speedo into the stock locations? Hope yours turns out well, and pics pics PICS!!. Here's my thread btw for people interested in the pre 90 cluster:

https://www.thirdgen.org/forums/fabr...u-install.html



as you stated, it is Pre 1990. That is fairly easy with the double hole dash. The flat plate adds to the degree of difficulty. If there was a custom panel, I would use it. I may post my own build once I am done with my pinto.



if i bought individual gauges, would they simply mate up with stock wire harness?



no. and the ohm values for the gauges will likely not match your sending units for the factory gauges (except the fuel level gauge, get a 0-90ohm gauge and use the factory wiring).

most folks just run new wires, or better yet, get mechanical gauges with mechanical senders...much more accurate that way.



The electronic gauges I bought came with their own senders. Replace the senders with the new ones and use the same wires as stock. Keep the stock look and no one is the wiser. Mechanical is a PITA due to the need to run the lead from the block to the gauge (sender is in the gauge)



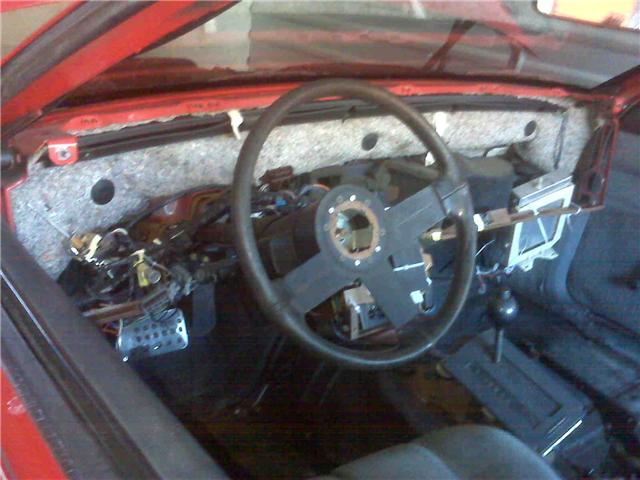

sorry is this sounds stupid... do they include instructions on how to do this? my dash is.... gone. and i have no interest in putting it back in.



does anyone know the status of the panel that greg was making in october? id really like to get one



I am trying this too. I was thinking about fiberglassing around a stock one and mounting my dakota digital gauges. I am also toying with the idea of selling my digital tach and trying to see if magden would make me something



Subscribing..



Classic Industries has a gauge panel. here is the link. its on page 25.
http://downloads.classicindustries.c...df/C_SEC_D.pdf



is there one for 90-92? Only see the one for 82-89



There are a few that are starting to be created, but the reason people are making their own is cause their isnt one. Im finishing mine as my spring break project. I have to get a dual guage pillar cause i can only fit 4 gauges on it



covans classic dash is making it now, contact them to see if they are finished with it.

Search Google " Covans Classic Dash"

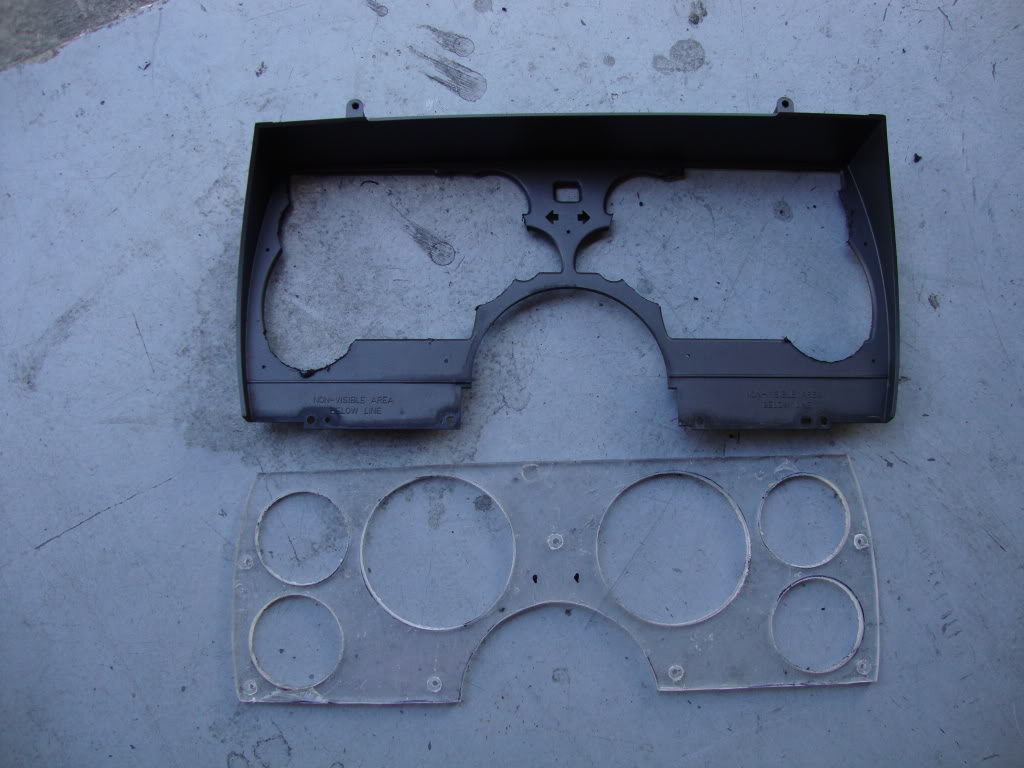

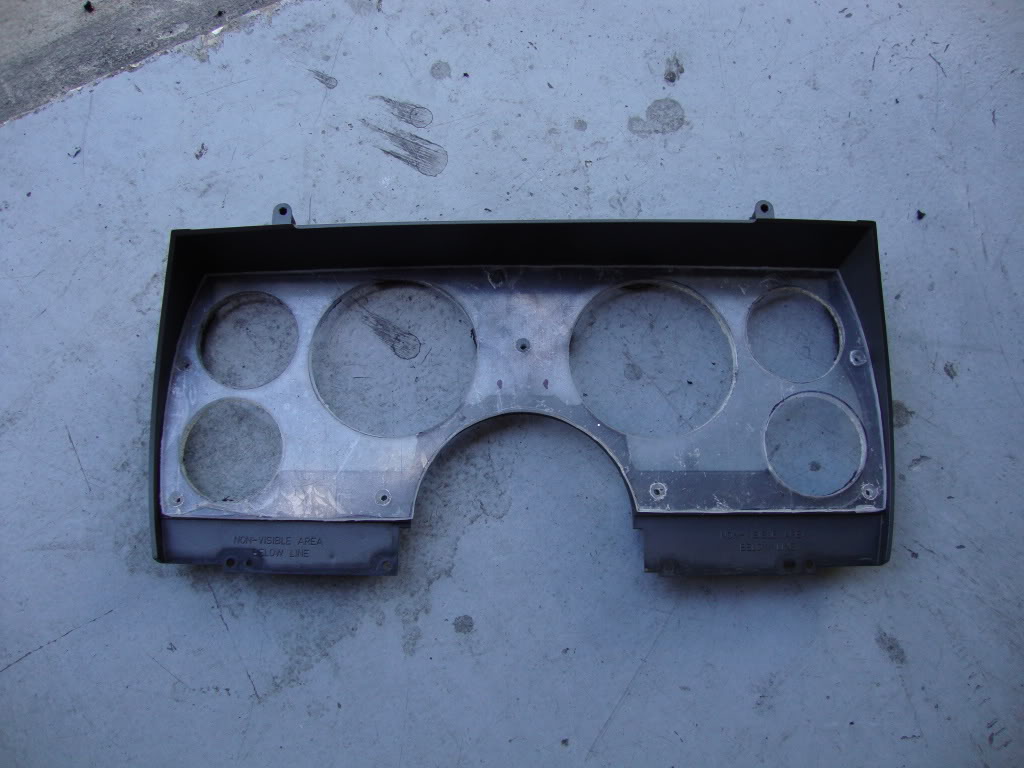

I did pretty much the same thing, only i didnt hack apart my stock cluster. I took a flat sheet, and made curved side panels and a top to mimic the clear plastic of the stocker and to fill in the gaps. and then just welded tabs for the stock mounting locations.



post some pics please, would like to see it



here it is boys, thank Greg @ Covans classic dash, spread the word cause they have a lot of $ in R&D building this thing
http://www.classicdash.com/shopping/...-1992/Drilled/



http://www.classicdash.com/shopping/...-1992/Drilled/

spread the word



90-92 the only one made
http://www.classicdash.com/shopping/...-1992/Drilled/



90-92 dash
http://www.classicdash.com/shopping/...-1992/Drilled/



http://www.classicdash.com/shopping/...-1992/Drilled/

here it is spread the word



http://www.classicdash.com/shopping/...-1992/Drilled/

its finished



http://www.classicdash.com/shopping/...-1992/Drilled/

90-92



http://www.classicdash.com/shopping/...-1992/Drilled/



Bringing this one back from the dead. TwoBrakeTony, what does your finished product look like? I'm getting ready to do mine with Autometer Cobalt digital gauges on my 92. I'm concerned that all 6 gauges won't fit in the cluster. Speedo and Tach are 3 3/8" and all the others are 2 1/16".



have you seen the link i posted?



Yeah I saw them. Kind of expensive. I'm making my own.



If you are using theirs, check your sizes. The spedo and tach are 5", not 3-3/8.



Cobalt digital speedo and tach sizes are 3 3/8". Im not using their stuff. Im making my own panels. See pics above



pwdbychevy, what size are your holes you have cut?
