I tried searching around TGO and the internet and I cannot find pictures of the relocation bracket for nitrous equipped TPI cars with the throttle body plate.... Can anyone post a pic of this elusive bracket? I'm getting a nitrous plate in the mail soon and need to know how this bracket looks like so I can get an idea of what needs to be done and possible make my own. Also, the plate I'm getting has 2 bars, one for the nitrous and one for the fuel. Is there a certain way they need to be arranged, as in nitrous on the top bar and fuel on the bottom bar? or does it matter? Thanks.



For the full article, Click Here, and your welcome....



thanks for the pic, but does anyone have a picture of the braket actually installed?



^ I'll try to find a better pic. In the mean time, this should help you as well, Click Here....;



Here ya go....



im kinda confused....how does the tpi No2 kit get the wet side?

ive heard some gm FI cars dont need the wet side and the computer adds the extra fuel and some cars dont. The cars that dont have to have a special spare fuel tank basically have a xtra fuel system.



Thank you very much Street! Thats exactly what I need. It doesn't seem hard at all to make (if need be).

H8r, I have my fuel hookup on the schrader valve on the passenger side fuel rail...



damn....never thought of that!

i was thinkin maybe could use the port of the 9th injector for a early tpi car

but the schrader valve is bigger and can flow more

can i ask how you hooked it up?



you take out the valve core(like removing it from your tire's valve stem) then screw on a an4 female fitting.

its been a while since i installed on, but thats what i think the size was.


my TB plate must be older. both my n2o and fuel are on the same side.



got any pics? the valve is -4an and does need to be de-cored



i put a kit on my s10 wtih a TPI. and didnt have to move the bracket at all. just readjusted my TV cable and was good to go.



The plate I have is a bit thicker than the one pictured above. I don't even want to mess with adjusting any of the cables. I already made plate and will post pics when I install it later tonight...



here ya go, not great pic but you can see the 2 lines go in the left side.



nice pics street lethal but I dont get it where did u install u'r solenoids?



there's plenty of room under the TPI plenum for solenoids...



the pic isn't that grea but u can see it i didn't have to relocate anything it all bolted up fine i put the solenoids on my strut brace and tapped my shreader valve



For the longest time I didn't know about this bracket and my transmissions never shifted right even with the TV cable adjustment. You can order the part directly, it's cheap. I had Auto Zone order it in for me by the part number (yes they're an NOS vendor if they say they can't do it they're being lazy). Look up the part number in the NOS manual and order it from somewhere, it would be pretty hard to fab up and get just right.



Thanks for the info, I actually already made it...it wasn't hard at all, just take a square piece of aluminum or plastic etc. With the TB bolted in place, mark the holes on the bracket, then bolt up the plate mark the new holes...and drill. The end...



NOS part number for the throttle linkage extension is 17100.



Have any pics of the one you built?



I'll see if I can get some pics later...

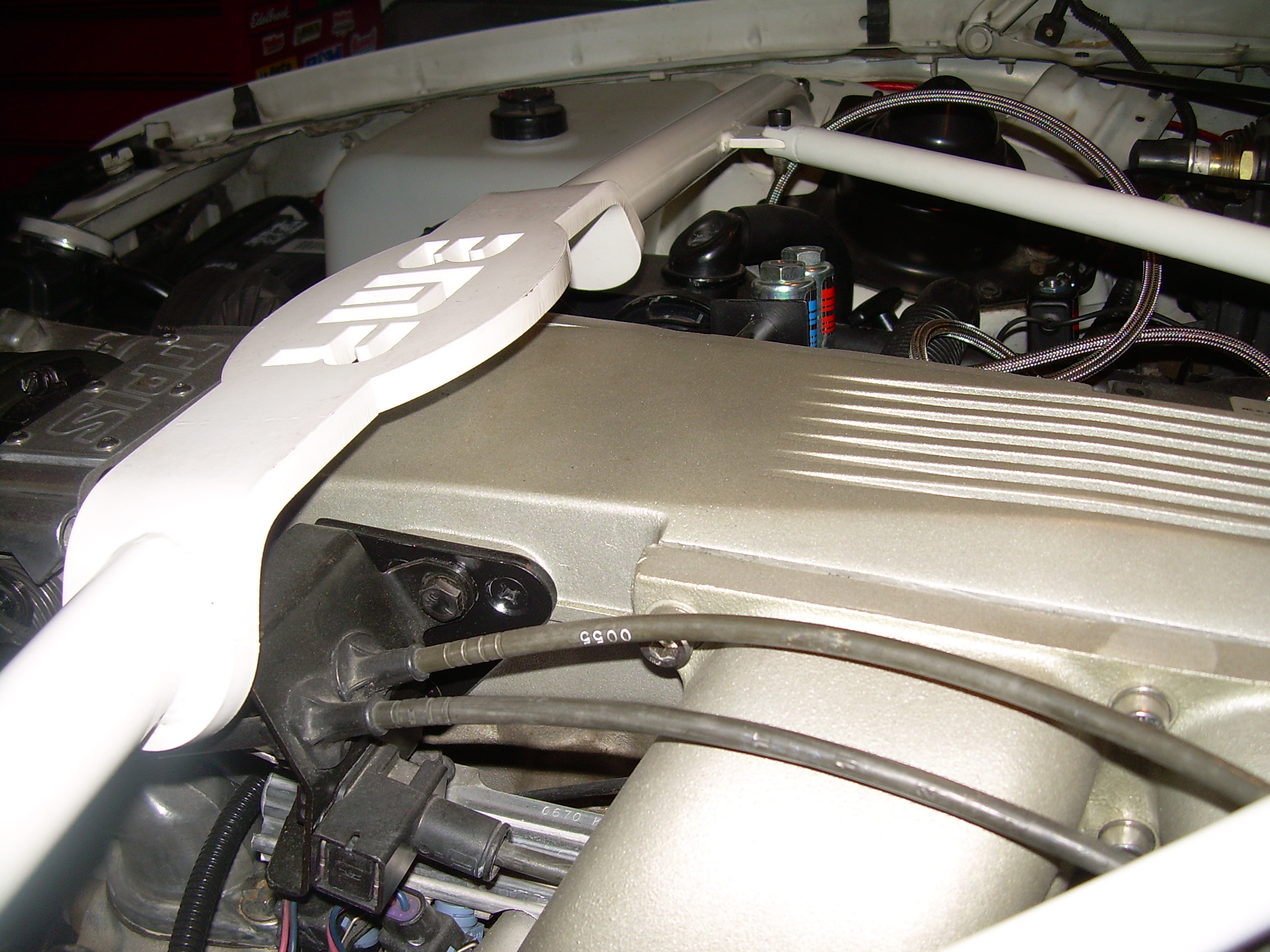

Here are some shots
