Re: How to: Tighten tilt steering w/pictures

Which wires are the wiper wires
rodneyz28 is offline
Old 01-03-2013, 09:15 PM
  #52
Junior Member

Join Date: Jan 2013
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Re: How to: Tighten tilt steering w/pictures

hey man i hope you see this because i have been searching everywhere for some actual "hard copy" stuff instead of some stupid video..
So, i had a problem with my tilt steering moving all over the place and i got to the bolts to tighten them up, no problems so far, until i noticed i have some small metal pieces in my hand while i was putting the plastic turn signal switch housing part back on ( the part the turn signal bolts too). for a day or two everything was working perfectly, until i try turn shut my vehicle off. they key wont turn counter clockwise....so my truck is still on and i cant turn the key!!! i need to know what the back of that tan piece looks like. if you know how i can get some help please email me back please!! thank you for reading and trying to understand this!!
savicolors is offline
Old 01-17-2013, 02:11 PM
  #53
Member

walkthelin3's Avatar

Join Date: Apr 2010
Location: tuckerton nj
Posts: 252
Likes: 0
Received 0 Likes on 0 Posts
Car: 1987 camaro,88 firebird
Engine: 2.8 v6,5.0 tpi
Transmission: manual
Axle/Gears: 3.47
Re: How to: Tighten tilt steering w/pictures

I cant get the cover off.. I did everything you said but the cover isnt moving at all
walkthelin3 is offline
Old 05-21-2013, 01:23 PM
  #54
Junior Member

Join Date: Sep 2009
Location: Minnesota
Posts: 19
Likes: 0
Received 0 Likes on 0 Posts
Car: 91 Chevy Camaro RS
Engine: 305 TBI
Transmission: 700R4
Re: How to: Tighten tilt steering w/pictures

If the bearings on that shaft are bad can they be replaced? when I took mine apart the bearings fell apart. I know if they can I will need alot more disassembly.
hondorian7 is offline
Old 05-21-2013, 01:31 PM
  #55
Member

Join Date: Nov 2004
Location: Houston MS
Posts: 332
Likes: 0
Received 0 Likes on 0 Posts
Car: 87 GTA Trans Am
Engine: 305 TPI
Transmission: 700R4
Axle/Gears: 10 bolt posi 3.23
Re: How to: Tighten tilt steering w/pictures

I took parts out of a GMC Safari steering column for mine. Check your local scrap yard for one.
rawley2 is offline
Old 05-21-2013, 08:02 PM
  #56
Junior Member

Join Date: Sep 2009
Location: Minnesota
Posts: 19
Likes: 0
Received 0 Likes on 0 Posts
Car: 91 Chevy Camaro RS
Engine: 305 TBI
Transmission: 700R4
Re: How to: Tighten tilt steering w/pictures

Can the shaft in the column be removed and if it can how?
hondorian7 is offline
Old 05-21-2013, 08:25 PM
  #57
Member

Join Date: Nov 2004
Location: Houston MS
Posts: 332
Likes: 0
Received 0 Likes on 0 Posts
Car: 87 GTA Trans Am
Engine: 305 TPI
Transmission: 700R4
Axle/Gears: 10 bolt posi 3.23
Re: How to: Tighten tilt steering w/pictures

I did not take mine all the way out so I don't want to guess.

I did tighten all 4 bolts.
rawley2 is offline
Old 05-31-2013, 05:06 PM
  #58
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Lake Havasu City, Az
Posts: 84
Likes: 0
Received 0 Likes on 0 Posts
Car: 86 camaro iroc z
Engine: 355 LT1 Full Roller
Transmission: T56
Axle/Gears: 9 bolt 3.73 posi
Re: How to: Tighten tilt steering w/pictures

what wheel is that, I want one for my car!
havacamaro is offline
Old 06-29-2013, 09:50 AM
  #59
Member
iTrader: (3)

Jason1313's Avatar

Join Date: May 2007
Location: Louisville, KY
Posts: 424
Likes: 0
Received 0 Likes on 0 Posts
Car: 92 Camaro RS
Engine: 5.0 TBI
Transmission: 700R4
Axle/Gears: 2.73
Re: How to: Tighten tilt steering w/pictures

Hello everyone,

This "how to" is great, I would be lost without it. I've gotten down to removing the plastic column cover, and I was looking at the signal lever, and I noticed a black wire that looks to be broken, I was wondering if anyone knows what its for and do I need to reattach it, not sure if it was ever attached.

Oh, and the tension spring for the tilt, it seems to just sit there, doesn't really tension no matter where I tilt the column, is that normal?

Thanks for any assistance, I have attached a picture of the wire I am talking about.
Attached Thumbnails How to: Tighten tilt steering w/pictures-img_0152-.jpg
Jason1313 is offline
Old 06-29-2013, 11:20 AM
  #60
Junior Member
Thread Starter

Join Date: Mar 2009
Location: Nashville, TN
Posts: 45
Likes: 0
Received 0 Likes on 0 Posts
Car: 2012 GMC Sierra SLT Z71
Engine: LC9 5.3L
Transmission: 6L90
Axle/Gears: 3.08
Re: How to: Tighten tilt steering w/pictures

Not sure what the black wire is for off the top of my head. I would look at a repair manual and find the wiring diagram. Could be something for PassKey which is often faulty and/or by-passed on these cars.

No that's not normal. If memory serves there should be some part of the steering hub that rides against the spring and pushes it in as you move the wheel down which is why the whee jumps into the highest position when you pull on the tilt lever.

Unfortunately I do not own my car anymore so I can't get anymore pictures for you.
sled_fiend is offline
Old 06-29-2013, 12:02 PM
  #61
Member
iTrader: (3)

Jason1313's Avatar

Join Date: May 2007
Location: Louisville, KY
Posts: 424
Likes: 0
Received 0 Likes on 0 Posts
Car: 92 Camaro RS
Engine: 5.0 TBI
Transmission: 700R4
Axle/Gears: 2.73
Re: How to: Tighten tilt steering w/pictures

Thanks, I'll see if i can find a wiring diagram. I didn't think the spring just sitting there was normal, that's the way it was when I took it apart though, no tension at all.
Jason1313 is offline
Old 06-29-2013, 12:19 PM
  #62
Junior Member
Thread Starter

Join Date: Mar 2009
Location: Nashville, TN
Posts: 45
Likes: 0
Received 0 Likes on 0 Posts
Car: 2012 GMC Sierra SLT Z71
Engine: LC9 5.3L
Transmission: 6L90
Axle/Gears: 3.08
Re: How to: Tighten tilt steering w/pictures

If everything is working on your car then I probably wouldn't mess with the wire. I'd be willing to bet it's got something to do with disabling the PassKey ignition since it looks like it was cleanly cut. I'd probably just tape the ends so they don't touch anything or get moisture in them. If you don't have one I would highly recommend getting a Chilton manual. Most auto parts stores have them in stock for our cars. Then run about $20, you may be able to get one on amazon for less if you are ok with waiting a few days.

As far as the tension spring goes. Is it loose inside its little hole? You should be able to take a big #3 Phillips and push in a give it a quarter turn to disengage the lock tabs and then it should come out of the hole under its own tension. If there is no tension then there may be something missing from behind the spring. If there is tension there then there must be a piece broken or missing from the hub that is supposed to rest on top of the spring and push it in when you tilt the wheel down.

Good luck. If you spend time watching the pieces move and figure out how they all interact then you will understand the mechanisms and figure it out. That's what I had to do.

Originally Posted by Jason1313 View Post
Thanks, I'll see if i can find a wiring diagram. I didn't think the spring just sitting there was normal, that's the way it was when I took it apart though, no tension at all.
sled_fiend is offline
Old 06-29-2013, 07:11 PM
  #63
Member
iTrader: (3)

Jason1313's Avatar

Join Date: May 2007
Location: Louisville, KY
Posts: 424
Likes: 0
Received 0 Likes on 0 Posts
Car: 92 Camaro RS
Engine: 5.0 TBI
Transmission: 700R4
Axle/Gears: 2.73
Re: How to: Tighten tilt steering w/pictures

Thanks sled_fiend, I think that's what I'm going to do.

I figured out why the tilt spring had no tension on it, I found this down in the column, apparently this is what the tension spring goes over to create the tension I no longer have. I wonder if I can leave the spring out and it will be OK without it?
Attached Thumbnails How to: Tighten tilt steering w/pictures-img_0154.jpg
Jason1313 is offline
Old 06-30-2013, 12:27 AM
  #64
Junior Member
Thread Starter

Join Date: Mar 2009
Location: Nashville, TN
Posts: 45
Likes: 0
Received 0 Likes on 0 Posts
Car: 2012 GMC Sierra SLT Z71
Engine: LC9 5.3L
Transmission: 6L90
Axle/Gears: 3.08
Re: How to: Tighten tilt steering w/pictures

Interesting. If you leave the spring out I think the tilt will still work but the wheel will fall all the way down whenever you pull the tilt release lever. Things not working the way they should bugs the crap out of me so I would replace it if it were me. If it doesn't bug you though then have at. Glad you at least figured it out.
sled_fiend is offline
Old 06-30-2013, 10:12 AM
  #65
Member
iTrader: (3)

Jason1313's Avatar

Join Date: May 2007
Location: Louisville, KY
Posts: 424
Likes: 0
Received 0 Likes on 0 Posts
Car: 92 Camaro RS
Engine: 5.0 TBI
Transmission: 700R4
Axle/Gears: 2.73
Re: How to: Tighten tilt steering w/pictures

Thanks for the help, I'm going to give it a try and see what happens.
Jason1313 is offline
Old 06-30-2013, 06:53 PM
  #66
Member
iTrader: (3)

Jason1313's Avatar

Join Date: May 2007
Location: Louisville, KY
Posts: 424
Likes: 0
Received 0 Likes on 0 Posts
Car: 92 Camaro RS
Engine: 5.0 TBI
Transmission: 700R4
Axle/Gears: 2.73
Re: How to: Tighten tilt steering w/pictures

Here's another problem I'm running into putting the column back together. When I try to slip the collar back on I can't get the collar past the wire that connects to the ignition gear, when I try to put the collar on it causes the wire to pop out disabling the steering wheel lock pin. Anyone else run into this problem? The picture shows the wire I am talking about.
Attached Thumbnails How to: Tighten tilt steering w/pictures-img_0155.jpg
Jason1313 is offline
Old 07-02-2013, 12:12 PM
  #67
Member
iTrader: (3)

Jason1313's Avatar

Join Date: May 2007
Location: Louisville, KY
Posts: 424
Likes: 0
Received 0 Likes on 0 Posts
Car: 92 Camaro RS
Engine: 5.0 TBI
Transmission: 700R4
Axle/Gears: 2.73
Re: How to: Tighten tilt steering w/pictures

Originally Posted by Jason1313 View Post
Here's another problem I'm running into putting the column back together. When I try to slip the collar back on I can't get the collar past the wire that connects to the ignition gear, when I try to put the collar on it causes the wire to pop out disabling the steering wheel lock pin. Anyone else run into this problem? The picture shows the wire I am talking about.
Anyone else have this problem?
Jason1313 is offline
Old 09-02-2013, 04:19 AM
  #68
Junior Member

ken0hki's Avatar

Join Date: Dec 2007
Location: Okinawa Japan
Posts: 66
Likes: 0
Received 0 Likes on 0 Posts
Car: 91 TA GTA, 88 Camaro Covnvertible
Engine: TA 350 Supercharged, Camaro 350
Transmission: TA 700R-4, Camaro T5
Axle/Gears: 3.23 Posi in both cars
Re: How to: Tighten tilt steering w/pictures

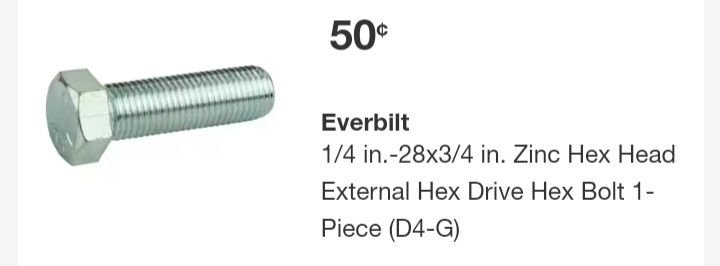

was able to get to 3 of the screws using this. however i did not have to remove the big screw and spring at the bottom.

you can get to the 3rd upper left screw if your remove the ignition cylinder and the plastic gear on the left side.
ken0hki is offline
Old 09-27-2013, 08:29 AM
  #69
Junior Member

Join Date: Sep 2013
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Re: How to: Tighten tilt steering w/pictures

Excellent Post, I just did this job. Took 4-6 hours because I never did anything like this before, and did it very very carefully. Cant tell you how important it is to be meticulous. Here's some more info:
1) That switch thing is tricky, what holds it in is a copper clip, when I pulled out the assembly I almost lost the copper clip!! So when you put it all back, reinsert the copper clip, then insert the switch thing in parallel with inserting the bolt for the ignition cylinder and in parallel with the ignition cylinder. All three have to go in together, carefully.
2) The back half of the assembly should be lined up, before joining it with the front half of the assembly, use grease to hold the plastic thing that pushes against the high-beam on-off lever (its not a dimmer switch). Make sure your high-beam lever is still sitting in the slot under the dash otherwise you will have to take everything apart again.
3) Those pivot pins are tricky to get out, I used the snap-on pivot pin remover wrong and broke the tool, luckily I was able to back out the part stuck in the pin. Line it all up carefully, and flush, before using the tool.
4) Sure enough, 4 loose screens. Used the red loctite on them and put them all back in. its all like new now! Thanks
alexiroc is offline
Old 11-13-2013, 09:34 AM
  #70
Member
iTrader: (1)

OdieTurbo's Avatar

Join Date: Nov 2009
Location: Endicott, NY
Posts: 212
Likes: 0
Received 0 Likes on 0 Posts
Car: 1987 Camaro Sport Coupe
Engine: 3.4L V6
Transmission: T5 (NWC)
Axle/Gears: 3.42 Stock axle
Re: How to: Tighten tilt steering w/pictures

I found some great instructions for assembly over at the Crankshaft Coalition wiki: http://www.crankshaftcoalition.com/w...ck_Rebuild.pdf
OdieTurbo is offline
Old 06-25-2014, 09:57 PM
  #71
Junior Member

JnC92Z28's Avatar

Join Date: Sep 2013
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Car: 1992 Z28
Engine: 5.7L TPI
Transmission: A/T
Axle/Gears: G92 / 3.23
Re: How to: Tighten tilt steering w/pictures

First I'd like to thank everyone for the great info and write up. Our RS driver/restomod had this steering slop problem and at first I thought it was the "4 bolts"...so following the awesome writeups found here I disassemled the column only to find those bolts were tight as the day they were installed. The problem I did find was That the pivot pins were "loose" especially the left one. SO I pulled them and inspected, they looked ok so I put them back in. It tightened up the wheel a little but over a few days the same problem came back...the left pin had worked its way out again. Assuming it was the housing that may have been work I began to look for a housing and or a coulmn. Whille looking I did some more reading and discovered this:

http://www.zr1specialist.com/HAT%20W...s/DCP_1296.JPG
http://www.zr1specialist.com/HAT%20W...lumn%20pin.htm

Worked like a charm! And you don't have to disassemble the column. I'll have to admit it's for pricey $50), but compared to the alternative(s), its a super time saver and far less.
JnC92Z28 is offline
Old 06-30-2015, 01:54 AM
  #72
Junior Member

Join Date: May 2014
Location: San Jose, CA
Posts: 30
Likes: 0
Received 0 Likes on 0 Posts
Car: 88 Trans AM
Engine: 5.0 TPI
Transmission: BW T5
Re: How to: Tighten tilt steering w/pictures

I did this for the first time today and I highly recommend preparing yourself by studying this and having the proper tools too. The tools are cheap and could be found online or even at your local auto parts store. The trouble I had was getting some slack in the wires when I had to pull the turn signal switch over the column. I found out its easier disconnecting the connectors at the bottom of the column to loosen up the wires. Also be aware if you pull out the pivot pins it gets really messy and you might panic a lil like I did but its not that hard to figure out how it all goes back together. Just be careful to pop the spring out first and then pull the pins out. I messed up and had three clips pop out that were part of the hi beams because I pulled the pins out first. In the end I tightened all four screws and it took me about 7 hours for my first time.
94ElBanditoDeCa is offline
Old 07-31-2015, 11:12 AM
  #73
Junior Member

Join Date: Jul 2015
Location: Florence Ky
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Car: 1986 Trans Am w/WS6
Engine: 305 (5.0) TPI
Transmission: 700R4
Re: How to: Tighten tilt steering w/pictures

Thanks for this how-to-guide.

I went ahead and purchased the tools: Lisle 19940 Pivot Pin Remover, and Powerbuilt 648466 Steering Wheel Lock Plate Removal Tool from Amazon, already had a steering wheel puller. Also purchased a Grant GT 414 and horn button kit to update the project. My column is quite loose, hopefully I won't run into any problems. If the 4 screws are tight, at least I know where to get the oversize pivot pins, thanks!

Last edited by Hawke; 07-31-2015 at 11:15 AM.
Hawke is offline
Old 07-14-2017, 07:03 PM
  #74
Member

Join Date: Jul 2016
Location: az
Posts: 219
Likes: 0
Received 0 Likes on 0 Posts
Car: 91
Engine: 5.7
Transmission: 700
Re: How to: Tighten tilt steering w/pictures

none of the pictures work...
bk2life is offline
Old 05-01-2018, 04:37 AM
  #75
Junior Member

Join Date: Sep 2000
Location: Phoenix, Az
Posts: 47
Likes: 0
Received 0 Likes on 0 Posts
Car: 91 Z28
Engine: 350ci TPI L98
Transmission: Stock 4L60
Re: How to: Tighten tilt steering w/pictures

Hello, I am having some column issues as well, but I'm not quite sure if what I'm experiencing is the same to what you guys are. There isn't really slop in the column as described, but there are issues with movement with it in various conditions. I made a video of the symptoms, anyone have something similar to this?... or even if not for those with steering column knowledge, would the symptoms shown here be fixed by tightening things up as described in this thread, or does this look like something that would require a whole new column instead? Or maybe a pivot pin? etc... Thanks for the help!


Last edited by 91Z-28-350; 05-01-2018 at 04:56 AM.
91Z-28-350 is offline
Old 05-01-2018, 04:41 PM
  #76
Supreme Member
iTrader: (1)

LB9GTA's Avatar

Join Date: Mar 2004
Location: Winnipeg, MB
Posts: 1,423
Likes: 0
Received 0 Likes on 0 Posts
Car: '91 GTA
Engine: 400sbc
Transmission: th350
Axle/Gears: ford 9" with 3.75
Re: How to: Tighten tilt steering w/pictures

Ya, thats the sloppy steering wheel with tilt steering
LB9GTA is offline
Old 09-01-2018, 03:18 AM
  #77
Junior Member

Join Date: Jan 2018
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Re: How to: Tighten tilt steering w/pictures

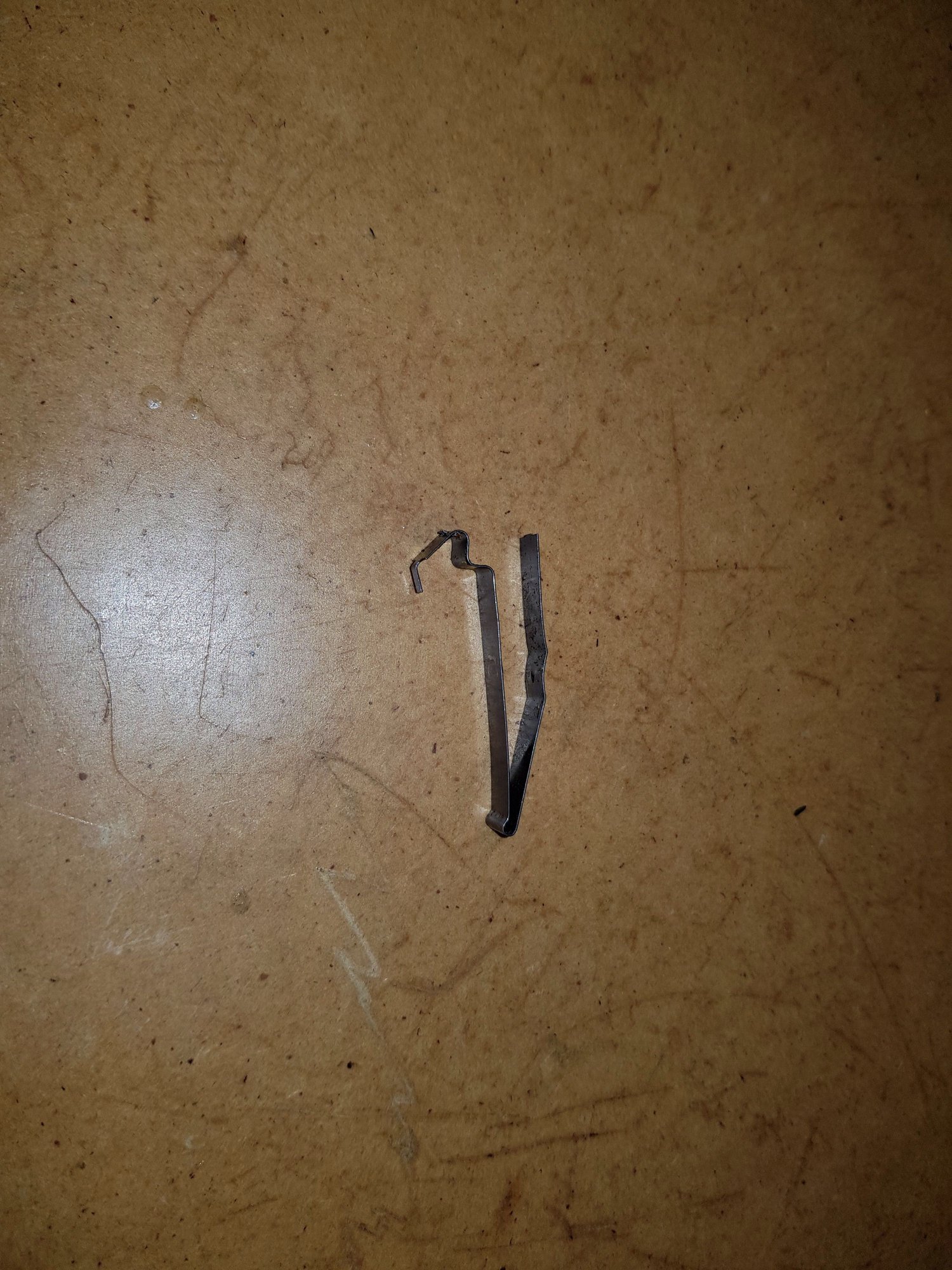

After pulling the steering column cover over the steering column this fell onto the floor. Cannot find where it needs to be placed back. Would be great if someone knows where this part goes.


Yellow86Camaro is offline
Old 09-01-2018, 08:50 AM
  #78
Supreme Member
iTrader: (4)

Ozz1967's Avatar

Join Date: Dec 2005
Location: St. Cloud, MN
Posts: 4,733
Likes: 0
Received 0 Likes on 0 Posts
Car: 1984 Trans Am
Engine: In progress 6.0 LS swap
Transmission: 4l60e with 3600 FTI converter
Axle/Gears: Zexel Torsen 3.73, 28-spline mosers
Re: How to: Tighten tilt steering w/pictures

Originally Posted by Yellow86Camaro View Post
After pulling the steering column cover over the steering column this fell onto the floor. Cannot find where it needs to be placed back. Would be great if someone knows where this part goes.


That's the buzzer key that tells you that the key is still in the ignition. Goes on the right side, just kind of sits in there. There are pictures on here of that assembly if you look for the steering wheel removal threads. You don't actually need it, won't hurt anything, just wont' tell you that your key is still in the ignition with the door open.
Ozz1967 is offline
Old 09-01-2018, 01:36 PM
  #79
Junior Member

Join Date: Jan 2018
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Re: How to: Tighten tilt steering w/pictures

Originally Posted by Ozz1967 View Post
That's the buzzer key that tells you that the key is still in the ignition. Goes on the right side, just kind of sits in there. There are pictures on here of that assembly if you look for the steering wheel removal threads. You don't actually need it, won't hurt anything, just wont' tell you that your key is still in the ignition with the door open.

Many thanks you have solved a huge headache !
Yellow86Camaro is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Ed1LE
Suspension and Chassis
8
09-30-2018 09:14 AM
oil pan 4
Fabrication
2
10-06-2015 11:56 AM
gord327
Transmissions and Drivetrain
19
10-03-2015 01:25 PM
sjorgens
Suspension and Chassis
7
10-01-2015 07:54 PM
Night rider327
Interior Parts for Sale
0
09-25-2015 04:19 AM


Thread Tools
Search this Thread
Quick Reply: How to: Tighten tilt steering w/pictures


Contact Us - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
