What's the normal polarity of the zero-crossing of an HEI reluctor signal at firing time, negative to positive or positive to negative?

Vader

Having a little trouble deciding which way to plug in the wires to the HEI switching module?

I honestly don't know which direction the coil is wound, so I couldn't say with any certainty. I've monitors the output (single trace) and can only see the AC. Without a second trace/trigger from the HEI output, determining the waveform timing is impossible. Maybe if I get bored someday I'll drag the scope out to a running engien and check it out.

What I do know is that the threshold level for the HEI seems to be about 0.7 V. If the output of the pickup is wired correctly, the increasing amplitude of the output wave creates a signal that reaches the threshold sooner, and the resultant ignition timing actually gets a bit of advance from the earlier signal. Even without the EST active, the ignition timing will advance a couple degrees at increased RPM due to this effect. If the pickup output is wired backward to the HEI switch/amplifier, the timing will retard at increased engine RPM.

I'm only presuming the reasons you asked, so that may not be of any help to you.

Doctor J

It depends on what you are connecting it to.

If it's wired to a GM HEI module, it wants a positive-going wave first. Then a 7-pin GM module generates a one-shot DRP output, similar to the diagram below.

If you are wiring to an MSD box, the input is usually reversed, IIRC, to match the MSD input circuitry.

HTH

RBob

iTrader: (1)

The falling edge signal (pos to neg) is the coil firing time. The pickup coil signal has a lazy rise waveform with a sharp fall time.

The ignition module sends this as a distributor reference pulse (DRP) to the ECM. Same as above the falling edge tells the ECM to fire the coil.

RBob.

Merlin

Doc,

Your diagram only shows a 600mV P-P signal. From what I've measured, the peak EMF is quite a bit higher at normal engine RPM of 600 or above - unless my old Tektronics needs some calibration.

Doctor J

Merlin

You are absolutely correct, and I'm sure your scope is too .

I only used a graphic that was handy on the computer to illustrate signal orientation. The diagram is not specific to any particular GM VR pick-up. Note the original qualifier "similar to the diagram" & pardon any confusion this may have caused.


DrJ
Please append this to the original image
Terms & Conditions for Viewing JPG:
The original grapic has been edited. It has been formatted to fit your screen. No engineers were harmed in the making of this jpg. Professional stunt graphic artist on a closed course. Do not attempt this jpg at home. Your jpg mileage may vary. Lather jpg, rinse, repeat. Use jpg in a cool, dry place. Look for the union label. The artist makes no warranty with respect to merchantability, or fitness for a particular purpose. If you feel drowsy, to not operate heavy machinery after viewing this jpg. Always wear protective clothing, and do not look directly into the graphic without goggles of SPF 40. Shake jpg well before using. Contains 100% recycled pixels.

Damon

GM keyed them for polarity. I don't know what's + or - but Green is the small blade connector, Yellow is the large blade connector. At least on an old non-computer controlled HEI.

Vader

Doc,

Thanks for the graphic. That solves the confusion over the zero-crossing polarity for signal trigger. I wish I had a reliable schematic for an HEI module with EST input. Not that I'd want to make any of them, but it would be good reference. I'm almost certain the output is a power Darlington, but the rest is only complete conjecture.

- - - - - - - - - - - - - - - - - - - - - - - -

Damon,

Well, THAT oughtta solve any mystery over polarity, as long as the wiring harness isn't altered, it's a no-brainer (just my speed!).

Apeiron

You'd think it would be nice and simple, but the problem I'm having is with triggering an MSD. Using the MSD harness to replace the 4 pin module it looks like the trigger signal is still the wrong polarity.

Vader

Well, the reluctor/pickup coil isn't grounded, so you should be able to safely wire it either way. If you check the base timing with a light as indicated above, you should find the better way to connect it. Personally, I'd prefer the method that adds advance. If the MSD uses the negative-crossing signal, that's going to be tough to accomplish, since the threshold voltage and correct polarity will get later with increased RPM. Almost makes a guy want to go with an optical array, or install points, doesn't it?

Apeiron

The leading edge isn't stable enough, it adds advance, but the amount of advance you'll get out of it is non-deterministic. I think this explains why my advance curve is stable when I put the distributor on the sun distributor machine, but I get too much advance and scatter on the car.

All of my spare distributors have 466 modules in them. I thought I remembered there was something odd about the 466 module. In the instruction manual for an old Carter Engine Knock Eliminator (anyone remember those?) it mentions using a diode with the 466 module, but I couldn't find anything else.

Doctor J

Vader-

1. It's not that complicated. The GM module arms its trigger when the pick up signal goes below ground (negative); then fires at the next zero-crossing point AFTER the wave has gone positive.

The MSD trigger circuit (for a 6 box) behaves a little differently. As I read it, it (sort of) arms when the pick up signal is negative, then fires AS SOON AS the wave reaches +0.7 v, i.e. just past the zero crossing. Hence the reversed wiring.

The GM circuit is designed to prevent noise from triggering a spark. The MSD circuit is designed to be compatible with either points or a mag pick-up. The circuit input for an MSD 6 Box is shown here (if the site is working today - if not try google): ftp://ftp.diy-efi.org/pub/diy_efi/do...s/msd6a_02.pdf

2. I've never seen a full diagram of a 7-pin module either (there is one available for the 4-pin however).

I think if you break the 7-pin module function into two pieces you can see the approximate equivalents by looking at two other standard circuits. See the illustrations below:

The front end of the GM module (up to the power transistor) is AFAIK functionally similar to the diagram of the National Semiconductor LM 1815 chip:

DrJ
Terms & Conditions for Viewing JPG:
100% Caffeine free jpg. Graphic contains partially hydrogenated vegetable oil and Red Food Dye #7. Image captured with dolphin-friendly net. Store image in a cool dry area. Not to be viewed with other medications. Rotate your tires. No artificial preservatives. Call your mom. No matter where you go, there you are. - Buckaroo Banzai. Internet brought to you courtesy of Al Gore. Objects in the graphic are closer than they appear. If jpg causes a persistent rash, consult a physician immediately. Batteries not included. Read and follow all directions before viewing. This image is not a toy, keep out of reach of small children. Be kind - rewind.

Doctor J

The back end of the module AFAIK is some sort of power transistor, with zener protection and current-limiting built in. An example of such a Darlington is functionally similar to the diagram of the Signetics Thomson ST BU941 unit:

DrJ
Terms & Conditions for Viewing JPG:
The original graphic has been edited. It has been formatted to fit your screen. No engineers were harmed in the making of this jpg. Professional stunt graphic artist on a closed course. Do not attempt this jpg at home. Your jpg mileage may vary. Lather jpg, rinse, repeat. Use jpg in a cool, dry place. Look for the union label. The artist makes no warranty with respect to merchantability, or fitness for a particular purpose. If you feel drowsy, to not operate heavy machinery after viewing this jpg. Always wear protective clothing, and do not look directly into the graphic without goggles of SPF 40. Shake jpg well before using. Contains 100% recycled pixels.

Doctor J

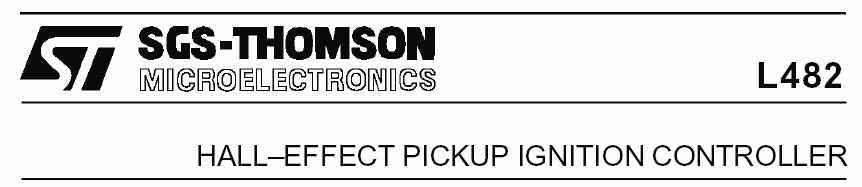

If you ever want to see a complete single-chip ignition control circuit with adjustable dwell, adjustable current limiting, and some other neat features, take a look at the ST L482 application notes. I believe MSD uses a circuit something like this in their Inductive Ignition spark box:

DrJ
Terms & Conditions for Viewing JPG:
blah, blah, blah.

EagleMark

Found this link from another thread and thought this may have been what you were looking for back then?
