MSD 6al box installation location...
Has anyone found a good place to mount the MSD ignition box other than the crowded engine compartment??
I don't know if there's a hidden spot under/behind the dash firewall area or between the front bumper & radiator??? The engine compartment is overcrowded as it is without cramming in anything else. Nitro
I don't know if there's a hidden spot under/behind the dash firewall area or between the front bumper & radiator??? The engine compartment is overcrowded as it is without cramming in anything else. Nitro
12-04-2006, 06:12 PM
#2
Member
iTrader: (4)
Join Date: May 2005
Location: New Waterford, Ohio
Posts: 270
Likes: 0
Received 0 Likes
on
0 Posts
Car: '84 Z28
Engine: 406 sb
Transmission: th400
Axle/Gears: Moser M9/5:14 ratio/Billet Locker
I mounted mine where the factory computer was, but there are some other ideas in this thread.
https://www.thirdgen.org/forums/fabr...tall-pics.html
https://www.thirdgen.org/forums/fabr...tall-pics.html
12-05-2006, 06:28 PM
#3
Junior Member
Join Date: Aug 2006
Posts: 95
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 Z28
Engine: 383 TPIS Mini Ram
Transmission: D&D Perf Viper/GM T-56
Axle/Gears: 3.73's Eaton Posi
I installed mine under the passenger seat....seat doesn't get used much in my car so its was out of the way. I recently re-located my battery to the back of the car and ended putting it there instead. Now its a little easier to get at the rev chips.
12-05-2006, 08:41 PM
#4
Senior Member
iTrader: (2)
Join Date: May 2005
Location: Tucson, Arizona
Posts: 789
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 Z-28
Engine: A worn-out 305
Transmission: T-5, until it dies
I've removed my washer bottle, so I built an aluminum bracket, and bolted
it right above the charcoal cannister. I also am running a 12v muffin fan
on the bottom of the bracket, and will be running a fresh air tube through the
bottom of the car to keep it cool. Looks great, and is out of the way.
it right above the charcoal cannister. I also am running a 12v muffin fan
on the bottom of the bracket, and will be running a fresh air tube through the
bottom of the car to keep it cool. Looks great, and is out of the way.
12-06-2006, 12:54 PM
#5
Supreme Member
Thread Starter
iTrader: (7)
Join Date: Jan 2006
Location: Santa Rosa, Cali
Posts: 1,160
Likes: 0
Received 1 Like
on
1 Post
Car: 1988 IROC 5.7 Money Pit
Engine: (being built; modified TPI ZZ4
Transmission: 2200 stall/ stage 3 700R4
Axle/Gears: freshened 3.27 in 9.bolt/
Location-Location-Location....
Great! I've been scratching my head for an alternative location; not that I need a spotless engine compartment, but I definitely don't want to add to the factory clutter.
Thanks Guys! Mucho Appreciated!!!! Nitro
Thanks Guys! Mucho Appreciated!!!! Nitro
12-07-2006, 10:20 PM
#6
Supreme Member
iTrader: (2)
Join Date: Feb 2006
Location: 39.84N 105.11W
Posts: 1,547
Likes: 0
Received 0 Likes
on
0 Posts
Car: '89 Trans Am GTA
Engine: WAS 350 - now L92 (alum. 378/6.2L)
Transmission: WAS 700R4, now a built T56
Axle/Gears: 3.27 9-bolt
I mounted mine partially under the dash on the passenger side. The only problem so far is that I can hear it (and it's a little annoying), so I might mount it under the passenger seat like smallblock383 did...
12-10-2006, 01:40 AM
#7
Junior Member
Join Date: Dec 2006
Location: baton rouge,louisiana
Posts: 55
Likes: 0
Received 0 Likes
on
0 Posts
Car: '88gta
Engine: 383 tpi
Transmission: 700r4
Axle/Gears: 3:23 australian 9 bolt posi
MSD 6AL box location
Hey Neagan,
About your MSD box location - I installed mine under the rear seat
drivers side. Ran the wire under the door sill plate.
************************************************************
"That's not a vernacular! That's a derby!
Jerome Howard - 1936
About your MSD box location - I installed mine under the rear seat
drivers side. Ran the wire under the door sill plate.
************************************************************
"That's not a vernacular! That's a derby!
Jerome Howard - 1936
Trending Topics
12-11-2006, 09:25 AM
#8
Junior Member
Join Date: Dec 2006
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 formula w/t-tops
Engine: 350 (L98) 5.7 TPI
Transmission: 700-R4
Axle/Gears: 3.27

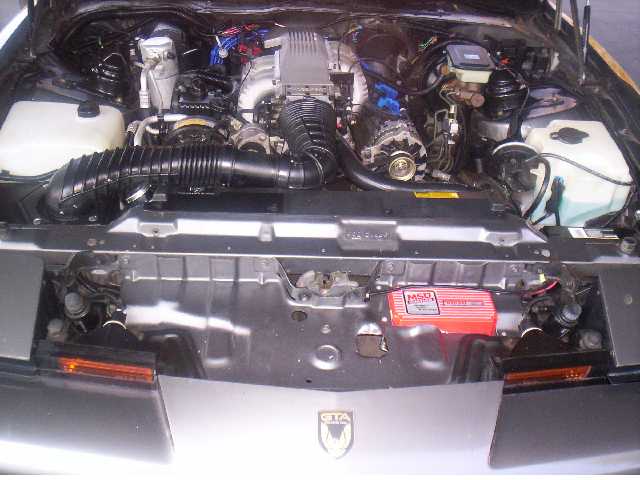

I mounted mine near the hood latch in front of the radiator. Been there for 7 years with no problems.
12-27-2006, 06:41 PM
#10
Its best to keep the wires on the box as short as possible and I know that cane behard considering there is not many places under the hood t mount these boxes without it looking tacky. I mounted mine where the charcoal canister use to be. it is low and out of sight and it gets some fresh air to keep it somewhat cool.
