Trying to figure out where this vacuum hose goes

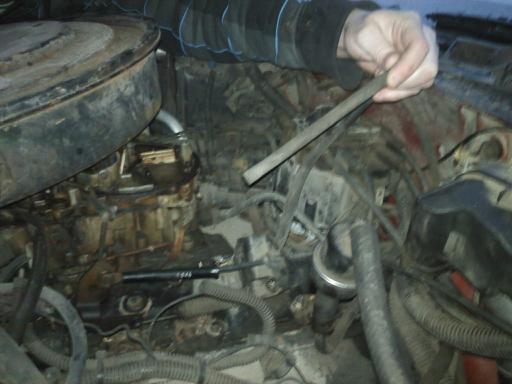

earlier today i was replacing my wiper motor and when i pulled out the old motor this hose was just laying underneath, when you start the car it starts to suck air, i know a couple weeks ago my father in law said he could hear something like i had a vacuum leak or something and im thinking this might be it but i don't know where its supposed to go back on at. thanks for any help on this.
Thread Starter
Member
Joined: Mar 2011
Posts: 281
Likes: 1
From: Kalamazoo,MI
Car: 1985 IROC-Z
Engine: 350 TPI
Transmission: T5 manual
Re: Trying to figure out where this vacuum hose goes
just in case you cant tell from the 2nd pic its the one thats running toward the engine away from the camera
Member
Joined: Apr 2008
Posts: 364
Likes: 0
From: Walker, Louisiana
Car: 84 trans am
Engine: 305 5.0L HO
Transmission: TH350
Re: Trying to figure out where this vacuum hose goes
If I'm not mistaken that is manifold vacuum.
On my motor that went to the transmission. TH350.
There are other applications that use it also.
I don't know your setup.
Sucking air from there is a serious effect on performance.
On my motor that went to the transmission. TH350.
There are other applications that use it also.
I don't know your setup.
Sucking air from there is a serious effect on performance.
Thread Starter
Member
Joined: Mar 2011
Posts: 281
Likes: 1
From: Kalamazoo,MI
Car: 1985 IROC-Z
Engine: 350 TPI
Transmission: T5 manual
Re: Trying to figure out where this vacuum hose goes
my setup is just the stock 305 with a stock 4 bbl car its all stock. i just bought this car last month.
Joined: Sep 2005
Posts: 27,918
Likes: 2,448
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Trying to figure out where this vacuum hose goes
If it's "sucking air", then it doesn't need to go to manifold vacuum; it already has it.
It's impossble to tell anything at all from the pics. They're blurry and have no contrast. Plus, the motor is obviously filthy; desperately needs a trip to the quarter car wash. Just CLEANING IT UP might make it a whole lot easier to figure out what you're looking at.
What's at the other end of it? It's like wires; what's at one end, is often a handy clue as to what belongs at the other.
It's impossble to tell anything at all from the pics. They're blurry and have no contrast. Plus, the motor is obviously filthy; desperately needs a trip to the quarter car wash. Just CLEANING IT UP might make it a whole lot easier to figure out what you're looking at.
What's at the other end of it? It's like wires; what's at one end, is often a handy clue as to what belongs at the other.
Last edited by sofakingdom; Apr 22, 2011 at 08:59 AM.
Thread Starter
Member
Joined: Mar 2011
Posts: 281
Likes: 1
From: Kalamazoo,MI
Car: 1985 IROC-Z
Engine: 350 TPI
Transmission: T5 manual
Re: Trying to figure out where this vacuum hose goes
sorry about the state its in like i said i just got it and havent had a chance to really clean it up
Supreme Member
iTrader: (2)
Joined: Sep 2009
Posts: 1,591
Likes: 5
From: WI.
Car: 1987 iroc
Engine: 383 TPIS intake, Dyno Don headers
Transmission: 700R4 w/Pro-built Auto/transgo 2-3
Axle/Gears: 3.27/3.70 borg warner 9 bolt
Re: Trying to figure out where this vacuum hose goes
First thing to do is to get a chiltons repair manual at a local auto parts store, they have the vacuum diagrams in there. You'll need it for other things anyway.
Trending Topics
Supreme Member
Joined: Sep 1999
Posts: 7,072
Likes: 13
From: Philly, PA
Re: Trying to figure out where this vacuum hose goes
Ultimately, that vacuum line supplies vacuum to the HVAC vacuum servos under the dash to change from floor to vents to defrost.
In 87 I can't remember where the vacuum reservoir is, though, unfortunately. It's either....
1. A straight shot to the "mini-mailbox" shaped vacuum reservoir above the power brake booster or
2. It goes to a T fitting off which one side goes to the round vacuum reservoir inside the front of the driver's fender and the other side of the T goes into the main wiring loom and up under the dash.
First type is older, second setup is later models. Can't remember where the cut-off year was, but I think 87 is the later setup.
In 87 I can't remember where the vacuum reservoir is, though, unfortunately. It's either....
1. A straight shot to the "mini-mailbox" shaped vacuum reservoir above the power brake booster or
2. It goes to a T fitting off which one side goes to the round vacuum reservoir inside the front of the driver's fender and the other side of the T goes into the main wiring loom and up under the dash.
First type is older, second setup is later models. Can't remember where the cut-off year was, but I think 87 is the later setup.
