What's this connector?

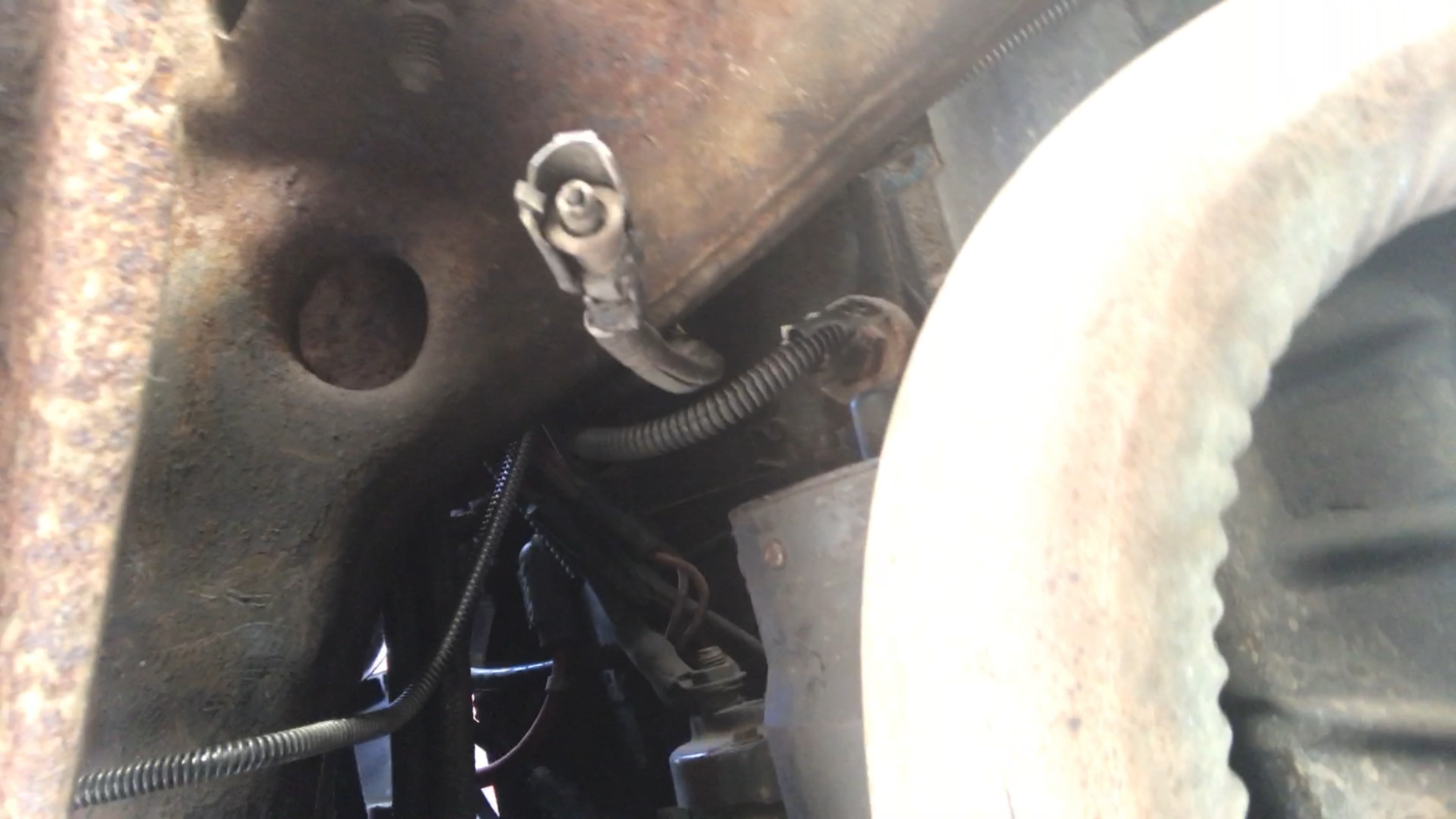

Found this hanging, appears to be broken off. It's bottom of passenger side near rear motor mount on '89 5.7
#2
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,716
Received 766 Likes
on
517 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: What's this connector?
secondary fan switch harness. It goes up between cyl 6 and 8 in the head.
#3
Member
Thread Starter
Join Date: Jun 2017
Location: Illinois
Posts: 143
Received 0 Likes
on
0 Posts
Car: '89 Iroc
Engine: 383 TPI
Transmission: Built 700R4
Axle/Gears: 9 Bolt - 3.45
#5
Member
Thread Starter
Join Date: Jun 2017
Location: Illinois
Posts: 143
Received 0 Likes
on
0 Posts
Car: '89 Iroc
Engine: 383 TPI
Transmission: Built 700R4
Axle/Gears: 9 Bolt - 3.45
Re: What's this connector?
Last edited by rottweiler68; 07-24-2017 at 10:21 AM.
#6
Member
Thread Starter
Join Date: Jun 2017
Location: Illinois
Posts: 143
Received 0 Likes
on
0 Posts
Car: '89 Iroc
Engine: 383 TPI
Transmission: Built 700R4
Axle/Gears: 9 Bolt - 3.45
Re: What's this connector?
And another dumb follow up question, sorry new to much of this, what is the connector to the right of the dangling fan harness wire that is connected properly in the pic?
