TPI Engine Bay Clean-up Vacuum & Smog

Old 02-13-2012, 09:38 PM
  #1
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
TPI Engine Bay Clean-up Vacuum & Smog

I recently just swapped my 305 to a 350 TPI engine. I have used custom heads, edelbrock headers, TPI's Miniram intake, stud girdles, and the list goes on and on. I am attempting to clean up my engine bay. I have programmed the car to delete the EGR. I am wanting to remove the smog pump and relocate/get rid of the coolant line with the vacuum hose on the passenger side. (See picture attached) Would there be any problem removing these items? What does that vacuum hose run to? I was wondering if anyone have any tips, or anything I do to clean up this obscene amount of hoses everywhere. If you have any more tips to clean up any areas of the engine bay. Thanks in Advance.

Name:  photo-3.jpg
Views: 5424
Size:  198.7 KB
Attached Thumbnails TPI Engine Bay Clean-up Vacuum & Smog-photo.jpg

Last edited by brando278705; 02-14-2012 at 12:34 AM.
brando278705 is offline
Old 02-14-2012, 02:57 AM
  #2
Supreme Member
iTrader: (3)

305sbc's Avatar

Join Date: Nov 2001
Location: Fairview Heights Illinois
Posts: 2,425
Car: 1986 Irocz
Engine: 305 TPI
Transmission: 700R4
Axle/Gears: 3.25:1
Re: TPI Engine Bay Clean-up Vacuum & Smog

What you've got circled can all go.
The A/C isn't hooked up so you could get rid of the rest of that.
Converting to manual steering and brakes also makes some space and removes some of the clutter.
305sbc is offline
Old 02-14-2012, 11:29 AM
  #3
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Okay so the top one I have circled is for the AC basically then? I could just get rid of the plastic thing with the vacuum hose on it and route the house straight through then.
brando278705 is offline
Old 02-14-2012, 12:21 PM
  #4
Moderator
iTrader: (1)

Abubaca's Avatar

Join Date: Feb 2001
Location: JAMESTOWN, NC
Posts: 6,995
Car: 1989 Iroc
Engine: 383 TPI
Transmission: TKO600
Axle/Gears: 3.27
Re: TPI Engine Bay Clean-up Vacuum & Smog

I'd double check, but I believe the top circle is the coolant bypass. YOu can bypass it, and you'll have coolant constantly running through the heater core. Not a major issue. ...or you can completely remove all the lines going to the heater core, but of course, you'll have no heat. Not a problem for me, but if it's a DD.......

For the record, before I deleted the heater core completely, I did remove that valve. I wasn't 100% sure about removing the heat altogether, so I ran some 90 degree heater hose bends right off the heater core in the firewall, and routed them along the frame rail. It was a VERY clean look compared to stock. ....but ultimately I got rid of em altogether!
Abubaca is offline
Old 02-14-2012, 01:33 PM
  #5
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Awesome thanks for the help. Not a DD but still would like to keep the heat for now. Will definitely re-route that damn hose though. Thanks!
brando278705 is offline
Old 02-14-2012, 03:59 PM
  #6
Supreme Member
iTrader: (3)

305sbc's Avatar

Join Date: Nov 2001
Location: Fairview Heights Illinois
Posts: 2,425
Car: 1986 Irocz
Engine: 305 TPI
Transmission: 700R4
Axle/Gears: 3.25:1
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by brando278705 View Post
Okay so the top one I have circled is for the AC basically then? I could just get rid of the plastic thing with the vacuum hose on it and route the house straight through then.

No, I mentioned the A/C system in a separate sentence.
The top circle is your heater control valve.
Basically, the heater valve stops coolant flow to the core when you don't want heat, like in the summer. If you keep your heater function you can simply install a ball-valve in line between the intake manifold and your heater core to do the same job.

The bottom circle is the AIR diverter valve that directs air from the AIR pump to your exhaust manifold and CAT.

The rest of your A/C system is attached to and inside the plastic shell on the passenger-side firewall, near your heater core. You can buy or make a block-off plate for that area that still retains your heater function. Just search for it on here.
305sbc is offline
Old 02-14-2012, 05:11 PM
  #7
Moderator
iTrader: (1)

Abubaca's Avatar

Join Date: Feb 2001
Location: JAMESTOWN, NC
Posts: 6,995
Car: 1989 Iroc
Engine: 383 TPI
Transmission: TKO600
Axle/Gears: 3.27
Re: TPI Engine Bay Clean-up Vacuum & Smog

If you keep your heater function you can simply install a ball-valve in line between the intake manifold and your heater core to do the same job.
Heater Control Valve! HCV. THAT is the term I was trying to remember! ...anyhow, YES, you can install a ball-valve in line to do the same thing, however, you don't need to. You can have coolant running to the heater core at all times. I don't think they started putting HCVs in our cars until 86 or 87. With the heater off, you shouldn't feel any additional heat. SOme people will say they can tell a difference, but again, it's a relatively newer feature. Either way, for the sake of cleaning up the engine bay, I ran the coolant hoses with no vavle.
Abubaca is offline
Old 02-15-2012, 06:15 PM
  #8
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Yeah Sorry, I re-read about the AC part. Will Remove the Heater Control valve and just let the coolant flow! Any idea where I can purchase a plate for when I remove the whole ac system?
brando278705 is offline
Old 02-16-2012, 04:09 PM
  #9
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Post #18 on my other thread shows a guy that has his AC off and his engine bay is damn clean. I want mine to look like that.

https://www.thirdgen.org/forums/alte...ir-intake.html
brando278705 is offline
Old 02-16-2012, 04:20 PM
  #10
Moderator
iTrader: (1)

Abubaca's Avatar

Join Date: Feb 2001
Location: JAMESTOWN, NC
Posts: 6,995
Car: 1989 Iroc
Engine: 383 TPI
Transmission: TKO600
Axle/Gears: 3.27
Re: TPI Engine Bay Clean-up Vacuum & Smog

It's an AC Delete Heater box. You can search the classifieds, craigslist or ebay for a deal on one, or pay the money and hit up hawks.

http://www.hawksthirdgenparts.com/82...rytrays-1.aspx
Abubaca is offline
Old 02-16-2012, 06:28 PM
  #11
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Thanks man, I appreciate that. Ill check it out.
brando278705 is offline
Old 02-18-2012, 12:27 AM
  #12
Supreme Member

rusty vango's Avatar

Join Date: Jun 2011
Location: knoxville tn
Posts: 2,036
Car: 86 IROC
Engine: 5.0 TPI
Transmission: 700-R-4
Axle/Gears: 2.73 open
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by brando278705 View Post
I recently just swapped my 305 to a 350 TPI engine. I have used custom heads, edelbrock headers, TPI's Miniram intake, stud girdles, and the list goes on and on. I am attempting to clean up my engine bay. I have programmed the car to delete the EGR. I am wanting to remove the smog pump and relocate/get rid of the coolant line with the vacuum hose on the passenger side. (See picture attached) Would there be any problem removing these items? What does that vacuum hose run to? I was wondering if anyone have any tips, or anything I do to clean up this obscene amount of hoses everywhere. If you have any more tips to clean up any areas of the engine bay. Thanks in Advance.

do you have emissions testing? if so you might have a problem getting registration .especially if they do a visual
rusty vango is offline
Old 02-18-2012, 09:13 PM
  #13
Supreme Member
iTrader: (24)

robertfrank's Avatar

Join Date: Apr 2004
Location: Salt Lake City, Utah
Posts: 2,906
Car: 1988 camaro "SS"/ 1991 305/T5
Engine: 383 LT1 in progress/LT1TBI 355 soon
Transmission: Probuilt 700R4 3600 stall/ T5
Axle/Gears: Moser axles, 3.42 Eaton Posi
Re: TPI Engine Bay Clean-up Vacuum & Smog

There's quite a few things you can do to clean up your engine bay. I deleted my Heater Valve and rerouted the hoses to get everything off my valve covers. Here's a pic of how I did it

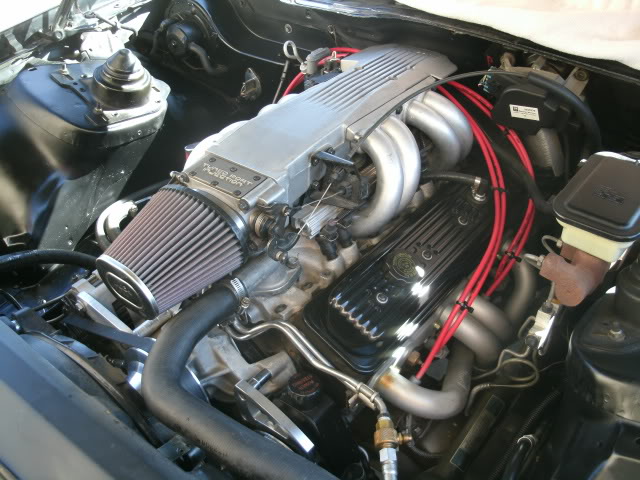

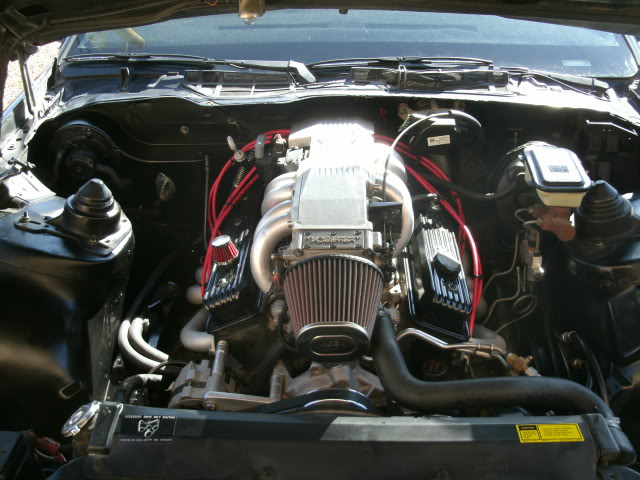

Name:  GEDC1177.jpg
Views: 1970
Size:  67.0 KB

Name:  GEDC1185.jpg
Views: 3621
Size:  73.5 KB

Name:  GEDC1186.jpg
Views: 1771
Size:  73.8 KB

Name:  GEDC1184.jpg
Views: 2022
Size:  70.8 KB

I'm a **** when it comes to my engine bays, lol. I need to do a little more with it but for now I'm happy. My TBI car's bay is even cleaner.

Last edited by robertfrank; 02-18-2012 at 09:16 PM.
robertfrank is offline
Old 03-01-2012, 12:27 AM
  #14
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

What do you do for a coolant overflow tank? Just not have one. Run a line to the ground? And what about this vacuum canister. Anything I don't need on here? I know obviously brake booster, fuel tank, pvc valve. But anything I can not remove. I don't have any emissions testing in my state and don't have to worry about it, egr is gone and will remove the smog pump with components.
brando278705 is offline
Old 03-01-2012, 04:21 PM
  #15
Supreme Member
iTrader: (3)

305sbc's Avatar

Join Date: Nov 2001
Location: Fairview Heights Illinois
Posts: 2,425
Car: 1986 Irocz
Engine: 305 TPI
Transmission: 700R4
Axle/Gears: 3.25:1
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by brando278705 View Post
What do you do for a coolant overflow tank? Just not have one. Run a line to the ground? And what about this vacuum canister. Anything I don't need on here? I know obviously brake booster, fuel tank, pvc valve. But anything I can not remove. I don't have any emissions testing in my state and don't have to worry about it, egr is gone and will remove the smog pump with components.
There's not much that you absolutely cannot do, and certainly nothing in your list above. The question then becomes "do you want to?" after considering all of the factors involved.
In a lot of cases people keep the items and function, but move them so that they are out of the way or less noticeable.

The CCP canister and coolant recovery tank can be moved to out-of-sight locations, though you may have to get a recovery tank that is smaller and shaped differently. There is some space below the battery trays, and some more space fore of the radiator.
Both functions are valuable and are worth keeping to most people.

Another valuable function is the PCV system which has an intake side (vent), and a discharge side (the PCV valve). The vent and discharge are both located on your valve-covers but they do not have to be.
All that is required for a vent is filtered intake air, and all that is required for the discharge side is full manifold vacuum and a PCV type check-valve.
Other sources for these can be either found or fabricated so as to move the function out of sight.

A lot of these things are a lot of trouble, as in time-consuming, and so do not make a lot of sense unless you have the engine out of the car for other work already.
305sbc is offline
Old 03-05-2012, 11:39 PM
  #16
Supreme Member
iTrader: (24)

robertfrank's Avatar

Join Date: Apr 2004
Location: Salt Lake City, Utah
Posts: 2,906
Car: 1988 camaro "SS"/ 1991 305/T5
Engine: 383 LT1 in progress/LT1TBI 355 soon
Transmission: Probuilt 700R4 3600 stall/ T5
Axle/Gears: Moser axles, 3.42 Eaton Posi
Re: TPI Engine Bay Clean-up Vacuum & Smog

As far as the overflow tank I have one of those cheap autozone universals hidden under the cover in front of the radiator. I'll take pics of it tomorrow
robertfrank is offline
Old 03-05-2012, 11:57 PM
  #17
Member
iTrader: (3)

Andrew James's Avatar

Join Date: Sep 2011
Location: Batesville, AR
Posts: 310
Car: 1990 Formula Firebird
Engine: 350 (5.7) TPI
Transmission: WC T5
Axle/Gears: 3.42 POSI
Re: TPI Engine Bay Clean-up Vacuum & Smog

Do you happen to have the part number for the air filter that connects straight to the TPI?
Andrew James is offline
Old 06-29-2014, 09:32 PM
  #18
Member
iTrader: (5)

Zeromitch87's Avatar

Join Date: Nov 2009
Location: fort riley, kansas
Posts: 181
Car: 1987 GTA
Engine: 383 HSR
Transmission: 4l60e
Axle/Gears: 3.27
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by robertfrank View Post
As far as the overflow tank I have one of those cheap autozone universals hidden under the cover in front of the radiator. I'll take pics of it tomorrow
I would like to see the pics even if it is 2 years later lol.

I'm wondering about overflow relocation and hiding my heater valve. On my heater valve the hose that suppose to go to the TB I have a bolt with rtv stuffed in there with a hose clamp to top it off. I blocked it off because I thought the only purpose was to cool the TB which doesn't need cooling and can't on my Holley TB. Do they make after market heater valves with no TB outlet or should I just add more hose and hide it somewhere with my rtv bolt blockage? Or should I connect the TB coolant hose to the manifold?

Recent-ish pic of my bay, I have cleaned up my wire harness mess since
this pic.
Name:  DSCN1946_zpsff2be106.jpg
Views: 1607
Size:  111.4 KB

stupid air intake is temporary until I get a ram air box. (see the rtv'ed dime on the sensor hole) Holley HP computer is underneath the cone.
Zeromitch87 is offline
Old 06-30-2014, 12:08 PM
  #19
Junior Member
iTrader: (1)

Join Date: Jun 2013
Posts: 51
Re: TPI Engine Bay Clean-up Vacuum & Smog

Glad you stuck with it, looks much better. I believe the heater control valve for an 80s Monte Carlo does not have the TB outlet, looks the same otherwise.
357L98 is offline
Old 07-21-2018, 08:43 PM
  #20
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

This thread has been super helpful
brando278705 is offline
Old 07-21-2018, 08:52 PM
  #21
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by robertfrank View Post
There's quite a few things you can do to clean up your engine bay. I deleted my Heater Valve and rerouted the hoses to get everything off my valve covers. Here's a pic of how I did it


Attachment 375197

Attachment 375198

Attachment 375199

Attachment 375200

I'm a **** when it comes to my engine bays, lol. I need to do a little more with it but for now I'm happy. My TBI car's bay is even cleaner.
Hey Man! What does your charcoal canister area look like? Trying to figure out what can go and stay? I think the only thing I really need is a gas tank vent line. Let me know if you have any insights!
brando278705 is offline
Old 08-12-2018, 12:22 AM
  #22
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Same here! Any photos of that?
brando278705 is offline
Old 08-12-2018, 08:50 PM
  #23
Banned

Join Date: Sep 2017
Posts: 256
Re: TPI Engine Bay Clean-up Vacuum & Smog

Iíve got my charcoal canister right underneath where it used to sit on the drivers side and all I did was enlarge an existing hole so the wiring could get down there and get a longer piece of hose that would reach as well. I used cable ties to hold it In place. I also put a generic smaller coolant overflow

Go Blue is offline
Old 08-12-2018, 09:07 PM
  #24
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by Go Blue View Post
Iíve got my charcoal canister right underneath where it used to sit on the drivers side and all I did was enlarge an existing hole so the wiring could get down there and get a longer piece of hose that would reach as well. I used cable ties to hold it In place. I also put a generic smaller coolant overflow


Coo
brando278705 is offline
Old 08-12-2018, 09:18 PM
  #25
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Alright guys, I have a few more questions on the clean up my engine bay portion of this.

Photo #1 is the check valve for the heater core. To remove this, it looks like I can simply connect heater core to the oil cooler (Which then goes into the radiator), and the other side to the front of the intake. Correct (Photo 2)?
Photo #3 I think is the connector for the AC, which I removed? This is in the same run as the fan connections
Photo #4 is some relay that is mounted near the batter. It reads number 10038311. What is the relay for?
Photo #5 is the other side of the battery, looks to be connected to the fan in a manner, any idea what this does?
Photo #6 is three relays and a connection close to the driver in the engine bay. Looks like the middle on is for the MAF, any ideas on the others?

I am simply trying to find out what I am working with and what I can do with it to clean it up! Thanks in advance!




brando278705 is offline
Old 08-13-2018, 01:02 AM
  #26
On Probation

ktthecarguy's Avatar

Join Date: Nov 2010
Location: Livonia MI
Posts: 325
Car: 88 Camaro vert/86 SC
Engine: 355 tbi/2.8 V6
Transmission: 700R4/T5
Axle/Gears: 2.72 posi/3.42 open
Re: TPI Engine Bay Clean-up Vacuum & Smog

Hi there, photo 5 is a fuse, yes for the fan and also for the ECM. If it blows, you will not be able to get error codes from your ECM. Ask me how I know that one!
ktthecarguy is offline
Old 08-13-2018, 11:12 AM
  #27
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by ktthecarguy View Post
Hi there, photo 5 is a fuse, yes for the fan and also for the ECM. If it blows, you will not be able to get error codes from your ECM. Ask me how I know that one!
Good to know! How do you know?! LOL
brando278705 is offline
Old 08-13-2018, 11:28 AM
  #28
On Probation

ktthecarguy's Avatar

Join Date: Nov 2010
Location: Livonia MI
Posts: 325
Car: 88 Camaro vert/86 SC
Engine: 355 tbi/2.8 V6
Transmission: 700R4/T5
Axle/Gears: 2.72 posi/3.42 open
Re: TPI Engine Bay Clean-up Vacuum & Smog

Well, couldn't for the life of me figure out why my engine ran like crap, but no check engine light. Couldn't get the codes either. No light at all. Then someone mentioned the fuse on the fender. BINGO!

BTW the relays in photo six should be (from top to bottom in the pic) burnoff relay, fuel pump relay, and MAF relay. Hope that helps.
ktthecarguy is offline
Old 08-16-2018, 01:01 AM
  #29
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by ktthecarguy View Post
Well, couldn't for the life of me figure out why my engine ran like crap, but no check engine light. Couldn't get the codes either. No light at all. Then someone mentioned the fuse on the fender. BINGO!

BTW the relays in photo six should be (from top to bottom in the pic) burnoff relay, fuel pump relay, and MAF relay. Hope that helps.
hahah! Fair enough! Much appreciated on the info there.
brando278705 is offline
Old 08-19-2018, 11:19 AM
  #30
Member
iTrader: (1)

CHRISMAN2000's Avatar

Join Date: Feb 2002
Location: Winnipeg,MB
Posts: 423
Car: 1991 Camaro Z28
Engine: 350 L98
Transmission: 700R4
Re: TPI Engine Bay Clean-up Vacuum & Smog

We should get a walk through if getting rid of the heater lines set up and make it a sticky.
CHRISMAN2000 is offline
Old 08-20-2018, 12:29 PM
  #31
Banned

Join Date: Sep 2017
Posts: 256
Re: TPI Engine Bay Clean-up Vacuum & Smog

I'll see if I can't do that this weekend. Since my heater core blew, I have my intake manifold hose going straight to the oil cooler line and no hoses running back to the heater core area at the moment and it is working well right now.
Go Blue is offline
Old 08-22-2018, 02:03 PM
  #32
Senior Member

Join Date: Mar 2002
Location: Pleasant View, Utah
Posts: 517
Car: 1990 Trans Am GTA
Engine: 5.7 TPI
Transmission: 700R4
Axle/Gears: 3.23
Re: TPI Engine Bay Clean-up Vacuum & Smog

Delete it all....lol
89FRMLA350 is offline
Old 08-22-2018, 02:06 PM
  #33
Banned

Join Date: Sep 2017
Posts: 256
Re: TPI Engine Bay Clean-up Vacuum & Smog

1 word "DAMN"!!! lol. Where did you hide the wiring harness that usually is along the base of the runners going from the throttle body all the way to the back on the passenger side? How did you move it and was there any wire splicing required? I'd love to move mine just to clean my engine up that much more, but I can't figure out how to move that loom.
Go Blue is offline
Old 08-22-2018, 02:33 PM
  #34
Senior Member

Join Date: Mar 2002
Location: Pleasant View, Utah
Posts: 517
Car: 1990 Trans Am GTA
Engine: 5.7 TPI
Transmission: 700R4
Axle/Gears: 3.23
Re: TPI Engine Bay Clean-up Vacuum & Smog

The wiring which is along the runners is now tucked under the upper plenum behind the runners. A lot of that harness was removed so only the injector wiring and sensor wiring could fit. The large loom that would usually run all along the passenger side has now been re-routed through an already existing hole in the firewall where the HVAC harness came through. Most engine wiring is tucked up behind the dash after I removed all the interior vents and heater box etc...
Attached Thumbnails TPI Engine Bay Clean-up Vacuum & Smog-30821219_10156268079988834_311395671496143681_o.jpg
89FRMLA350 is offline
Old 08-22-2018, 03:04 PM
  #35
Banned

Join Date: Sep 2017
Posts: 256
Re: TPI Engine Bay Clean-up Vacuum & Smog

I don't want to rip out all of the HVAC just to hide wires and i'm leaving my heater core and blower motor in for defrosting reasons. Thanks for the idea of running the loom inside the runners though. I'll have to try that.
Go Blue is offline
Old 08-22-2018, 03:12 PM
  #36
Senior Member

Join Date: Mar 2002
Location: Pleasant View, Utah
Posts: 517
Car: 1990 Trans Am GTA
Engine: 5.7 TPI
Transmission: 700R4
Axle/Gears: 3.23
Re: TPI Engine Bay Clean-up Vacuum & Smog

If you're wanting to run just the heat, I have a fiberglass AC delete box for sale. $120 shipped and comes with that motor.



89FRMLA350 is offline
Old 08-22-2018, 03:14 PM
  #37
Banned

Join Date: Sep 2017
Posts: 256
Re: TPI Engine Bay Clean-up Vacuum & Smog

Thanks 89FRMLA but I already have that installed on my car. I just want to clean up some of the wiring since it's all over the place. I've started the clean up but the big loom along the base of the runners was part of my issue even with it tucked in between the runners and the valve cover.
Go Blue is offline
Old 08-22-2018, 10:55 PM
  #38
Member
Thread Starter

brando278705's Avatar

Join Date: Feb 2011
Location: Colorado
Posts: 191
Car: 1987 Camaro IROC-Z
Engine: 5.7
Transmission: 700r4
Axle/Gears: 4.10
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by 89FRMLA350 View Post
Delete it all....lol
This is sick and exactly what I am looking for! Main questions: Where did you get the flat plate to cover your heater blower motor, and what about the fuel line vent? Does it smell like gas?!
brando278705 is offline
Old 11-24-2018, 11:42 PM
  #39
Junior Member

Join Date: Nov 2018
Posts: 1
Re: TPI Engine Bay Clean-up Vacuum & Smog

Hi i see clean engine no smog or mass air sensor. What did you do with wires or how did you delete the wire so computer an engine will run? Smog has 2 sensors an mass air ? How do you get it to run.
Houtzy13 is offline
Old 11-24-2018, 11:55 PM
  #40
Senior Member

Join Date: Mar 2002
Location: Pleasant View, Utah
Posts: 517
Car: 1990 Trans Am GTA
Engine: 5.7 TPI
Transmission: 700R4
Axle/Gears: 3.23
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by brando278705 View Post
This is sick and exactly what I am looking for! Main questions: Where did you get the flat plate to cover your heater blower motor, and what about the fuel line vent? Does it smell like gas?!
I got the flat piece of tin from lowes and the fuel.vent line is still ran under the car.
89FRMLA350 is offline
Old 11-25-2018, 02:54 AM
  #41
Supreme Member
iTrader: (2)

VincentZ28's Avatar

Join Date: Mar 2002
Location: San Antonio TX
Posts: 2,503
Car: 1990 G92 IROC Z Miniram
Engine: 388cu 6.4 Liters
Transmission: G-Force T5
Axle/Gears: 3.73 Gears
Re: TPI Engine Bay Clean-up Vacuum & Smog




I guess I’m just one of few people that doesn’t mind the stuff under the hood. When the hood is close, it looks just a good as everyone else’s car.
VincentZ28 is offline
Old 12-07-2018, 07:00 PM
  #42
Junior Member

Join Date: Oct 2018
Posts: 41
Re: TPI Engine Bay Clean-up Vacuum & Smog

Ok so I seen you all talk about using a ball valve in place of the valve going to the heater core but there are 2 hoses going to the valve and one to the block. How does a single valve work with that? Does one get blocked off?
Dusty Dc is offline
Old 12-07-2018, 07:46 PM
  #43
Supreme Member
iTrader: (2)

VincentZ28's Avatar

Join Date: Mar 2002
Location: San Antonio TX
Posts: 2,503
Car: 1990 G92 IROC Z Miniram
Engine: 388cu 6.4 Liters
Transmission: G-Force T5
Axle/Gears: 3.73 Gears
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by Houtzy13 View Post
Hi i see clean engine no smog or mass air sensor. What did you do with wires or how did you delete the wire so computer an engine will run? Smog has 2 sensors an mass air ? How do you get it to run.
Speed Density cars donít have a Mass Air Sensor
VincentZ28 is offline
Old 12-08-2018, 10:47 PM
  #44
Junior Member

Join Date: Oct 2018
Posts: 41
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by robertfrank View Post
There's quite a few things you can do to clean up your engine bay. I deleted my Heater Valve and rerouted the hoses to get everything off my valve covers. Here's a pic of how I did it


Attachment 375197

Attachment 375198

Attachment 375199

Attachment 375200

I'm a **** when it comes to my engine bays, lol. I need to do a little more with it but for now I'm happy. My TBI car's bay is even cleaner.
what did you use to block the secondary hose on the bottom line of the heater valve?
Dusty Dc is offline
Old 12-10-2018, 11:37 AM
  #45
Junior Member

Join Date: Oct 2018
Posts: 41
Re: TPI Engine Bay Clean-up Vacuum & Smog



OK so im removing the valve and doing a straight run to the HC. but how do i block of the bottom line that runs up to it?
Dusty Dc is offline
Old 12-10-2018, 02:41 PM
  #46
Junior Member

Join Date: Oct 2018
Posts: 41
Re: TPI Engine Bay Clean-up Vacuum & Smog

Originally Posted by Dusty Dc View Post


OK so im removing the valve and doing a straight run to the HC. but how do i block of the bottom line that runs up to it?
secondly this metal air line. What does it run to? Instead of taking out the seized bolts on the rusty manifold I just bought new ones with plugs already in it. But to remove the air tubes off I need to know where the line runs to behind the motor.


Dusty Dc is offline
Old 12-10-2018, 10:50 PM
  #47
Sponsor
iTrader: (80)

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 11,188
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: TPI Engine Bay Clean-up Vacuum & Smog

If you look at the front side of the catalytic converter you should see the other end of that pipe.
Tuned Performance is offline
Old 12-11-2018, 01:34 AM
  #48
Junior Member

Join Date: Oct 2018
Posts: 41
Re: TPI Engine Bay Clean-up Vacuum & Smog

Appreciate that TP. I'll get her in the air tomorrow.
Dusty Dc is offline
Old 12-11-2018, 01:57 AM
  #49
Supreme Member
iTrader: (28)

Drew's Avatar

Join Date: Jul 1999
Location: Salina, KS
Posts: 17,322
Re: TPI Engine Bay Clean-up Vacuum & Smog

Usually the converter is on it's own spur. The one with the Tee is the Melon-Farmer pipe. It goes behind the engine, bolts to both heads, and feeds the driver's manifold. It's a real Melon-Farmer to work around, and remove because it's a one piece steel pipe that is bolted in.

This one is off an 86, thinking 87 until they went to the rubber version were about the same aside from minor changes. This one came out with the engine.



May God have mercy on your soul. Amen.
Drew is offline
Old 12-11-2018, 02:00 AM
  #50
Junior Member

Join Date: Oct 2018
Posts: 41
Re: TPI Engine Bay Clean-up Vacuum & Smog

Call me naive but what in the Sam h*** is a melon farmer lol
Dusty Dc is offline

Thread Tools
Search this Thread
Quick Reply: TPI Engine Bay Clean-up Vacuum & Smog


Advertising
Featured Sponsors
Vendor Directory

Contact Us Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
