Post pics and info about your V6's. I'll start with mine.

It's the 3.1L, ~153,000mi, Runs PERFECT (besides being slow). Only mods are a cold air intake(not really cold air)and TB bypass mod. Done some work such as valve cover gaskets, intake gaskets, and new oil pan.



Also, please check out my new cardomain page and give me a good rating, let me know what you think...

http://www.cardomain.com/ride/2190496



No current pictures.

L32 block swap (approx 65k miles)
Auto to T5 Swap
Polished heads (not ported)
3 Angle Valve Job
Crane 99915 Retainers
Crane 99848 Springs
Fiero Valve Covers
Positive Seals On All Valves
LB8 Modified Air Intake
Polished Intake Inside
Brass Freeze Plugs
Brass Cap/Rotor
Accel 8mm Wires
MSD Coil
Cardone 30-1633 Distrib
ASP Crank Pully
V8 Dual Electric Fans
180 T-stat
High Volume Fuel Pump
Dynomax 17493 Exhaust
Pacesetter Headers
TB Bypass Hard Plummed
ES Poly Trans Mount
EGR Removed
Smog Removed

Currently, running contaminated gas thru it (or I hope thats it)

Planned/want to do:
Home brew intake
Cam
Cloyes roller chain
Coat the headers
Prom
install the 19lb injectors back in
AFPR



Heck. Why not.

2.8 V5 (yes 5.. unless I try out those anti oil fouler things)
Universal accel 8mm wire set
MSD Blaster GM Coil (relocated to '88 for now)
700R4 -> T5 swap
Homemade weekend-built turbocharger manifold, downpipe, Xover pipe, and charged intake pipe
Toyota CT-26 Turbocharger (87-88 Supra)
Mitsubishi Starion intercooler
Bosch BOV
Faze 2 1/16" boost/vac gauge
Idiot light -> Gauge cluster swap
16" '86 IROC wheels (waiting for rubber)
'749/$58 SyTy electronics swap /w 2-bar MAP
K&N cone air filter (most recent addition.. was 'running' filterless.. MAF and BOV recirculation left no room for a filter.. both are gone now)
I'm sure something I've done to the poor thing is missing.. but that covers everything worth mentioning.. I think...

Coming soon:
3.4 (parts car on layaway) /w high volume oil pump
A muffler (turbo's too obvious without one)
Wideband O2
More chip tuning than I care to think about.

Pictures: http://www.cardomain.com/ride/2179829



91 Pontiac firebird 3.1 v6 700r4

performance mods

-dynomax catback
-dynomax cat
-asp underdrive crank pulley
-tb coolant bypass
-cai
-180 t-stat
-accel super coil
-accel 8.8mm wires
-accel cap/rotor and plugs (not really a mod)

coming this weekend
-formula power buldge hood

3.1



'91 3.1


B&M Shift Kit
Dynomax Catback
Catco Cat
K&N Filter



2.8L v6. 1986.

Mods:
CAI & lower air scoop
TB coolent bypass (for ease of maintinence when i pulled upper plenum)
cut down to bare bones under hood.

near complete suspension rebuild.


and it's for sale!!! for a full list of its mods and atributes see my add in the "cars for sale" forum

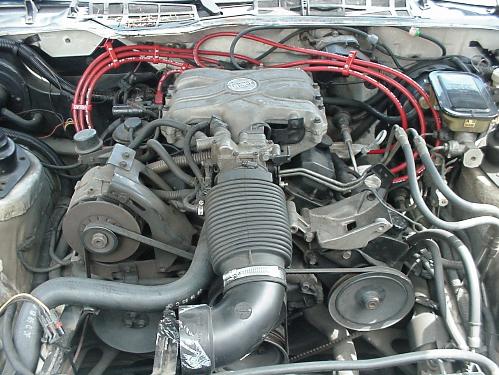

<--- engine bay shot. can't figure out how to make it a picture?



1992 RS with the 3.1L, 75,000 miles on the clock. I added the snorkle intake a few months ago, then tuned it up with some Accel wires, cap & rotor and Kool Blue air filters (along with the other normal tune up bits, of course). Then I just cleaned everything up real well.



91 3.1l

I'm definatly not gonna be able to remember all the details:


High Flow Dynosomething cat
Flowmaster muffler
MSD Coil
CAI
K&N filter
Plugged up EGR
Hollowed out A.I.R
Vette Servo
ASP Underdrive crank pully
TB Coolant Bypass

Think that's it....

January I'm buying a 3.4l with 1300k miles, cams, lifters, valves and some other stuff included.... Also looking at getting a 3.3l v6 intake if it'll fit easy enough.



'87, 2.8 reman, 12000 miles on it

180 degree thermostat with 200/180 fan switch
K&N air filters
Accel 8mm wires
blocked off EGR
Dynomax Super Turbo muffler
CATCO high flow cat
new: IAT sensor, CTS, IAC, TPS,

I think that's all, other than cleaning parts that were reused from the old engine.

engine photo



ok....

1989 2.8 V-6 105,000 miles

K&N air filter
Cat back manderal bend 2.5 exhaust w/flowmaster 80 series muffler.....cause the old one was....um...kinda missing lol

New wires, plugs, cap, and rotor. Would you believe all that ignition stuff was original from the original owner when I got it at 88K miles?



...anyway that's it. Looking into a 3.4 someday though



In that case, this is what I've done just to the engine...

HOPEFULLY I'll have a whole new custom exhaust after Christmas!!

Continuous oil change from 2/05-5/05 (rusted oil pan leaked)
-Oil and filter change on 10-9-05 (Castrol GTX High Mileage) 150,760 miles
-New distributor on 3/05, Timing set
-New Valve cover gaskets on 3/05
-New Oil pan/gasket/oil change/filter on 5/05
-Timing Reset on 5/05
-Intake gaskets on 5/05
-New front main seal on 3/05
-New O2 Sensor on 9/05
-New spark plugs on 3/05
-Spark plug wires on 5/05
-New Distributor cap and rotor on 3/05
-K&N Air Intake on 7/05
-Exhaust welding, touch up on 7/05
-Converter replaced with strait pipe 3/05
-TB bypass mod 10/05
-Fuel filter 4/05
-Replaced vacuum hoses 9/05
-Battery 2/05
-Transmission mount 7/05
-Exhaust tips welded 7/05
-EGR valve gasket 4/05
-OEM Air filter (before K&N) 3/05
-New PCV valve 10/11/05
It’s about due for another oil change and coolant flush/refill…



this is my mod for my v6 firebird



1983 2.8 V6

80kish miles on it now (real miles! has not rolled over)

Carbed
K&N Filter

and thats about it lol

Idles rouger then a 70's desel though....



Not much done.
-Dynomax catback
-High flow cat
-New y-pipe
-New air filter

Check out my signature for pics.

Many mods to come next summer.



ahahahaha.. mine used to be a V5 too. The non-fouler plug worked great with mine so far. I put it in like a year ago and it hasn't fouled the plug again (used to do it every couple weeks at least just before I tried the non-fouler).

3.4 swap
T5
who knows how many miles... I've put like 80k on the car since I've had it.
Runs like ****. Valvetrain noise, burns oil worse than an LS1, etc.
Slow
I'm going to blow it up within the month Nitrous... no oil.. somehow.. it will blow up -and I will enjoy it.
3.8/T5 swap attempt soon enough.. hopefully it goes fairly smooth.



SInce I've had way too many6's to post up, read up on the dead 2.8 to 3.4 to 3800 HERE


yeah, the 305 is in now, but the 3800 had more power.



Actually yeah, that night I went and bought the non-fouler and a new plug and it seems to be doing better, all things considered. Timing map is still off, but without a knock sensor and datalogging capability, not much I can do about that *shrug* ah well.



Cold air intake and new sensor
new tensioner
crank underdrive pulley
new plugs and wires
sanded and polished intake

thats about it



Admant, clean car, looks very nice!



88 camaro

2.8-3.4 swap
1.52 roller rockers
ASP underdrive pulley 180 degree t-stat
gutted air boxes
K&N air filters
8.8mm plug wires
removed smog pump
pacesetter headers
catco highflow cat
dynomax catback
TomP tune up
centerforce dual friction clutch
5.0 pro short throw shifter
and lots of other mods, check out my cardomain site to see it all

stuff to come this winter:
custom intake manifold (in the process now)
cam and valvetrain
EGR and TB coolant bypass delete due to intake
some more suspension mods as well

and better tires by spring to make it all worth it



1991 camaro Rs

v8 dual snorkle
manderal bend 2.5 exhaust
1le Swaybars front and rear
all poly mounts and bushings
16" Z28 rims
225/50/16 front 245/50/16 rear eagle RS-A
iroc grill hood and spoiler



All original, baby!!



mods
iroc grill insert
iroc gauges
iroc tail lights
blacked out 3rd brake light (tailights are next)
ram air kit
frt/rear swaybars
frt/rear springs
wonderbar
custom 3 inch ex sys
flowmaster
2004r
160 stat
iroc rims
complete custom dual bandpass enclosures were rear seats used to be
more just cant think of them for now
future mods
paint job comming within the next month or 2
may swap 2.8 for 383
adjustable strut tower brace
adj tq arm
shaved door handles



Mild Cam
1.6 Rockers
Headers
Gutted Cat
Removed bout 5 miles of unused wiring from the engine bay gaining some gasmilage somehow
Bosch +4 platinum plugs (freebies)
Fiero valve covers

318,000 miles till I popped the trans
Original block, unsure how many rebuilds

89 2.8/T-5



'91 3.1, 237k miles. Smokes, runs like crap
- Dual exhaust
- K&N filter



Life's been busy and I haven't had a chance to post lately, or even read the forum for that matter. Even though I now own a 4th gen v8, I'm hoping to come back to see how some of the ideas are progressing for the v6's. Keep up the good work guys.

A car just recently taken off the road...

85 2.8l

K&N Air filter
Edelbrock tie rod sleeves
Edelbrock panhard bar
TDS wonderbar
KYB shocks and struts
Suspension Techniques springs
Nitrous



And I grenaded the transmission so all of that does nothing anymore. Engine is complete and still runs and entire suspension is still there, otherwise it's a parts car. Also have an 87 2.8l with an auto trans that's no longer pushing the car forward, engine ran last time it was started. Make an offer for the pair.

https://www.thirdgen.org/techbb2/sho...hreadid=338073



**** i forgot one thing best time of 15.31@86mph all motor stock heads.got it down to 15.1 with a 75 shot but lost mph if the car woulda hooke dit deff woulda went mid to high 14's looking for mid 14's this spring all motor once i get that im going to swap out the 2.8 for the 460 hp 383 i finished a while ago for the car figure id mess around with the v6 for now till i get tierd of it or blow it up



See Sig...



Here's the Franken60 (Version 1.0)



I started with a 1987 2.8 Block, put in a 3.1L crank, Federal Mogul FWD 3.1L pistons, used the 1987 2.8L rods. For the Valve train, I used a GMPP cam, that is equivlant to the Crane 260-2, stock 3.1 rockers, and stock 3100 Valves and springs.
The heads and intake were from a 1995 Buick Skylark. I had the UIM modified with a custom EGR mount to use the 2.8L FWD vacuum EGR. The heads and intake were stock port, with some mild port matching.
The headers were custom built by me, they are ok, but want to build some new headers once I get some time.
Well the custom headers dump into a T3 turbo pirated from a 1986 Ford Thunderbird Turbo Coupe.
Engine managment was provided by 7730 ECM, that connects to the engine via a modified harness pirated from a 1988 Cavalier Z24. The PROM was mildly tuned for the forced induction, mostly a stock TGP program on a different PROM. The crank trigger was custom made by my Grandfather that is a machinist.
At the time of the above pic I was also using a Mitsubishi Starion front mount intercooler and Eagle Talon (Mitsu Eclipse) 1st gen BOV.
There was a bunch of small custom parts made for this.
Currently the top end has been removed and will be putting a 3400 top end that has larger ports and will also be using a larger turbo or twins.

Here are some more pics:
