Edelbrock High Flow Intake Manifold Issue..

Hi guys. Here is another confusing situation. I have a EDL-3860 High Flow intake base. I noticed that there was 2 different EDL-3860 intake bases. One has the fitting on the driverside which a hose connects to for the PCV valve on the driverside. The other (mine) has no hole for a fitting for the PCV Valve hose. So what the heck am I supposed to do? Could I run a "T" inbetween the brake booster and the plenum so that the vacuum can pull out the crank case fumes?

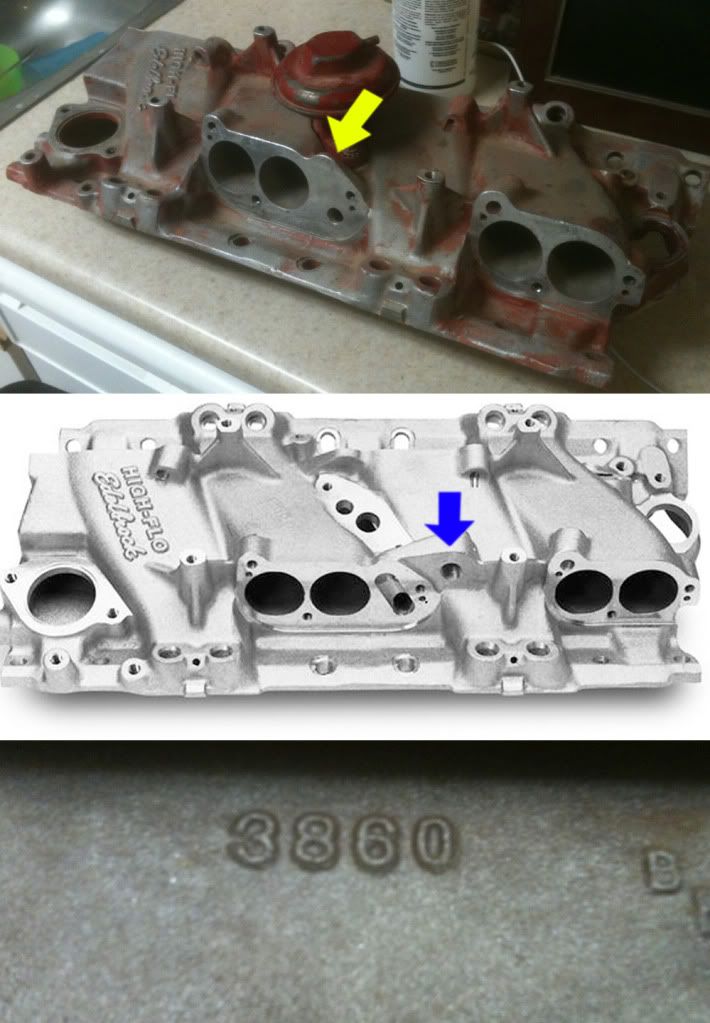

Top picture is mine (yellow arrow)....
Click the image to open in full size.

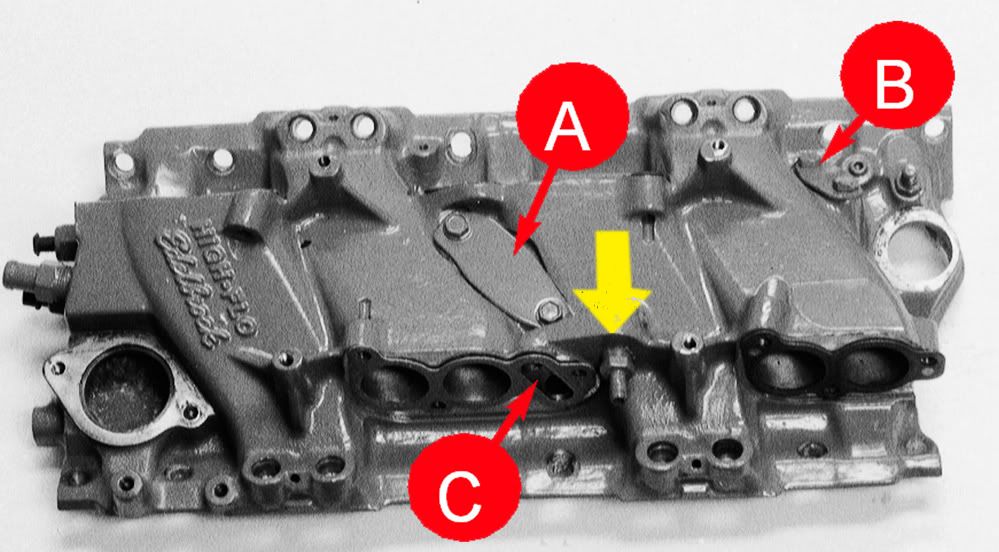

Here is the fitting that is used to connect a PVC hose.
|
|
\/
Click the image to open in full size.
__________________


6/16/1971 - 9/13/1996





Last edited by Chevy86 IROC-Z; 12-16-2011 at 11:50 PM.
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-16-2011, 10:00 PM   #2
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

And here is my current setup with the PVC hose which connects to the existing fitting on my OEM intake base...
Click the image to open in full size.
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-16-2011, 11:06 PM   #3
Senior Member

SDTransAM's Avatar

Join Date: Nov 2007
Location: Rapid City, SD
Posts: 528
Car: '83 z/28
Engine: 305
Transmission: T5
Axle/Gears: Stock?

Classifieds Rating: (5)
Re: Edelbrock High Flow Intake Manifold Issue..

It's a PCV valve not a PVC. PVC is like plastic pipe or whatever.

Just saying as it might help having the abbreviations correct if you are trying to search for your answer.

Honestly, I am stumped. I have no clue why it wouldn't have it. Maybe one of them is for a MAF car and one is for a MAP car?
__________________
Dale

Currently no more F-body. I have had 5 and just havn't found the one I want yet.

I have my Non Dimple Gold GTA wheels for sale, with almost brand new tires, 2 fronts and 2 rears. PM me for details.
SDTransAM is offline vBGarage Page   Reply With Quote
Old 12-16-2011, 11:50 PM   #4
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by SDTransAM View Post
It's a PCV valve not a PVC. PVC is like plastic pipe or whatever.

Just saying as it might help having the abbreviations correct if you are trying to search for your answer.

Honestly, I am stumped. I have no clue why it wouldn't have it. Maybe one of them is for a MAF car and one is for a MAP car?
OOps. Thats what I was thinking too but both styles use the very same ID # of 3860.
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 10:36 AM   #5
Senior Member

Join Date: Feb 2001
Location: Hinesville, GA USA
Posts: 938
Car: '86 IROC-Z/'94 Z28
Engine: 350 LT1/382 LT1
Transmission: 4L60-E/T-56
Axle/Gears: 3.45/3.42 (soon 4.10)

Classifieds Rating: (2)

Re: Edelbrock High Flow Intake Manifold Issue..

Locate the vacuum passage in the manifold base, then drill and tap for a fitting.

I had a GM base like that awhile back. Dont know exactly why it was done. BUT...

If you want to get around it, just dont run the PCV, install a breather on each side, and cap the supply from the other valve cover on the passenger side of the throttle body.
dhirocz is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 11:04 AM   #6
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

So then if I put breathers on both valve covers, the positive pressure from the blow by gasses will of course vent via the breathers right?
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 12:41 PM   #7
Senior Member

Join Date: Feb 2001
Location: Hinesville, GA USA
Posts: 938
Car: '86 IROC-Z/'94 Z28
Engine: 350 LT1/382 LT1
Transmission: 4L60-E/T-56
Axle/Gears: 3.45/3.42 (soon 4.10)

Classifieds Rating: (2)

Re: Edelbrock High Flow Intake Manifold Issue..

Right. The stock system provides a supply into the crankcase from the throttlebody, then returns into the intake through the PCV for burning. It's mostly for emissions purposes, burning vapors in the crankcase. The stock system uses metered air so you could just bypass it with the method I mentioned above.

If you eliminate the supply from the TB or the PCV you have to eliminate the other. Otherwise, you would be creating a hell of a vacuum leak. Just eliminate both and install breathers. Done deal
__________________
1986 IROC-Z28 Camaro, yellow/black, vortec 383 TPI, 700R4, SLP headers, Borla catback
1988 GTA Trans Am, white/grey, 382ci tuned port LT1/T56/0411 in the works.
http://www.cardomain.com/id/dhirocz
dhirocz is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 02:45 PM   #8
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Noted. Thanks guys. I appreciate the info.
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 03:13 PM   #9
Supreme Member

305sbc's Avatar

Join Date: Nov 2001
Location: Fairview Heights Illinois
Posts: 2,378
Car: 1986 & 89 Irocz
Engine: sbc's
Transmission: 700R4
Axle/Gears: 3.27:1 / 3.25:1

Classifieds Rating: (3)

Re: Edelbrock High Flow Intake Manifold Issue..

You can tap into full manifold vacuum in the plenum or in the cold-start passage in the manifold base.

Getting rid of the PCV will change the needed IAC calibrations, minimum air rate, MAF calibration for idle, and probably require a small adjustment to your TPS.
It's not that big of a deal to do, and only necessary if you aren't happy with your idle after the change.
No PCV will also cause your engine oil to become contaminated with moisture and fuel quicker, so you might have to adjust your oil change schedule a bit too.
305sbc is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 03:19 PM   #10
Member

lb9 GTA's Avatar

Join Date: Dec 2009
Location: Toronto
Posts: 459
Car: '88 Trans Am GTA
Engine: 305 TPI
Transmission: 700R4

Classifieds Rating: (0)
Re: Edelbrock High Flow Intake Manifold Issue..

If you're car gets a visual inspection for emmissions equipment you'll probably get fined for the breather. That's the case here. $150 fine for us and we get roadside checks. Something to think about.
lb9 GTA is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 03:33 PM   #11
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by 305sbc View Post
You can tap into full manifold vacuum in the plenum or in the cold-start passage in the manifold base.

Getting rid of the PCV will change the needed IAC calibrations, minimum air rate, MAF calibration for idle, and probably require a small adjustment to your TPS.
It's not that big of a deal to do, and only necessary if you aren't happy with your idle after the change.
No PCV will also cause your engine oil to become contaminated with moisture and fuel quicker, so you might have to adjust your oil change schedule a bit too.
I've never cut open nor do I know the internal sections of the intake base. So is the cold start section utilize the same chamber as nozzle on the later EDL intake manifolds?
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 05:27 PM   #12
Supreme Member

305sbc's Avatar

Join Date: Nov 2001
Location: Fairview Heights Illinois
Posts: 2,378
Car: 1986 & 89 Irocz
Engine: sbc's
Transmission: 700R4
Axle/Gears: 3.27:1 / 3.25:1

Classifieds Rating: (3)

Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by Chevy86 IROC-Z View Post
I've never cut open nor do I know the internal sections of the intake base. So is the cold start section utilize the same chamber as nozzle on the later EDL intake manifolds?
The factory vacuum port connects directly to the hole where the cold-start injector fires, - driver-side.
Just drill & tap as close to the cold-start hole as you can without causing a problem, and add a vacuum port. Check your runners flange to see if it has space for this.

If you don't want to modify the runner flange or base, then just pick up the passage where it runs under the plenum and drill & tap there. At that point, you might as well just drill into the bottom of your plenum space to add the port.
305sbc is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 06:11 PM   #13
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Tap under the plenum? Sounds like a good idea. But won't I begin to get a lot of oil residue mixed with some exhaust soot (egr ports) in the plenum and runners?
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-17-2011, 06:15 PM   #14
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Honostly, I'm about ready to sell this ported intake base and buy another used one with the port or trade for one that already has the vacuum port. I mean, there is a lot of people who remove all egr and emissions equipment. I'm just tired of dealing with this issue all together.
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-18-2011, 11:32 AM   #15
Supreme Member

Dyno Don's Avatar

Join Date: Mar 2000
Location: Orange, CA
Posts: 4,955
Car: '90 Trans Am-12.45@110.71
Engine: 355 w/AFR 195's Elem. 400/430 HP/TQ
Transmission: Tremec T-56
Axle/Gears: 12 Bolt 3.73

Classifieds Rating: (5)

Send a message via AIM to Dyno Don
Re: Edelbrock High Flow Intake Manifold Issue..

Here is the way SLP did it on the early base.
Attached Images
File Type: jpg edl-3870 fitting.JPG (16.5 KB, 83 views)
Dyno Don is offline vBGarage Page   Reply With Quote
Old 12-18-2011, 01:24 PM   #16
Senior Member

Join Date: Feb 2001
Location: Hinesville, GA USA
Posts: 938
Car: '86 IROC-Z/'94 Z28
Engine: 350 LT1/382 LT1
Transmission: 4L60-E/T-56
Axle/Gears: 3.45/3.42 (soon 4.10)

Classifieds Rating: (2)

Re: Edelbrock High Flow Intake Manifold Issue..

Well if you want to run the PCV valve. Just drill and tap. Pick your location and break out the drill bits.

Forgot about the cali smog thing. Forgot that they are doing that there. Last time I lived there, they werent as aggressive about things as they are now. It's rediculous.
dhirocz is offline vBGarage Page   Reply With Quote
Old 12-18-2011, 06:58 PM   #17
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Tap and drill the plenum is an option that I may consider, heavily. But what about this idea? Could I put an inline T connector in between the TB and the EVAP Cannister?

Click the image to open in full size.
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-18-2011, 06:58 PM   #18
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Looks so much easier.
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-18-2011, 07:01 PM   #19
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by Dyno Don View Post
Here is the way SLP did it on the early base.
I have the 9th injector fuel rail which I plan to use. But that is a good point too. Using the ninth injector section of the lower runner.
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-19-2011, 04:08 PM   #20
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Bump.
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-19-2011, 04:14 PM   #21
Sponsor

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 6,762
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt

Classifieds Rating: (75)
Re: Edelbrock High Flow Intake Manifold Issue..

I would get rid of the 9th injector and go to 89 $6E reprogramming and drill and tap this block off are ask them if they will.

http://www.ebay.com/itm/CHEVY-TPI-CO...ht_1089wt_1055
Tuned Performance is offline vBGarage Page   Reply With Quote
Old 12-19-2011, 07:34 PM   #22
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by tunedperformanc View Post
I would get rid of the 9th injector and go to 89 $6E reprogramming and drill and tap this block off are ask them if they will.

http://www.ebay.com/itm/CHEVY-TPI-CO...ht_1089wt_1055
89 Camaro? Which MemCal or PROM BIN should I use if I do delete the CS injector?

Prom BCC Prom Code* Scan ID* Trans Gear Ratio Emissions * Body
AUJM 0580 0551 Auto 3.27 Fed **** F
AUJN 0584 0561 Auto 3.27 Fed **** F
APYU 3516 3531 Auto 3.27 Fed **** F
ARAD 4868 3881 Auto 3.27 Fed ***** F
ANYF 9356 9362 Auto 3.27 Fed ***** F
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-19-2011, 07:37 PM   #23
Sponsor

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 6,762
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt

Classifieds Rating: (75)
Re: Edelbrock High Flow Intake Manifold Issue..

bcc decoder is a chevythunder.com the 89 has vats so you can install the bypass module for $14 on ebay. or you can use your own and do a piggybackchip. tpiparts.net
Tuned Performance is offline vBGarage Page   Reply With Quote
Old 12-19-2011, 08:02 PM   #24
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by tunedperformanc View Post
bcc decoder is a chevythunder.com the 89 has vats so you can install the bypass module for $14 on ebay. or you can use your own and do a piggybackchip. tpiparts.net
Currently I have a 86 MemCal which is connected to a Moates G-1 adapter. The EPROM has a 87 BIN File which supports the 350 block. I needed this because the MemCal has a 305 LB9 BIN File. so then all I need is a 89 Bin file right? I just wanna fill in all the holes before I start spending money or ask some friends to program a EPROM for free. So since I have a Moates G-1 adapter, what else would I need?
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-19-2011, 08:09 PM   #25
Sponsor

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 6,762
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt

Classifieds Rating: (75)
Re: Edelbrock High Flow Intake Manifold Issue..

yes a 27c128 or 27c256 ect programed without vats on the g1 will work just remove vats arar arap work even though they are agressive on timing. let me know if you need any .bins
Tuned Performance is offline vBGarage Page   Reply With Quote
Old 12-19-2011, 08:17 PM   #26
On Probation

Chevy86 IROC-Z's Avatar

Join Date: May 2009
Location: Far West
Posts: 4,739
Car: 1986 Camaro Z28 IROC-Z
Engine: 350 Tuned Port Injection, for now.
Transmission: 700R4
Axle/Gears: Posi - 3.23

Classifieds Rating: (17)
Send a message via Skype™ to Chevy86 IROC-Z
Re: Edelbrock High Flow Intake Manifold Issue..

I could probably find the bin in the BIN bank over on Moates.com. But I you have one of the 89 IROC 350 3.27 Auto, then that would be cool. By any chance, would you be able to prep the bin for me?
Chevy86 IROC-Z is offline vBGarage Page   Reply With Quote
Old 12-19-2011, 09:11 PM   #27
Sponsor

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 6,762
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt

Classifieds Rating: (75)
Re: Edelbrock High Flow Intake Manifold Issue..

pm me with your email and engine combination.
Tuned Performance is offline vBGarage Page   Reply With Quote
Old 12-20-2011, 05:42 PM   #28
Junior Member

Join Date: Nov 2009
Location: Clear Lake MN
Posts: 52

Classifieds Rating: (0)
Re: Edelbrock High Flow Intake Manifold Issue..

Engines do need that vacuum to run properly, high horse power engines even run vacuum pumps to scavage crank case vacuum. I'm not talking about street cars either some big power guys run them when they could bypass it. Pressure leaking around the pistons supplies the pressure that slows an engine down if not removed.
Davejs is offline vBGarage Page   Reply With Quote
Old 02-11-2013, 02:31 PM   #29
Member

Copperhead's Avatar

Join Date: Mar 2008
Posts: 153

Classifieds Rating: (0)
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by dhirocz View Post
The stock system provides a supply into the crankcase from the throttlebody . . .
Back from the dead, tracking a low vacuum issue in my 383 TPI build...it's running about 7-8" vacuum, with no leaks evident.

Where does the above-mentioned supply run from on the TB, and where to?

Also, what are the big red B and C ports for in Post #1 above? My B is currently blocked off and my vac brake booster is plugged into C. Will this work properly, or is this possibly part of my problem?
Copperhead is offline vBGarage Page   Reply With Quote
Old 02-11-2013, 04:59 PM   #30
Sponsor

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 6,762
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt

Classifieds Rating: (75)
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by Copperhead View Post
Back from the dead, tracking a low vacuum issue in my 383 TPI build...it's running about 7-8" vacuum, with no leaks evident.

Where does the above-mentioned supply run from on the TB, and where to?

Also, what are the big red B and C ports for in Post #1 above? My B is currently blocked off and my vac brake booster is plugged into C. Will this work properly, or is this possibly part of my problem?
on the top pic B is used on 85-88 tpi and is manifold vacuum passage for the 9th csi. C is for corvette rear exhaust feed for the egr. Your vacuum booster gets feed off the lh rear plenum fitting, the pcv is where the yellow arrow is pointing.
Tuned Performance is offline vBGarage Page   Reply With Quote
Old 02-12-2013, 07:12 PM   #31
Supreme Member

Join Date: Apr 2005
Location: Not in Kansas anymore
Posts: 7,708
Car: 90 Vette / 67 Camaro / 87 Vette
Engine: 383 SP EFI /383 LT1 /L98 TPI
Transmission: T400 /200R4 /T700
Axle/Gears: 9" 3.90 /12 Bolt 4.11 /D44 3.07

Classifieds Rating: (13)
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by tunedperformanc View Post
B is manifold vacuum passage for the 9th csi.
C is for corvette rear exhaust feed for the egr..
Other way around
vetteoz is offline vBGarage Page   Reply With Quote
Old 02-12-2013, 07:18 PM   #32
Supreme Member

Join Date: Apr 2005
Location: Not in Kansas anymore
Posts: 7,708
Car: 90 Vette / 67 Camaro / 87 Vette
Engine: 383 SP EFI /383 LT1 /L98 TPI
Transmission: T400 /200R4 /T700
Axle/Gears: 9" 3.90 /12 Bolt 4.11 /D44 3.07

Classifieds Rating: (13)
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by Copperhead View Post
Where does the above-mentioned supply run from on the TB, and where to?
my vac brake booster is plugged into C.
Air from TB port to pass side cover , out PCV valve on drv side cover to the port you have your booster hose on
As noted booster should be from large port at rear of plenum

Simplified TPI vac system


Click the image to open in full size.
vetteoz is offline vBGarage Page   Reply With Quote
Old 02-12-2013, 07:52 PM   #33
Sponsor

Tuned Performance's Avatar

Join Date: Dec 2004
Location: Mile High Country !!!
Posts: 6,762
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt

Classifieds Rating: (75)
Re: Edelbrock High Flow Intake Manifold Issue..

Quote:
Originally Posted by vetteoz View Post
Other way around
yeh, I couldn't see the pic when I was posting b , c same thing
Tuned Performance is offline vBGarage Page   Reply With Quote
Old 02-12-2013, 07:52 PM
ThirdGen
1992 Camaro




Paid Advertisement


Reply

Go Back   Third Generation F-Body Message Boards > Tech Boards > TPI

Tags
3860, board, brock, edelbrock, edlebrock, elder, flow, high, intake, irocz, manifold, pc, pvc, sale, tpi
Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




1982 Camaro '82 || 1983 Camaro '83 || 1984 Camaro '84 || 1985 Camaro '85 || 1986 Camaro '86 || 1987 Camaro '87 || 1988 Camaro '88 || 1989 Camaro '89 || 1990 Camaro '90 || 1991 Camaro '91 || 1992 Camaro '92


All times are GMT -5. The time now is 10:16 AM.


Powered by vBulletin® Version 3.7.5
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Search Engine Friendly URLs by vBSEO 3.5.2
All content copyright 1997 - 2014 ThirdGen.org. All rights reserved. No part of this website may be reproduced without the expressed, documented, and written consent of ThirdGen.org's Administrators.

Emails & Contact Details
