wiring diagram for the digital dash....88 gta
#2
Member
iTrader: (1)
Join Date: Dec 2002
Location: Medina, OH
Posts: 109
Likes: 0
Received 1 Like
on
1 Post
Car: 1987 Pontiac GTA
Engine: ZZ383 HSR
Transmission: T-56 6-Speed Manual
Axle/Gears: Ford 9", 3.89 TrueTrac Posi
PM me your email and I can send you the one out of the 87 firebird service manual. Wire colors may be different but the diragram will be the same...
The following users liked this post:
Jasonpt (07-24-2019)
#3
Re: wiring diagram for the digital dash....88 gta
I have an 88 gta with the digital dash as well and I need a wiring diagram or pinout for the connector on the back of the instrument cluster. I need to trace some wires... If someone could email me one or tell me where to get one I'd appriciate it. jacobs.josh1@gmail.com Thanks
#4
Member
iTrader: (1)
Join Date: Aug 2008
Location: Bridgeville, PA
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 Trans Am GTA
Engine: 350
Re: wiring diagram for the digital dash....88 gta
i also could use it i also have an 88 gta, and have some issues with the digital instruments knightp25@yahoo.com thanks
#5
Junior Member
Re: wiring diagram for the digital dash....88 gta
i need one as well. can someone send me a diagram? ken_oki@hotmail.com
#6
Supreme Member
iTrader: (28)
Join Date: Jul 2006
Location: ocklawaha FL.
Posts: 1,564
Likes: 0
Received 1 Like
on
1 Post
Car: 81z-28,89gta,91z-28 03 1500
Engine: 355,L98vette tpi,327
Transmission: TH350/700R4/700r4/4l80E
Axle/Gears: 3;73/3;27/2;73/3;73
Re: wiring diagram for the digital dash....88 gta
heres my input on that digi-dash wiring diagram.Tear that crap out and throw it in the trash!
This is a pic of my finished product.
This is a pic of my finished product.
The following users liked this post:
KillathaDilla (08-28-2023)
#7
Member
iTrader: (1)
Join Date: Jun 2008
Location: Waterloo, Iowa
Posts: 159
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Pontiac Trans AM GTA
Engine: 5.7 LTR
Transmission: Automatic
Re: wiring diagram for the digital dash....88 gta
I was thinking about converting my digital dash over to analog. It would be nice to just be able to fix the digital dash. I don't get the engine temp on my digital gauge.
Trending Topics
#8
Senior Member
Join Date: May 2008
Location: London, Ont, Canada
Posts: 833
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 T-Top GTA
Engine: 350 TPI
Transmission: 700R4
Axle/Gears: 3.27
Re: wiring diagram for the digital dash....88 gta
have you checked all the appropriate sensors on the block between plugs 1 and 3 on driver's side?
#9
Member
Re: wiring diagram for the digital dash....88 gta
Could anybody send me a diagram, I have problems with digital dash, but don't have diagram? shone190@sbb.rs
Thank you in advance!
Thank you in advance!
#10
Junior Member
Join Date: Jan 2009
Location: Oregon
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans AM
Engine: 350
Transmission: 700-R4
Axle/Gears: 3.23
Re: wiring diagram for the digital dash....88 gta
Dude I too need some kind of diagram for this thing too if you got it. Digital dash's speedometer jumps around, verry erratic. Please help!! Thanks.
#11
Member
iTrader: (2)
Join Date: Jul 2008
Location: near chicago illinois
Posts: 475
Likes: 0
Received 0 Likes
on
0 Posts
Car: have a 92 camaro rs...in pieces
Engine: none now...probably 383 stroker
Transmission: none yet
Axle/Gears: none
Re: wiring diagram for the digital dash....88 gta

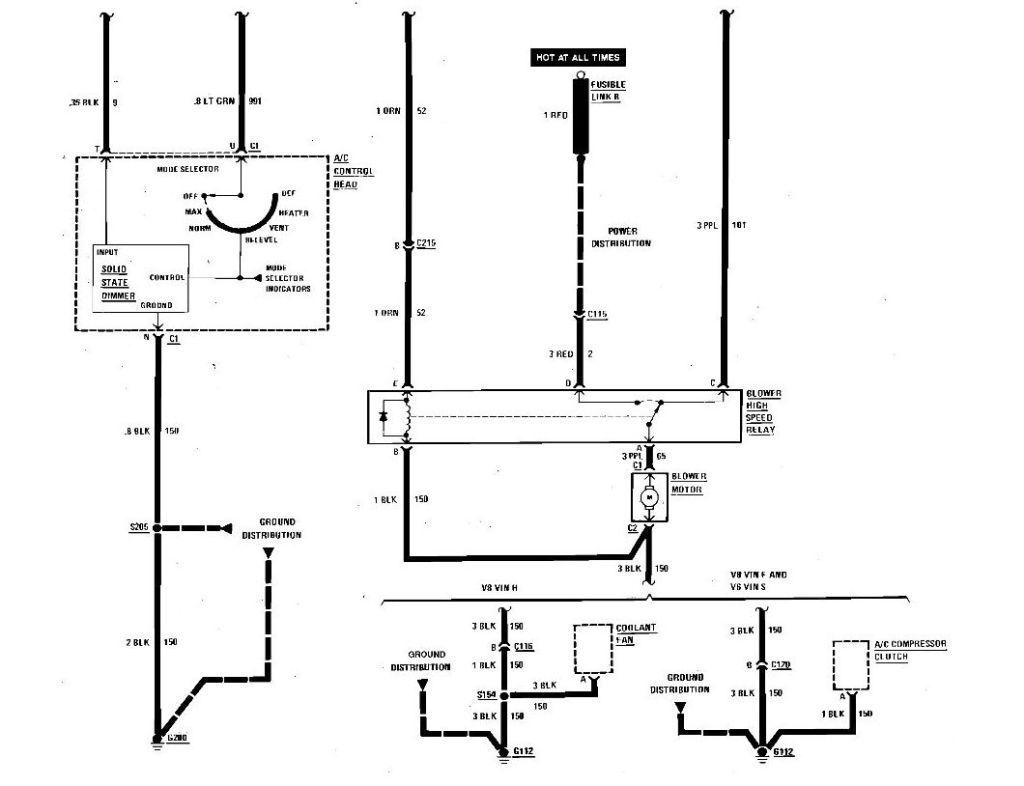

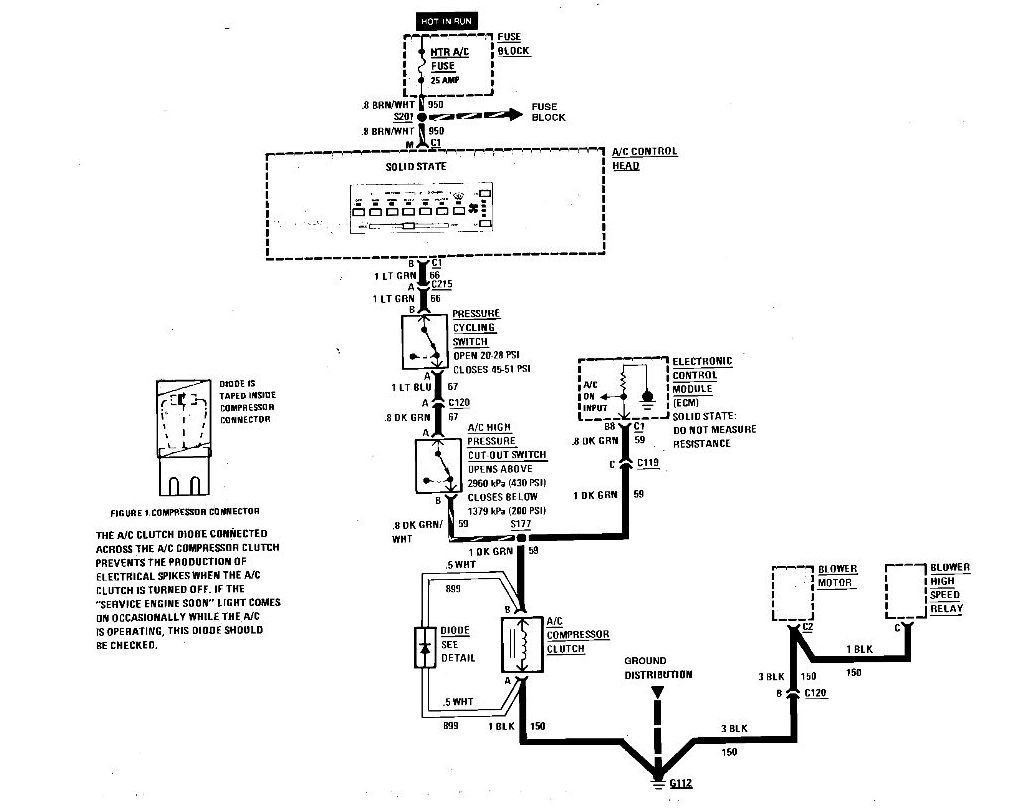

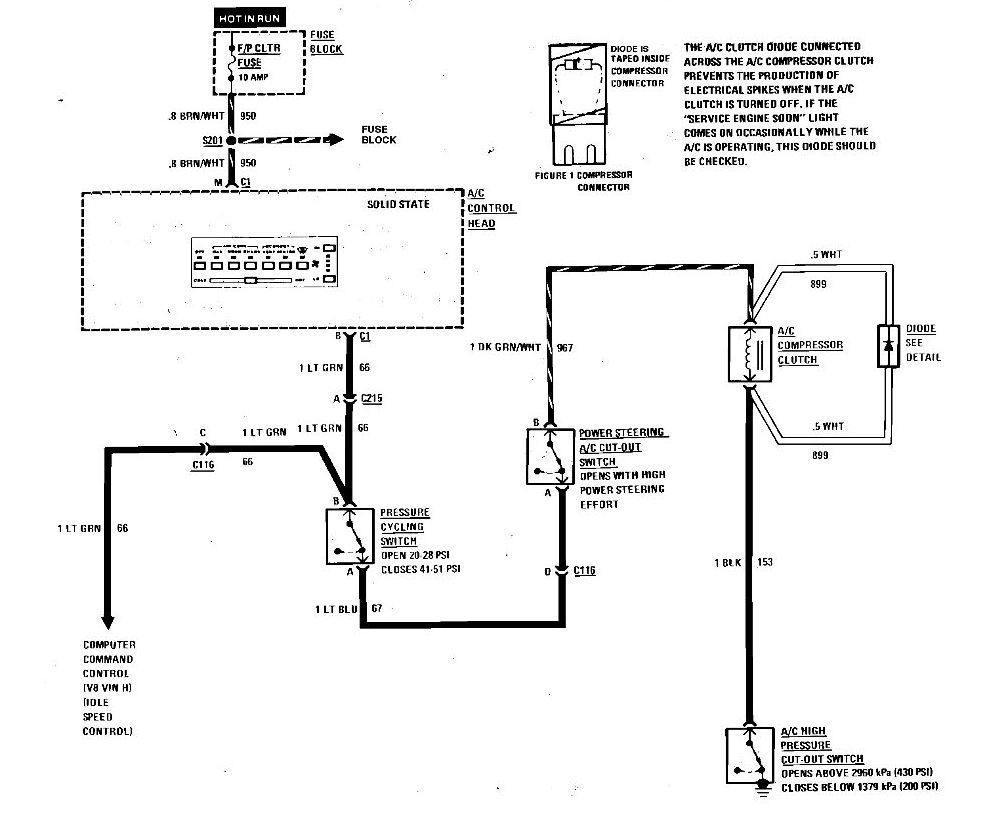

Here are a few diagrams for an 1988 Pontiac Firebird V8-305 5.0L VIN E TBI ... Hope they help....
41905739.gif?t=1262884570
41908541.gif?t=1262884570
41908542.gif?t=1262884571
41908543.gif?t=1262884573
41905739.gif?t=1262884570
41908541.gif?t=1262884570
41908542.gif?t=1262884571
41908543.gif?t=1262884573
#13
Junior Member
Join Date: Jan 2009
Location: Oregon
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Trans AM
Engine: 350
Transmission: 700-R4
Axle/Gears: 3.23
Re: wiring diagram for the digital dash....88 gta
You are the man!! I didnt think anyone would have them. This will be a big help.
#14
Member
iTrader: (2)
Join Date: Jul 2008
Location: near chicago illinois
Posts: 475
Likes: 0
Received 0 Likes
on
0 Posts
Car: have a 92 camaro rs...in pieces
Engine: none now...probably 383 stroker
Transmission: none yet
Axle/Gears: none
Re: wiring diagram for the digital dash....88 gta
I have access to AllData since im in school, so whatever they have on the site i can get.
#15
Senior Member
iTrader: (10)
Join Date: Jan 2009
Location: Edmonton, Alberta.
Posts: 718
Likes: 0
Received 1 Like
on
1 Post
Car: 1988 Pontiac Trans Am GTA.
Engine: 385 stroker sbc
Transmission: TKO600
Axle/Gears: Moser 9" 3.70 Wavetrac
Re: wiring diagram for the digital dash....88 gta
same. I know the canada sales rep. So I can get any diagrams for any car. If they have it on the site.
#16
Member
Join Date: Dec 2006
Location: Norway
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 TA
Engine: 350 modifyed Stelth Ram
Transmission: 350 rew lock up
Axle/Gears: 9"
Re: wiring diagram for the digital dash....88 gta
oki, the diagrams yoiu have is good..
but I don't get the pinout to compare with my board!
some off the conections on your diagram have letter's, but my instrument have numbers on the big conector. the smal one have no markings.
So, can anyone tell what signal going in to this "digital" boad?
but I don't get the pinout to compare with my board!
some off the conections on your diagram have letter's, but my instrument have numbers on the big conector. the smal one have no markings.
So, can anyone tell what signal going in to this "digital" boad?
Last edited by Artic-Trans am; 05-25-2010 at 03:07 PM.
#17
Supreme Member
iTrader: (1)
Re: wiring diagram for the digital dash....88 gta
oki, the diagrams yoiu have is good..
but I don't get the pinout to compare with my board!
some off the conections on your diagram have letter's, but my instrument have numbers on the big conector. the smal one have no markings.
So, can anyone tell what signal going in to this "digital" boad?
but I don't get the pinout to compare with my board!
some off the conections on your diagram have letter's, but my instrument have numbers on the big conector. the smal one have no markings.
So, can anyone tell what signal going in to this "digital" boad?
#18
Community Administrator
iTrader: (1)
Re: wiring diagram for the digital dash....88 gta
Actually, the digital cluster was an option on the Trans AM with non-TPI (LG4,L03) as well as the TPI. They have part numbers in the Parts & Illustration manual. There's even a choke light for 1987 and older digital clusters. In 1988, the last year the digital cluster was an option, that light was replaced with the Security light on the Trans AM and GTA.
#19
Junior Member
Re: wiring diagram for the digital dash....88 gta
These are the diagrams that I could find.
#20
Member
Join Date: Dec 2006
Location: Norway
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 TA
Engine: 350 modifyed Stelth Ram
Transmission: 350 rew lock up
Axle/Gears: 9"
Re: wiring diagram for the digital dash....88 gta
I have now three complete instrument's for my car. and one is actualy with the choke light there is also some other differense on this panel. But don't want to go deaper into that now.
the issue now is the power conection to my 1987 digital non-TPI instrument...
I am going to conect the power to it. in my electric lab and fix the "fade out after 5 sec" on the odometer part. It looks like this display-circuit have some power issue. maybe a transistor....
the issue now is the power conection to my 1987 digital non-TPI instrument...
I am going to conect the power to it. in my electric lab and fix the "fade out after 5 sec" on the odometer part. It looks like this display-circuit have some power issue. maybe a transistor....
#21
Community Administrator
iTrader: (1)
Re: wiring diagram for the digital dash....88 gta
I have found the tachometer is different with a 1985/1986 and 1987/1988.
The 1985/1986 tachometer:
(I edited the picture by drawing a red line to help show the faceplate - since the backlights weren't working when I took the picture)
The 1987/1988 tachometer:
What "face out after 5 sec" issue do you have? I think the more common issue, atleast the one's I've seen, is the odometer will scramble the display at times.
The 1985/1986 tachometer:
(I edited the picture by drawing a red line to help show the faceplate - since the backlights weren't working when I took the picture)
The 1987/1988 tachometer:
What "face out after 5 sec" issue do you have? I think the more common issue, atleast the one's I've seen, is the odometer will scramble the display at times.
I have now three complete instrument's for my car. and one is actualy with the choke light there is also some other differense on this panel. But don't want to go deaper into that now.
the issue now is the power conection to my 1987 digital non-TPI instrument...
I am going to conect the power to it. in my electric lab and fix the "fade out after 5 sec" on the odometer part. It looks like this display-circuit have some power issue. maybe a transistor....
the issue now is the power conection to my 1987 digital non-TPI instrument...
I am going to conect the power to it. in my electric lab and fix the "fade out after 5 sec" on the odometer part. It looks like this display-circuit have some power issue. maybe a transistor....
#22
Supreme Member
iTrader: (1)
Re: wiring diagram for the digital dash....88 gta
Actually, the digital cluster was an option on the Trans AM with non-TPI (LG4,L03) as well as the TPI. They have part numbers in the Parts & Illustration manual. There's even a choke light for 1987 and older digital clusters. In 1988, the last year the digital cluster was an option, that light was replaced with the Security light on the Trans AM and GTA.
#23
Member
Join Date: Dec 2006
Location: Norway
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 TA
Engine: 350 modifyed Stelth Ram
Transmission: 350 rew lock up
Axle/Gears: 9"
Re: wiring diagram for the digital dash....88 gta
mine is that combo!
I was also suprised when I did see the electric controlled carb undre the hood, when I did by the car. but that was all original then! Now the holley stelth ram and the 10.5 to 1 comp engine have replaced that engine! the carb i all long gone...
I was also suprised when I did see the electric controlled carb undre the hood, when I did by the car. but that was all original then! Now the holley stelth ram and the 10.5 to 1 comp engine have replaced that engine! the carb i all long gone...
#24
Member
Join Date: Dec 2006
Location: Norway
Posts: 102
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 TA
Engine: 350 modifyed Stelth Ram
Transmission: 350 rew lock up
Axle/Gears: 9"
Re: wiring diagram for the digital dash....88 gta
update!
I have now made a video about the display that "fade out" problem.
in this video I have mounted the display with 12v source on my lab. I have now the same problem on the lab as in my car. But it is isolated to the circuit on the board.
As you can see this is the odo-meter and it is readable only some sec before it "fade out" (go dark) and don't come back before I leave the car without starting some day's. then it come back agin, this short time.
video:
http://s619.photobucket.com/albums/t...7052010031.flv
anybody fixed this problem?
Last edited by Artic-Trans am; 05-27-2010 at 09:01 AM.
#25
Moderator
iTrader: (2)
Join Date: May 2001
Location: Sac, CA
Posts: 5,241
Likes: 0
Received 10 Likes
on
7 Posts
Car: '89 GTA
Axle/Gears: 3.27/9-bolt
Re: wiring diagram for the digital dash....88 gta
Some interesting updates on this thread. I didn't even know 85/86 has the similar digi-dash?!
Since the OP got the diagrams needed, please excuse my thread hijack as well that kinda crosses over Electronics/LSX swap.
I've got a complete digital dash assembly/harness from an '87 GTA that's been sitting in my garage for years.
I had been hoping to swap this in my project '88 2.8/V6 with analog setup.
To make things more complicated, I'm going to swap an LS1/4L60e in place of the V6 drivetrain.
From what I've read there are complications utilizing the factory 3rd gen gauges when doing the LS1 swap, mainly due to fuel gauge if you use a 4th tank, but I'm not sure what else would not work that can't be resolved with the aftermarket tach/speedometer interfaces out there for LS1 conversions.
I'd really like to try to add this awesome 80's digital tach design, but not if it's going to incredibly interfere, or get costly with the LS1 swap.
Any experiences with this at least going into a V6? Maybe the LS1 swap portion better suited for the LSX forums. Thanks!
Since the OP got the diagrams needed, please excuse my thread hijack as well that kinda crosses over Electronics/LSX swap.
I've got a complete digital dash assembly/harness from an '87 GTA that's been sitting in my garage for years.
I had been hoping to swap this in my project '88 2.8/V6 with analog setup.
To make things more complicated, I'm going to swap an LS1/4L60e in place of the V6 drivetrain.
From what I've read there are complications utilizing the factory 3rd gen gauges when doing the LS1 swap, mainly due to fuel gauge if you use a 4th tank, but I'm not sure what else would not work that can't be resolved with the aftermarket tach/speedometer interfaces out there for LS1 conversions.
I'd really like to try to add this awesome 80's digital tach design, but not if it's going to incredibly interfere, or get costly with the LS1 swap.
Any experiences with this at least going into a V6? Maybe the LS1 swap portion better suited for the LSX forums. Thanks!
#27
Member
Join Date: Aug 2010
Posts: 185
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 Firebird Auto V6 2.8l
Re: wiring diagram for the digital dash....88 gta
Never had a digital dash in my firebirds/cameros. Looks awsome!
searching for the analog wiring diagram for the 87 firebird Tbi v6 automatic VIN S. Or for the Analog speedometer wiring Thunder69n@yahoo.com
(originally typoed and put 88)
My Analog speedometer is bouncing around. thinking in the wiring, as is not mechanical, VSS is good, cluster is good. getting power at buffer box, unlplug buffer box and speedo still bouncy.
searching for the analog wiring diagram for the 87 firebird Tbi v6 automatic VIN S. Or for the Analog speedometer wiring Thunder69n@yahoo.com
(originally typoed and put 88)
My Analog speedometer is bouncing around. thinking in the wiring, as is not mechanical, VSS is good, cluster is good. getting power at buffer box, unlplug buffer box and speedo still bouncy.
Last edited by thunder69n; 01-06-2011 at 11:43 AM.
#30
Junior Member
Re: wiring diagram for the digital dash....88 gta
Here is the complete PDF file for the 88 digital dash. It should have most of the information everyone needs, including wire colors. It is a 6.5 MB file.
http://american-dreams-racing.com/files/88Dig_dash.pdf
http://american-dreams-racing.com/files/88Dig_dash.pdf
#31
Junior Member
Re: wiring diagram for the digital dash....88 gta
it could be the VSS itself. but i think it's kind of wierd that you was able to unplug the buffer and have the speedo still work. normally the speedo will bounce if the buffer is not working. what about cruise control? it is also fed by the buffer.
#32
Member
Join Date: Aug 2010
Posts: 185
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 Firebird Auto V6 2.8l
Re: wiring diagram for the digital dash....88 gta
I know for mine ended up being the speed wire form cluster to buffer, cut open by metal behind dash and was grounding to the metal
#33
Supreme Member
Join Date: Jul 2009
Location: Kitchener, ON
Posts: 2,327
Likes: 0
Received 7 Likes
on
5 Posts
Car: 1988 GTA
Engine: LB9
Transmission: T5
Axle/Gears: 3.45
Re: wiring diagram for the digital dash....88 gta
Here is the complete PDF file for the 88 digital dash. It should have most of the information everyone needs, including wire colors. It is a 6.5 MB file.
http://american-dreams-racing.com/files/88Dig_dash.pdf
http://american-dreams-racing.com/files/88Dig_dash.pdf
#34
Senior Member
Re: wiring diagram for the digital dash....88 gta
Resurrecting old thread. I have problems with my digital dash. RPMs jump down to 0 as soon as I hit 3000RPM while in N or P. Speedometer suddenly displays 100 and resets continuously. Speed sensor is fine as I can get the proper ready via ALDL port.
Anyone can provide me with this 88_Dig_dash.pdf file please? Link doesnt work anymore.
Anyone can provide me with this 88_Dig_dash.pdf file please? Link doesnt work anymore.
#35
Re: wiring diagram for the digital dash....88 gta
I am need of the scematics for 88 transam gta 5. lt everything. A so called friend took everything off and now he cant remember any of it So please if anyone has the diagrams for everything to get this car running again. I would greatly appreciate it. Thank You Mike
#36
#37
Supreme Member
iTrader: (167)
Re: wiring diagram for the digital dash....88 gta
Here is a link to a PDF file that contains the 88 Pontiac Firebird Service Manual. I did not create the PDF,... I found it somewhere on teh web years back ( probably here at TGO ) and downloaded a copy. This link will download the file to your PC from my website.
http://berlinetta.info/1988_Pontiac_...ice_Manual.pdf
The digital dash info starts in section 8A, Page 82 -0.
http://berlinetta.info/1988_Pontiac_...ice_Manual.pdf
The digital dash info starts in section 8A, Page 82 -0.
The following users liked this post:
ksr (09-02-2021)
#38
Senior Member
Join Date: Aug 2018
Location: Hilton Head Island, SC
Posts: 727
Received 221 Likes
on
158 Posts
Car: 1988 Pontiac Trans Am GTA
Engine: 5.7 liter V-8
Transmission: 4 speed auto
Re: wiring diagram for the digital dash....88 gta
I didn't ask for this manual, but thanks for providing that link, John. Some good information there.
#40
Junior Member
Re: wiring diagram for the digital dash....88 gta
Any chance does anybody have the wiring diagrams for the digital HVAC and climate control?
#41
Re: wiring diagram for the digital dash....88 gta
Here are the wiring diagrams for a 1986 Pontiac Firebird electronic HVAC.
Blower Control 1
Blower Control 2
Compressor Control FI
Compressor Control Carb
Air Delivery 1
Air Delivery 2
Blower Control 1
Blower Control 2
Compressor Control FI
Compressor Control Carb
Air Delivery 1
Air Delivery 2
The following users liked this post:
Dual86TA (03-06-2022)
#43
Junior Member
Re: wiring diagram for the digital dash....88 gta
Here is a link to a PDF file that contains the 88 Pontiac Firebird Service Manual. I did not create the PDF,... I found it somewhere on teh web years back ( probably here at TGO ) and downloaded a copy. This link will download the file to your PC from my website.
http://berlinetta.info/1988_Pontiac_...ice_Manual.pdf
The digital dash info starts in section 8A, Page 82 -0.
http://berlinetta.info/1988_Pontiac_...ice_Manual.pdf
The digital dash info starts in section 8A, Page 82 -0.
Thread
Thread Starter
Forum
Replies
Last Post
