I own a 1984 Trans AM. I know the gasket has failed over the years at the "cowl" on the hood. Part # 10030132 which is long gone. Would anyone have a picture of this gasket that they could post?
tkx
The closest thing to a picture I've seen is the diagram shown in this thread. Since we're back on the topic, as I said over there, if someone has one in just about any condition, I'd be interested in working to reproduce these.
@72buickgs If you've got some basic measurements, or remnants of the failed gasket, I can whip something up in CAD and try to make a prototype reproduction from TPU.
If you've got any remnants of an original one, or can take some dimensions of where it is meant to fit (ideally both), I'd be happy to work on whipping up a prototype.
Might take a few attempts to get one that fits well, but these come up often enough that is seems worth some time.
The closest thing to a picture I've seen is the diagram shown in this thread. Since we're back on the topic, as I said over there, if someone has one in just about any condition, I'd be interested in working to reproduce these.
@72buickgs If you've got some basic measurements, or remnants of the failed gasket, I can whip something up in CAD and try to make a prototype reproduction from TPU.
Come spring I may remove the cowl & see what I have. Would I assume that the gasket is rubber?
I have a NOS gasket for them. Its a thin closed cell type of foam. I think, been a while since i looked at it close
I would love to see a picture. Would u be willing to give Codyman a picture + dimensions. If u wanted to sell it, which I doubt, I would be willing to buy. Tkx
Gerry
I have a NOS gasket for them. Its a thin closed cell type of foam. I think, been a while since i looked at it close
I don't actually own the hood this would be needed for, so I don't need a good one. If you're willing to lend it out though, I could take some measurements and work towards making a reproduction out of a different material!

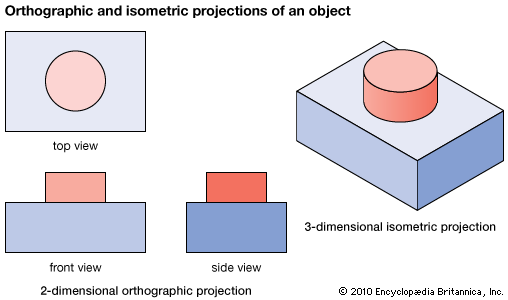

That said, dimensions would be better than nothing. If you can take pictures using orthographic and isometric views (as shown below) with a ruler set beside it, I can gather most dimensions digitally.
The best situation for me is to find someone who wants to install one and work with them on test fitting prototypes. (A 40 year old foam gasket probably isn't the most dimensionally accurate piece, so prototypes will likely be needed regardless.)
Purely speculation in this post, so don't take this as gospel.
An additively manufactured gasket produced from TPU could work for this sort of application since I can vary the infill % to match the stiffness provided by the foam.
I think this part is likely larger than the print bed I have available to me at home, but I may be able to prototype at work where I have access to a much larger printer. Production printing of these would need to be done outside of work though, so I'm probably on the hook for a new printer.
My largest concern with production of this part is the temperature that a hood will get to. TPU will start to get soft around 300F, and will start to melt closer to 350F. I think this is high enough to not be of concern, but on a 120F day in the Las Vegas sun in a black car with a hot-running engine under the hood, it might get dicey. Do you guys think that is a major concern?
I should be in garage this afternoon and can get a picture.
its still somewhat soft. They really didn't last very long, most are dry and brittle pretty fast
I should be in garage this afternoon and can get a picture.
its still somewhat soft. They really didn't last very long, most are dry and brittle pretty fast
That would be fantastic! Looking forward to seeing what you've got.
If reproduced from rubber, they should last substantially longer, but we'll see.

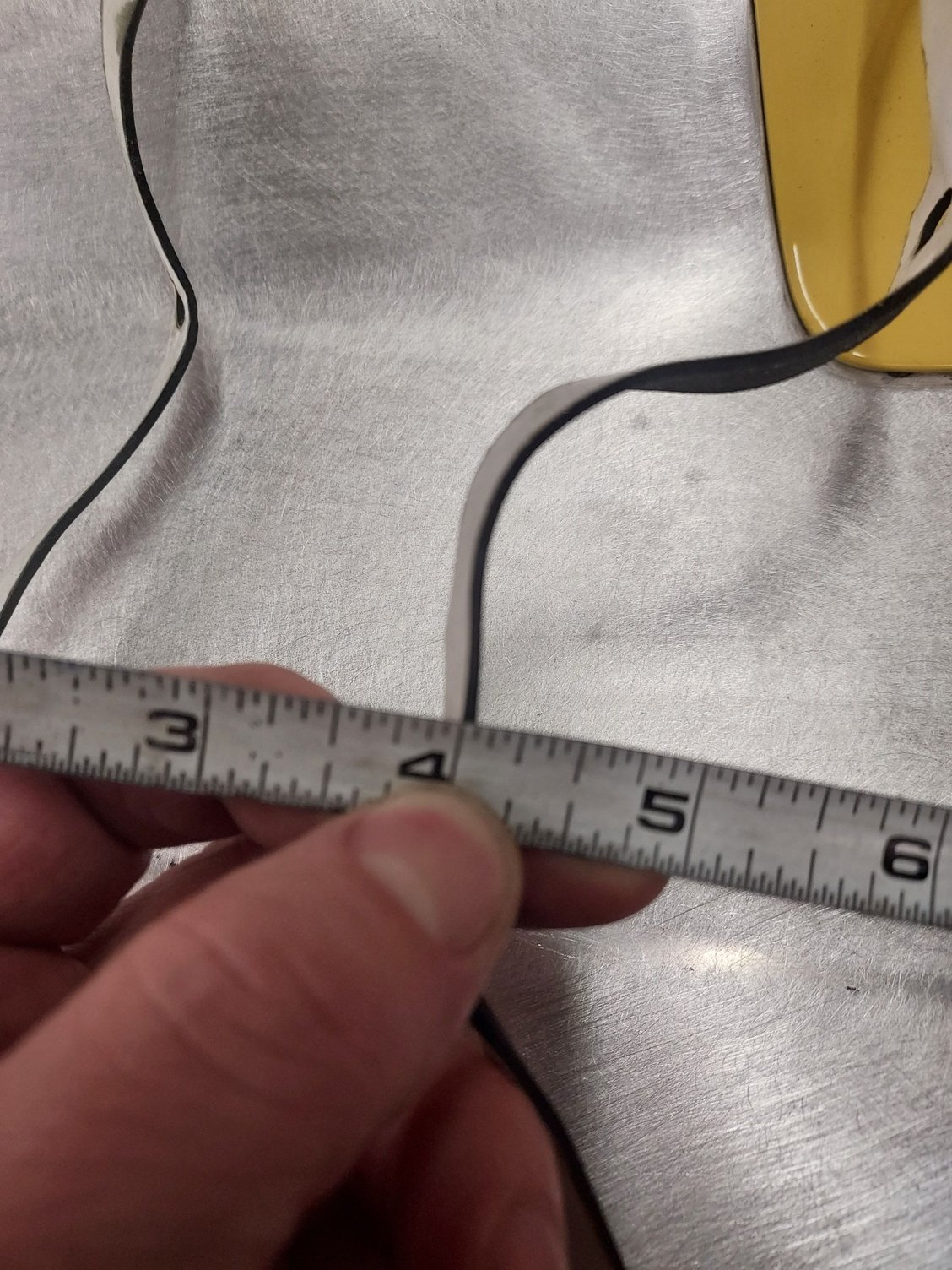

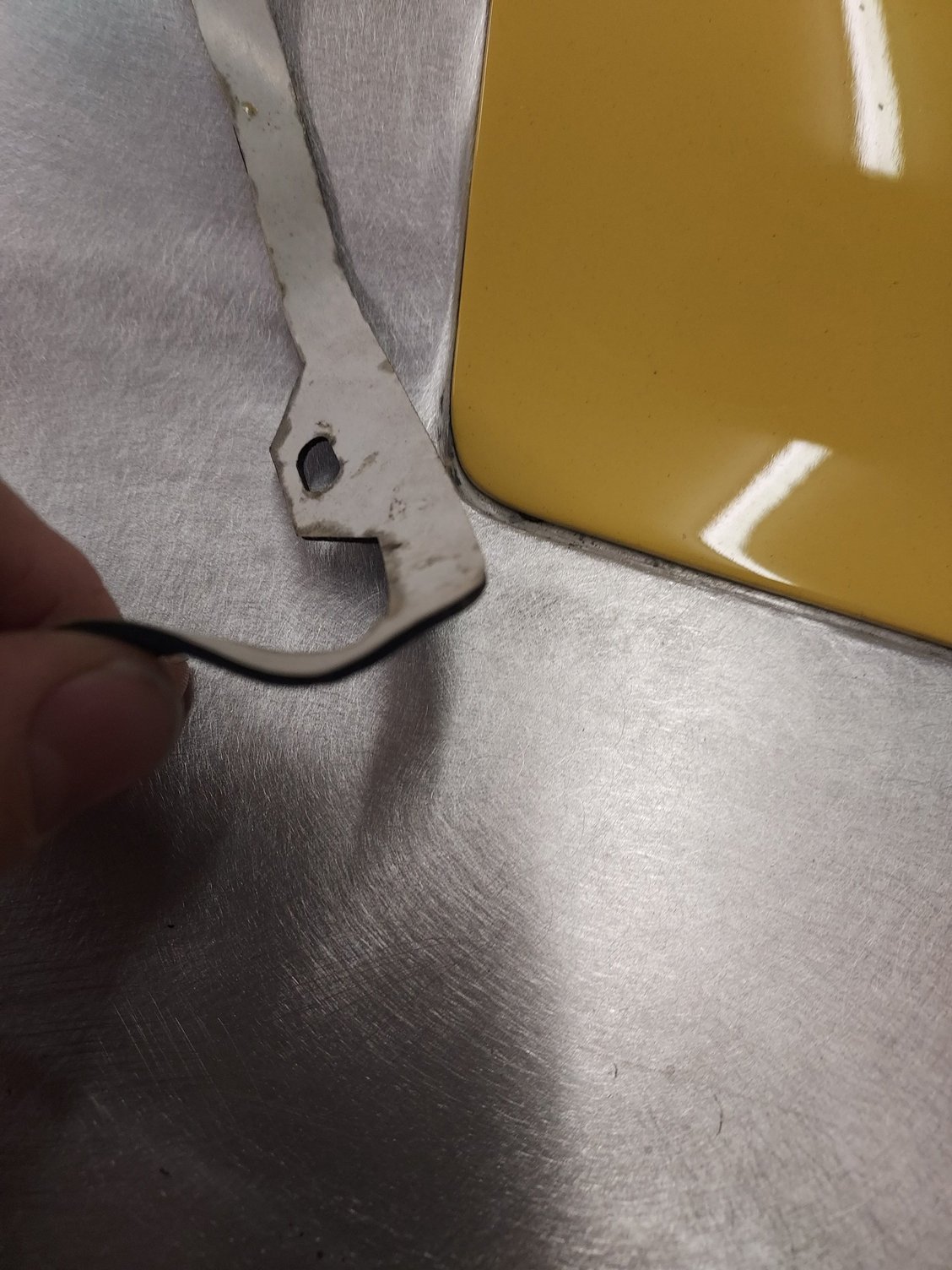

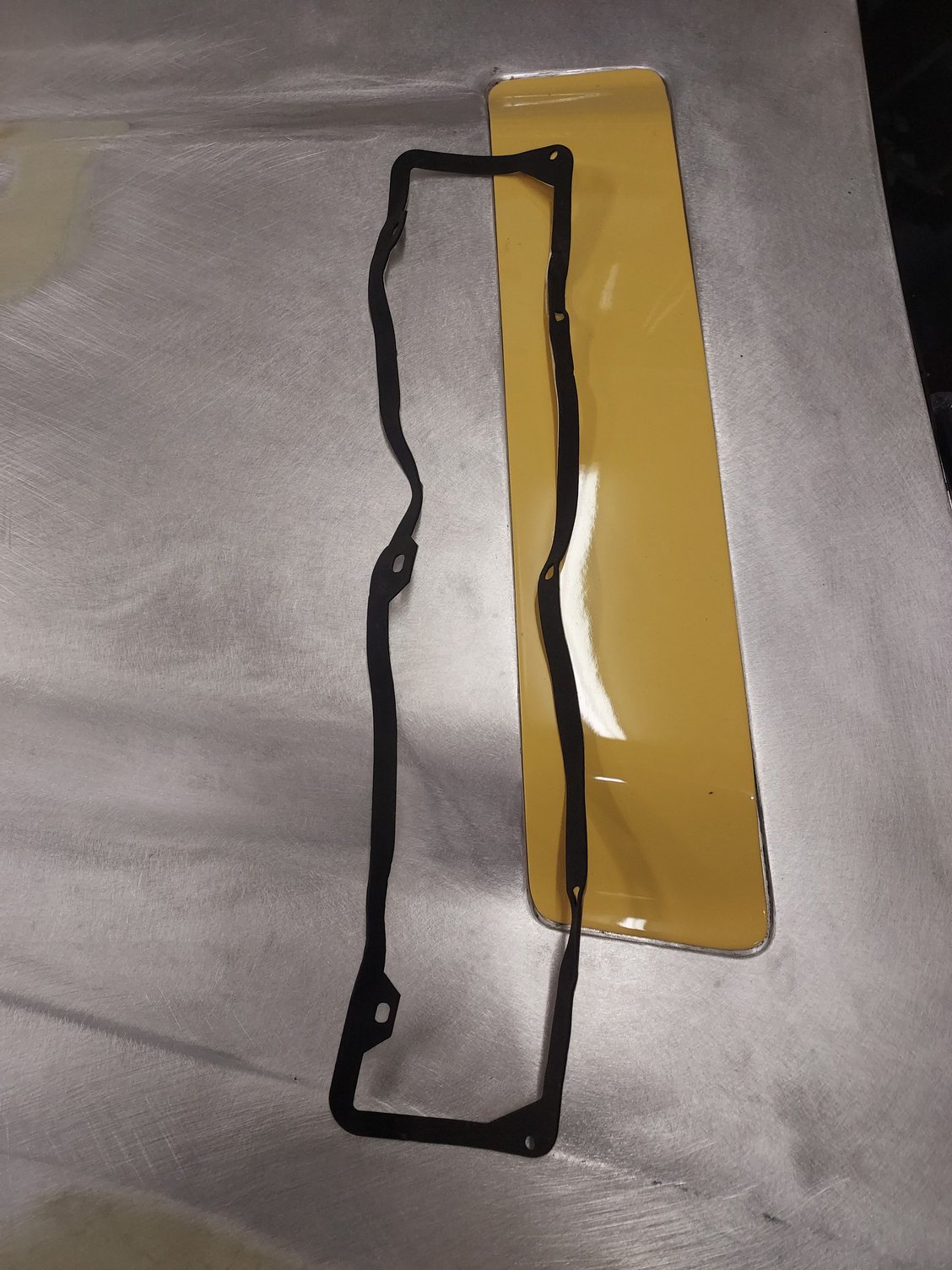

sorry about the bad pictures but the gasket still hasn't flatened out
It really is just a plain flat gasket. I didn't expect that from the GM diagram. I'll see what I can whip up as a template, and probably switch to just cutting it from a sheet.

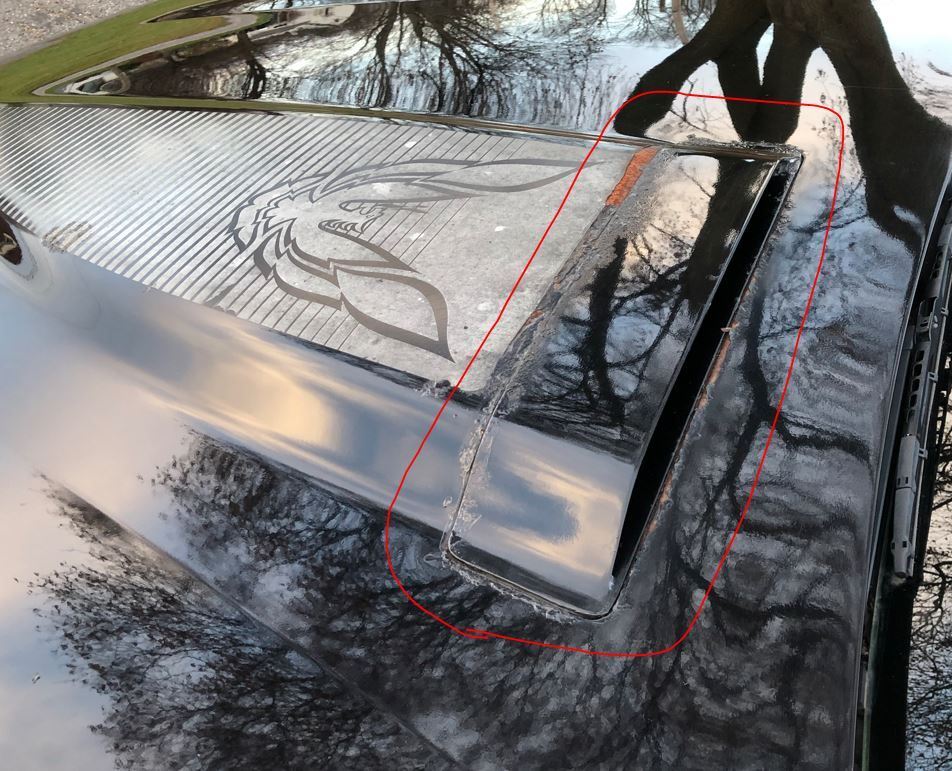

the gasket in the Summit link is for the rear hood to cowl. the piece they're discussing is the gasket that goes under the hood bulge insert - circled in red below
@TTOP350 I had a revelation today while looking at this gasket. Do you have a flat bed scanner or scanner/printer combo? That would make getting the dimensions laughably easy. Just scan the gasket with a ruler on there too.
(helps to get my comment in the right thread… whoops)
