228/234 cam with a CCC Quadrajet experiment - PICS
By the end of the month - Hopefully - my 355 build that I started a year ago will be up and running.
I have decided to gut it out with my E4ME Qjet. For no other reason than to see what happens, since I already have it and recently rebuilt it.
I did the following to the carb
Bushings for the Primary and Secondary throttle shafts
Replaced the black cover -- cracked
The fuel filter installed was the wrong size!!! Go figure!! Could that be why I had idle issues with bogging sometimes or at WOT??
Then I had the throttle plate sanded down to alleviate any warping
Also adjusted the secondary stop so the secondaries can go the full 90*
But what happened during the rebuild might be classified as dumb luck....

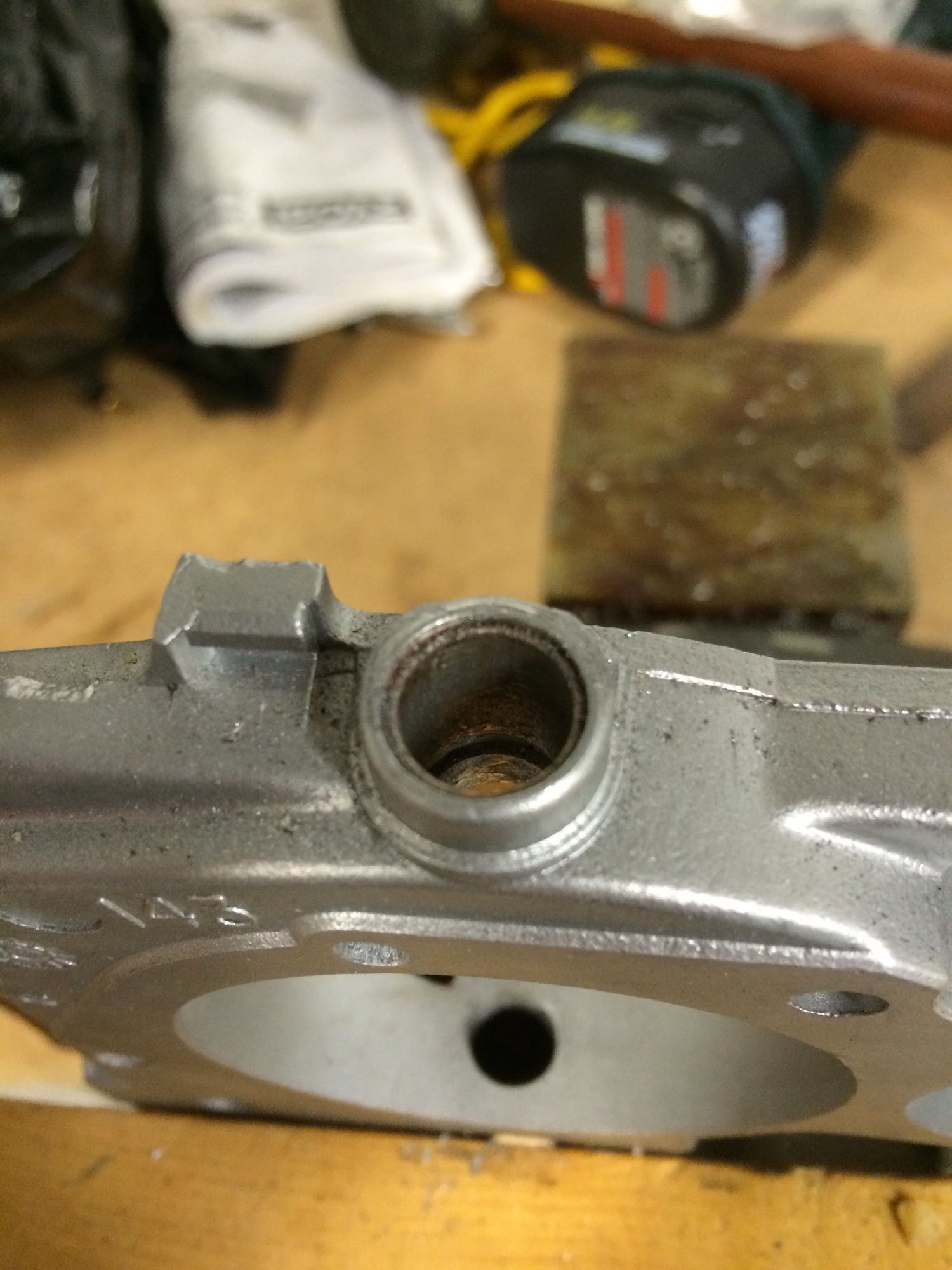

I was trying to remove the idle air tubes but I broke a drill bit in the thing ..
I called Cliff Ruggles... He told me to send it to him, then I told him I was building this carb to work with a 226/234 cam, and he said.... Well you'll need larger tubes anyway, I'll be sure to get larger ones in.
So here we are... It also has a new MCS, TPS for good measure...
I have decided to gut it out with my E4ME Qjet. For no other reason than to see what happens, since I already have it and recently rebuilt it.
I did the following to the carb
Bushings for the Primary and Secondary throttle shafts
Replaced the black cover -- cracked
The fuel filter installed was the wrong size!!! Go figure!! Could that be why I had idle issues with bogging sometimes or at WOT??
Then I had the throttle plate sanded down to alleviate any warping
Also adjusted the secondary stop so the secondaries can go the full 90*
But what happened during the rebuild might be classified as dumb luck....
I was trying to remove the idle air tubes but I broke a drill bit in the thing ..
I called Cliff Ruggles... He told me to send it to him, then I told him I was building this carb to work with a 226/234 cam, and he said.... Well you'll need larger tubes anyway, I'll be sure to get larger ones in.
So here we are... It also has a new MCS, TPS for good measure...
Last edited by Chuck84TA; 05-13-2015 at 10:10 PM.
#2
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Cam profile-
#3
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
So then, I called GMCOPO to help with burning a PROM to run on a later model ECM -- very much like the ZZ4 but with the following modifications
No EGR
No Charcoal Canister
No Smog
No EFE
No Thermac
More aggressive timing.
We shall see....
No EGR
No Charcoal Canister
No Smog
No EFE
No Thermac
More aggressive timing.
We shall see....
#4
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Ok, so far it idles better than expected....still needs a tps adjustment....showing 75 volts on the autoxray 6000. I'll check it again after the timing is set
#5
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Some key things that I noticed...
1-I don't think the Mixture control solenoid worked on my old carb....don't remember hearing that ticking sound before
2-Doing all that's necessary to stop vacuum leaks is absolutely mandatory -- bushings in throttle bores, sanding down plates, plugging potential leaks..etc.
3-replacing all electrical solenoids
1-I don't think the Mixture control solenoid worked on my old carb....don't remember hearing that ticking sound before
2-Doing all that's necessary to stop vacuum leaks is absolutely mandatory -- bushings in throttle bores, sanding down plates, plugging potential leaks..etc.
3-replacing all electrical solenoids
#6
Supreme Member
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Ah, so you got it up and running. .75V at idle isn't that bad. The ECM/programming in these things is pretty "stupid" when it comes to various things being a little out of adjustment. In all likelihood you are going to need more throttle opening to hold an idle with that cam anyway, so it will read higher. Make sure it still gets over 4V at WOT if you decide to back off the TPS adjustment to get the idle volts to read lower. You don't want to adjust it into range on one end of the scale just to put it out of range on the other.
Alternatively, you could also open up the idle air bypass ports (not the IAB- the OTHER idle air bypass system) a little to help you get the throttles closed a bit further.
Alternatively, you could also open up the idle air bypass ports (not the IAB- the OTHER idle air bypass system) a little to help you get the throttles closed a bit further.
#7
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Yeah, funny thing is.... I actually never have to hold down the gas pedal to keep at idle, even when the fans kick on. Its running much better than I expected, Ill try to get pics of vac readings and scanner readings later today.

Trending Topics
#8
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
But on a side note, took this out for "quick" spin..... I think Im going to need drag radials just to keep from fishtailing!!! lol
#9
Member
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Very curious how this turns out Chuck.
I have a Vortec crate sitting in my garage with a 218/228 112 Lunati cam.
I just ASSumed that the quad and computer would have a tough time driving in traffic.
Same setup in the Vega but it has a 650 Holley dp. Traction is a joke but it weighs a lot less.
I have a Vortec crate sitting in my garage with a 218/228 112 Lunati cam.
I just ASSumed that the quad and computer would have a tough time driving in traffic.
Same setup in the Vega but it has a 650 Holley dp. Traction is a joke but it weighs a lot less.
#10
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
It will be a little while .... Gotta put this new trans in first...
Hopefully get this thing running more consistently early next week
Hopefully get this thing running more consistently early next week
#11
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Very curious how this turns out Chuck.
I have a Vortec crate sitting in my garage with a 218/228 112 Lunati cam.
I just ASSumed that the quad and computer would have a tough time driving in traffic.
Same setup in the Vega but it has a 650 Holley dp. Traction is a joke but it weighs a lot less.
I have a Vortec crate sitting in my garage with a 218/228 112 Lunati cam.
I just ASSumed that the quad and computer would have a tough time driving in traffic.
Same setup in the Vega but it has a 650 Holley dp. Traction is a joke but it weighs a lot less.
#12
Supreme Member
iTrader: (4)
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Man I remember when my Qjet was that clean! Good looking build going on there!
I also have a 355 with a CC Qjet only I had Cliff Ruggles from www.cliffshighperformance build it for me. I love it and it runs very well. Going on 25K miles now.
I don't know all of what he did, but I know he moved my TPS voltage up to around 1.0 at idle. This helps keep it on the idle circuit due to the lower vaccum of my cam. Speaking of which... my cam card and dyno reading after initially putting the build together are in the attachment. Following a better tune on the carb I jumped all the way to 262hp and 281 ft-lb of torque at the wheels. I'll find the dyno sheet and post it if you want.
Overall the carb handles a moderate cam well and the car will pull and run all the way to the RPM drop off of the intake I'm using...around 5500rpm. With my new built trans and 2800rpm stall, the car really scoots!
----Edit----
Found my updated dyno day results.
I also have a 355 with a CC Qjet only I had Cliff Ruggles from www.cliffshighperformance build it for me. I love it and it runs very well. Going on 25K miles now.
I don't know all of what he did, but I know he moved my TPS voltage up to around 1.0 at idle. This helps keep it on the idle circuit due to the lower vaccum of my cam. Speaking of which... my cam card and dyno reading after initially putting the build together are in the attachment. Following a better tune on the carb I jumped all the way to 262hp and 281 ft-lb of torque at the wheels. I'll find the dyno sheet and post it if you want.
Overall the carb handles a moderate cam well and the car will pull and run all the way to the RPM drop off of the intake I'm using...around 5500rpm. With my new built trans and 2800rpm stall, the car really scoots!
----Edit----
Found my updated dyno day results.
Last edited by Ozz1967; 06-01-2015 at 11:27 PM.
#14
Supreme Member
iTrader: (4)
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Ah, so you got it up and running. .75V at idle isn't that bad. The ECM/programming in these things is pretty "stupid" when it comes to various things being a little out of adjustment. In all likelihood you are going to need more throttle opening to hold an idle with that cam anyway, so it will read higher. Make sure it still gets over 4V at WOT if you decide to back off the TPS adjustment to get the idle volts to read lower. You don't want to adjust it into range on one end of the scale just to put it out of range on the other.
Alternatively, you could also open up the idle air bypass ports (not the IAB- the OTHER idle air bypass system) a little to help you get the throttles closed a bit further.
Alternatively, you could also open up the idle air bypass ports (not the IAB- the OTHER idle air bypass system) a little to help you get the throttles closed a bit further.
#17
Supreme Member
iTrader: (4)
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
By the end of the month - Hopefully - my 355 build that I started a year ago will be up and running.
I have decided to gut it out with my E4ME Qjet. For no other reason than to see what happens, since I already have it and recently rebuilt it.
I did the following to the carb
Bushings for the Primary and Secondary throttle shafts
Replaced the black cover -- cracked
The fuel filter installed was the wrong size!!! Go figure!! Could that be why I had idle issues with bogging sometimes or at WOT??
Then I had the throttle plate sanded down to alleviate any warping
Also adjusted the secondary stop so the secondaries can go the full 90*
But what happened during the rebuild might be classified as dumb luck....
I was trying to remove the idle air tubes but I broke a drill bit in the thing ..
I called Cliff Ruggles... He told me to send it to him, then I told him I was building this carb to work with a 226/234 cam, and he said.... Well you'll need larger tubes anyway, I'll be sure to get larger ones in.
So here we are... It also has a new MCS, TPS for good measure...
I have decided to gut it out with my E4ME Qjet. For no other reason than to see what happens, since I already have it and recently rebuilt it.
I did the following to the carb
Bushings for the Primary and Secondary throttle shafts
Replaced the black cover -- cracked
The fuel filter installed was the wrong size!!! Go figure!! Could that be why I had idle issues with bogging sometimes or at WOT??
Then I had the throttle plate sanded down to alleviate any warping
Also adjusted the secondary stop so the secondaries can go the full 90*
But what happened during the rebuild might be classified as dumb luck....
I was trying to remove the idle air tubes but I broke a drill bit in the thing ..
I called Cliff Ruggles... He told me to send it to him, then I told him I was building this carb to work with a 226/234 cam, and he said.... Well you'll need larger tubes anyway, I'll be sure to get larger ones in.
So here we are... It also has a new MCS, TPS for good measure...
Also, don't use the factory filter in the nose of the carb. Get an in-line filter that flows better and leave that little paper nose filter out completely. With 7PSi I still had issues keeping the bowl full when running the car hard.
Took it out, ran a separate filter and that fixed my issue.
#18
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
And the results.....
#19
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Mixture control dropped ... I think that's supposed to be 30? It dropped down to 37 after adjusting it...quite sensitive though
Edit- I also noticed that this setting changes from different starts. Sometimes it's 78 sometimes 30 something
Edit- I also noticed that this setting changes from different starts. Sometimes it's 78 sometimes 30 something
Last edited by Chuck84TA; 06-10-2015 at 08:59 PM.
#20
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Vacuum pressure seemed steady between 11-14 inches.
Timing (base) was set at 20-25. BTDC. No knock sensor indications
Timing (base) was set at 20-25. BTDC. No knock sensor indications
Last edited by Chuck84TA; 06-10-2015 at 09:00 PM.
#21
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Thanks Ozz!
#22
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Idle is most certainly choppy as youd expect. It idles at approx. 1000rpm. You need to "gas it" every now and then when you turn corners in idle, so it certainly isn't the best in terms of driveability
#23
Member
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Hmm.
Did the later model 3rd gens use a pressure switch in the power steering high pressure side? I am just thinking that you might to be able to incorporate that with the throttle kicker solenoid.
Did the later model 3rd gens use a pressure switch in the power steering high pressure side? I am just thinking that you might to be able to incorporate that with the throttle kicker solenoid.
#24
Supreme Member
iTrader: (7)
Join Date: May 2004
Location: Lexington, SC
Posts: 5,291
Likes: 0
Received 58 Likes
on
52 Posts
Car: 1987 SC/1985 TA
Engine: 350/vortec/fitech
Transmission: T56
Axle/Gears: 3.27 9-bolt
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
87 LG4 used a power steering low pressure switch that either engaged the kicker or disengaged the AC compressor. With AC it cut out the compressor under low pressure, the throttle kicker was already engaged with the compressor. Switches are different, one NO other NC. System couldn't do both.
With that cam and idle I'd assume you're getting some nozzle drip?
With that cam and idle I'd assume you're getting some nozzle drip?
#25
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
I didn't think of that --
I need to adjust the
Idle solenoid a bit-- that will probably take care of that issue
I need to adjust the
Idle solenoid a bit-- that will probably take care of that issue
#26
Supreme Member
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
This is the point where you start thinking about a higher stall converter. With lockup function, no, they aren't cheap. But it'll help with your low speed drivability and idling-in-gear issues.
#27
Senior Member
Thread Starter
Join Date: May 2012
Location: Woodstock, IL
Posts: 582
Likes: 0
Received 1 Like
on
1 Post
Car: 1984 Trans Am Recaro Edition
Engine: 355 L98 Vortec 226/234 custom cam
Transmission: TKO-600
Axle/Gears: On borrowed time...
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
So, higher stall converter? I've got a TKO-600.
#28
Supreme Member
Re: 228/234 cam with a CCC Quadrajet experiment - PICS
Whoops. Sorry. I even went looking for your specs in the first post and my eyes still went right past it.
