miniram split blm again.. sorta?
Been studying the issue, lots of reading here. Also see how gm dealt with it in the 94-97 lt1 by using individual cylinder fuel multiplier tables for idle, and off idle up to around 14.8 %tps.
With sequential (Holley hp)efi I can do the offsets. But with a ported miniram, afr 195, and non stock camshaft, 58mm t-body, headers , and a lack of 8 egt or 8 widebands I am hesitant to use the stock offsets. I have it idling at 850, lowest kpa i can get with 24* timing is 53-55 and it isnt very steady. the fueling, and timing are consistant, all cylinders crank @ 195-202* it runs strong, pulls hard with safe timing to 6300, would like to get the idle smoother. the zf with aluminum flywheel is noisy as hell, ive tried it down at 800, and as high as 1000, and the box of rocks noise is the same. I need to get the idle smoother
the best I have is a temp gun. I let it heat soak idling, and the richer cylinders/leaner cylinders are following the factory offsets pretty closely as far as lean cylinders being cooler, richer being hotter. Have any of you played with using these individual cylinder multiplier offsets on dfi, bs3, holley, haltech etc? I do not want to burn a piston without accurate data and these tables are pulling as much as 6% per hole. do any of you experienced gents have advise, or experience that will help me proceed in a safe manner? or should i just put o2 bungs in each primary and take it to a dyno? im at 10.3 scr, dcr 8.3-8.4, has .041 head gaskets, zero decked. have driven it and allowed it to learn, multiple data logs. closed loop correction % everwhere with hot engine is 3-5% but it is just an hp, so single O2 on passenger side collector.
these are the stock offsets.
Cyl# o/idle idle
Cyl 1 1.03 1.06
Cyl 8 0.98 0.95
Cyl 4 1.02 0.95
Cyl 3 1.02 1.00
Cyl 6 0.99 0.98
Cyl 5 0.97 0.95
Cyl 7 0.98 0.94
Cyl 2 1.02 1.08
With sequential (Holley hp)efi I can do the offsets. But with a ported miniram, afr 195, and non stock camshaft, 58mm t-body, headers , and a lack of 8 egt or 8 widebands I am hesitant to use the stock offsets. I have it idling at 850, lowest kpa i can get with 24* timing is 53-55 and it isnt very steady. the fueling, and timing are consistant, all cylinders crank @ 195-202* it runs strong, pulls hard with safe timing to 6300, would like to get the idle smoother. the zf with aluminum flywheel is noisy as hell, ive tried it down at 800, and as high as 1000, and the box of rocks noise is the same. I need to get the idle smoother
the best I have is a temp gun. I let it heat soak idling, and the richer cylinders/leaner cylinders are following the factory offsets pretty closely as far as lean cylinders being cooler, richer being hotter. Have any of you played with using these individual cylinder multiplier offsets on dfi, bs3, holley, haltech etc? I do not want to burn a piston without accurate data and these tables are pulling as much as 6% per hole. do any of you experienced gents have advise, or experience that will help me proceed in a safe manner? or should i just put o2 bungs in each primary and take it to a dyno? im at 10.3 scr, dcr 8.3-8.4, has .041 head gaskets, zero decked. have driven it and allowed it to learn, multiple data logs. closed loop correction % everwhere with hot engine is 3-5% but it is just an hp, so single O2 on passenger side collector.
these are the stock offsets.
Cyl# o/idle idle
Cyl 1 1.03 1.06
Cyl 8 0.98 0.95
Cyl 4 1.02 0.95
Cyl 3 1.02 1.00
Cyl 6 0.99 0.98
Cyl 5 0.97 0.95
Cyl 7 0.98 0.94
Cyl 2 1.02 1.08
Last edited by Bill Chase; 08-29-2022 at 06:47 AM.
#2
Re: miniram split blm again.. sorta?
Are you getting split BLM's significantly above idle speeds? On mine, I was only getting it up to about 1000 rpm if I recall. After that, the BLM's equalized from side to side.
This is what I ended up doing to solve the idle distribution issue... (can't believe that was 15 year ago... lol)
https://www.thirdgen.org/forums/diy-...ram-split.html
But It's interesting... I didn't even know the $EE mask had an off-idle fuel trim per cylinder.
Yeah, the front cylinders appear to be about 10% richer than the rear cylinders. But it seems like if you wouldn't be in danger of burning holes in the piston until you got pretty lean (like into the 16 or higher range?). If I tune the engine to say 12.5:1 in the aggregate, ±10% would up to 13.75:1 or down to 11.25:1. Neither extreme seems like it'd be damaging. If you had individual cylinders varying more than 10% from one another... I don't know... I'd probably suspect something else going on besides air distribution in the manifold.
Seems like the only way you'd be able tune that differently from the factory (but also accurately) would be to actually measure each cylinder exhaust as you hinted at. Otherwise you're relegated to measuring the aggregate on each side.
This is what I ended up doing to solve the idle distribution issue... (can't believe that was 15 year ago... lol)
https://www.thirdgen.org/forums/diy-...ram-split.html
But It's interesting... I didn't even know the $EE mask had an off-idle fuel trim per cylinder.
Yeah, the front cylinders appear to be about 10% richer than the rear cylinders. But it seems like if you wouldn't be in danger of burning holes in the piston until you got pretty lean (like into the 16 or higher range?). If I tune the engine to say 12.5:1 in the aggregate, ±10% would up to 13.75:1 or down to 11.25:1. Neither extreme seems like it'd be damaging. If you had individual cylinders varying more than 10% from one another... I don't know... I'd probably suspect something else going on besides air distribution in the manifold.
Seems like the only way you'd be able tune that differently from the factory (but also accurately) would be to actually measure each cylinder exhaust as you hinted at. Otherwise you're relegated to measuring the aggregate on each side.
Last edited by ULTM8Z; 08-30-2022 at 09:34 AM.
#3
Re: miniram split blm again.. sorta?
After I typed all that it occurred to me even having a stable afr bank to bank with dual O2 would help. Wish I'd spent the other 1200 and bought the dominator back in 2019, cost a lot more now. Over the winter I'll pull the headers and get egt fittings welded on. Spent an hour reading your old posts about slaying the split blm beast. I can try that as well. Maybe it won't need 8 O2 to get a smooth idle. I love the way it performs, but the rough idle is driving me nuts. I can't begin to tune timing with knock sensors until I get rid of at least half of the gear rollover noise. I am probably leaving significant power, and acceleration on the table with the mild low rpm timing I have to run.
#4
Re: miniram split blm again.. sorta?
Are you getting split BLM's significantly above idle speeds? On mine, I was only getting it up to about 1000 rpm if I recall. After that, the BLM's equalized from side to side.
This is what I ended up doing to solve the idle distribution issue... (can't believe that was 15 year ago... lol)
https://www.thirdgen.org/forums/diy-...ram-split.html
But It's interesting... I didn't even know the $EE mask had an off-idle fuel trim per cylinder.
.
This is what I ended up doing to solve the idle distribution issue... (can't believe that was 15 year ago... lol)
https://www.thirdgen.org/forums/diy-...ram-split.html
But It's interesting... I didn't even know the $EE mask had an off-idle fuel trim per cylinder.
.
#5
Re: miniram split blm again.. sorta?
What cam are you running?
One thing you could potentially try as well would be to put a NPT air inlet hole at the back of the plenum as well. That way you get another "IAC" port feeding the rear of the intake. Ostensibly that should help feed the rear cylinders at low TPS and RPM.
it'd be a much simpler approach than mine. If it doesn't work simply plug the hole and then you could replicate my set up.
One thing you could potentially try as well would be to put a NPT air inlet hole at the back of the plenum as well. That way you get another "IAC" port feeding the rear of the intake. Ostensibly that should help feed the rear cylinders at low TPS and RPM.
it'd be a much simpler approach than mine. If it doesn't work simply plug the hole and then you could replicate my set up.
#6
Re: miniram split blm again.. sorta?
What cam are you running?
One thing you could potentially try as well would be to put a NPT air inlet hole at the back of the plenum as well. That way you get another "IAC" port feeding the rear of the intake. Ostensibly that should help feed the rear cylinders at low TPS and RPM.
it'd be a much simpler approach than mine. If it doesn't work simply plug the hole and then you could replicate my set up.
One thing you could potentially try as well would be to put a NPT air inlet hole at the back of the plenum as well. That way you get another "IAC" port feeding the rear of the intake. Ostensibly that should help feed the rear cylinders at low TPS and RPM.
it'd be a much simpler approach than mine. If it doesn't work simply plug the hole and then you could replicate my set up.
276/280 adv
228/232 @ 50
.576/,576
110 lsa/107 icl
#7
Re: miniram split blm again.. sorta?
Hmmm... it's sizeable, but doesn't seem outrageous. I'm assuming it's idling rougher than you'd expect for a cam of that size? What was your displacement again?
I recall there was a thread on tuning the O2 constants for a large cam. Has to do with excessive overlap and how much unburnt O2 gets dumped into the exhaust. There could be some nuggets of info that could help there.
On mine, forgot to mention... I idle in OL. Requires S_AUJP to do it on $8D. After 1200 rpm, it goes into CL.
My cam is signifcantly smaller (215@.050 when counting the 1.6 rockers, on a 114 LSA), and on a 383. But I still idle in OL to get the desired smoothness. I idle at about 13.75:1 as measured by the WB on the passenger side with NB controlling on the driver side. I've swapped sides on the O2 sensor and it's pretty consistent side-to-side. But yeah, the Miniram seems to prefer a slightly richer idle and it also seems like idling in OL is best way to achieve that. I"ve played around with the O2 thresholds trying to idle in CL and it's Ok I guess, but I get better results with the OL idle (and the throttle tip-in is better with OL too).
I recall there was a thread on tuning the O2 constants for a large cam. Has to do with excessive overlap and how much unburnt O2 gets dumped into the exhaust. There could be some nuggets of info that could help there.
On mine, forgot to mention... I idle in OL. Requires S_AUJP to do it on $8D. After 1200 rpm, it goes into CL.
My cam is signifcantly smaller (215@.050 when counting the 1.6 rockers, on a 114 LSA), and on a 383. But I still idle in OL to get the desired smoothness. I idle at about 13.75:1 as measured by the WB on the passenger side with NB controlling on the driver side. I've swapped sides on the O2 sensor and it's pretty consistent side-to-side. But yeah, the Miniram seems to prefer a slightly richer idle and it also seems like idling in OL is best way to achieve that. I"ve played around with the O2 thresholds trying to idle in CL and it's Ok I guess, but I get better results with the OL idle (and the throttle tip-in is better with OL too).
Trending Topics
#8
Re: miniram split blm again.. sorta?
Hmmm... it's sizeable, but doesn't seem outrageous. I'm assuming it's idling rougher than you'd expect for a cam of that size? What was your displacement again?
I recall there was a thread on tuning the O2 constants for a large cam. Has to do with excessive overlap and how much unburnt O2 gets dumped into the exhaust. There could be some nuggets of info that could help there.
On mine, forgot to mention... I idle in OL. Requires S_AUJP to do it on $8D. After 1200 rpm, it goes into CL.
My cam is signifcantly smaller (215@.050 when counting the 1.6 rockers, on a 114 LSA), and on a 383. But I still idle in OL to get the desired smoothness. I idle at about 13.75:1 as measured by the WB on the passenger side with NB controlling on the driver side. I've swapped sides on the O2 sensor and it's pretty consistent side-to-side. But yeah, the Miniram seems to prefer a slightly richer idle and it also seems like idling in OL is best way to achieve that. I"ve played around with the O2 thresholds trying to idle in CL and it's Ok I guess, but I get better results with the OL idle (and the throttle tip-in is better with OL too).
I recall there was a thread on tuning the O2 constants for a large cam. Has to do with excessive overlap and how much unburnt O2 gets dumped into the exhaust. There could be some nuggets of info that could help there.
On mine, forgot to mention... I idle in OL. Requires S_AUJP to do it on $8D. After 1200 rpm, it goes into CL.
My cam is signifcantly smaller (215@.050 when counting the 1.6 rockers, on a 114 LSA), and on a 383. But I still idle in OL to get the desired smoothness. I idle at about 13.75:1 as measured by the WB on the passenger side with NB controlling on the driver side. I've swapped sides on the O2 sensor and it's pretty consistent side-to-side. But yeah, the Miniram seems to prefer a slightly richer idle and it also seems like idling in OL is best way to achieve that. I"ve played around with the O2 thresholds trying to idle in CL and it's Ok I guess, but I get better results with the OL idle (and the throttle tip-in is better with OL too).
Last edited by Bill Chase; 08-29-2022 at 11:59 PM.
#9
Re: miniram split blm again.. sorta?
228@.050 on a 110 LSA in a 385 isn't that small, IMO. I guess I don't know what you'd consider smooth or rough. The fluctuating idle would get annoying though for sure.
Is there something in calibration that alters timing to correct for idle speed? I know in $8D there's idle speed correction via spark advance/retard (ECM will add or subtract 5 deg to correct for idle speed). That can sometimes cause fluctuations on the idle speed on a modified car, so it's often zeroed out.
I'm assuming you degreed in the cam when you installed it? 100% sure it's not retarded by some amount? Alternatively, you could advance the cam by say, 4 deg. That should help smooth the idle out a bit.
If you're convinced it's a fuel distribution issue, you could try putting progressively smaller injectors toward the rear of the car and see if the idle improves. It'd be mimicking what GM did in the LT1/LT4 calibration. It'd only be temporary for troubleshooting purposes. But if you see that you get a marked improvement, that would be the impetus to move forward with the manifold modifications. It'd suck to go through the effort to copy what I did and then not see an improvement.
Is there something in calibration that alters timing to correct for idle speed? I know in $8D there's idle speed correction via spark advance/retard (ECM will add or subtract 5 deg to correct for idle speed). That can sometimes cause fluctuations on the idle speed on a modified car, so it's often zeroed out.
I'm assuming you degreed in the cam when you installed it? 100% sure it's not retarded by some amount? Alternatively, you could advance the cam by say, 4 deg. That should help smooth the idle out a bit.
If you're convinced it's a fuel distribution issue, you could try putting progressively smaller injectors toward the rear of the car and see if the idle improves. It'd be mimicking what GM did in the LT1/LT4 calibration. It'd only be temporary for troubleshooting purposes. But if you see that you get a marked improvement, that would be the impetus to move forward with the manifold modifications. It'd suck to go through the effort to copy what I did and then not see an improvement.
#10
Member
Re: miniram split blm again.. sorta?
When the split BLM subject came up years ago I read every thing I could and worried about how to fix it. I could not get my idle where I wanted it. I originally had a 355, hotcam, and vortec heads with a modified lt4 intake. I ended up with GM fastburns with 10.25 cr and pro-floXT with no change in idle. I finally went with open loop idle at 750rpm's with 28 degrees advance and 13.5-13.8 AFR and have 50kpa. Now it idles great with only a slight lope and with my manual trans I can leave a stoplight without touching the gas pedal. I'm so happy with the tune I haven't touched it in several years. Lesson learned , give it what it wants. The spark plugs will tell you, Read them.
The following users liked this post:
Bill Chase (08-31-2022)
#12
Member
Re: miniram split blm again.. sorta?
I don't know about the split blm but at one time I was convinced that was my problem. I had an o2 sensor in each bank and I could switch between them but not see both at the same time. If the motor is not smooth the intermittent misfires will mess with the o2 sensor readings so they will not be accurate anyway. My opinion, on the later cars they separated the left and right bank for better emissions but with a good tune the difference is so insignificant it's not worth worrying about. I see no difference when reading the plugs. It's mostly about the cam and the tune. I went from "set the paint cans in the back and let it idle in closed loop, that'll mix it good " to "I can't believe how smooth it idles" in open loop with my tune.

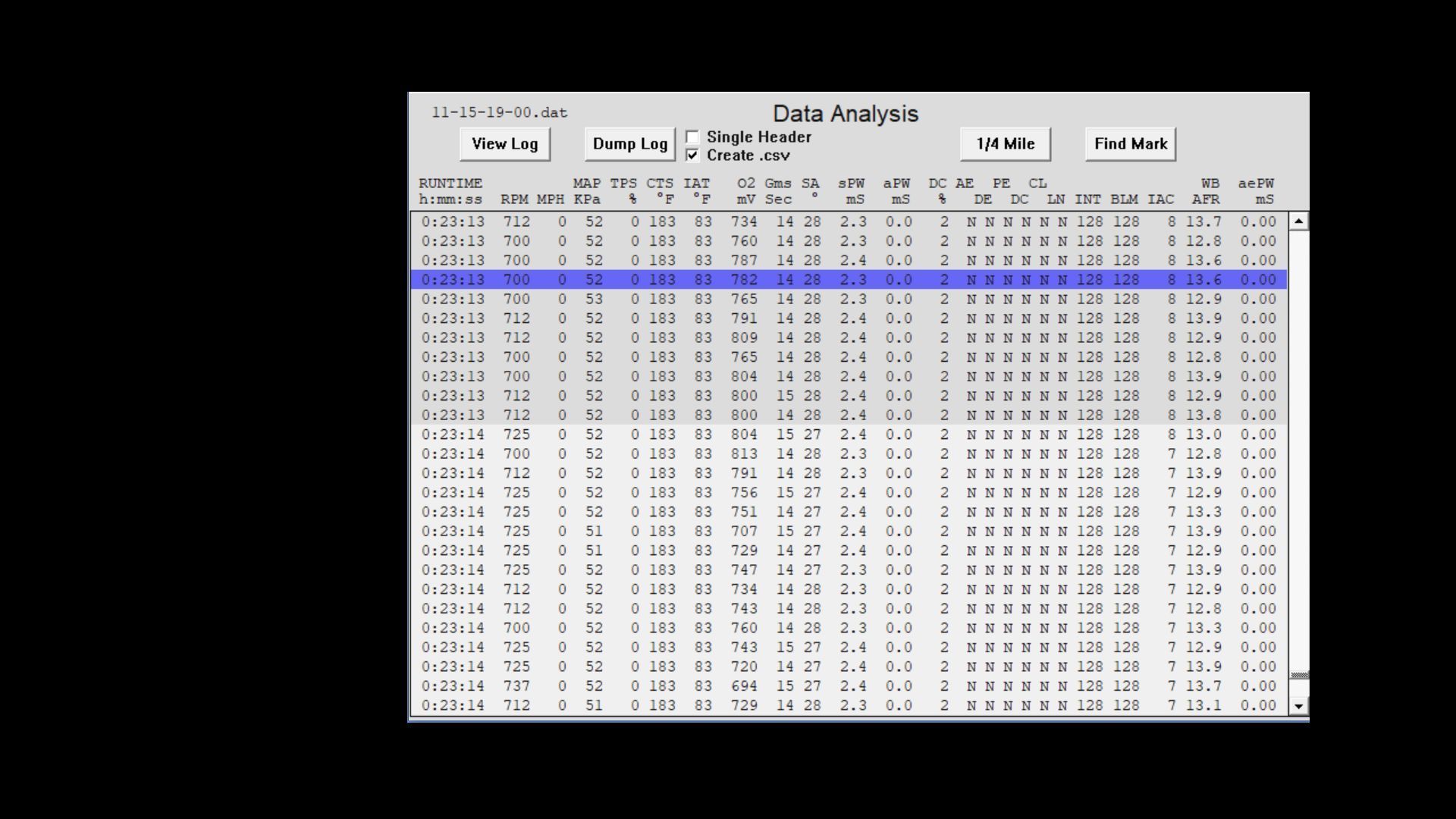

This is open loop idle at 700 rpm's. I normally set it at 750.
This is open loop idle at 700 rpm's. I normally set it at 750.
#13
Re: miniram split blm again.. sorta?
yeah, your WB readings are very similar to mine in terms of what makes for a smooth idle on this kind of short runner, large plenum style manifold.
#14
Re: miniram split blm again.. sorta?
228@.050 on a 110 LSA in a 385 isn't that small, IMO. I guess I don't know what you'd consider smooth or rough. The fluctuating idle would get annoying though for sure.
Is there something in calibration that alters timing to correct for idle speed? I know in $8D there's idle speed correction via spark advance/retard (ECM will add or subtract 5 deg to correct for idle speed). That can sometimes cause fluctuations on the idle speed on a modified car, so it's often zeroed out.
I'm assuming you degreed in the cam when you installed it? 100% sure it's not retarded by some amount? Alternatively, you could advance the cam by say, 4 deg. That should help smooth the idle out a bit.
If you're convinced it's a fuel distribution issue, you could try putting progressively smaller injectors toward the rear of the car and see if the idle improves. It'd be mimicking what GM did in the LT1/LT4 calibration. It'd only be temporary for troubleshooting purposes. But if you see that you get a marked improvement, that would be the impetus to move forward with the manifold modifications. It'd suck to go through the effort to copy what I did and then not see an improvement.
Is there something in calibration that alters timing to correct for idle speed? I know in $8D there's idle speed correction via spark advance/retard (ECM will add or subtract 5 deg to correct for idle speed). That can sometimes cause fluctuations on the idle speed on a modified car, so it's often zeroed out.
I'm assuming you degreed in the cam when you installed it? 100% sure it's not retarded by some amount? Alternatively, you could advance the cam by say, 4 deg. That should help smooth the idle out a bit.
If you're convinced it's a fuel distribution issue, you could try putting progressively smaller injectors toward the rear of the car and see if the idle improves. It'd be mimicking what GM did in the LT1/LT4 calibration. It'd only be temporary for troubleshooting purposes. But if you see that you get a marked improvement, that would be the impetus to move forward with the manifold modifications. It'd suck to go through the effort to copy what I did and then not see an improvement.
By the way, based on the numbers I posted I added fuel at idle in 1 and 2 @ closed throttle and it did make a noticeable difference. It didn't drop kpa, still at 54-56 but is more stable, and iac % numbers dropped a couple points. Turned off learning and closed loop compensation, allowed it to cool off and it even started quicker. Enough evidence for me to proceed over the winter with the iac feed to each runner. This intake is max ported from Speier, so I suspect it aggravated the idle airflow distribution issues slightly.
Last edited by Bill Chase; 08-31-2022 at 03:48 PM.
