Well after 3 sets of Non functional Gauges I am about to give up on ever finding a functional one that is affordable.

A complete dash swap is seems to be overkill when all I really need is a speedo and a fuel gauge.

Looking at the analog section of the digital cluster it seems to me that the gauges are pretty much standard, so manually wiring them in to the sending units and bypassing the circuit boards should work.

I can then add an aftermarket digital speedo or even a cable driven one in place of the digital one in the cluster by making a new faceplate.

So that being the case anyone have the wiring diagram for a Berlinetta gauge / dash laying around ?

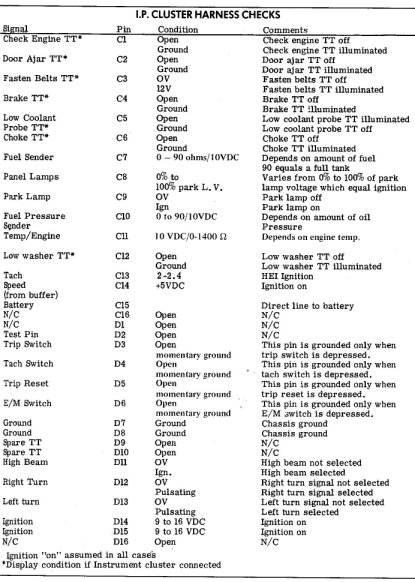

here's a map of the cluster plug,............



holy, one of the few posts that has a actual picture, i commend you, ive seen sites that wanna sell the schematic, its like....im not even gonna go there



This what you are looking for maybe?



another one



and this one



And finally



Use the Berlinetta pin map and not the wiring diagrams from a sports coupe !!!!!!!

The Berlinetta wiring system is not the same as that from any regular Camaro !!
