I need the pinout diagram for connector c207 in an 1985 5.0 TPI auto,

I also need the same pinout for an 1987 5.0 TPI auto (dual fans) if it matters.



same here... i need it also... :hail:



You will have to bear with me for a few, there is no actual pin-out drawing in my 85 camaro manual for connector C207. I am having to go through each schematic to locate the pins and components. Will post it when I am finished.



thanks TRICK!!! u da man!!!!:lala:



Yeah, what he said.!!



hey JOHNCOO5, did your 85' come with rear disc's??? i thought some did?? i have to get rid of my skimpy drums!!!! a rear conversion kit is like $1200!!!!!!!!!! just thought i'd ask ya....



Here are the pin-outs for the 85 camaro, please note that some of them are listed twice with a VIN to the side. This because there were different functions for some of the wires on different VIN's. Check your VIN code before messing with the pins. You will also see some that say automatic or manual only. On some of them you will see the color of wires change such as orange red/black. This means that one plug has an orange wire and its mate has a red/black wire. Enjoy, I will post the C207 for the 87 model shortly.

Pin “A”:Air select valve (brown wire)
Pin “B”:Fuel pump relay to ALDL (orange red/black wire) VIN F
Pin “C”:Light driver module (white/dark green wire)
Pin “D”:Fuel pump control fuse (black/orange orange/black wire)
Pin “D”:Fuel pump to fuel pump relay (white light blue wire) VIN F
Pin “E”:ALDL connectio (white/black wire)
Pin “F”:Engine ECM fuse (pink/black wire)
Pin “F”:ECM IGN fuse to ESC module & ECM (pink/black wire) VIN F
Pin “G”:MAS module & emissions (pink/black black/pink wire) “Automatics only”
Pin “G”:Back-up switch (dark blue wire) “Manuals only”
Pin “H”:TCC to ALDL (tan/black wire)
Pin “J”:Crank fuse to fuel pump relay (purple purple/white wire) VIN G
Pin “J”:MAS module to ALDL (orange wire) VIN F
Pin “K”: VSS (brown wire)
Pin “L”:Fuel tank to fuel pump relay (tan/white)
Pin “M”:Engine ground (black/white wire)
Pin “N”:Park/Neutral switch (orange/black) “Automatics only”
Pin “P”:Brake switch (purple wire)
Pin “R”:Crank fuse to cold start switch & injector (purple/white purple wire)



Ok gentlemen,

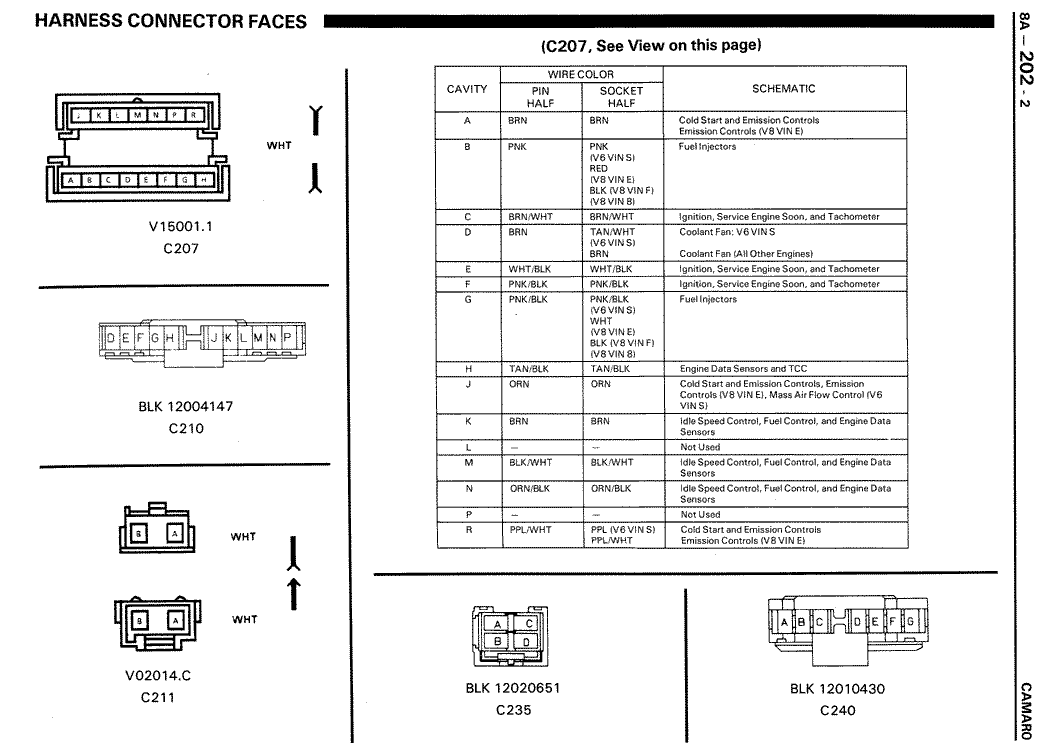

As promised, here is the C207 pin-out for the 87 model. As an added bonus, I am also including the C100 bulkhead connectors for both models at no extra charge. Be the first to take advantage of this special one time offer. The first one will be the 85 C100 and the second one will be the 87 C100 connector.

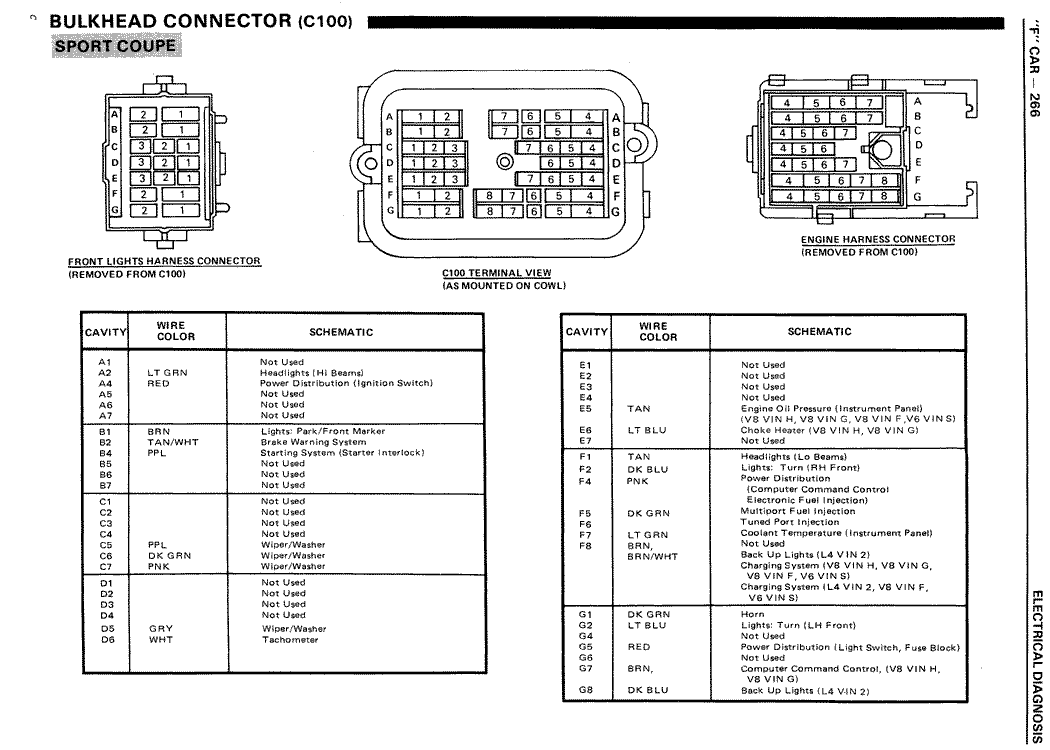

85 C100

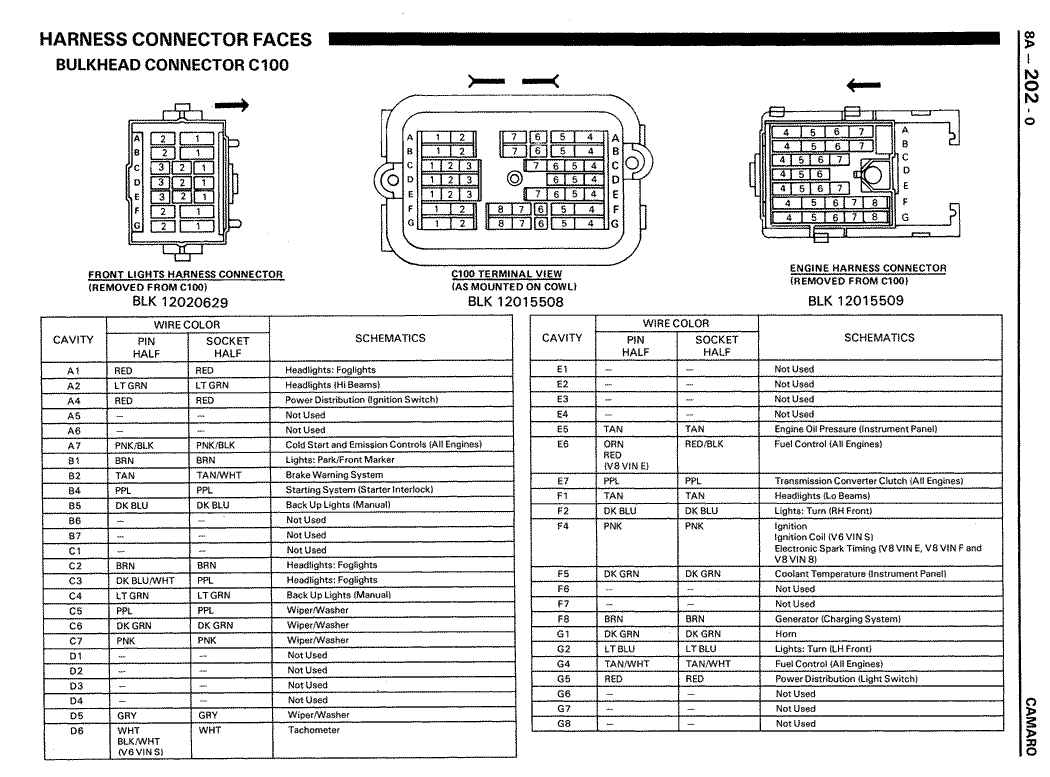

87 C100:lala:



Gotta get it running before worring about better stopping.lol



:yourock: :hail: :hail: Now thats what I'm talkin' about, I guess know one has done this swap before w/o a real service manual, otherwise I think I would have found more threads w/ info in the past week or so I've been searching. Trickster, I can't thank you enough, also, I think maybe this would be some very helpful info to put permanently somewhere on the board. I have noticed quite a few others doing this and having same problems. but I'll leave that up to you and the other administrator's. I'm saving a copy of all 4 pics you posted and adding it to the folders I have started, one day I might have a complete service manual to print off. ha! ha!
I think we need to dedicate a plaque or banner to you for member of the month.

Hope I don't have to bother you any more, I know you have busted your butt to fid this for us and you didn't have to.

thanks again,

Doug (johncoo5)
