Hatch motor assembly

does anyone have a wiring diagram or know where i can get one, of the hatch motor assembly? the one on my car has all the wiring cut and some of the colors dont match up! i have an 86 IROC and got an 91 RS motor off e-bay......thanks in advance.

Jan 6, 2005 | 06:39 PM

Trickster

TGO Supporter

Joined: Sep 2003

Posts: 6,127

Likes: 11

From: conway, s.c.

Car: 1989 Iroc-Z

Engine: 5.7L TPI

Transmission: 700R4

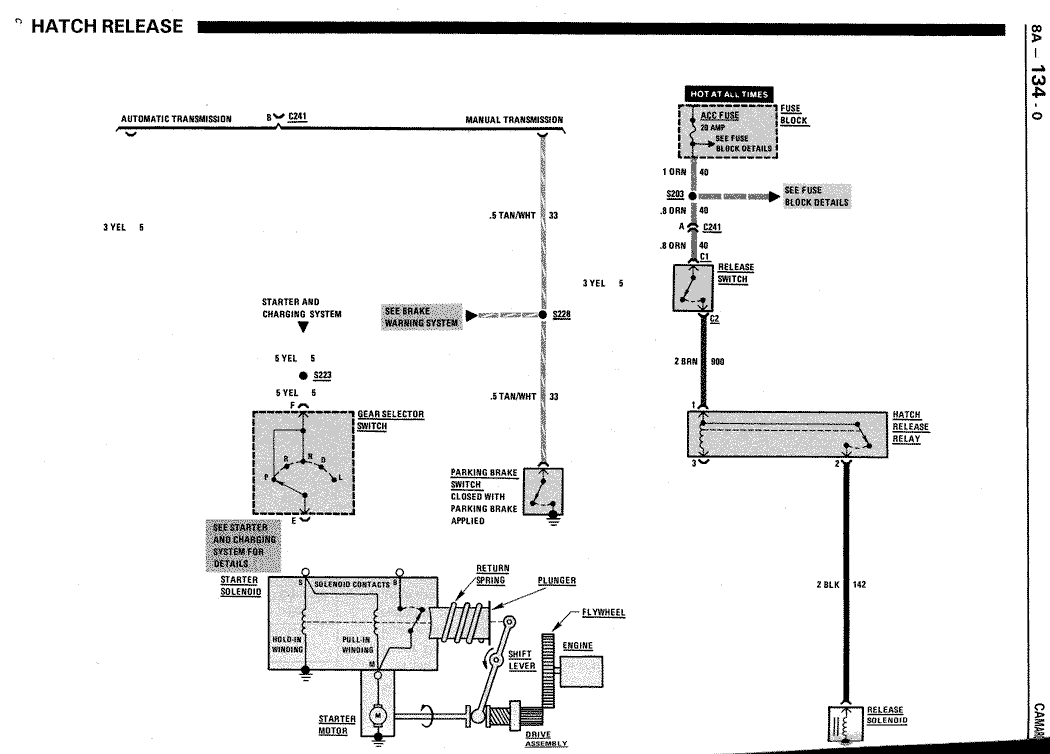

These pictures might help you. The first two are from the 1988 service manual and the last two are from the 1992 service manual.

Attached Thumbnails

Jan 6, 2005 | 06:41 PM

Trickster

TGO Supporter

Joined: Sep 2003

Posts: 6,127

Likes: 11

From: conway, s.c.

Car: 1989 Iroc-Z

Engine: 5.7L TPI

Transmission: 700R4

page2

Attached Thumbnails

Jan 6, 2005 | 06:41 PM

Trickster

TGO Supporter

Joined: Sep 2003

Posts: 6,127

Likes: 11

From: conway, s.c.

Car: 1989 Iroc-Z

Engine: 5.7L TPI

Transmission: 700R4

page3

Attached Thumbnails

Jan 6, 2005 | 06:42 PM

Trickster

TGO Supporter

Joined: Sep 2003

Posts: 6,127

Likes: 11

From: conway, s.c.

Car: 1989 Iroc-Z

Engine: 5.7L TPI

Transmission: 700R4

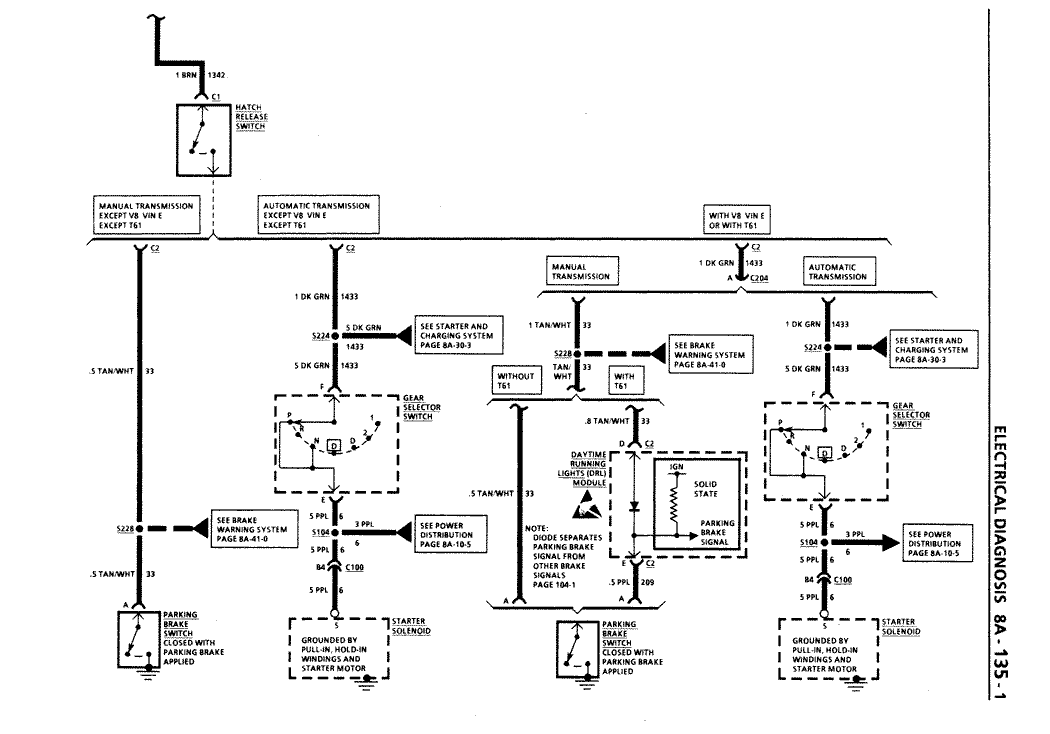

page4

:lala:

Attached Thumbnails

Jan 7, 2005 | 04:08 AM

klu-less

Thread Starter

Junior Member

Joined: Nov 2004

Posts: 25

Likes: 0

fantastic! thanks....:hail:
