Lighted Mirror wiring
I want to switch lighted mirrors from a three wire mirror to a four wirror order to make it work.mirror. What wire would I eliminate in order to make the four wire mirror work.
Three wire has black , brown/white and brown.
Four wire has white, black, red/wite and gray.
Three wire has black , brown/white and brown.
Four wire has white, black, red/wite and gray.
Last edited by 86NiteRider; Apr 22, 2010 at 08:55 AM.
Supreme Member
Joined: Jan 2006
Posts: 3,341
Likes: 10
From: Mooresville NC
Car: LOWERED ♦ CRIMSON METALFLAKE
Engine: ► 400 KUBES ◄
Transmission: 765R4
Axle/Gears: EATON POSI 4.56
Why Does My Rear View Mirror Have Pretty Blue Lights In It?
Is that an auto-dimming mirror?
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing!
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Didn’t Wreck, The Track Moved
.
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing!
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Didn’t Wreck, The Track Moved
.
Last edited by NINÅ; Apr 21, 2010 at 11:38 AM.
Thread Starter
Supreme Member
iTrader: (10)
Joined: Dec 2000
Posts: 3,242
Likes: 3
From: Somewhere around the South Side of Chicago just crusin' in one of the Niteriders
Car: 92RS 25th Anniv./88 IROC Z28 Vert
Engine: 305 TBI w/Tpi Air / 305 TPI
Transmission: 700r4/700r4
Axle/Gears: Posi
Supreme Member
Joined: Jan 2006
Posts: 3,341
Likes: 10
From: Mooresville NC
Car: LOWERED ♦ CRIMSON METALFLAKE
Engine: ► 400 KUBES ◄
Transmission: 765R4
Axle/Gears: EATON POSI 4.56
Why Does My Rear View Mirror Have Pretty Blue Lights In It?
What is the object in the red outline?
If there’s electronics in the mirror an incorrect hookup can damage it.
Once you determine there are none (or none you care about) here’s how you can figure out what wires go where.
The black wire should be ground.
Now, grab a brake light bulb and throw it in a socket.
The brake light bulb will prevent wiring damage.
Using a 12 volt power supply, connect one lead of the brake light bulb socket to the + wire of the power supply.
The other lead of the brake light bulb socket is now a probe.
Twist ends of the black and the white mirror wires together.
Connect the ▬ of the power supply to those wires.
Probe the gray and white/red wires one at a time while rocking the mirror switch.
The line which causes the map lights to remain on (probably the white/red wire) is the wire you need to connect to the orange wire now in your headliner.
If you get negative results experiment with wire combinations.
Tape the end of the wire that will remain unused.
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing!
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Hit The Water Barrels Because My Car Was Dirty
.
If there’s electronics in the mirror an incorrect hookup can damage it.
Once you determine there are none (or none you care about) here’s how you can figure out what wires go where.
The black wire should be ground.
Now, grab a brake light bulb and throw it in a socket.
The brake light bulb will prevent wiring damage.
Using a 12 volt power supply, connect one lead of the brake light bulb socket to the + wire of the power supply.
The other lead of the brake light bulb socket is now a probe.
Twist ends of the black and the white mirror wires together.
Connect the ▬ of the power supply to those wires.
Probe the gray and white/red wires one at a time while rocking the mirror switch.
The line which causes the map lights to remain on (probably the white/red wire) is the wire you need to connect to the orange wire now in your headliner.
If you get negative results experiment with wire combinations.
Tape the end of the wire that will remain unused.
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing!
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Hit The Water Barrels Because My Car Was Dirty
.
Re: ighted Mirror wiring
Thread Starter
Supreme Member
iTrader: (10)
Joined: Dec 2000
Posts: 3,242
Likes: 3
From: Somewhere around the South Side of Chicago just crusin' in one of the Niteriders
Car: 92RS 25th Anniv./88 IROC Z28 Vert
Engine: 305 TBI w/Tpi Air / 305 TPI
Transmission: 700r4/700r4
Axle/Gears: Posi
Re: ighted Mirror wiring
The red outline is box is a soft light that is suspose to shine down on the heater control area. But it is so soft that it really does not work. It is constantly on so it's good for holding items up to it you are trying to see without on turning the lites.
Junior Member
Joined: May 2010
Posts: 36
Likes: 0
From: 33483
Car: Purple & Black 1984 Trans Am T-Top
Transmission: Automatic
Re: ighted Mirror wiring
My non lighted mirror fell off and I'd like to replace it with a lighted mirror. Any suggestions on which mirror to buy and especially the easiest way to wire it? I know nothing about wiring!
Trending Topics
Supreme Member
Joined: Jan 2006
Posts: 3,341
Likes: 10
From: Mooresville NC
Car: LOWERED ♦ CRIMSON METALFLAKE
Engine: ► 400 KUBES ◄
Transmission: 765R4
Axle/Gears: EATON POSI 4.56
Mirror Driving
As which to buy, no brand suggestion but don’t skimp.
Make sure the mirror glass is flat perfect and the unit feels solidly constructed.
RE: Wiring; The wires for it might be your car because it costs GM less to make all the harnesses the same.
Whether they are there or not typically the black wire from the mirror goes to ground, the White wire goes to the door pin switches, the orange wire goes to the hot wire.
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing!
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Didn’t Wreck, The Track Moved
.
Make sure the mirror glass is flat perfect and the unit feels solidly constructed.
RE: Wiring; The wires for it might be your car because it costs GM less to make all the harnesses the same.
Whether they are there or not typically the black wire from the mirror goes to ground, the White wire goes to the door pin switches, the orange wire goes to the hot wire.
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing!
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Didn’t Wreck, The Track Moved
.
Joined: Oct 2001
Posts: 12,211
Likes: 1,135
From: Il
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: ighted Mirror wiring

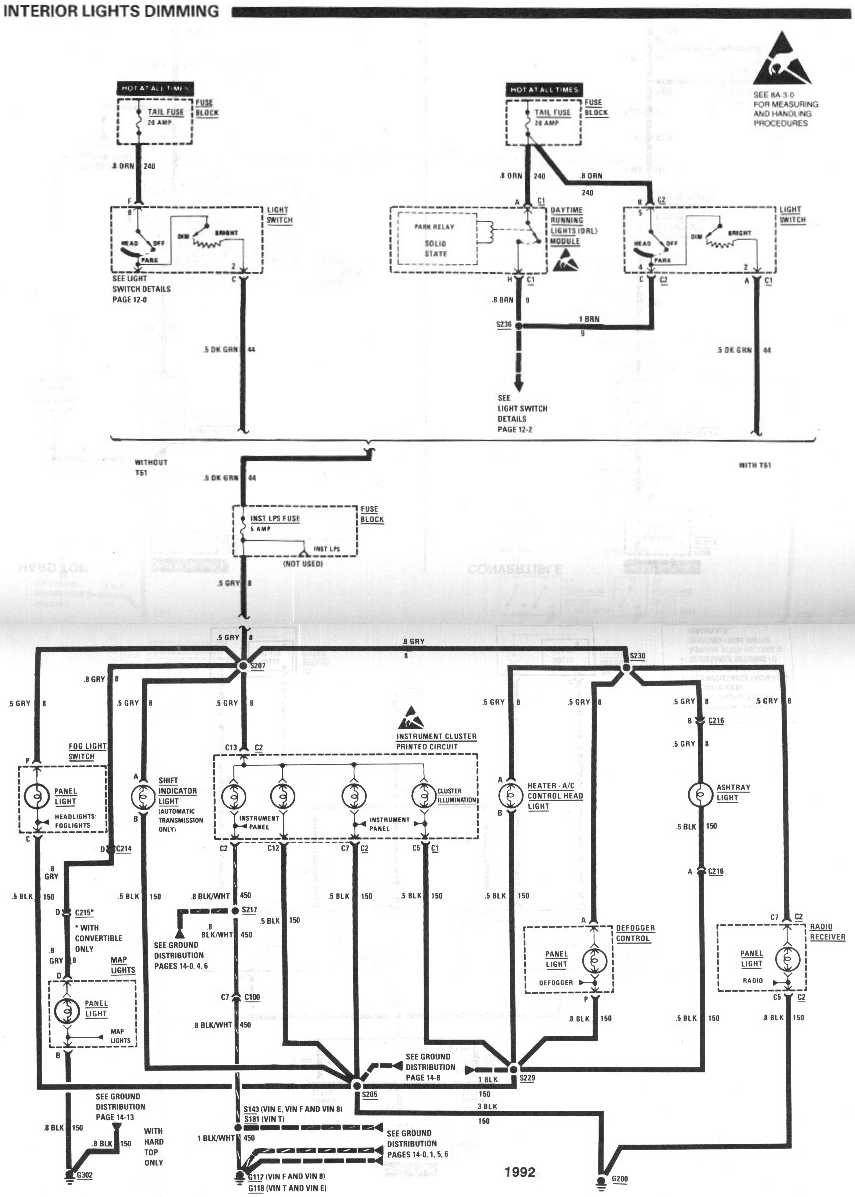

I'm Not 100% sure of the exact time of the change.
