what is this?

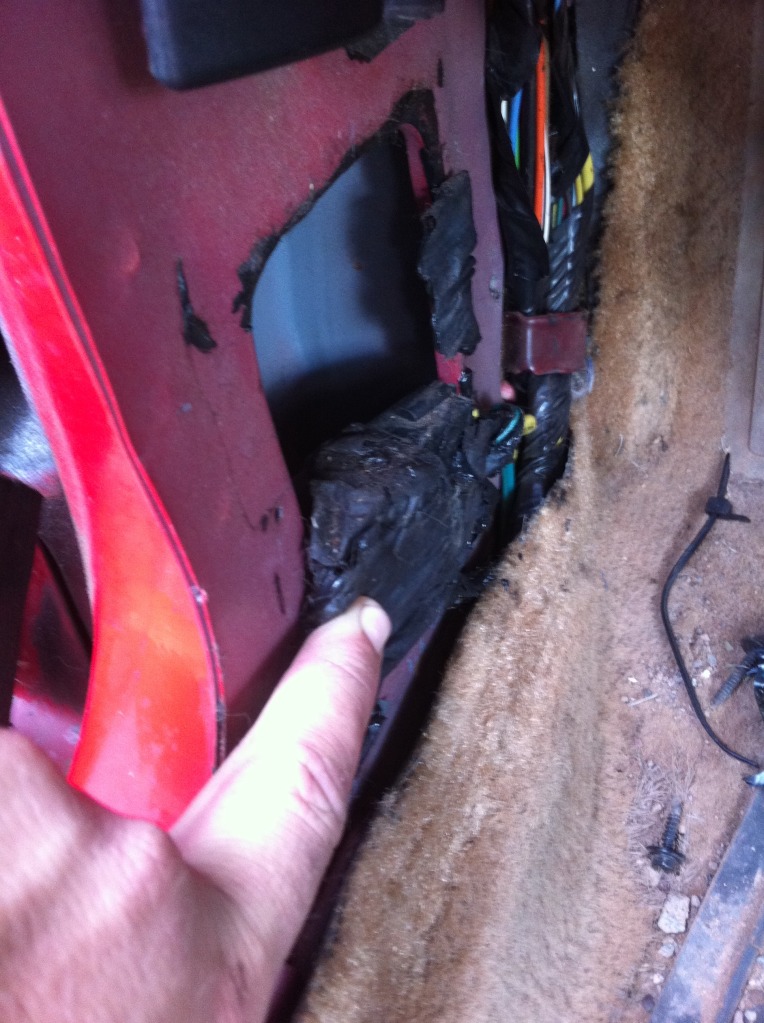

just woundering what this module might be, its located in the drivers side kick panel, 4 wires going to it.
Attached Thumbnails what is this?-b3e488ca.jpg   what is this?-2f69c09e.jpg
Reply
0
Old Sep 18, 2010 | 01:43 PM
Share
  #2
87IROC-DAN61's Avatar
87IROC-DAN61
Senior Member

Joined: Dec 2009
Posts: 850
Likes: 8
From: Chilliwack BC
Car: White 1987 IROC-Z
Engine: 305 TPI LB9, 215 HP
Transmission: Borg-Warner T5 NWC
Axle/Gears: Borg-Warner 7.75 with 3.27 ratio
Re: what is this?
Originally Posted by RussC
just woundering what this module might be, its located in the drivers side kick panel, 4 wires going to it.
Hello RussC!!

Vats?????



Is your car 1989 or newer???

What colour are the wires????

Reply
0
Old Sep 18, 2010 | 03:30 PM
Share
  #3
RussC's Avatar
RussC
Thread Starter
Junior Member

Joined: Jul 2009
Posts: 75
Likes: 0
Re: what is this?
its a 1989 and the colors are green wight stripe, green, yellow white stripe, and yellow. 2 thick wires the ones with the stripe, are on the outside at each end.
Reply
0
Old Sep 18, 2010 | 04:34 PM
Share
  #4
juanillox8's Avatar
juanillox8
Senior Member
iTrader: (7)

Joined: Feb 2010
Posts: 820
Likes: 1
From: OX CA
Car: TOO MANY
Engine: 350 TPI / 350 TBI/6.0L VORTEC
Transmission: T5/AUTO/AUTO
Re: what is this?
is not the vats ....

if not mistaken its the starter enable relay (usually wrapped around with electrical tape)
Reply
0
Old Sep 18, 2010 | 05:03 PM
Share
  #5
87IROC-DAN61's Avatar
87IROC-DAN61
Senior Member

Joined: Dec 2009
Posts: 850
Likes: 8
From: Chilliwack BC
Car: White 1987 IROC-Z
Engine: 305 TPI LB9, 215 HP
Transmission: Borg-Warner T5 NWC
Axle/Gears: Borg-Warner 7.75 with 3.27 ratio
Re: what is this?
Originally Posted by juanillox8
is not the vats ....

if not mistaken its the starter enable relay (usually wrapped around with electrical tape)
Hello juanillox8!!

Isn't the starter enable relay, parts of the VATS system???



By the way you are right, it is the starter enable relay, I just didn't have the right "terminology" at my finger tips, so I didn't call it anything, but rather pointed to the right system, VATS!!!



Reply
0
Old Sep 18, 2010 | 05:24 PM
Share
  #6
Twin_Turbo's Avatar
Twin_Turbo
Supreme Member
25 Year Member
iTrader: (25)

Joined: Jun 2000
Posts: 5,364
Likes: 51
From: Enschede, Netherlands
Car: 82 TA 87 IZ L98 88 IZ LB9 88 IZ L98
Engine: 5.7TBI 5,7TPI 5.0TPI, 5,7TPI
Transmission: T5, 700R4, T5, 700R4
Axle/Gears: 3.08, 3.27, 3.45, 3.27
Re: what is this?
power door locks
Reply
0
Old Sep 18, 2010 | 05:46 PM
Share
  #7
RussC's Avatar
RussC
Thread Starter
Junior Member

Joined: Jul 2009
Posts: 75
Likes: 0
Re: what is this?
thanks for the help
Reply
0

Trending Topics

Old Sep 19, 2010 | 10:58 AM
Share
  #8
Pocket's Avatar
Pocket
Supreme Member
20 Year Member
iTrader: (24)

Joined: Jun 2005
Posts: 8,117
Likes: 362
From: NC
Car: 91 Trans Am
Re: what is this?
Starter relay, and yes, it's part of the VATS system

http://www.austinthirdgen.org/mkport...nE_starter.jpg
Reply
0
Old Sep 19, 2010 | 12:20 PM
Share
  #9
87IROC-DAN61's Avatar
87IROC-DAN61
Senior Member

Joined: Dec 2009
Posts: 850
Likes: 8
From: Chilliwack BC
Car: White 1987 IROC-Z
Engine: 305 TPI LB9, 215 HP
Transmission: Borg-Warner T5 NWC
Axle/Gears: Borg-Warner 7.75 with 3.27 ratio
Re: what is this?
Originally Posted by Pocket
Starter relay, and yes, it's part of the VATS system

http://www.austinthirdgen.org/mkport...nE_starter.jpg
Thanks Pocket!!!



Reply
0
Old Sep 19, 2010 | 12:46 PM
Share
  #10
juanillox8's Avatar
juanillox8
Senior Member
iTrader: (7)

Joined: Feb 2010
Posts: 820
Likes: 1
From: OX CA
Car: TOO MANY
Engine: 350 TPI / 350 TBI/6.0L VORTEC
Transmission: T5/AUTO/AUTO
Re: what is this?
Originally Posted by 87IROC-DAN61
Hello juanillox8!!

Isn't the starter enable relay, parts of the VATS system???



By the way you are right, it is the starter enable relay, I just didn't have the right "terminology" at my finger tips, so I didn't call it anything, but rather pointed to the right system, VATS!!!



Lol yea but usually when some one says vats the module comes to mind. Kinda like saying ignition theres many things that are in that system but usually the switch comes to mind
Reply
0
Old Sep 19, 2010 | 02:05 PM
Share
  #11
87IROC-DAN61's Avatar
87IROC-DAN61
Senior Member

Joined: Dec 2009
Posts: 850
Likes: 8
From: Chilliwack BC
Car: White 1987 IROC-Z
Engine: 305 TPI LB9, 215 HP
Transmission: Borg-Warner T5 NWC
Axle/Gears: Borg-Warner 7.75 with 3.27 ratio
Re: what is this?
Originally Posted by juanillox8
Lol yea but usually when some one says vats the module comes to mind. Kinda like saying ignition theres many things that are in that system but usually the switch comes to mind
Hello juanillox8!!

That's why I used the ??????? after VATS!!!!





Reply
0
