Bunch Of Electrical *Pics*
hey guys, i got a bunch of loose electrical chords all over.. heres some pics, see if u can figure em out!
Last edited by BrandonSB; Jan 18, 2011 at 03:11 PM. Reason: once i figure out how to add pics..
Thread Starter
Member
Joined: May 2010
Posts: 247
Likes: 0
From: Toronto, Ontario
Car: 1987 Z28 Camaro
Engine: 30Slow
Transmission: 700R4
Re: Bunch Of Electrical *Pics*
and finally.. i know its messy under there.. its all getting redone in the spring, thats why im trying to figure crap out hahaha.
Supreme Member
Joined: Sep 2002
Posts: 9,192
Likes: 20
From: Cary, North Carolina
Car: 1992 RS
Engine: Carbed 350
Transmission: 700R4
Axle/Gears: 3.42 posi
Re: Bunch Of Electrical *Pics*
1st post, third pic - maybe the wire that runs to the underhood light?
2nd post, 2nd pic - all I see out of place there is your hoodie string
3rd post, 1st pic - round one looks like an A/C connector
Wiring diags for almost any 3rd gen here - maybe check wiring colors with what you have: http://www.austinthirdgen.org/index.php?pid=19
2nd post, 2nd pic - all I see out of place there is your hoodie string
3rd post, 1st pic - round one looks like an A/C connector
Wiring diags for almost any 3rd gen here - maybe check wiring colors with what you have: http://www.austinthirdgen.org/index.php?pid=19
Thread Starter
Member
Joined: May 2010
Posts: 247
Likes: 0
From: Toronto, Ontario
Car: 1987 Z28 Camaro
Engine: 30Slow
Transmission: 700R4
Re: Bunch Of Electrical *Pics*
1st post, third pic - maybe the wire that runs to the underhood light?
2nd post, 2nd pic - all I see out of place there is your hoodie string
3rd post, 1st pic - round one looks like an A/C connector
Wiring diags for almost any 3rd gen here - maybe check wiring colors with what you have: http://www.austinthirdgen.org/index.php?pid=19
2nd post, 2nd pic - all I see out of place there is your hoodie string
3rd post, 1st pic - round one looks like an A/C connector
Wiring diags for almost any 3rd gen here - maybe check wiring colors with what you have: http://www.austinthirdgen.org/index.php?pid=19
Trending Topics
Thread Starter
Member
Joined: May 2010
Posts: 247
Likes: 0
From: Toronto, Ontario
Car: 1987 Z28 Camaro
Engine: 30Slow
Transmission: 700R4
thanks!
Thread Starter
Member
Joined: May 2010
Posts: 247
Likes: 0
From: Toronto, Ontario
Car: 1987 Z28 Camaro
Engine: 30Slow
Transmission: 700R4
Junior Member
Joined: Oct 2007
Posts: 14
Likes: 0
From: New Jersey
Car: 1986 IrocZ
Engine: carbed 383
Transmission: T5
Axle/Gears: 10 bolt 3:23
Re: Bunch Of Electrical *Pics*

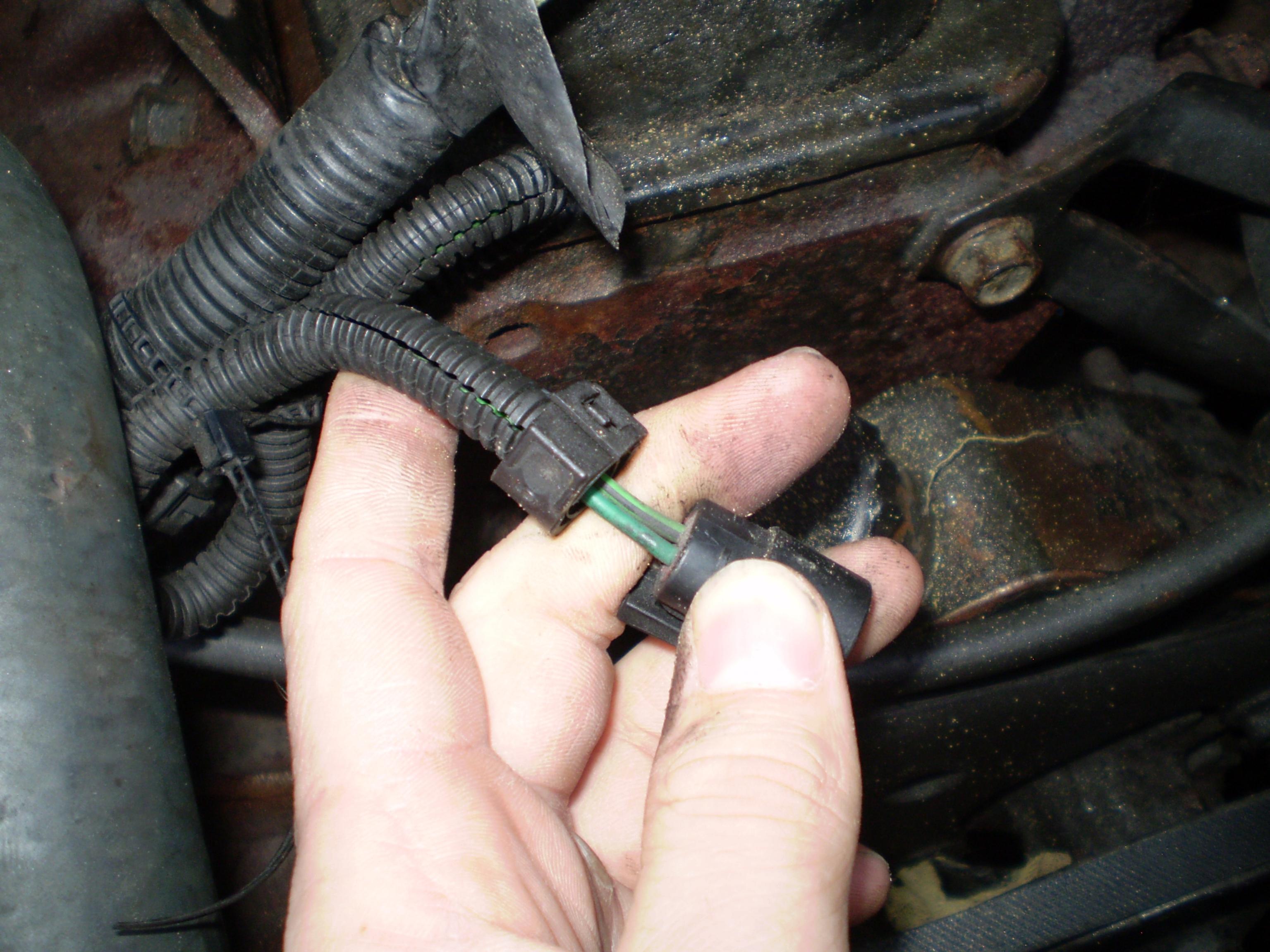

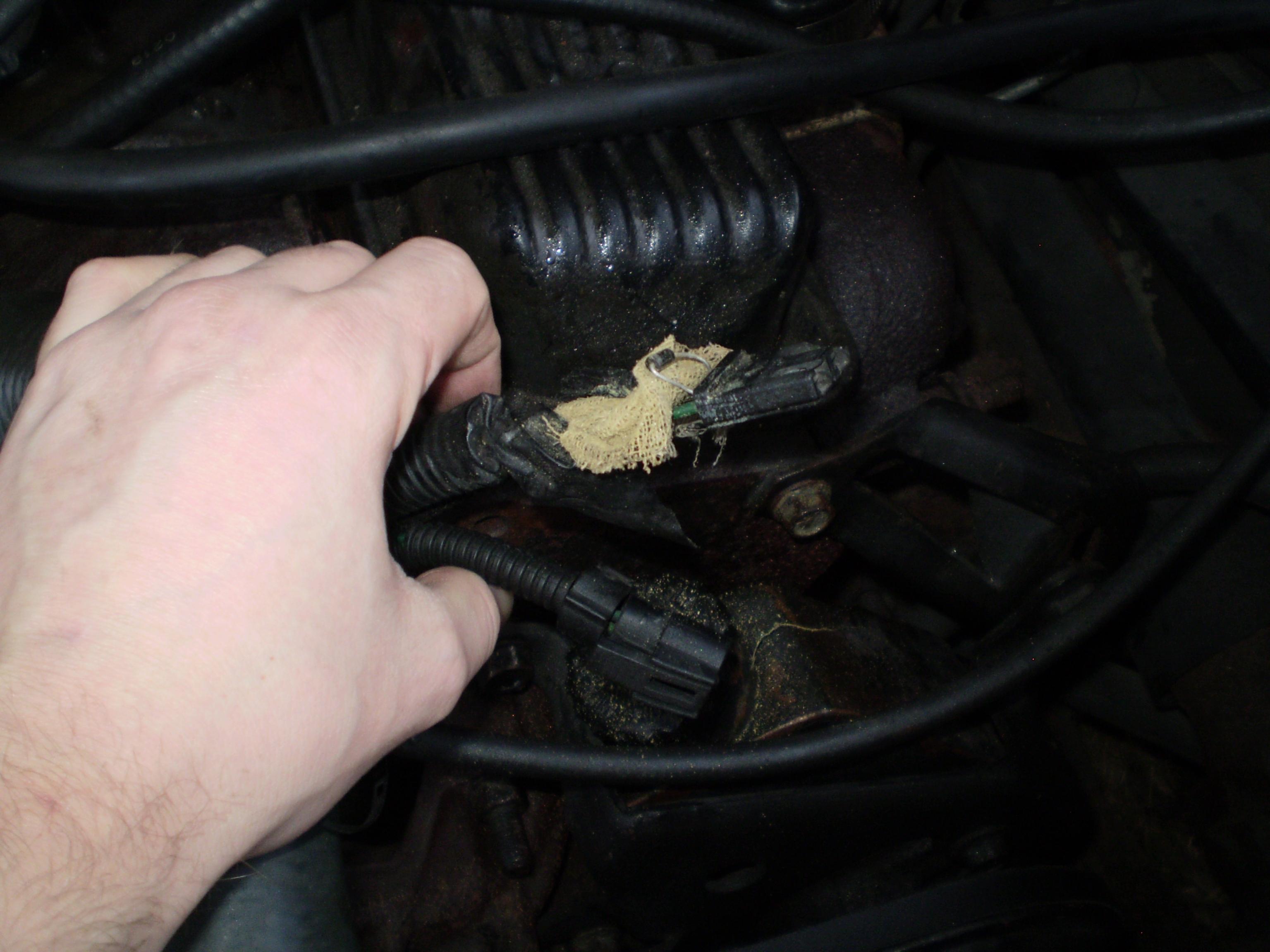

3rd post 1st pic- I believe both of those are a/c; flat connector for clutch and round for plug on back of compressor iirc
Thread Starter
Member
Joined: May 2010
Posts: 247
Likes: 0
From: Toronto, Ontario
Car: 1987 Z28 Camaro
Engine: 30Slow
Transmission: 700R4
Junior Member
Joined: Jan 2011
Posts: 63
Likes: 0
Re: Bunch Of Electrical *Pics*
EDIT: Sorry this is a really old(and really bad...) pic of what it looks like, look at the bottom corner below the coolant hose and youll see what I'm talking about:
Last edited by Angelini; Jan 19, 2011 at 01:22 AM.
Senior Member
Joined: Feb 2010
Posts: 1,125
Likes: 1
From: San Diego, California
Car: Trailblazer EXT 4.2 (Firebird Form)
Engine: 5.1 4bbl
Transmission: 700R4 Mega Raptor Level 4
Axle/Gears: 2.73
Re: Bunch Of Electrical *Pics*

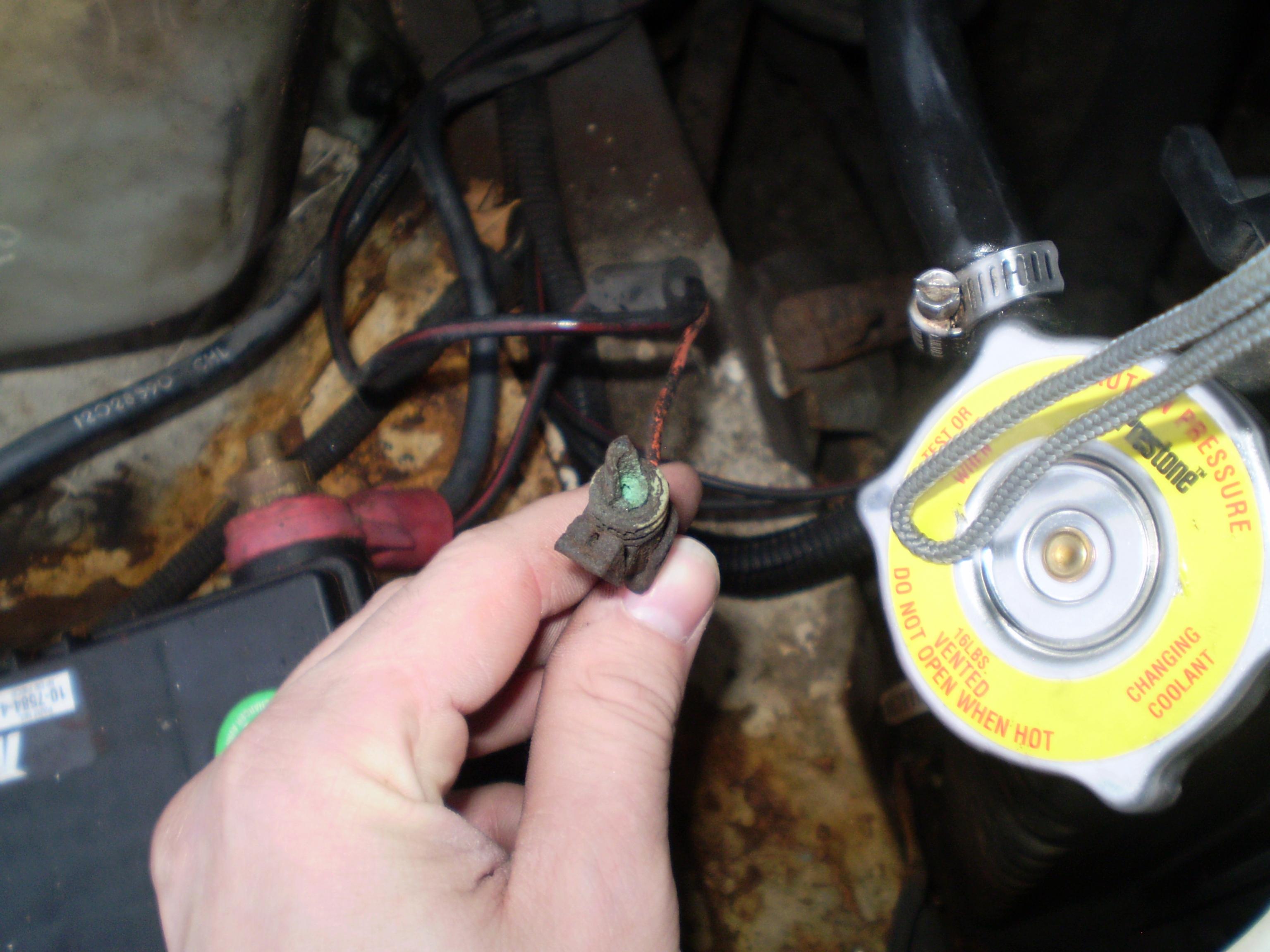

the orange one by the radiator might be the juice to your ECM
Thread Starter
Member
Joined: May 2010
Posts: 247
Likes: 0
From: Toronto, Ontario
Car: 1987 Z28 Camaro
Engine: 30Slow
Transmission: 700R4
Re: Bunch Of Electrical *Pics*
Pics 1/2 are for something at the power dist block. It may be underhood light, may not. Whatever it was its fried now

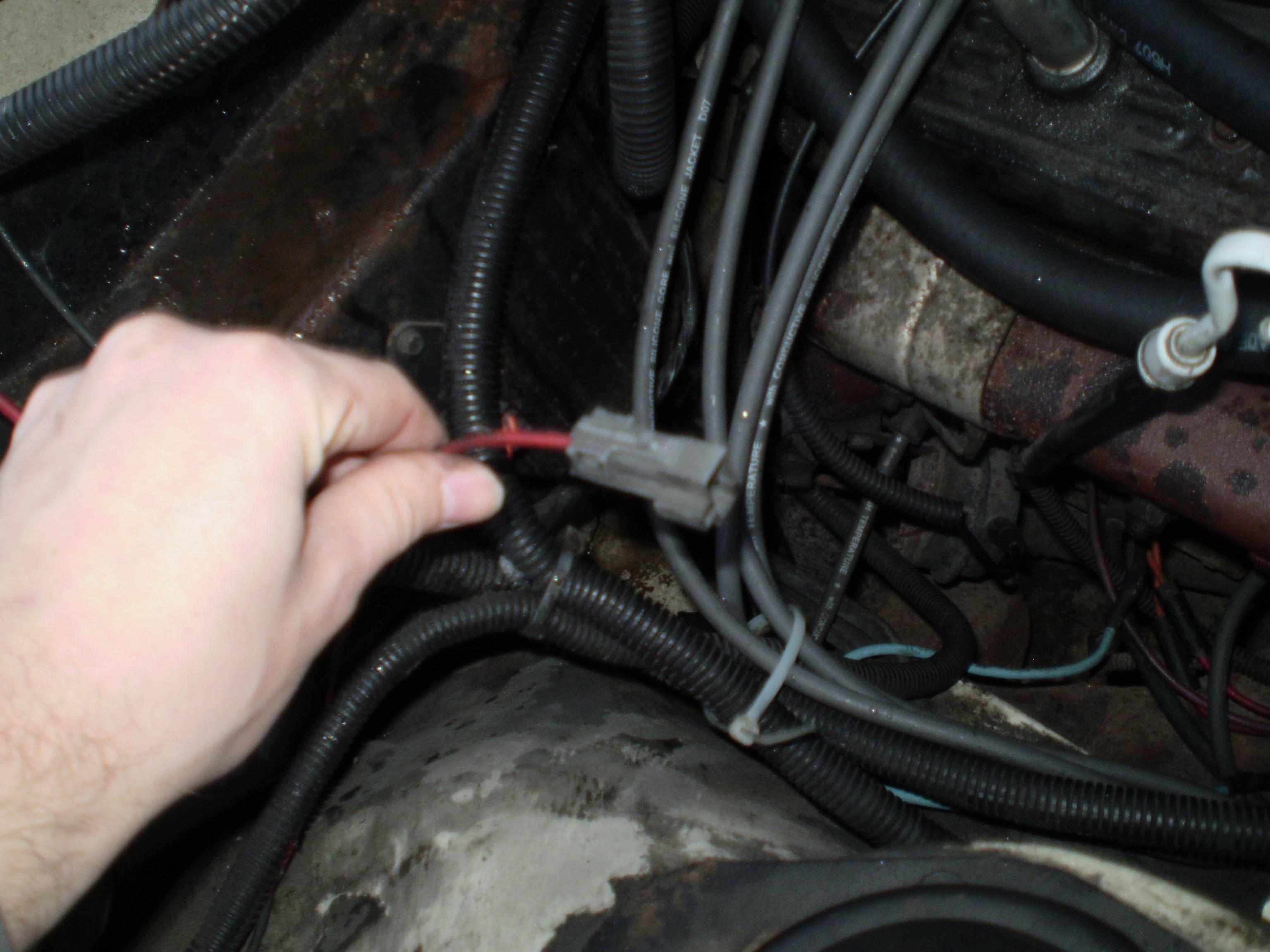

Pics 3/4 is heater blower motor relay 12v battery power

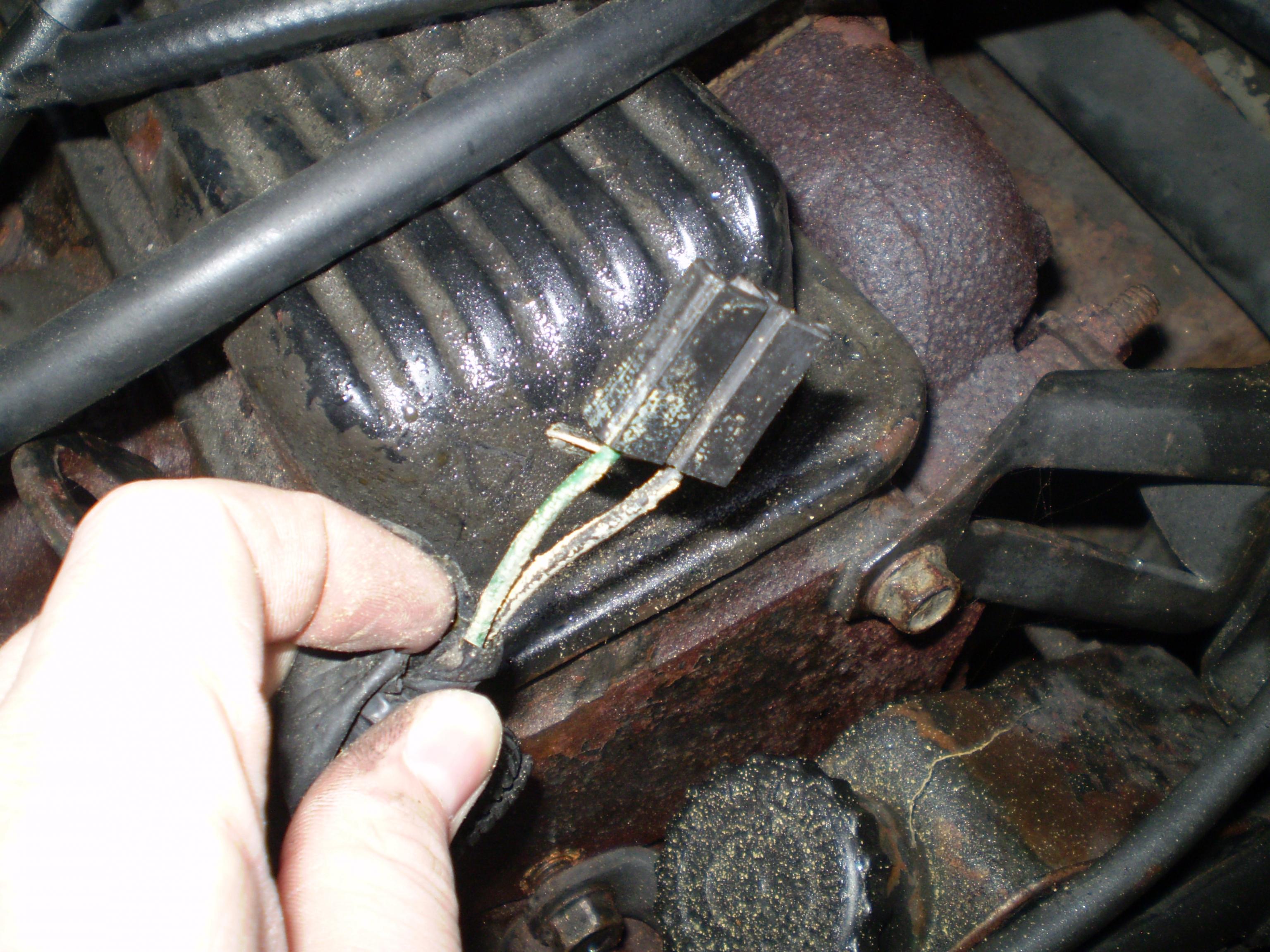

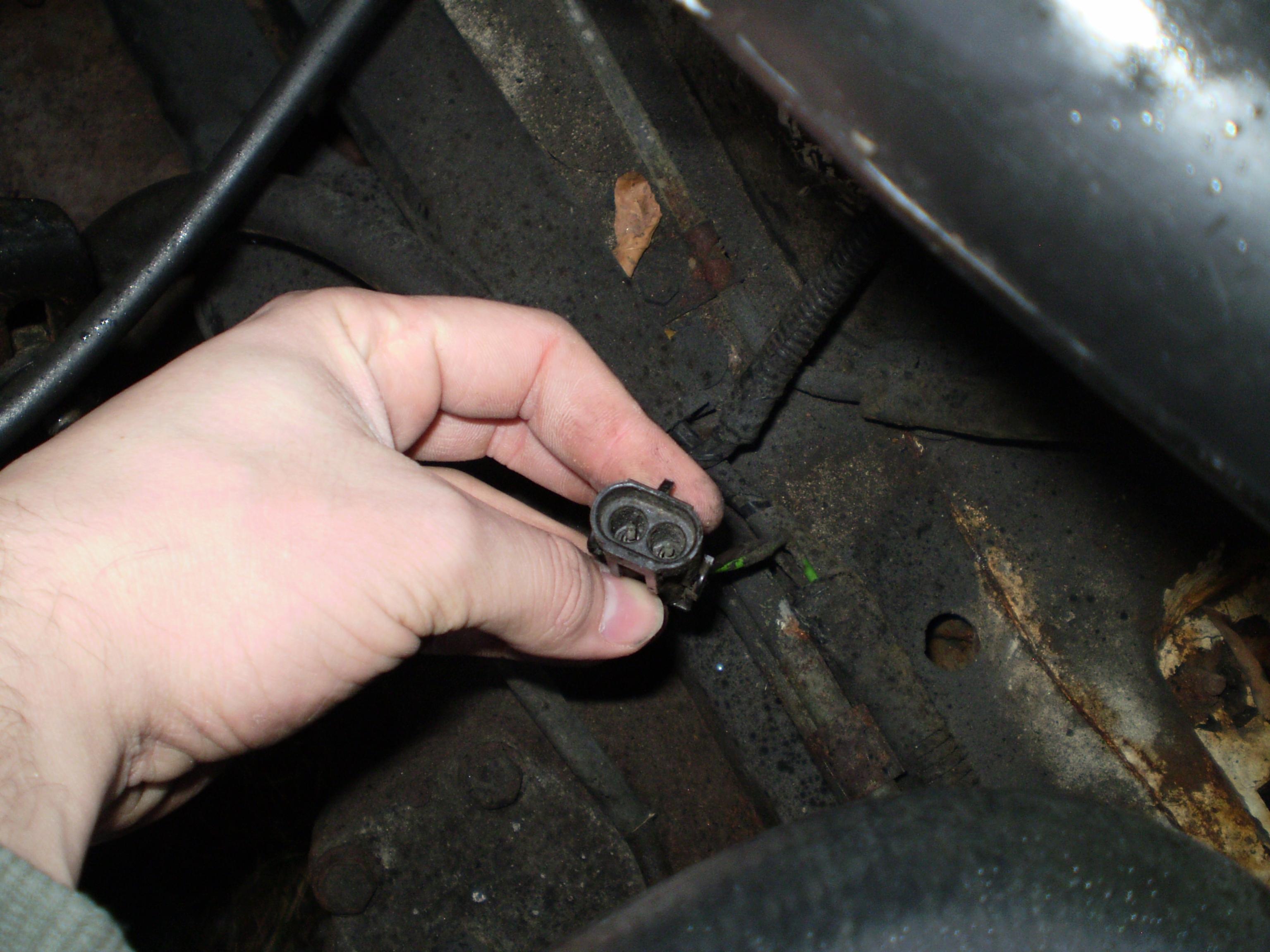

6/7 are AC compressor connectors. Flat one with the external diode is the front for the clutch. Round goes on the rear for a pressure sensor

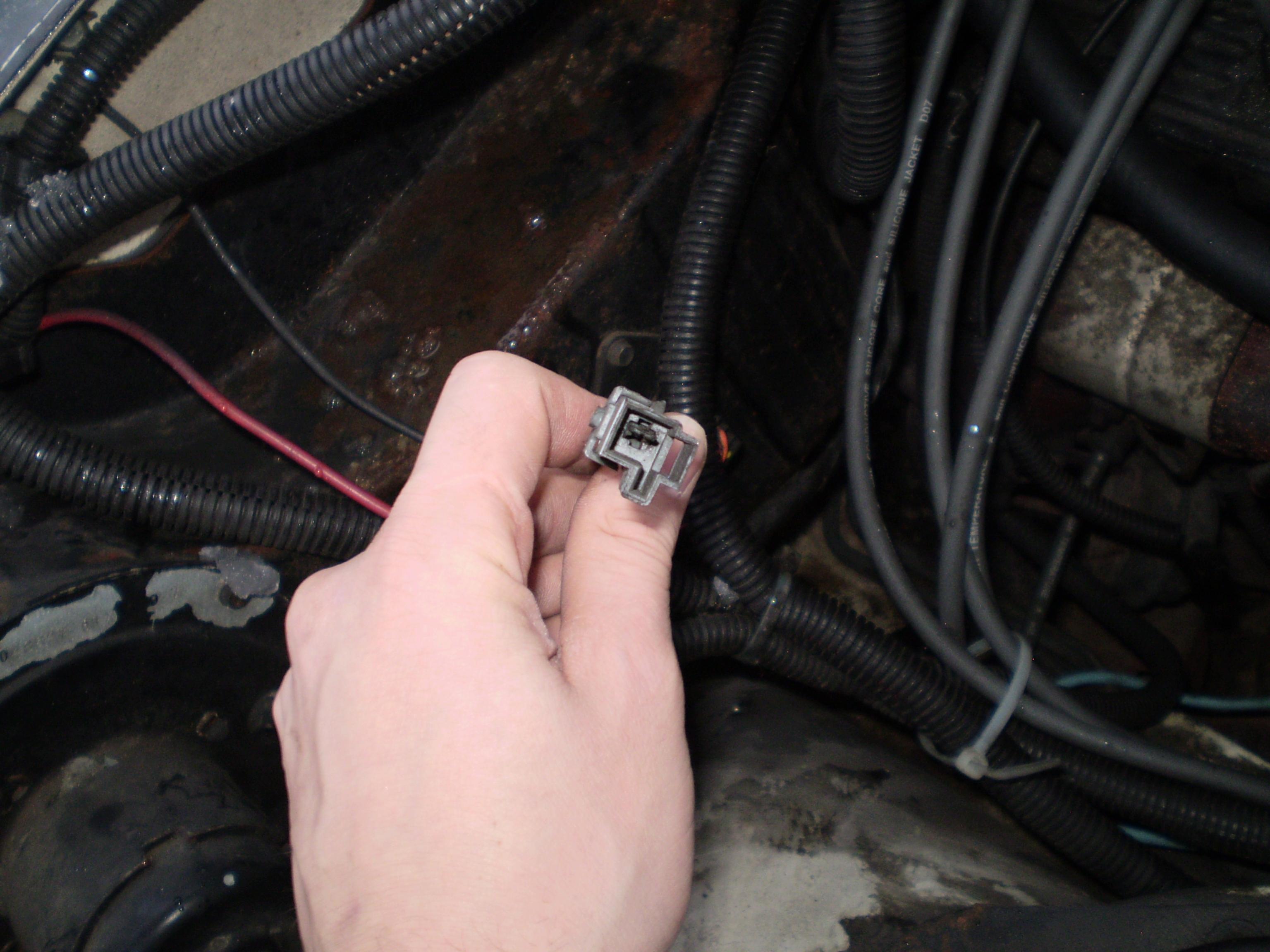

8/9 fog light connector
10/11 AC stuff again
Pics 3/4 is heater blower motor relay 12v battery power
6/7 are AC compressor connectors. Flat one with the external diode is the front for the clutch. Round goes on the rear for a pressure sensor
8/9 fog light connector
10/11 AC stuff again
