Im looking to convert a switch
#1
Im looking to convert a switch

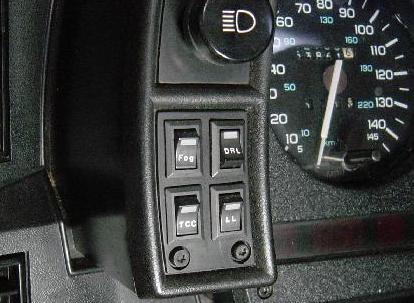

So, I am making a little bezel for a couple of lights on my instrument panel. I need to convert the big fog light switch to a smaller one. Like the ones shown below. How can I do this without having any wires running to hot? Any help please. Thanks! Also, the best kind of switches suggested for this? I am running HIDs in the fogs if that makes a difference. I have to be able to fit 4 switches on there though. So they have to be pretty small. Thanks!
Last edited by Annihilate; 04-02-2014 at 05:48 PM.
#2
Senior Member
iTrader: (5)
Join Date: Jan 2009
Location: Golden, CO
Posts: 887
Likes: 0
Received 11 Likes
on
9 Posts
Car: 87 IROC
Engine: L31 350
Transmission: T56
Axle/Gears: 4.10 D44
Re: Im looking to convert a switch
A switch is inline with the load. Wiring for a simple on/off switch is either:
+12 - load/light/etc - switch - ground
or
+12 - switch - load/light/etc - ground
with each "-" being a wire.
Or did you mean "too hot"? As in drawing too much current through the switch? In that case, you wire the switch to control a relay at low power, and the relay controls higher power to the light(s).
Check the power rating on the new switches you want to use. A good rule of thumb is the fuse supplying power to the switch is less than the switch rating.
+12 - load/light/etc - switch - ground
or
+12 - switch - load/light/etc - ground
with each "-" being a wire.
Or did you mean "too hot"? As in drawing too much current through the switch? In that case, you wire the switch to control a relay at low power, and the relay controls higher power to the light(s).
Check the power rating on the new switches you want to use. A good rule of thumb is the fuse supplying power to the switch is less than the switch rating.
#3
Re: Im looking to convert a switch
Do you know the stock power rating of the stock switch?

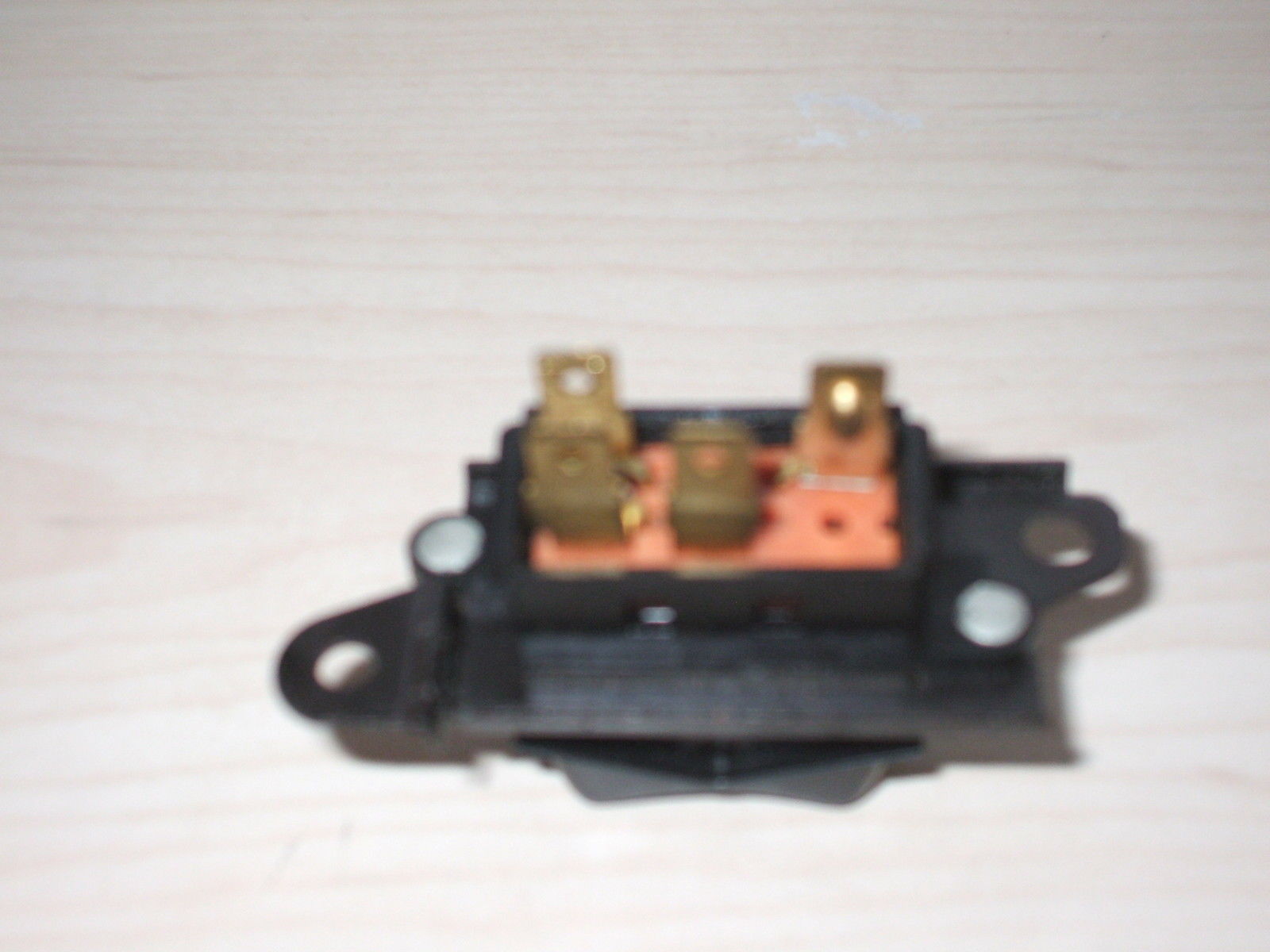

Also, I was mainly confused because the stock switch has 4 little prongs. Why does it need so many? Shown here. How can I convert the wires from the 4 prong to a 2 or 3 prong?
Also, I was mainly confused because the stock switch has 4 little prongs. Why does it need so many? Shown here. How can I convert the wires from the 4 prong to a 2 or 3 prong?
Last edited by Annihilate; 04-02-2014 at 06:01 PM.
#4
Senior Member
iTrader: (5)
Join Date: Jan 2009
Location: Golden, CO
Posts: 887
Likes: 0
Received 11 Likes
on
9 Posts
Car: 87 IROC
Engine: L31 350
Transmission: T56
Axle/Gears: 4.10 D44
Re: Im looking to convert a switch
AustinThirdGen shows a 5 wire connection, middle right side of image.
You need two at a minimum:
Brown = +12V when the lights are on.
Brown/White = this supplies low power to the relay.
The others are extra, IF these are the same on your car:
Grey = light that is lit with the other dash lights.
Black = ground
Purple = light that is lit when the foglights are turned on.
You need two at a minimum:
Brown = +12V when the lights are on.
Brown/White = this supplies low power to the relay.
The others are extra, IF these are the same on your car:
Grey = light that is lit with the other dash lights.
Black = ground
Purple = light that is lit when the foglights are turned on.
#5
Re: Im looking to convert a switch
[QUOTE=MoJoe;5741998]AustinThirdGen shows a 5 wire connection, middle right side of image.
You need two at a minimum:
Brown = +12V when the lights are on.
Brown/White = this supplies low power to the relay.
The others are extra, IF these are the same on your car:
Grey = light that is lit with the other dash lights.
Black = ground
Purple = light that is lit when the foglights are turned on.
/snip
So I don't need the ground hooked up? How many volts/amps should the switch be?
You need two at a minimum:
Brown = +12V when the lights are on.
Brown/White = this supplies low power to the relay.
The others are extra, IF these are the same on your car:
Grey = light that is lit with the other dash lights.
Black = ground
Purple = light that is lit when the foglights are turned on.
/snip
So I don't need the ground hooked up? How many volts/amps should the switch be?
Last edited by Annihilate; 04-03-2014 at 12:48 PM.
#6
Senior Member
iTrader: (5)
Join Date: Jan 2009
Location: Golden, CO
Posts: 887
Likes: 0
Received 11 Likes
on
9 Posts
Car: 87 IROC
Engine: L31 350
Transmission: T56
Axle/Gears: 4.10 D44
Re: Im looking to convert a switch
+12 to switch to relay to ground.
Switch should be a minimum of 12V, but could be rated up to hundreds. Amp will probably be in the 3A-5A range, with less than 1A being sufficient for this situation.
Trending Topics
#10
Senior Member
iTrader: (5)
Join Date: Jan 2009
Location: Golden, CO
Posts: 887
Likes: 0
Received 11 Likes
on
9 Posts
Car: 87 IROC
Engine: L31 350
Transmission: T56
Axle/Gears: 4.10 D44
Re: Im looking to convert a switch
I'd say just use the brown wire for the low + supply to the relay. IIRC this is how/why the fog lights only work once you've turned the parking lights on (as well as with the headlights).
Thread
Thread Starter
Forum
Replies
Last Post
1992 Trans Am
History / Originality
27
05-10-2023 07:19 PM
