Starter wiring?

So I just had a new engine installed last week. The shop apparently didnt tighten down the purple ignition wire, as its not attached. Theres also a very thin gray wire the same length, not sure if its critical. I got a new Procomp starter, and am unsure of where the 2 wires go. The car is low, so I cant get under it without a lift. I can get to the starter by the side of the engine, but cant really see whats happening down there. Any ideas?
Reply
Old Jan 16, 2015 | 01:17 AM
  #2
DirtySpleen's Avatar
Thread Starter
Member

Joined: May 2013
Posts: 148
Likes: 0
From: Tacoma, WA
Car: 1991 Camaro RS
Engine: 5.0 L03
Transmission: T-5
Axle/Gears: 3.43 Torsen 10 bolt
Re: Starter wiring?

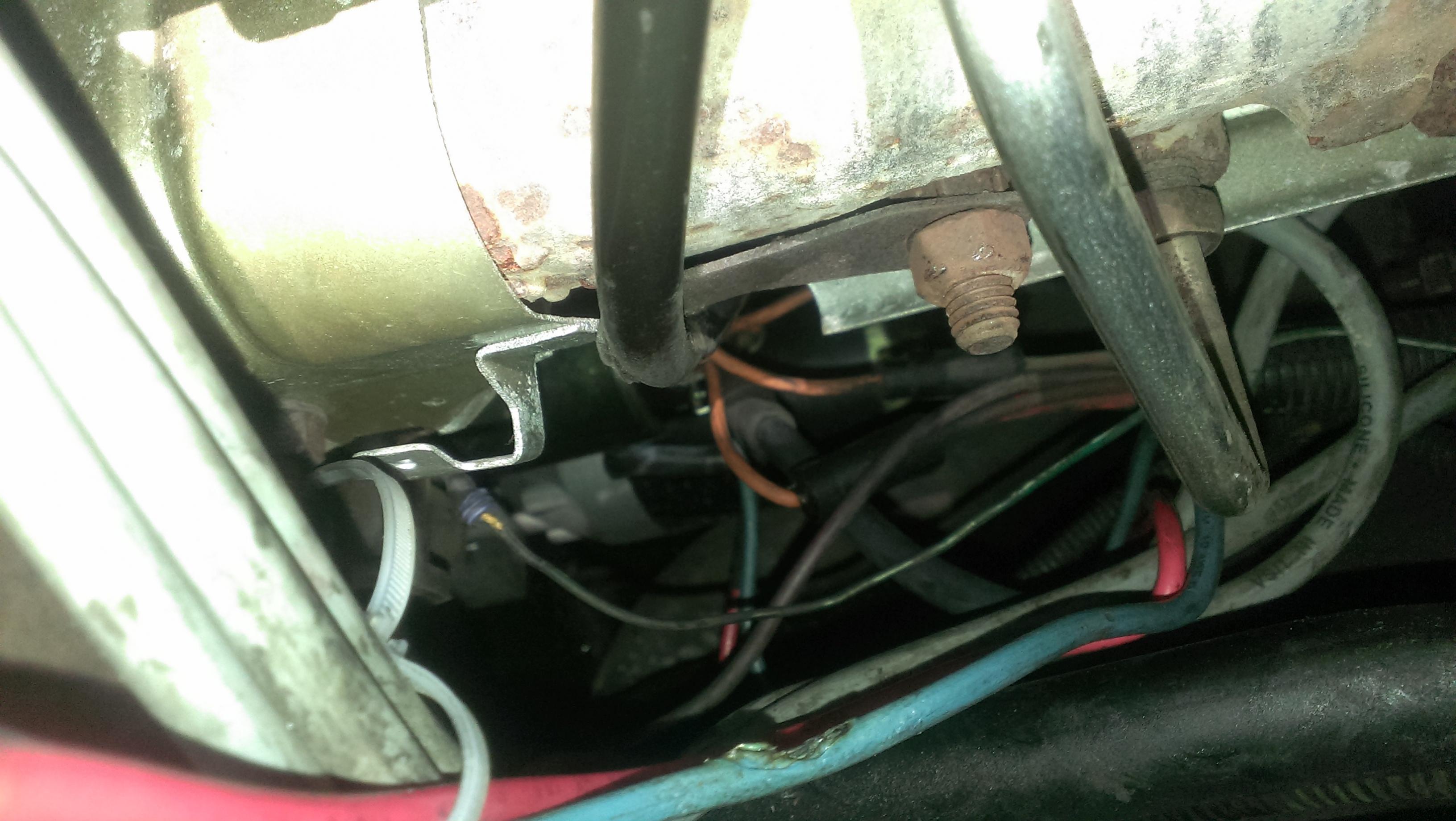

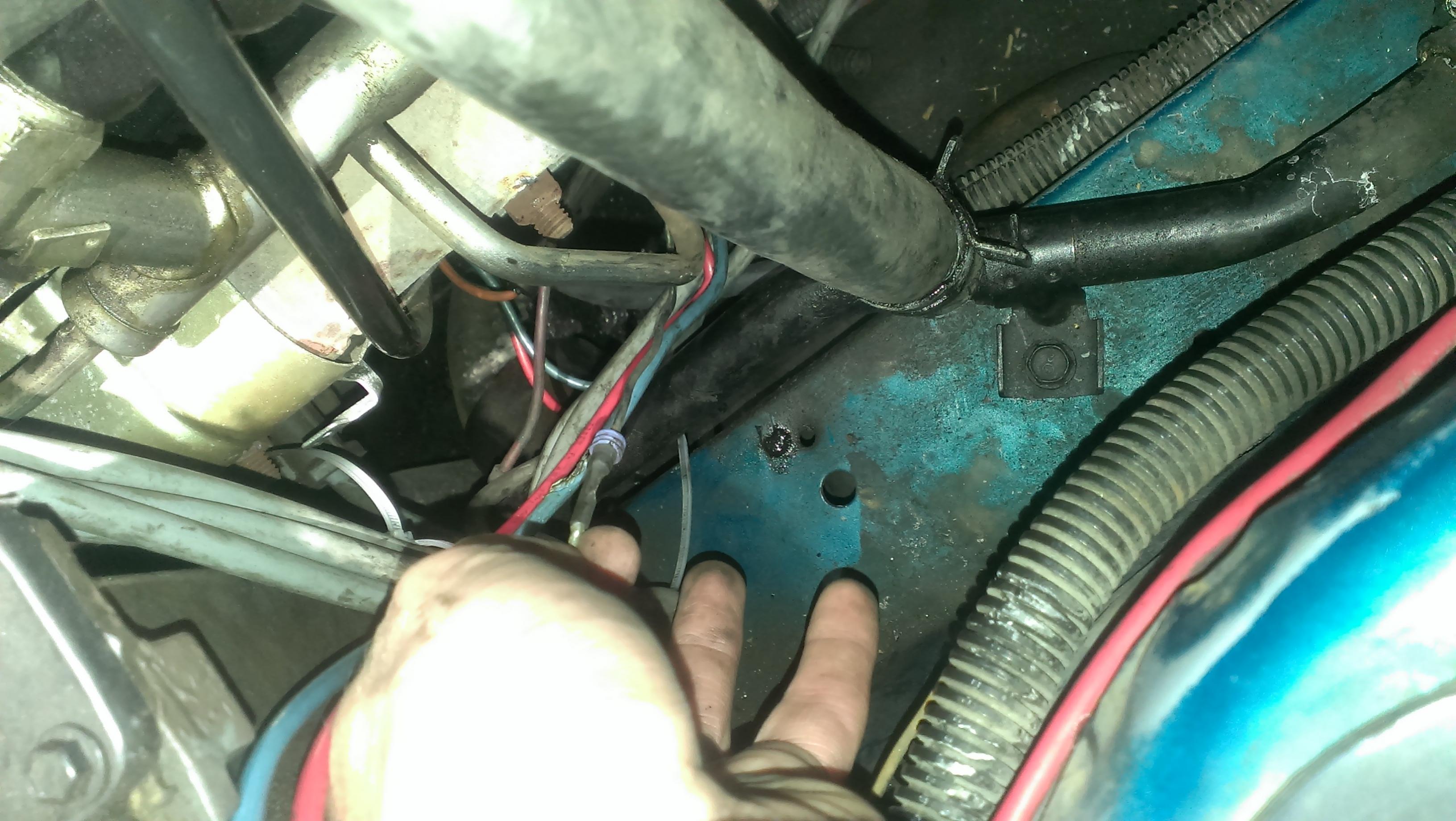

See attached Images. one of the purple wire (Has an eyelet that im holding) one of the gray wire that im unsure about, and the third is a peneral pic of what can be seen, like the orange and red wires.
Attached Thumbnails Starter wiring?-imag0796.jpg   Starter wiring?-imag0797.jpg   Starter wiring?-imag0798.jpg
Reply
Old Jan 16, 2015 | 02:42 AM
  #3
ntomsheck's Avatar
Senior Member
iTrader: (1)

Joined: Jul 2006
Posts: 506
Likes: 1
Car: 1989 GTA
Engine: 350TPI w/ Speed Density
Transmission: 700r4
Axle/Gears: Borg warner 3.27
Re: Starter wiring?

On my car, my knock sensor has a white wire, which is closer to gray due to age and grime. My knock sensor is also by my starter.
