86 chevy Camaro ac clutch cycling switch

Thread Tools

Search this Thread

Old Apr 14, 2020 | 10:52 PM
  #1
Jones Sharp's Avatar
Thread Starter
Junior Member

Joined: Apr 2020
Posts: 4
Likes: 0
86 chevy Camaro ac clutch cycling switch

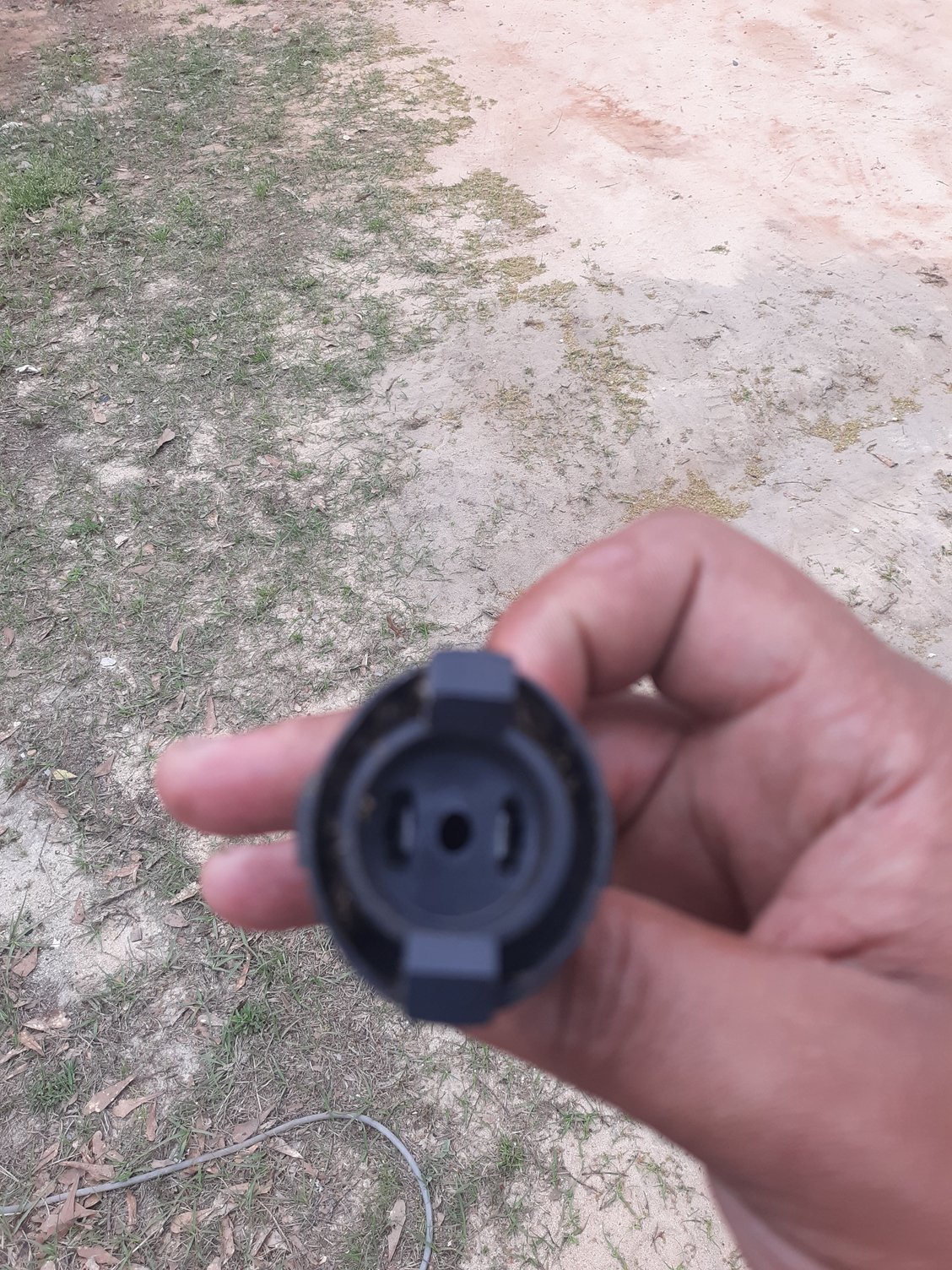

Need help trying to fine where does the blue wire goes to
Reply
Old Apr 15, 2020 | 08:16 AM
  #2
sofakingdom's Avatar
Supreme Member
20 Year Member
Community Builder
iTrader: (1)

Joined: Sep 2005
Posts: 27,918
Likes: 2,448
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: 86 chevy Camaro ac clutch cycling switch

To the power steering cutoff switch.
Reply
Old Apr 15, 2020 | 08:29 AM
  #3
Jones Sharp's Avatar
Thread Starter
Junior Member

Joined: Apr 2020
Posts: 4
Likes: 0
Re: 86 chevy Camaro ac clutch cycling switch

Originally Posted by sofakingdom
To the power steering cutoff switch.
that for ac green wire is going in side the firewall but I dont kno wire the blue goes
Reply
Old Apr 15, 2020 | 08:51 AM
  #4
sofakingdom's Avatar
Supreme Member
20 Year Member
Community Builder
iTrader: (1)

Joined: Sep 2005
Posts: 27,918
Likes: 2,448
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: 86 chevy Camaro ac clutch cycling switch

Right: power in that version comes from the control head via the green wire to the low-pressure switch, then to the power steering cutoff switch via the blue wire, then to the control module & compressor relay.

I'd suggest getting another one of that connector at the junkyard, rather than trying to splice to wires that short. The same connector is on MILLIONS of vehicles from that era.
Reply
Old Apr 15, 2020 | 08:54 AM
  #5
Jones Sharp's Avatar
Thread Starter
Junior Member

Joined: Apr 2020
Posts: 4
Likes: 0
Re: 86 chevy Camaro ac clutch cycling switch

I'm in alabama no junk yard has this vehicle in there
so the blue goes to the compressor its self then?
Reply
Old Apr 15, 2020 | 09:12 AM
  #6
sofakingdom's Avatar
Supreme Member
20 Year Member
Community Builder
iTrader: (1)

Joined: Sep 2005
Posts: 27,918
Likes: 2,448
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: 86 chevy Camaro ac clutch cycling switch

no junk yard has this vehicle in there
You weren't listening. You don't need "this vehicle". ANY GM vehicle from the 80s will have that connector; trucks, full-size, FWD econoboxes, … ALL of em. They ALL used the same low-pressure cutoff switch. (the thing that connector connects to)

blue goes to the compressor its self then?
You weren't listening. The blue in that connector goes to the power steering cutoff switch.

from the control head via the green wire to the low-pressure switch, then to the power steering cutoff switch via the blue wire, then to the control module & compressor relay
