Horn and Fuel Gauge quit working

Are these by some chance on the same circuit at the fuse box? If it's a fuse, is this all that won't work, or did I miss something else that should be not working?
The fuel gauge failed by showing FULL, when in fact it's almost completely empty. Horn just won't honk.

Last edited by Roger Davis; Mar 20, 2023 at 03:24 AM.
Reply
Old Mar 20, 2023 | 07:17 AM
  #2
ShiftyCapone's Avatar
Supporter/Moderator
25 Year Member
iTrader: (7)

Joined: Feb 2001
Posts: 13,753
Likes: 560
From: Cincinnati, OH
Car: '90 RS
Engine: 377 LSX
Transmission: Magnum T56
Re: Horn and Fuel Gauge quit working

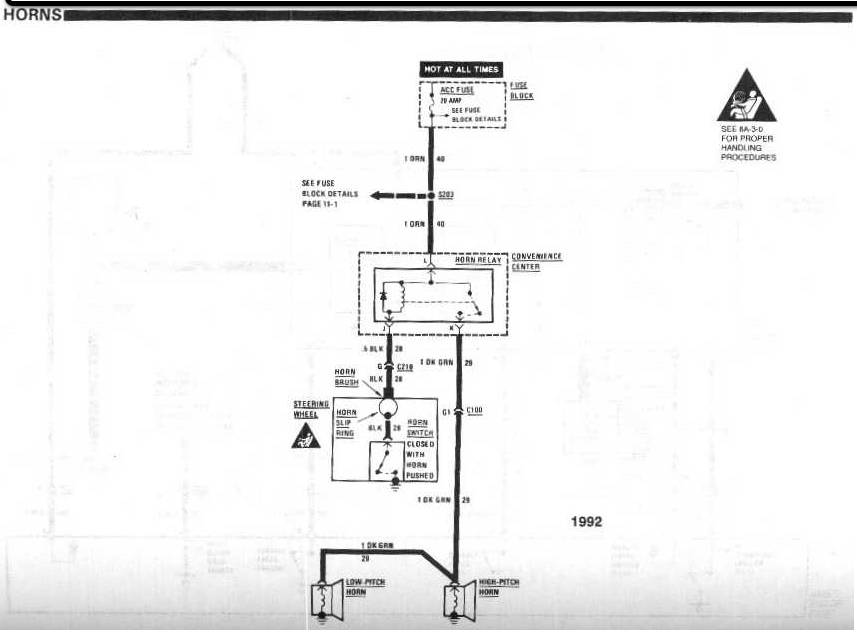

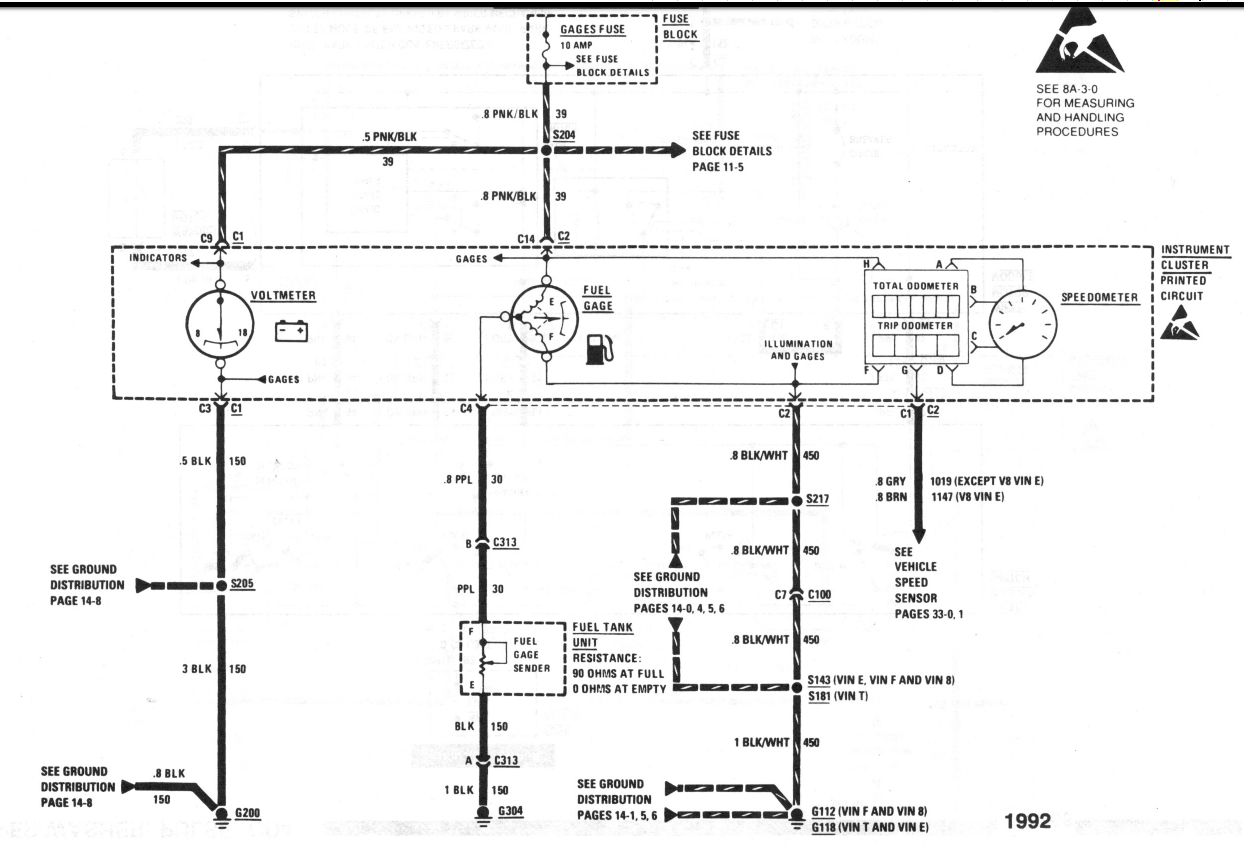

Separate circuits. The horn goes through the C100 into the dash harness (green) and then to the relay at the convenience center. If you take the center of the steering wheel off you can see the spring contact for the horn. Its fragile, perhaps it disengaged. I would also check the relay (actually, do this first).

As for fuel, that circuit runs along the driver side door sill and through a bulkhead in between the rear seats. The wire for the gage is purple. If your fuel sending unit is original, it may be stuck and or just plain dead.
Reply
Old Mar 20, 2023 | 07:42 AM
  #3
91banditt2's Avatar
Supreme Member
20 Year Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Dec 2000
Posts: 2,341
Likes: 151
From: Cincinnati,Ohio
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Re: Horn and Fuel Gauge quit working

As it was said two different circuits
