Blower fan resistor wiring diagram.
Does anyone have a diagram for the blower motor, relay and resistor wiring? Some idiot, (me) removed the resistor years ago to clean things up and now I want to put it back. I have 3 or 4 wires that are cut where they came out the firewall under the heater box but I cannot find a proper diagram with the matching colors.
1986 trans am.
Thank you.
1986 trans am.
Thank you.
Re: Blower fan resistor wiring diagram.
Does anyone have a diagram for the blower motor, relay and resistor wiring? Some idiot, (me) removed the resistor years ago to clean things up and now I want to put it back. I have 3 or 4 wires that are cut where they came out the firewall under the heater box but I cannot find a proper diagram with the matching colors.
1986 trans am.
Thank you.
1986 trans am.
Thank you.

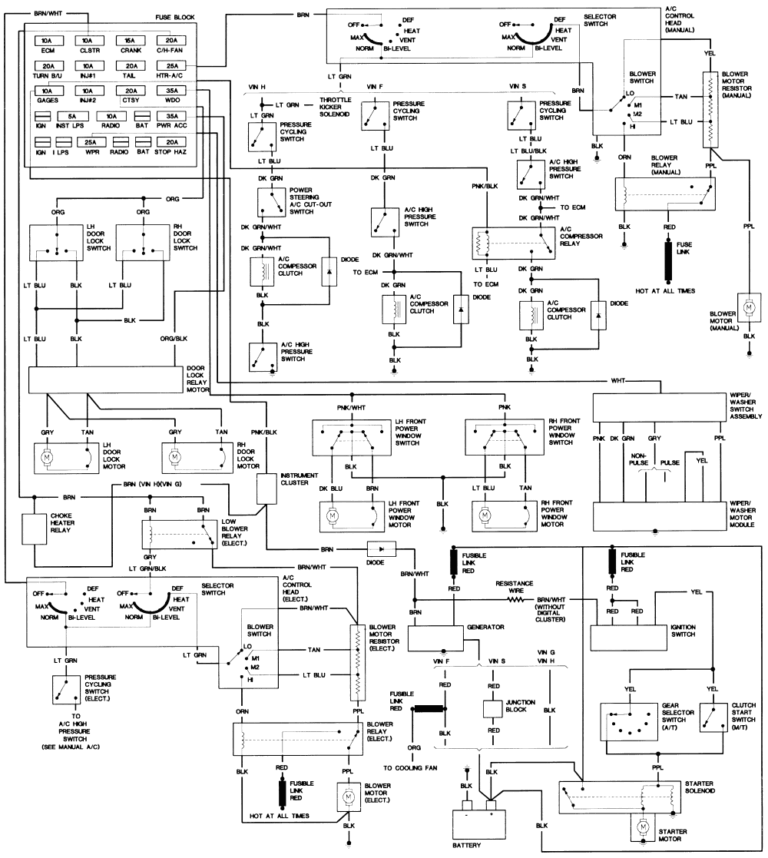

PS, where the HVAC wiring says "manual" that refers to the non digital controls version (regular "manual" dash VS the electronic digital dash)
Thread Starter
Joined: Aug 2006
Posts: 12,804
Likes: 103
From: Central NJ
Car: 86 Trans Am
Engine: 408 stroker sbc
Transmission: TKO600
Axle/Gears: Moser full floater m9, 3:70 trutrac
Re: Blower fan resistor wiring diagram.
Thank you sir!
