Connector ID?

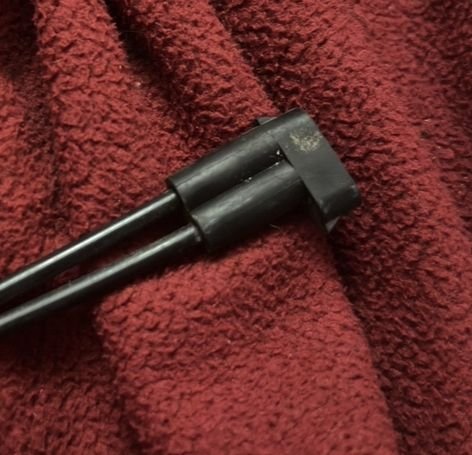

Been pouring over manuals all morning and cant seem to find anything referencing this vacuum line and its connector, trying to find out where it goes so i can just be done with it and the hvac lines so someone please humor me and tell me where this thing belongs lol. its the two lines that run from the heat selector on the hvac control head
Reply
Old Oct 31, 2024 | 10:50 AM
  #2
sofakingdom's Avatar
Supreme Member
20 Year Member
Community Builder
iTrader: (1)

Joined: Sep 2005
Posts: 27,893
Likes: 2,435
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Connector ID?

Looks like for the heater control control valve. (yeah I know that sounds stuuupid butt I don't know the right name, if there even is one) The valve on the control head that controls the heater control valve is separate from the main vacuum valve, because it's worked by the temp lever, not the "mode" selector. Those lines go to it.
Reply
Old Oct 31, 2024 | 11:40 AM
  #3
violent's Avatar
Thread Starter
Junior Member

Joined: Oct 2024
Posts: 3
Likes: 0
From: none of your damn buisness
Car: 1991 Camaro z28
Engine: 383
Transmission: 700r4
Re: Connector ID?

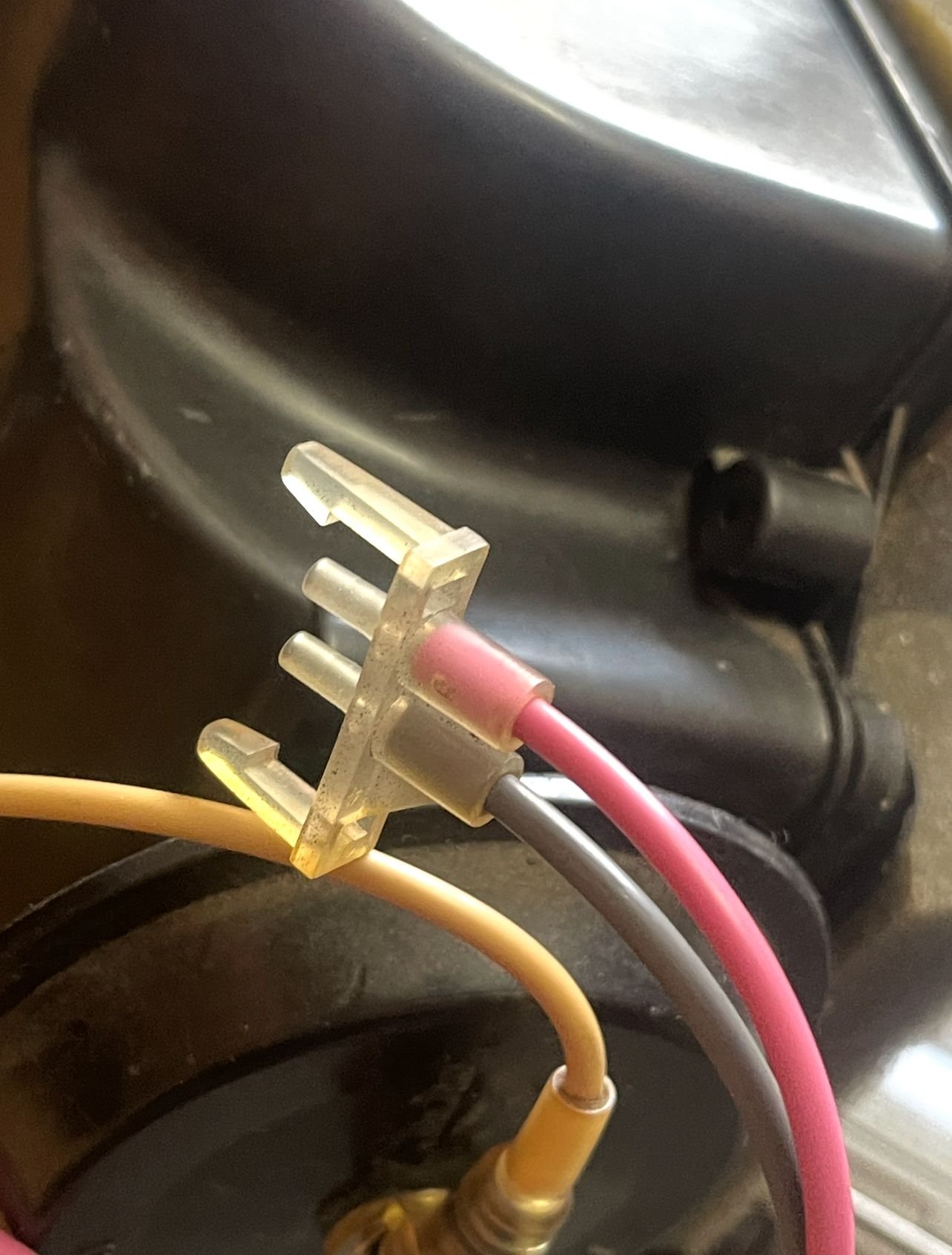

Just saved my *** big time thanks man! For anyone in the future who may look at this post for an answer on exactly where it connects, it connects to a pretty oddly shaped black connector within the hvac control wiring harness (will attatch a pic below)
Reply
