[CA] ASM 52mm Throttle Body $200 (USED)
Thread Starter
Joined: Jun 2009
Posts: 863
Likes: 33
From: Bellflower, CA
Car: 89 Formula, 85 Trans AM & 91 Bird
Engine: 5.0 CARB, 5.7L TPI & 3.1L V6
Transmission: T-5/700R4/700R4
Axle/Gears: 9 Bolt & 10 Bolt X2
ASM 52mm Throttle Body $200 (USED)
If you're interested I can take some photographs for you,
Want a title? Post!
Joined: Jun 2014
Posts: 0
Likes: 0
From: Afton VA.
Car: 46 Chevy truck
Engine: 355
Transmission: 700r4
Axle/Gears: 342
Re: ASM 52mm Throttle Body $200 (USED)
How well used is it,, as in how many miles and age and condition. Pics would be great also. Thanks
Thread Starter
Joined: Jun 2009
Posts: 863
Likes: 33
From: Bellflower, CA
Car: 89 Formula, 85 Trans AM & 91 Bird
Engine: 5.0 CARB, 5.7L TPI & 3.1L V6
Transmission: T-5/700R4/700R4
Axle/Gears: 9 Bolt & 10 Bolt X2
Re: ASM 52mm Throttle Body $200 (USED)
Note - Includes a TPIS Throttle Body ID Plate, anodized Jet Black with Stainless Steel Screws, not the Original AS&M ID Plate/Screws (I'm keeping those).
Note - Not Included is a TPIS Billet IAC Housing anodized "BLACK" with Stainless Steel Screws.
Note - Not Included is a TPIS Billet IAC Housing anodized "BLACK" with Stainless Steel Screws.
Member
iTrader: (5)
Joined: Aug 2006
Posts: 311
Likes: 1
From: Stafford, Connecticut
Car: 87 Iroc
Engine: modified 350
Transmission: high performance built 700R4
Axle/Gears: Strange S60 3:73
Re: ASM 52mm Throttle Body $200 (USED)
well since your keeping all the good stuff how about $10
Thread Starter
Joined: Jun 2009
Posts: 863
Likes: 33
From: Bellflower, CA
Car: 89 Formula, 85 Trans AM & 91 Bird
Engine: 5.0 CARB, 5.7L TPI & 3.1L V6
Transmission: T-5/700R4/700R4
Axle/Gears: 9 Bolt & 10 Bolt X2
Re: ASM 52mm Throttle Body $200 (USED)
Front & Top
Thread Starter
Joined: Jun 2009
Posts: 863
Likes: 33
From: Bellflower, CA
Car: 89 Formula, 85 Trans AM & 91 Bird
Engine: 5.0 CARB, 5.7L TPI & 3.1L V6
Transmission: T-5/700R4/700R4
Axle/Gears: 9 Bolt & 10 Bolt X2
Re: ASM 52mm Throttle Body $200 (USED)

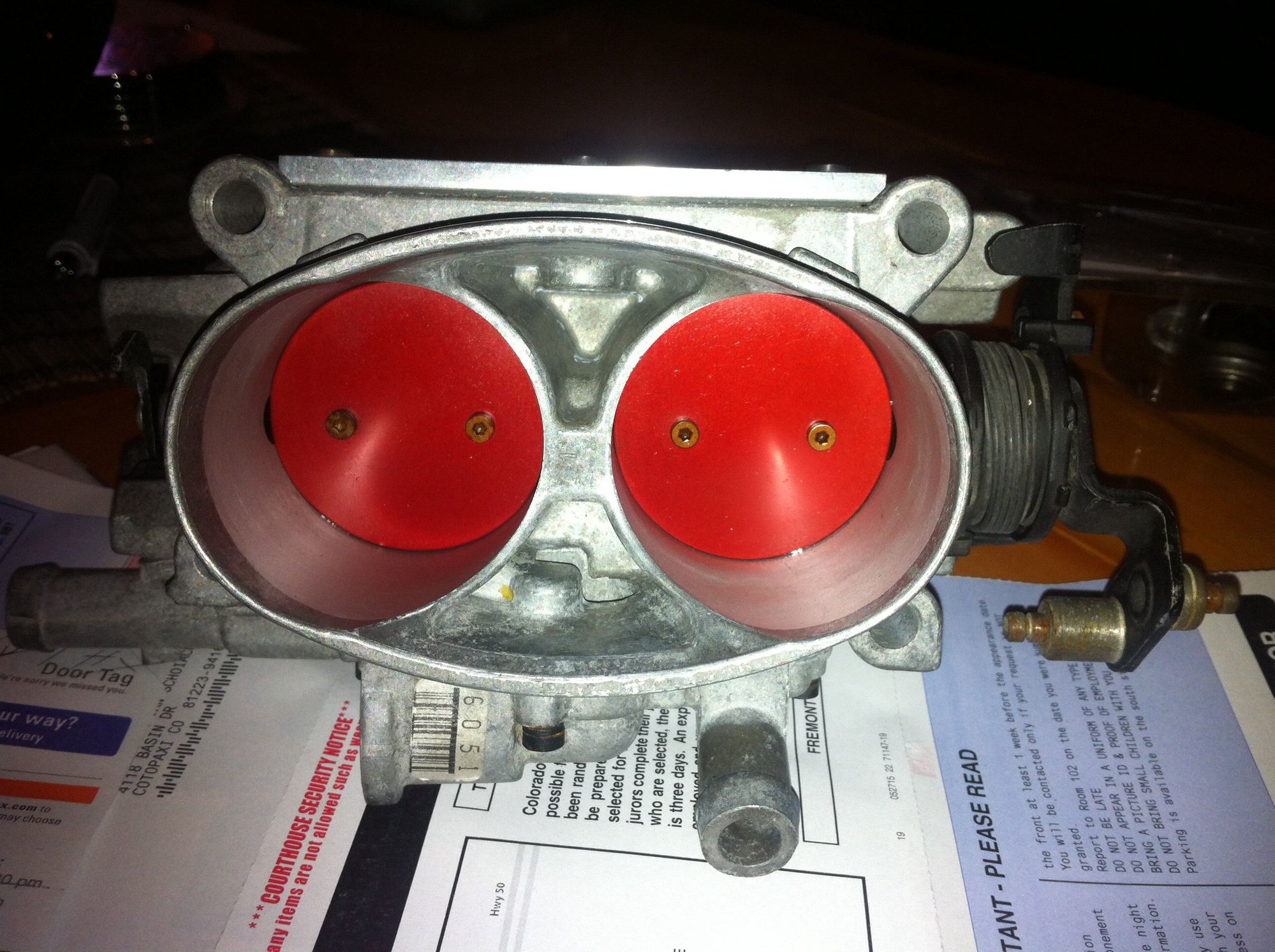

Front Bores
Thread Starter
Joined: Jun 2009
Posts: 863
Likes: 33
From: Bellflower, CA
Car: 89 Formula, 85 Trans AM & 91 Bird
Engine: 5.0 CARB, 5.7L TPI & 3.1L V6
Transmission: T-5/700R4/700R4
Axle/Gears: 9 Bolt & 10 Bolt X2
Re: ASM 52mm Throttle Body $200 (USED)
Rear
Trending Topics
Joined: Dec 2004
Posts: 16,929
Likes: 1,016
From: Mile High Country !!!
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: ASM 52mm Throttle Body $200 (USED)
The as&m bored out 48mm tb's I have had have a anodized throttle blades. This looks like a 85-88 tb with 89-92 wrap around throttle cable end.
Last edited by Tuned Performance; May 12, 2015 at 09:16 PM.
Thread Starter
Joined: Jun 2009
Posts: 863
Likes: 33
From: Bellflower, CA
Car: 89 Formula, 85 Trans AM & 91 Bird
Engine: 5.0 CARB, 5.7L TPI & 3.1L V6
Transmission: T-5/700R4/700R4
Axle/Gears: 9 Bolt & 10 Bolt X2
Re: ASM 52mm Throttle Body $200 (USED)
Is there a way of verifying that this is indeed an AS&M Throttle Body?
Joined: Mar 2005
Posts: 615
Likes: 27
From: Austin TX
Car: 89 Formula
Engine: 383 SBC/HSR
Transmission: 700R4
Axle/Gears: 3.73
Re: ASM 52mm Throttle Body $200 (USED)
I don't think you can put an air foil in an AS&M TB, and that piece you have is cast, not billet. So I'm pretty sure it's not.
The only thing that looks like it's from AS&M is the IAC.
The only thing that looks like it's from AS&M is the IAC.
Joined: Dec 2004
Posts: 16,929
Likes: 1,016
From: Mile High Country !!!
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: ASM 52mm Throttle Body $200 (USED)
Tpis, lingenfelter, as&m , eBay you use to be able to get your 48mm bored out.
The 89/92 tb has the iac passage connected to the throttle bores. If this was put on a 89-92 plenum the iac would not be functional to control idle.
There is break through on two holes from boring. The lh side hole wasn't block off with that iac housing. That would cause a big vacuum leak. No one who bored out the tbs marked them with there name.
A air foil needs to have a small amount removed to blend the throttle bores but they were sold with them.
The 89/92 tb has the iac passage connected to the throttle bores. If this was put on a 89-92 plenum the iac would not be functional to control idle.
There is break through on two holes from boring. The lh side hole wasn't block off with that iac housing. That would cause a big vacuum leak. No one who bored out the tbs marked them with there name.
A air foil needs to have a small amount removed to blend the throttle bores but they were sold with them.
Thread Starter
Joined: Jun 2009
Posts: 863
Likes: 33
From: Bellflower, CA
Car: 89 Formula, 85 Trans AM & 91 Bird
Engine: 5.0 CARB, 5.7L TPI & 3.1L V6
Transmission: T-5/700R4/700R4
Axle/Gears: 9 Bolt & 10 Bolt X2
Re: ASM 52mm Throttle Body $200 (USED)
TPIS, Lingenfelter, AS&M and eBay - you use to be able to get your 48mm bored out.
The 89/92 tb has the iac passage connected to the throttle bores. If this was put on a 89-92 plenum the iac would not be functional to control idle.
There is break through on two holes from boring. The lh side hole wasn't blocked off with that iac housing. That would cause a big vacuum leak.
No one who bored out Throttle Bodies marked them with there name.
A air foil needs to have a small amount removed to blend the throttle bores but they were sold with them.
The 89/92 tb has the iac passage connected to the throttle bores. If this was put on a 89-92 plenum the iac would not be functional to control idle.
There is break through on two holes from boring. The lh side hole wasn't blocked off with that iac housing. That would cause a big vacuum leak.
No one who bored out Throttle Bodies marked them with there name.
A air foil needs to have a small amount removed to blend the throttle bores but they were sold with them.
