I am looking for an alternator bracket and the rear power steering pump bracket for an 86 Trans Am.

The power steering pump bracket is the curved bracket that mounts to the front of the block and to the front most driver side exhaust manifold stud. The stud on the back of the PS pump passes through it.

As a side, I would also be interested in the ECM wire harness and the sensor wire harness (other engine harness that passes through the firewall on the driver side) for an 86 TA as well. This is a carb setup with a manual transmission. I am also on the hunt for the OE battery cable set.

Thanks in advance.

[UPDATE]

Looking for one final piece. Looking for the bar that bolts to the intake manifold and runs to the top of the AC compressor bracket. Not entirely sure how necessary this particular brace is, but...

Thanks again



Are you still looking? Here are the brackets off my 87 Camaro. I think the brackets you are asking about are the top right and bottom right.



bump



I might still have the engine bay wiring ,..... Still need it ??

Still looking for the other brackets,... or do you JUST need the AC support brace ??



I'd be interested in the harnesses if they are complete and not damaged.

I have all the other brackets at this point. Just need that brace that runs from the top of the AC bracket to the intake manifold hole on the driver side of the carb.



Electric Fan ??

ZIP code ??


I'm going to verify that the harnesses are correct and will re-post better details once I know more.



Yep.

Electric fan, carb, manual transmission, computer controlled dist., etc.

making the car as close to original as possible.

17847 zip



Hi Again ( Sorry - don't know your name ! )

I looked thru my wiring and I DO have the correct ECM harness for a carb / stick. I found only 2 wires spliced,..... looks like it's for the temp sensor. This is VERY common because the aftermarket temp sensors often came with a new plug & required the factory plug to be removed.

I also found a carb/manual Engine harness with the electric fan,.... but it's from a Z28; meaning that it doesn't have the 2 VSS wires for a Firebird electric speedo. I didn't know if you would still be interested due to the need to splice or re-pin those 2 wires.

On the AC bracket..... I can't help without knowing more. I've got a few 'rod' type brackets - but no way to know for sure that the ones I've got are correct for the Carb AC set-up. ( I probably have it - just can't be sure ! )

I did not have a chance to look for the battery cables you mentioned in your classified. Do you still need those too ??



Thanks. I will keep looking for the wiring harnesses. I think I might have found the ones I need, but I have to double check.

I will see if I can get a picture of the brace I need for the AC tonight when I get home.

As far as the battery cables, I can get a picture of the set that came off my other car. That one is in tact. The car I am working on right now, it's not even close.

I will try to get both posted tonight.

Thanks.



I've GOT the Carb, T5 ECM harness.

I DON'T have the Firebird Engine harness.

I should have the AC rod and should have the Carb cables,.... I'll compare to your pics once they get posted.



Ok, you had mentioned you found spliced wires. I am hoping to find without splices if possible.

Here are the pictures of the support brace for the AC and what the full set of battery cables looks like together, both the positive and negative side. I am currently only in need of the positive side battery cables, but a full set uncut with the clips would be fine with me.

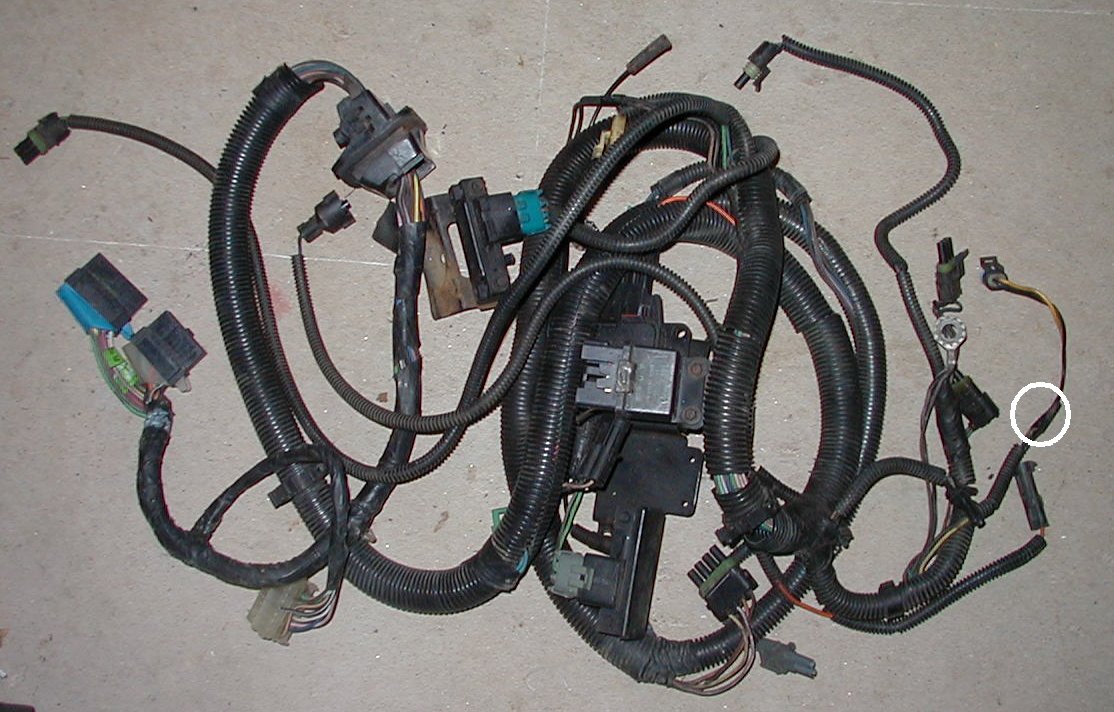

FYI: I've got 4 carb/ECM harnesses ( 3 are auto ) and all of them have that plug spliced.

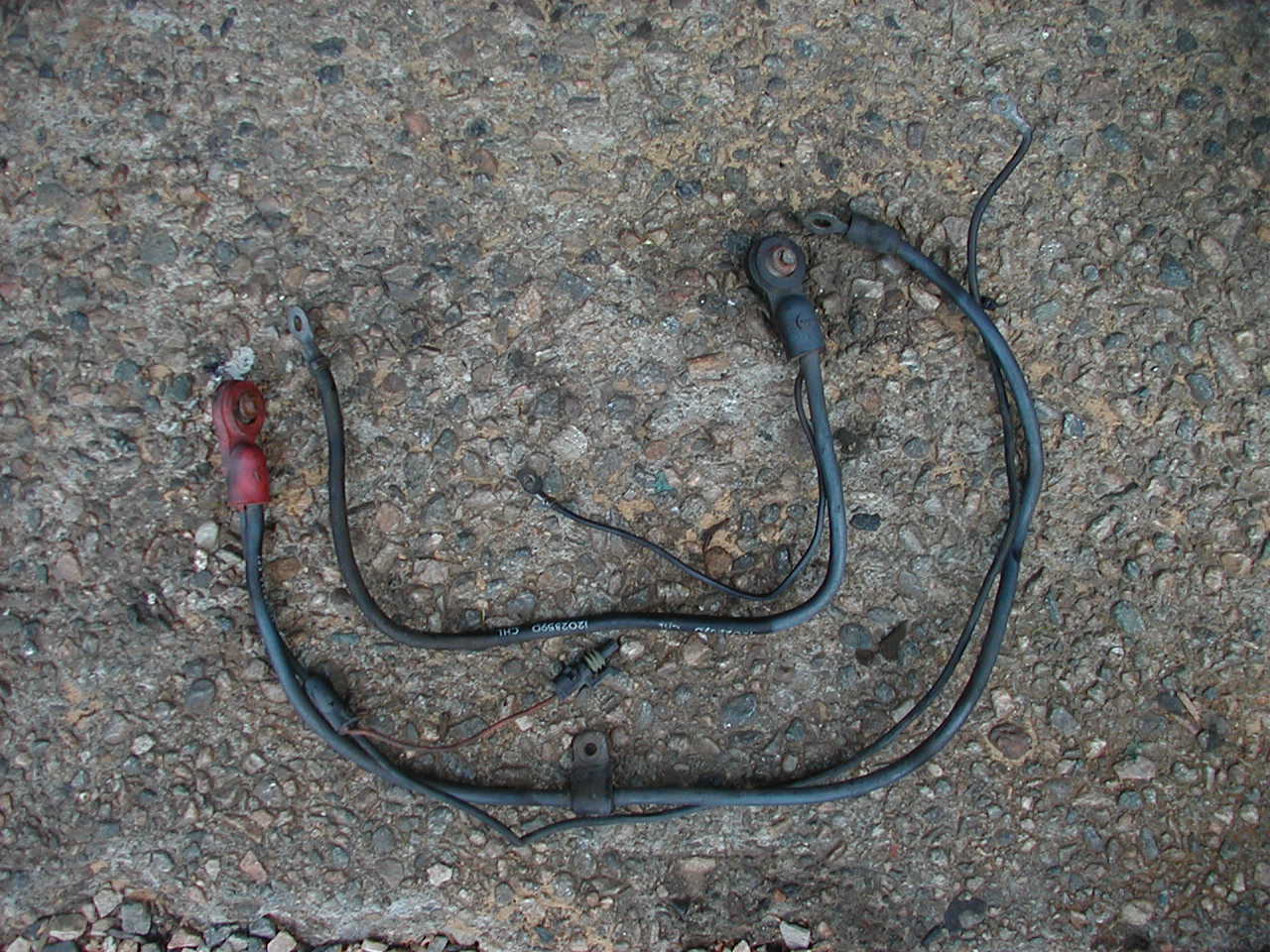

Here are some pics:



How much for all three of those things you posted pictures to shipped to 17847?



$120 + shipping.

Priority Mail / Insurance = $20.


If you need my info, just send me a PM.



PM sent
